characteristic

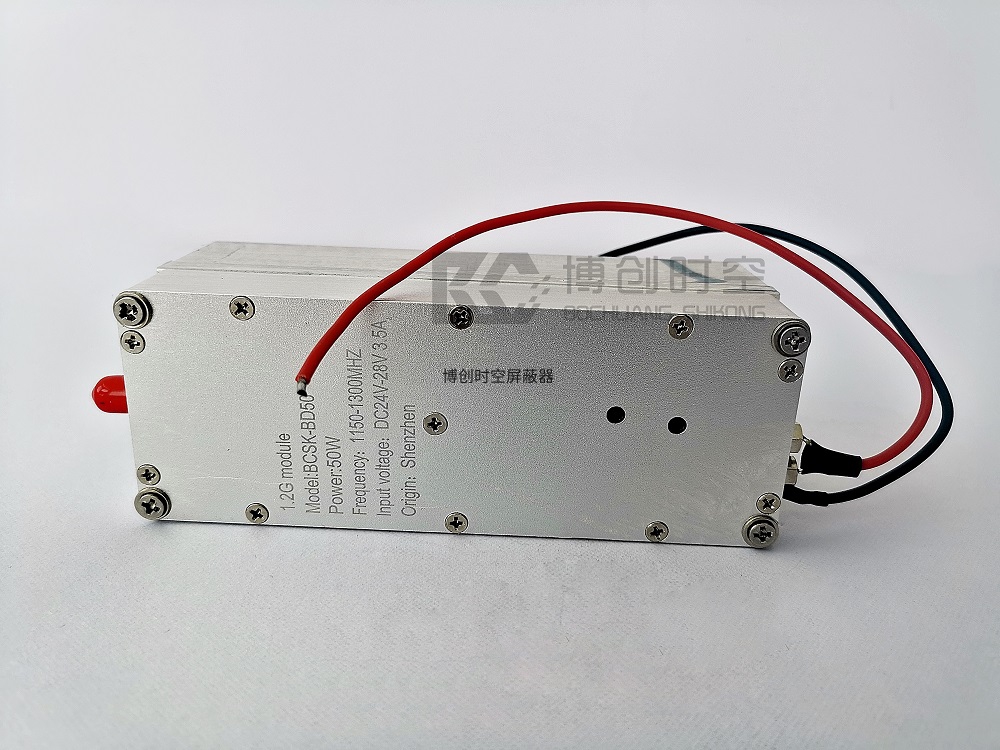

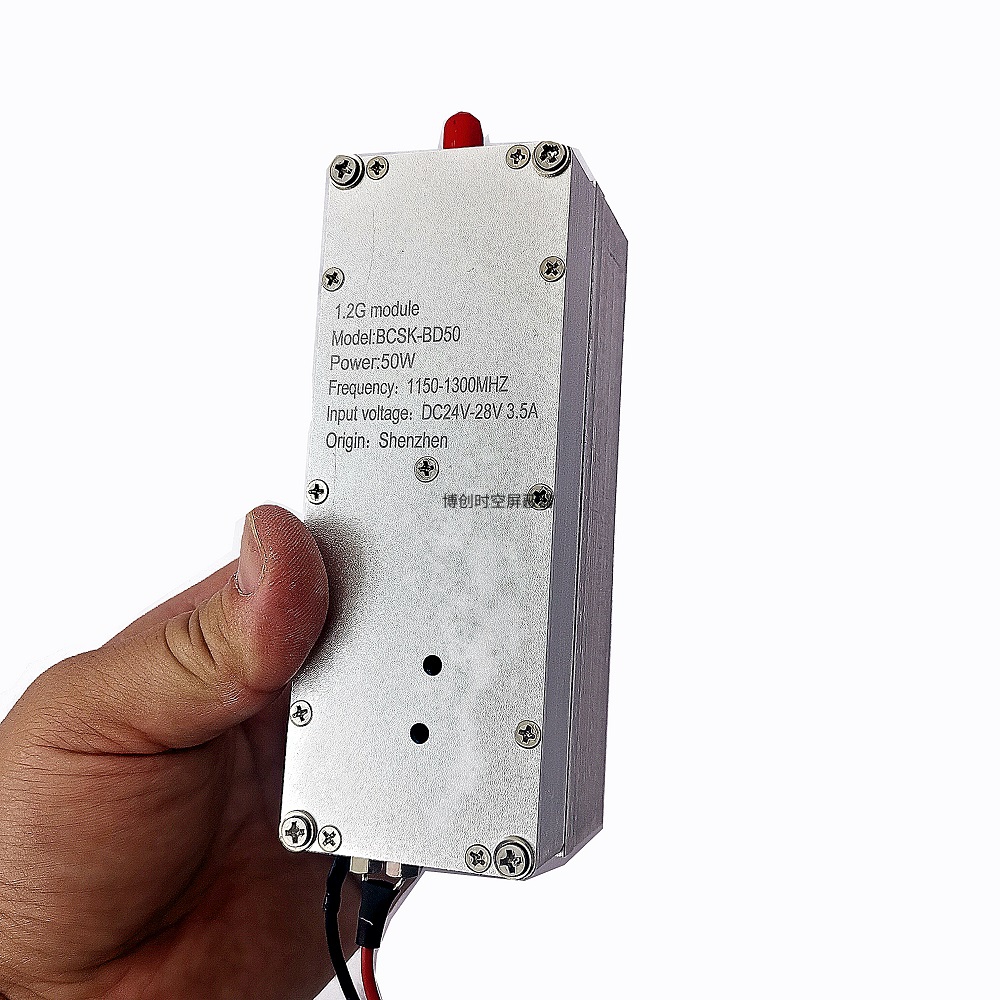

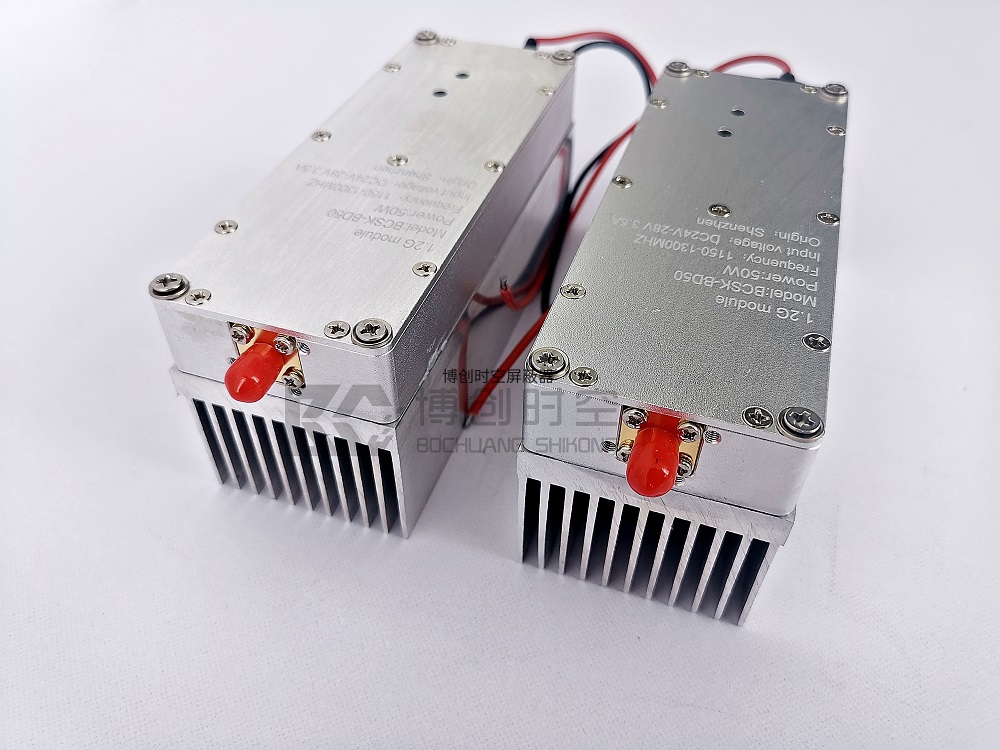

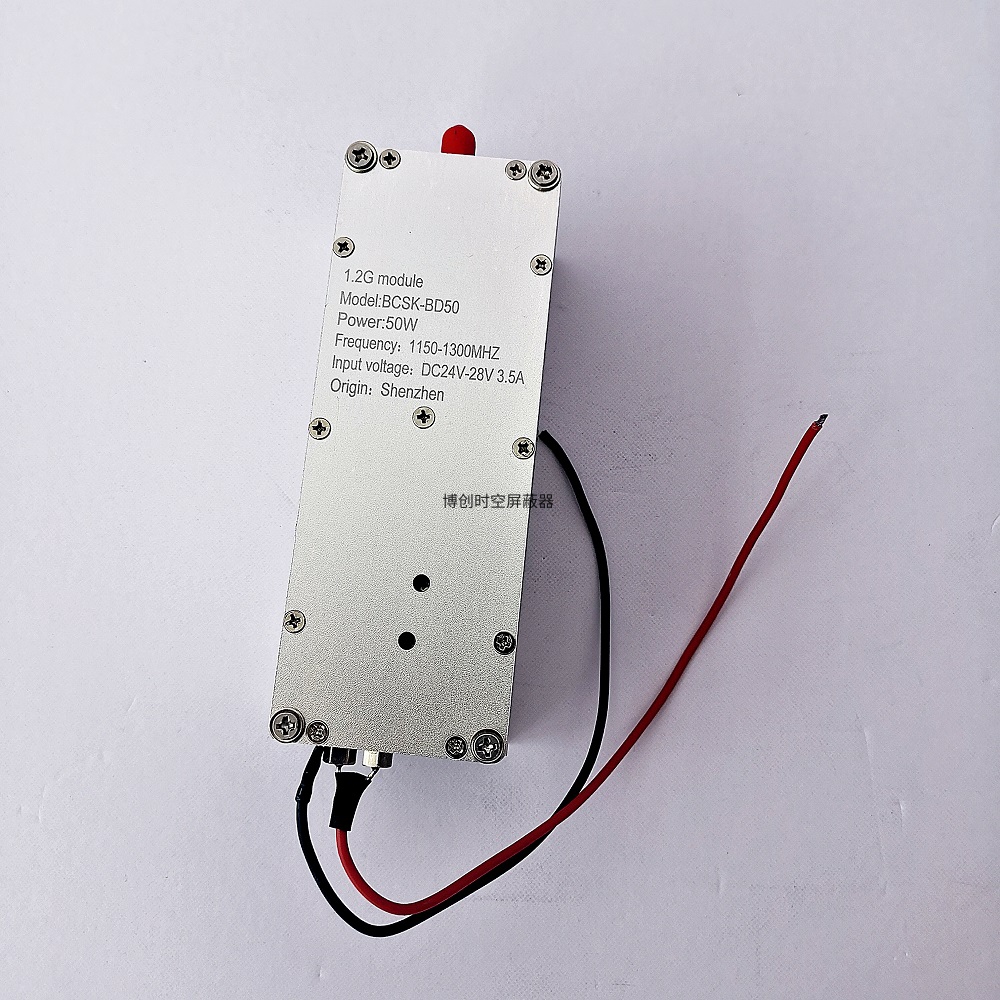

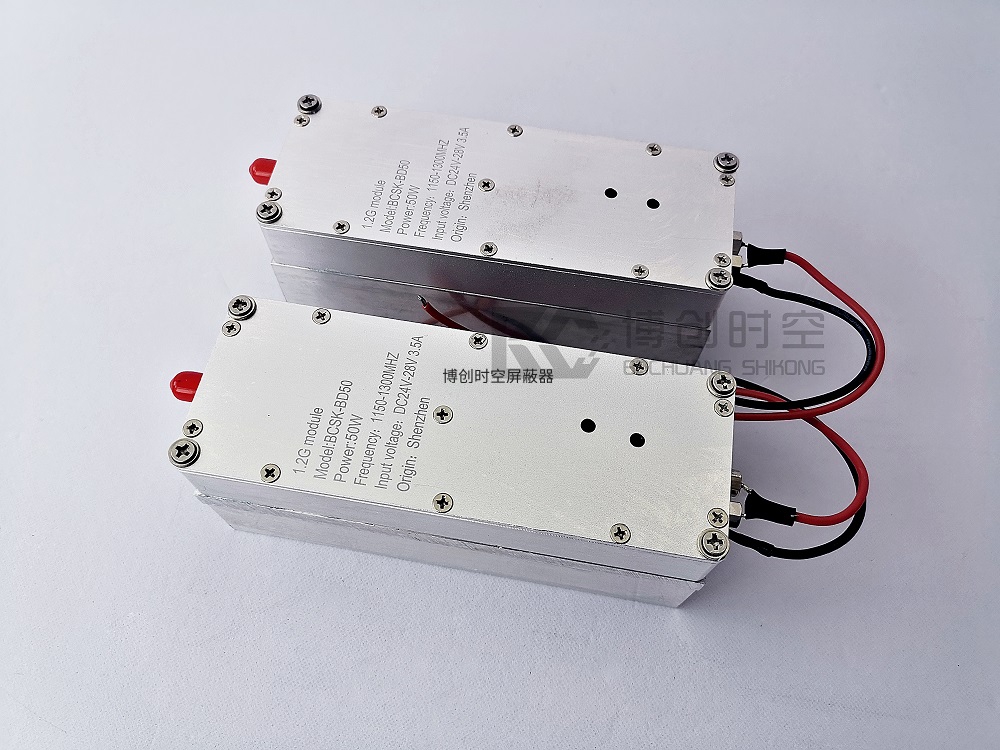

*This is the module output power of the high power amplifier of Bochuang Space time brand, which is 50W, covering an ultra wide frequency range of 1150 to 1300MHz.
*The module can work stably at - 20~65 º C
*The working efficiency of 50W module exceeds 95%
*Ultra high temperature protection, automatic shutdown when the temperature exceeds 75 º C, automatic restart when the temperature is lower than 50 º C
1.2GG power amplifier transmitter, automatic undervoltage power-off protection function.
*The original imported chips are used for the Beautron space-time modules. Each module has been aged for 24 hours, frequency calibrated, and power tested before leaving the factory. The frequency of each module is square and the power is sufficient.

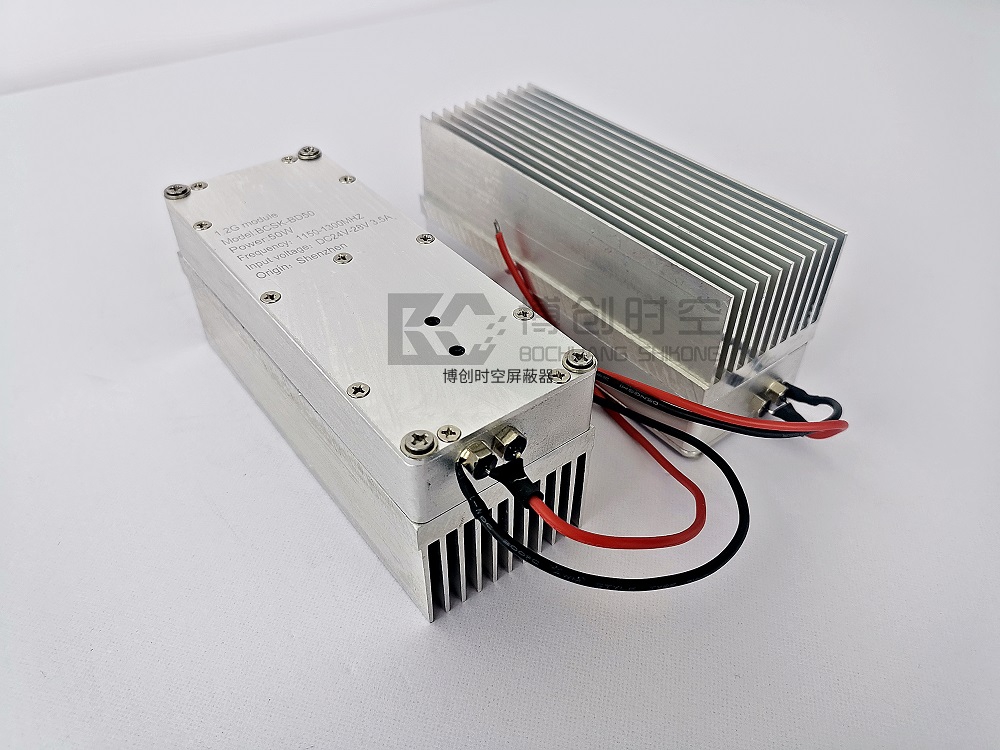

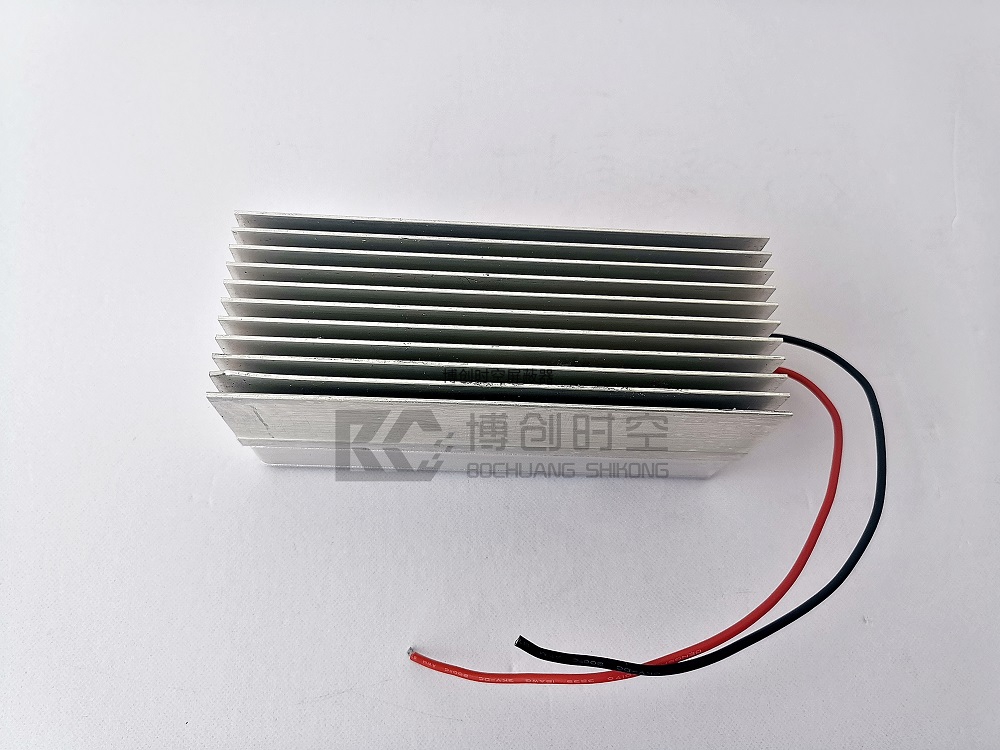

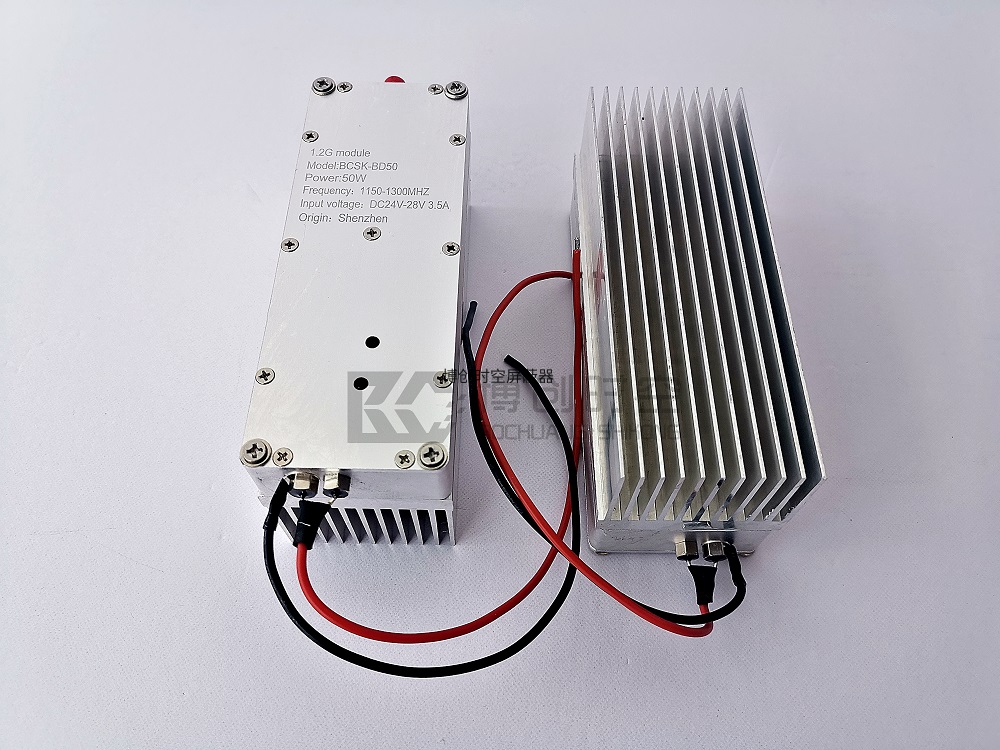

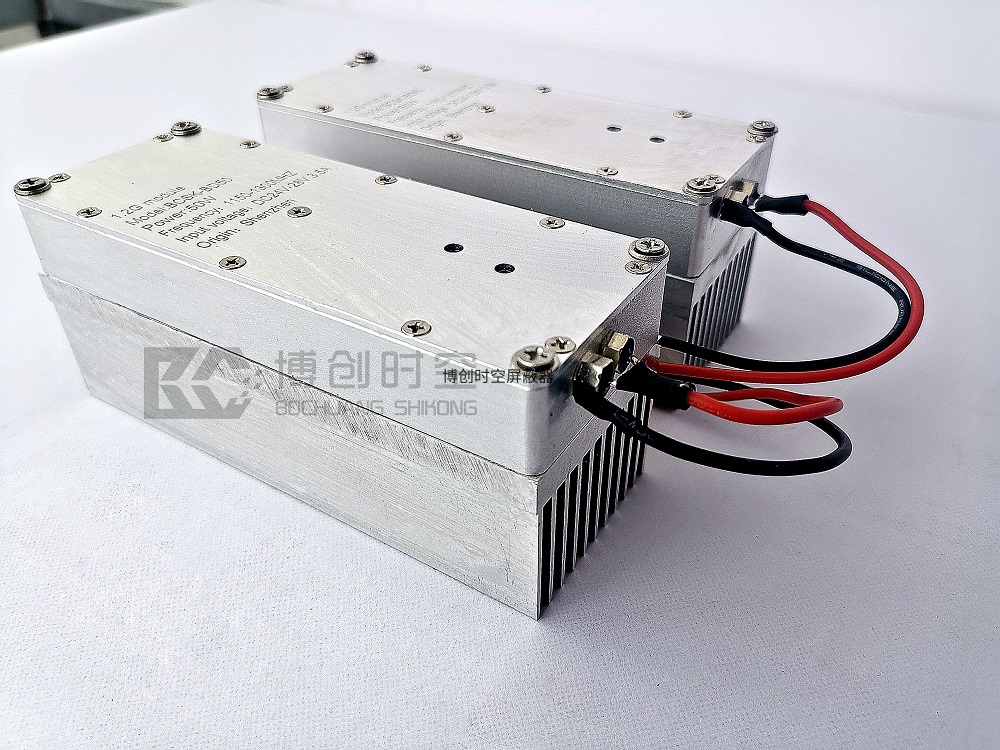

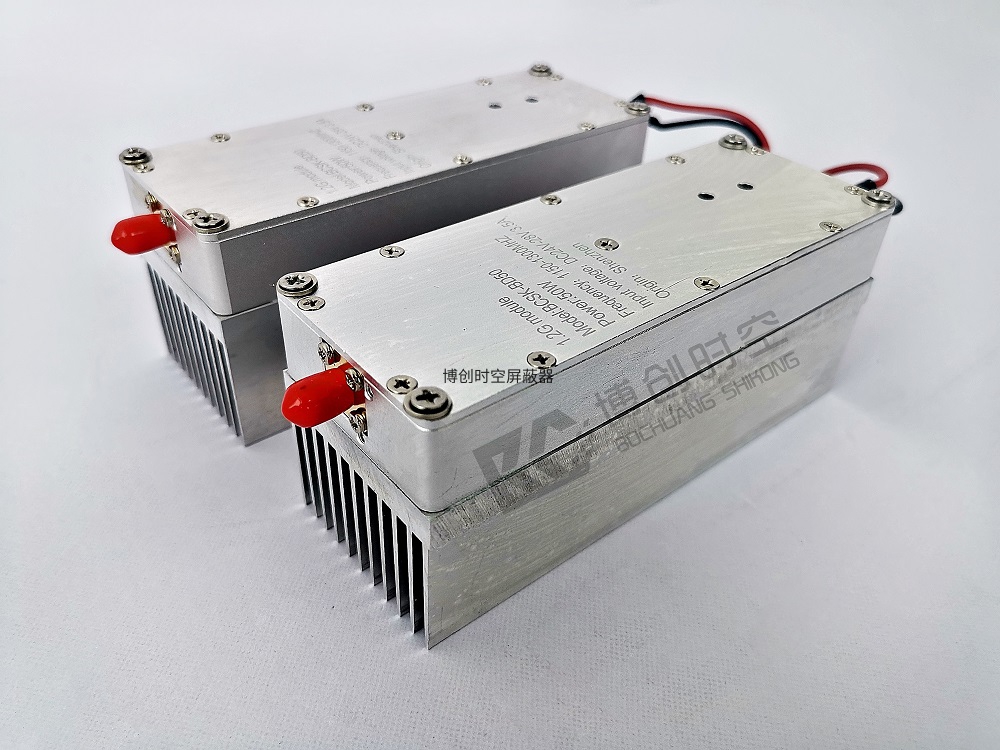

*Each module of Bochuang space-time brand is equipped with aluminum alloy sawtooth radiator and high gain directional transmission antenna.
Technical specifications
| Item | 1.2G jammer power amplifier module | Remark |
| Brand: Bochuang Time and Space | Model: BCSK-BD50 |
|
| Frequency range | DO：1150~1300 MHz |
|
|
| Maximum input power | 47dBm | 50W |
|
| Output power | ≥47dBm | ≤-20 dBm |
|
| Maximum antenna gain | ≥20dBm | ±5dB |
|
| In-band flatness | ≤±1 dB |
|
| Gain tuning range | 1~25 dB |
|
| Gain tuning step | 1dB |
|
| ALC | ≥20 dB |
|
| Input port VSWR | ≤1.5 |
|
| Output port VSWR | ≤1.5 |
|
| Impedance | 50Ω |
|
| RF interface | SMA-50K -type female |
|
| Power supply | DC24V-28V |
|
| Working Current | ≤3.5A |
|
| Power dissipation | ≤180 W |
|
| Working temperature | -20~+65ºC |
|
| Ambient humidity | ≤95 |
|
| Monitor | Interface | RS-485（Optional） |
|
| Local | Query and alarm(√Gain /√Power/√Temperature/√VSWR);
Set(√ATT/√RF switch)（Optional） |
|
| Protection | Overtemperature | ≥85ºC RF Switch auto off
Return to 60 ºC auto on |
|
| Over VSWR | ≥3.0 RF Switch auto off |
|
| Heat radiation | Aluminum alloy radiator and fan for air convection heat dissipation |
|
| Power line length | 180mm |
|
| Size | 155 X48 X 55mm |
|
| Weight | ≤488g |
|
