2.4GHz Dual-Polarized Panel Antenna 1 5dBi High-Gain Directional WiFi Signal Booster BCSK-SJHPBTX2400
This 2.4GHz dual-polarized panel antenna (model BCSK-SJHPBTX2400) is designed for high-density wireless environments, supporting horizontal 120° and vertical 60° wide beam coverage with up to 15dBi gain. Ideal for enterprise Wi-Fi, industrial IoT, remote monitoring, and large venue signal enhancement. Featuring a metal reflector and dual circularly polarized elements, it effectively suppresses multipath interference while improving signal stability and penetration. Operating in the 2400-2500MHz band, it supports mainstream 802.11b/g/n protocols. Easy to install via wall-mount or bracket, this antenna is the ideal choice for network engineers seeking to optimize wireless coverage quality.
In Stock（50）
Product Overview
This model2.4GHzDual-polarized panel antennaDesigned for high-density wireless deployments; ideal for enterprise-grade Wi-Fi coverage, industrial IoT device access, and remote video surveillance.

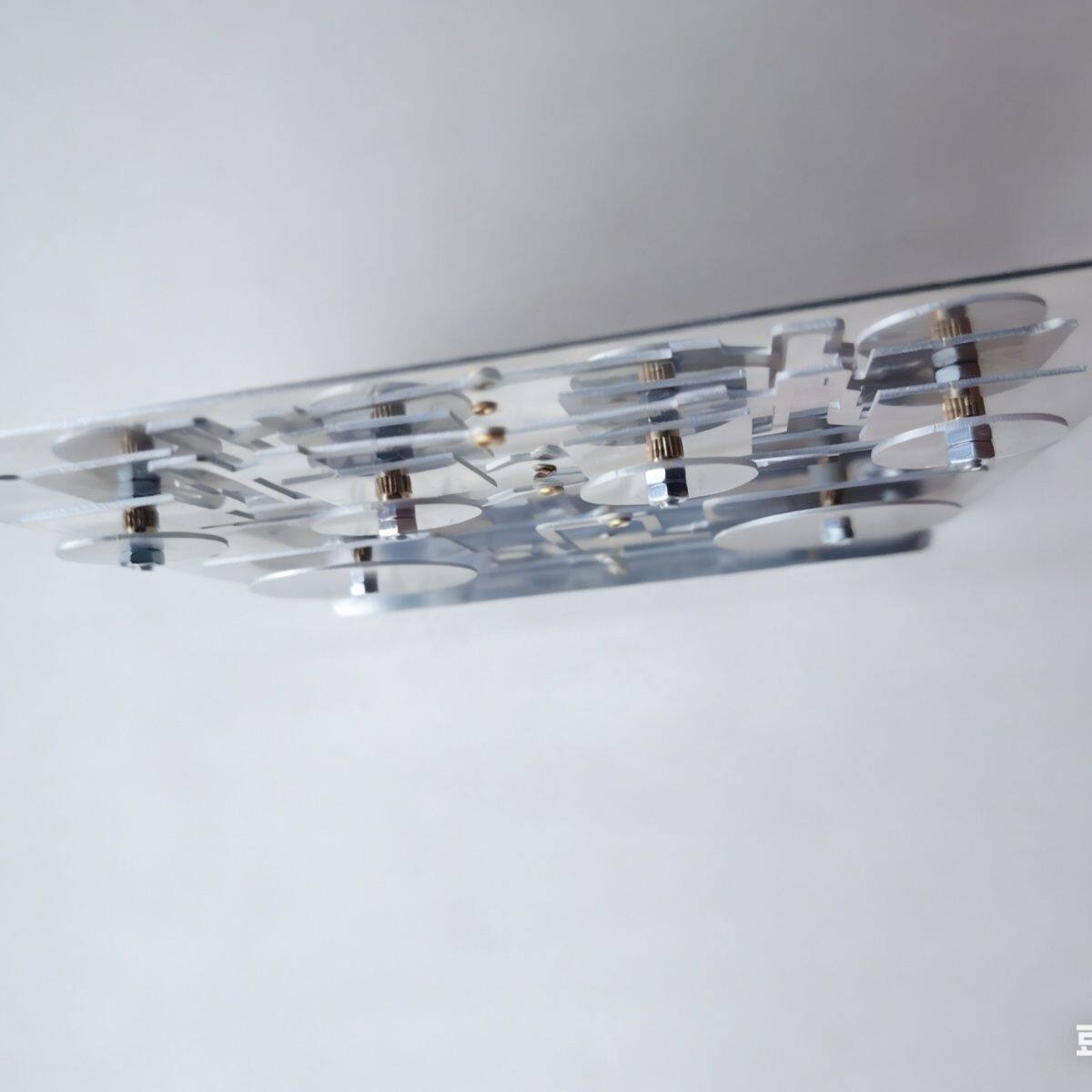

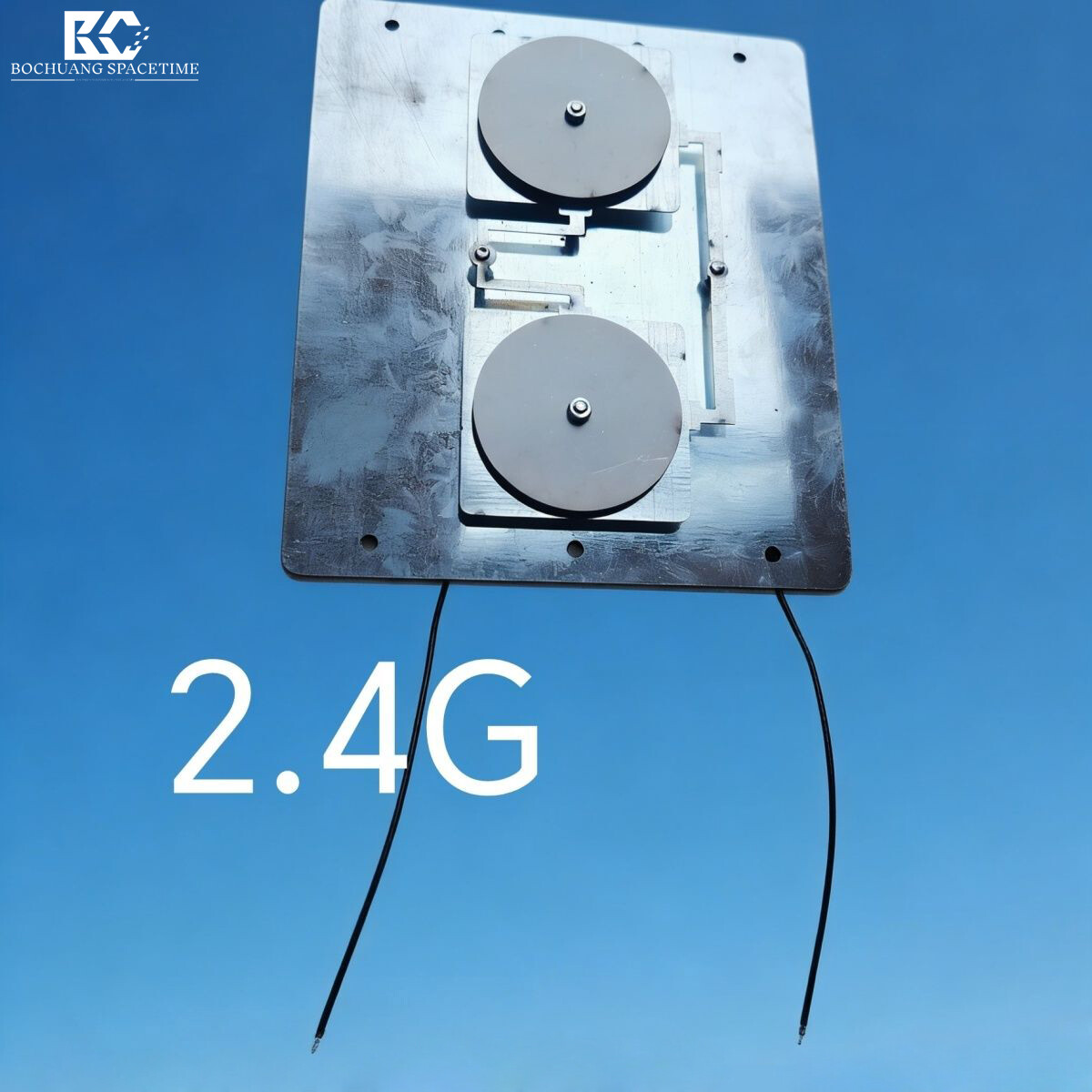

Signal enhancement engineering for systems and large-scale venues. Its core employs a dual-circularly polarized dipole structure combined with a metal reflector to optimize the radiation pattern, effectively suppressing multipath interference and improving...
Enhance link stability in complex electromagnetic environments. Operating frequency range: 2400-250 MHz, compatible with mainstream 802.11b/g/n protocols, supporting horizontal 120° and vertical 60° wide-beam coverage.
Narrow beam coverage with up to 15dBi gain enables long-distance directional transmission and high-penetration signal coverage—an ideal choice for network optimization engineers seeking to enhance wireless coverage quality.
Performance Features

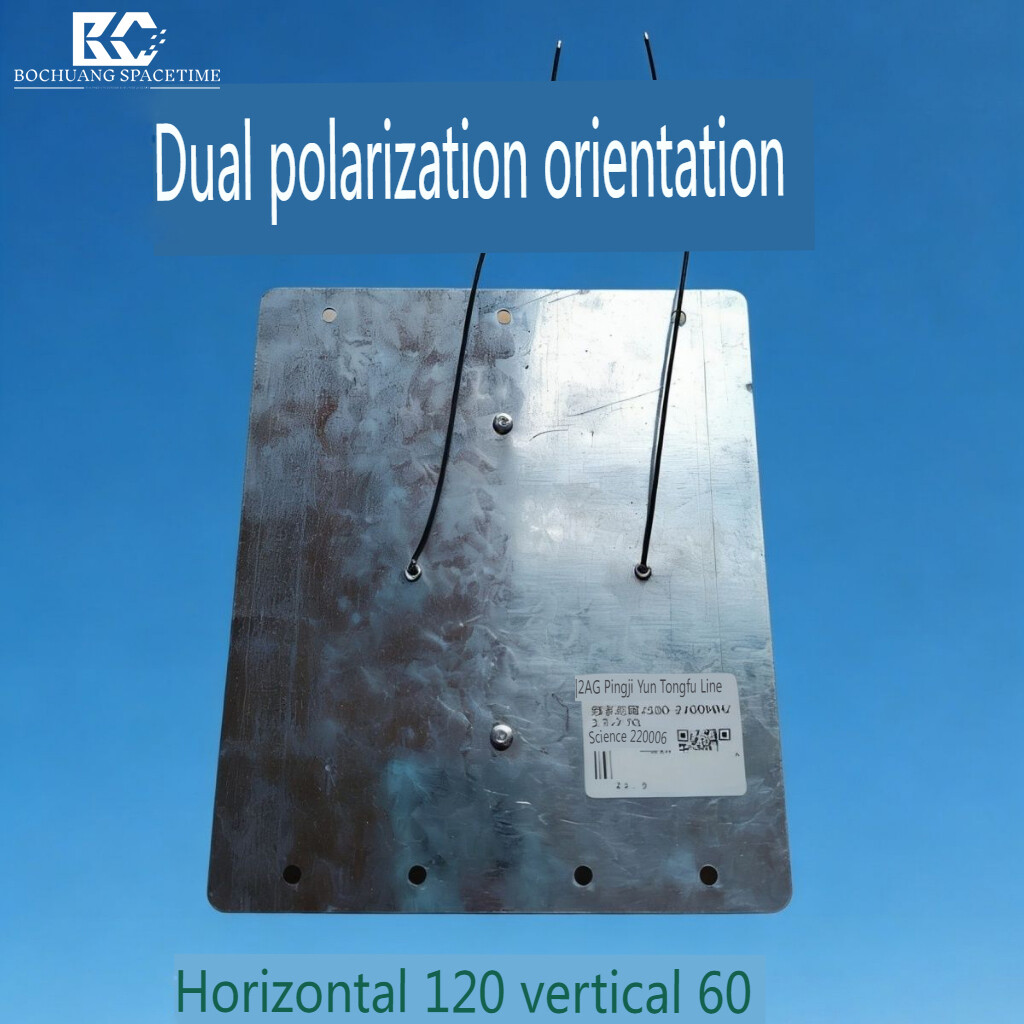

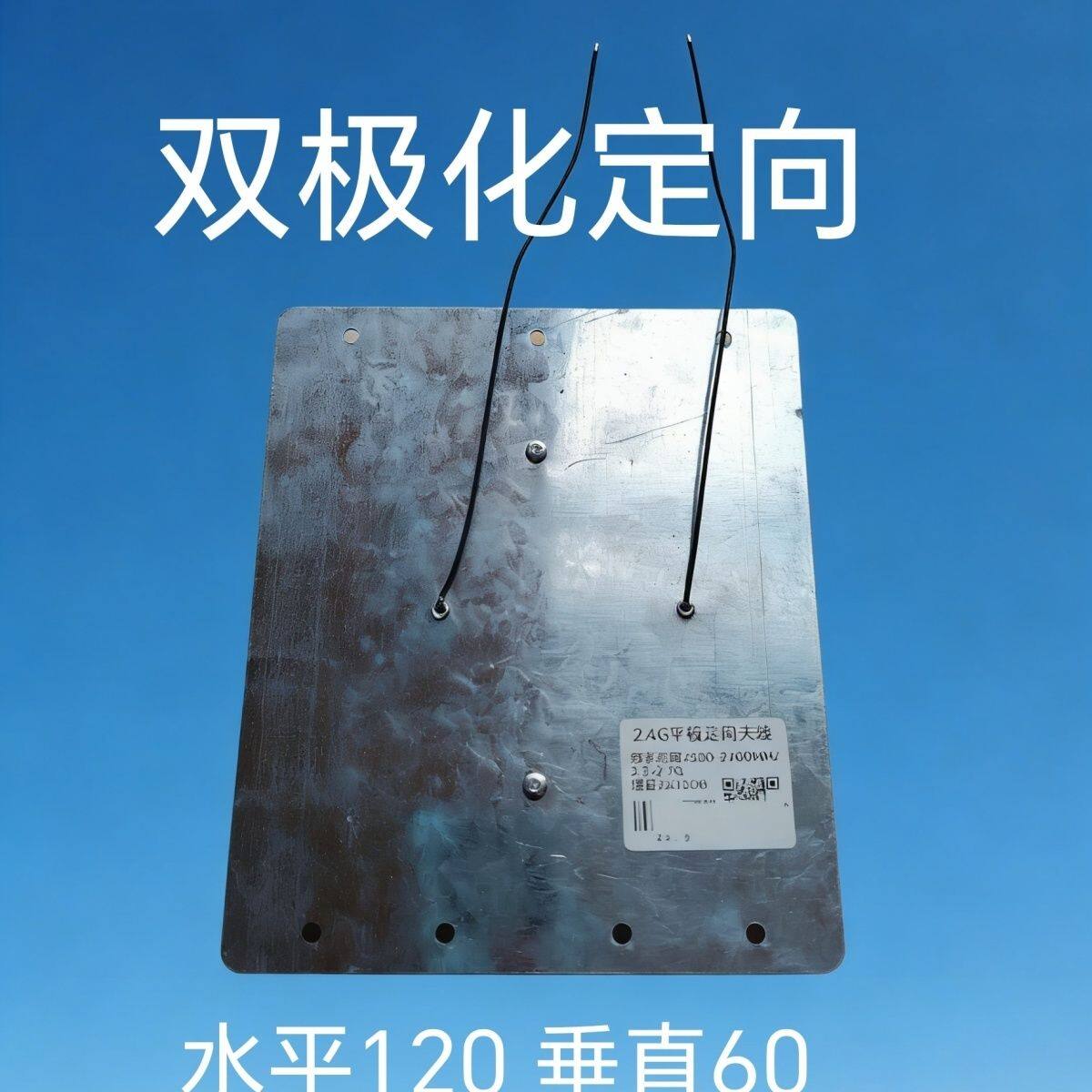

Dual-polarized design for strong interference resistance: Supports horizontal and vertical dual-polarization reception to effectively reduce multipath fading, improve SNR and connection reliability, especially suitable for metal environments.
Industrial environments with dense structures or complex reflective surfaces.
High-gain directional coverage: 1 5dBi gain with precise beamforming enables stable long-distance point-to-point or point-to-multipoint transmission, ideal for industrial parks, warehouses, and campuses.
Wide coverage.
Wide beam angle for flexible deploymentBeamwidth of 120° horizontal and 60° vertical balances coverage breadth with directionality, reduces blind spots, adapts to various installation angles and heights, and lowers...
Construction complexity.
Industrial-grade, rugged and reliable: Features an aluminum alloy reflector and rust-resistant fasteners for superior heat dissipation and wind load resistance, designed for reliable long-term outdoor operation with low maintenance.
Low cost.
Plug-and-play with high compatibility: Standard SMA/N-typeConnectorInterface (configurable by model) for seamless integration with mainstream APs, bridges, and CPE devices—no additional tuning required.
Short project delivery cycles.
Parameter Table
Parameter Item | Specification Value |
|---|---|
Model | BCSK-SJHPBTX2400 |
Operating Frequency Band | 2400–2500 MHz |
Polarization Mode | Dual-polarized (Horizontal + Vertical) |
Gain | 15 dBi |
Horizontal Beamwidth | 120° |
Vertical Beamwidth | 60° |
Interface Type | SMA/N-typeConnector(As configured) |
Material | Aluminum Reflector Plate + Stainless Steel Fasteners |
Installation Method | Wall-mounted / Bracket-fixed |
Applicable Agreement | 802.11b/g/n |
Operating Temperature | -40°C ~ +70°C |
Ingress Protection Rating | IP65 (optional) |
Frequently Asked Questions (FAQ）
Q1: Does this antenna support the 5GHz band?
This model is optimized for the 2.4GHz band and does not support 5GHz. For dual-band coverage, we recommend pairing it with a separate unit.5GHz AntennaOr use a dual-band unified device.
Q2: Does 15dBi gain mean a longer transmission range?
Yes. High gain boosts effective radiated power and extends transmission range, but requires precise alignment and a clear line of sight. Actual distance varies based on environmental interference and transmit power.
and comprehensive impact on receive sensitivity.
Q3: Is it suitable for outdoor installation?

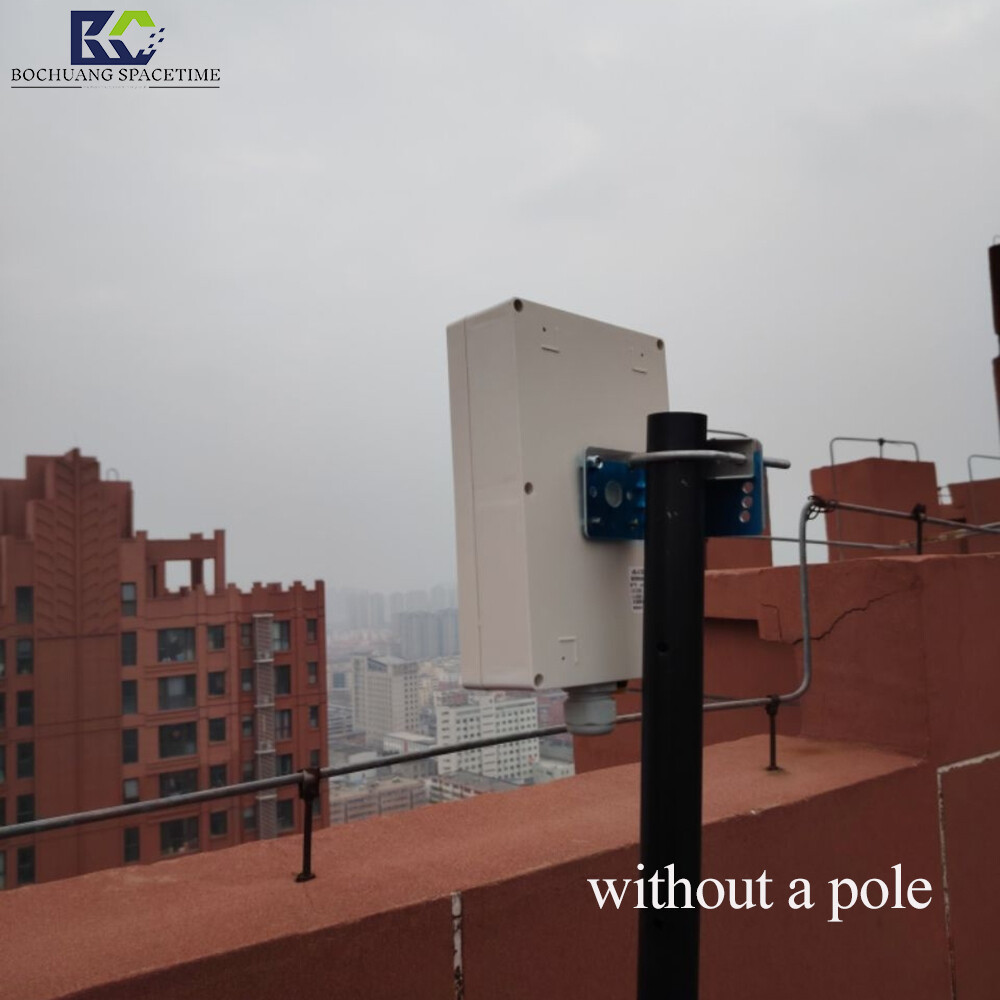

Yes. The main body is constructed from industrial-grade aluminum alloy with a rust-resistant design. An optional IP65 protective cover ensures durability in outdoor environments exposed to rain, wind, and dust. We recommend installing a lightning protection grounding module for added safety.
Ensures long-term stable operation.
Q4: How do I verify that the polarization direction is correct?
A: Ensure during installationAntennaPolarization direction must match the peer device (horizontal to horizontal, vertical to vertical). You can rotate the antenna to test for peak signal strength or
Use a spectrum analyzer for calibration assistance.
Q5: Do you offer custom beam angles or gain versions?
A: Supports OEM/ODM customization. We can adjust beamwidth, gain, or interface type based on your project requirements. Please share your specific use case and technical parameters for a tailored solution.
Exclusive solutions for you.
High-gain 1 5dBi directional antenna for warehouse coverage
2400-250 MHz panel antenna with wide beamwidth
Compare specs within the same series
Compare frequency bands, power, gain, and interfaces by model in a horizontal layout. Parameters are parsed from the model title; unlisted items display as dashes.
| Model | Frequency Band | Power | Gain | API |
|---|---|---|---|---|
BCSK-SJHPBTX2400Current Model | 2.4 GHz, 4 GHz | — | 15 dBi | — |
| 2 GHz, 3 GHz, 4 GHz | — | — | — | |
| — | — | — | — | |
| 420 MHz, 5.8 GHz | — | — | — | |
| 420 MHz, 5.8 GHz | — | — | — | |
| 2 GHz, 5 GHz | — | — | — |
FAQ
Which frequency bands does BCSK-SJHPBTX2400 cover?
Operating frequency: 2.4 GHz. Please verify the carrier bands at your deployment location or the target link before placing an order. Contact us for custom band configuration if needed.
For which scenarios is BCSK-SJHPBTX2400 suitable?
This model is designed for communication transmission and receiving antenna projects. Please provide details on the site structure, target link, and operating environment so we can recommend a suitable configuration.
Does BCSK-SJHPBTX2400 support customization and bulk purchasing?
Supported. Customization available for frequency bands, interfaces, housing markings, and packaging. Samples can be used for evaluation and validation; test records are provided with bulk shipments.
What is the procurement process for BCSK-SJHPBTX2400?
Step 1: Submit your target frequency band, power level, and quantity. We'll provide a quote and recommended configuration within 1 business days. Step 2: Confirm sample specifications and testing requirements. Upon successful sample approval, place the order and pay the deposit. Step 3: Manufacture according to the confirmed frequency band combination and conduct factory testing. Include test records and packing list with shipment. Step 4: Ship per agreed trade terms. Pay the balance and receive all documents before shipment.
Does BCSK-SJHPBTX2400 support prototyping and small-batch purchasing?
Samples are available for system integration and field testing, configurable at 2.4 GHz, 4 GHz, or rated power. Minimum order quantities (MOQ) are confirmed based on model, frequency band combination, and appearance customization requirements. Sample costs will be handled per agreement in the formal order.
How should the lead time and test data for BCSK-SJHPBTX2400 be agreed upon?
Production is scheduled by quantity and frequency band upon order confirmation. Lead time, test items, and acceptance criteria are included in the quote. Power, gain, and VSWR data for this model are available. Please specify if third-party testing is required before placing the order.
How are the export packaging and certification documents for BCSK-SJHPBTX2400 handled?
Modules are shipped in anti-static packaging with reinforced outer boxes. The complete unit includes additional cushioning and moisture protection based on its form factor. Copies of existing certification documents are available; certified model coverage is subject to the certificate terms. Target market compliance requirements must be confirmed prior to order placement.
