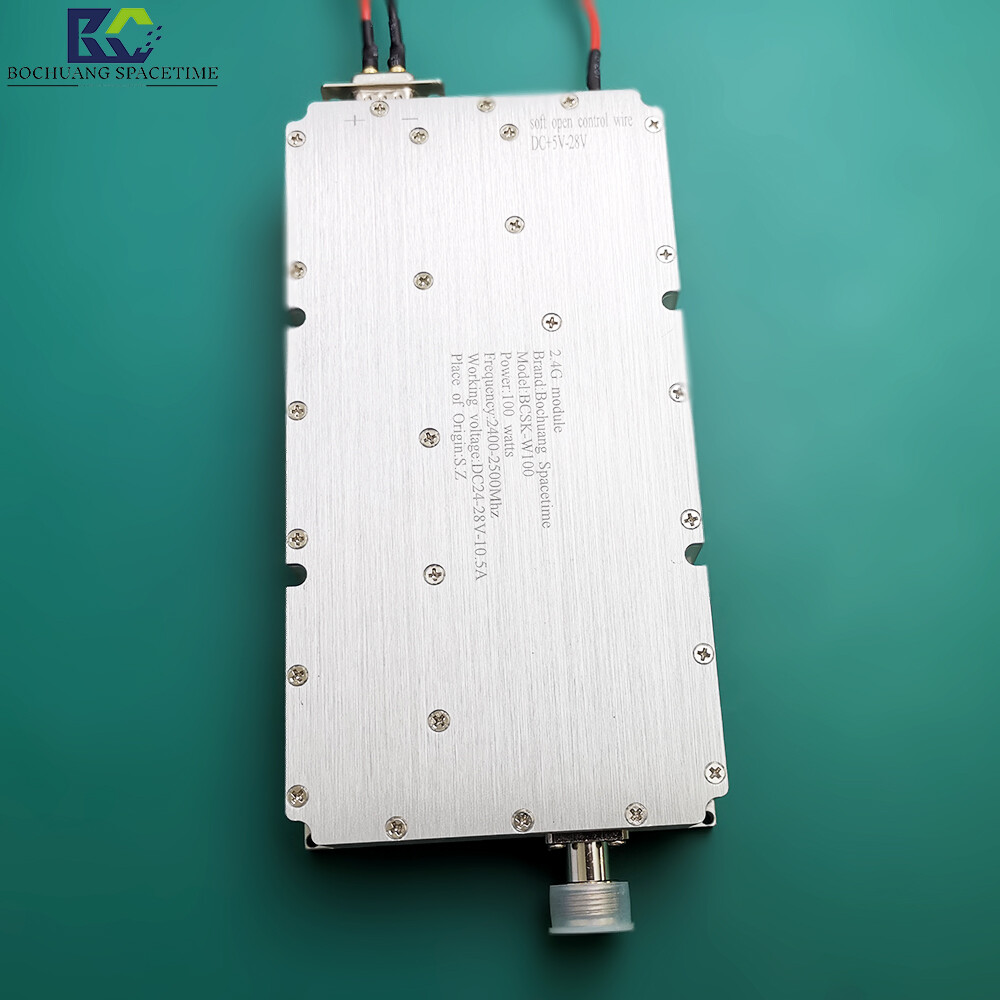

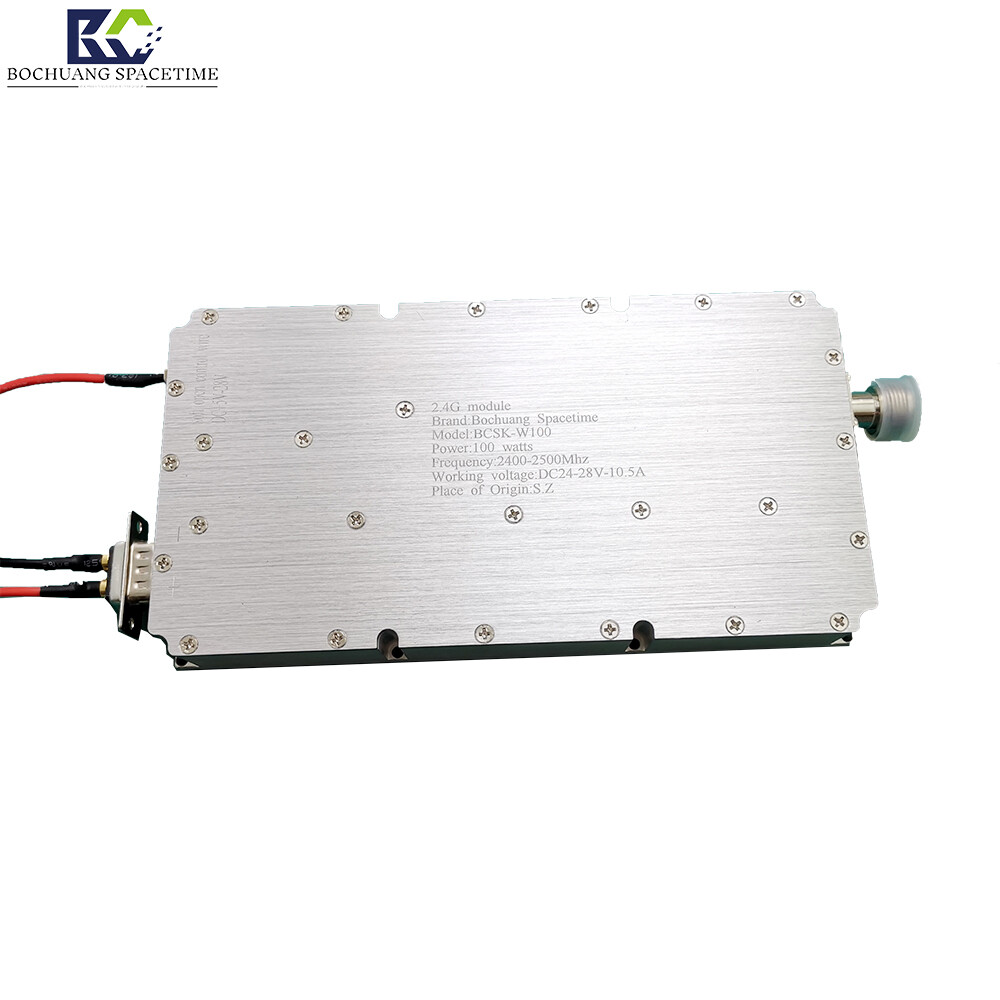

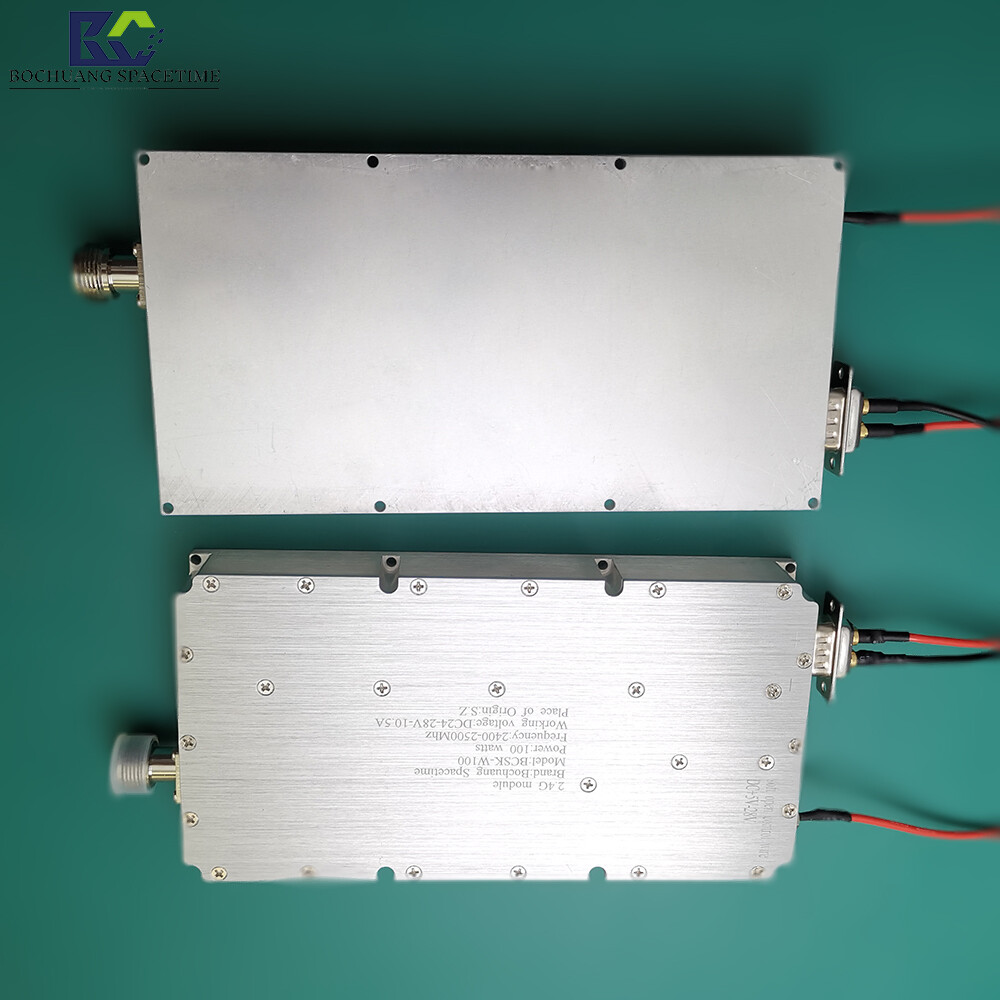

2400MHz-2500MHz 100W Drone Countermeasure Module BCSK-W100 High-Efficiency RF Defense Core Component
As a professional provider of drone countermeasure modules, we are proud to introduce the BCSK-W100 model 2.4G high-power RF amplifier. This module precisely covers the mainstream drone communication bands from 2400 to 2500 MHz and delivers a robust 100W output power. Supporting a wide voltage input range of DC 24V-28V (10.5A), it serves as the core power unit for building portable or fixed-site drone defense systems. The BCSK-W100 features an industrial-grade aluminum alloy shielded enclosure with superior heat dissipation, ensuring stability during extended continuous operation. Designed specifically for low-altitude security equipment, it effectively jams drone video transmission and remote control signals. It is widely deployed in airports, prisons, major event security, and sensitive area protection. Leveraging mature RF manufacturing technology, we provide global integrators with cost-effective RF interference power amplifiers, helping your countermeasure devices achieve longer interception ranges and higher reliability.

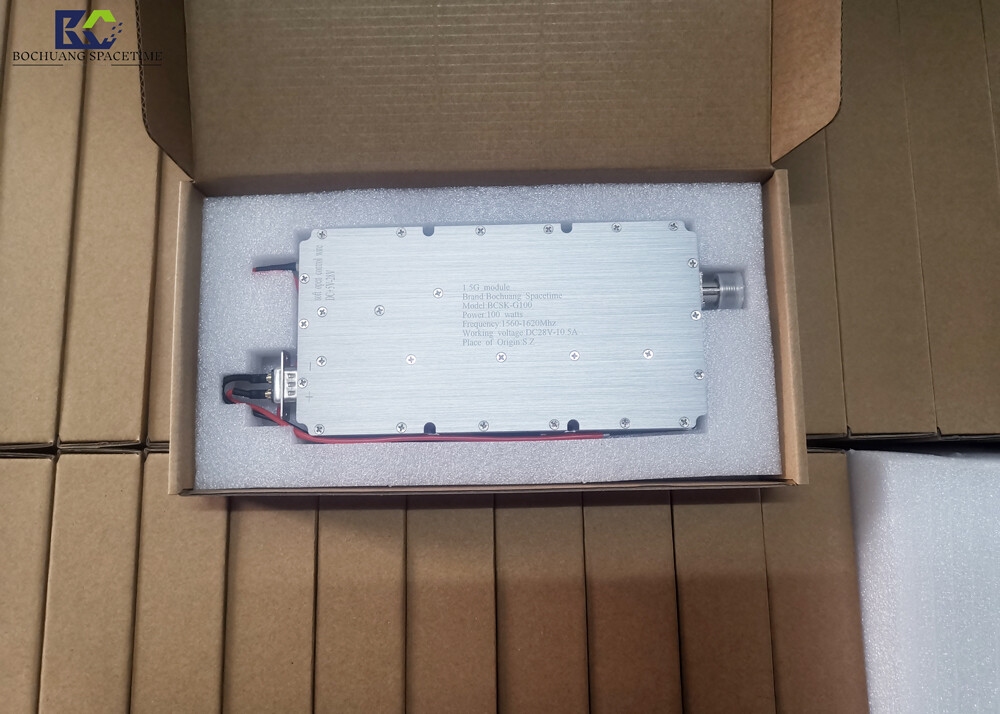

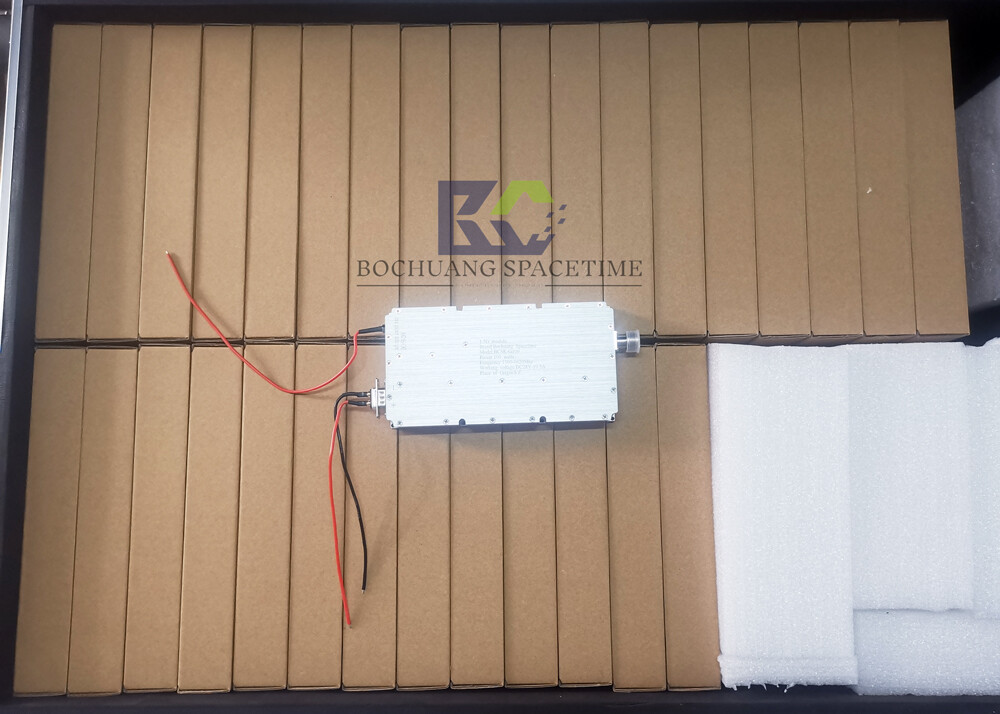

In Stock (500units
Product Overview
As the low-altitude security defense system becomes increasingly sophisticated, the performance of core RF components directly determines interception effectiveness. As a professionalDrone Countermeasure ModuleManufacturing
We are launching the BCSK-W100, a high-power RF amplifier unit designed specifically for 2 4G ISM bands. This module precisely covers the 2400-2500 MHz frequency range,
Delivers up to 100W of continuous wave output power, ideal for building high-performanceUAV Defense Systemcore power source.

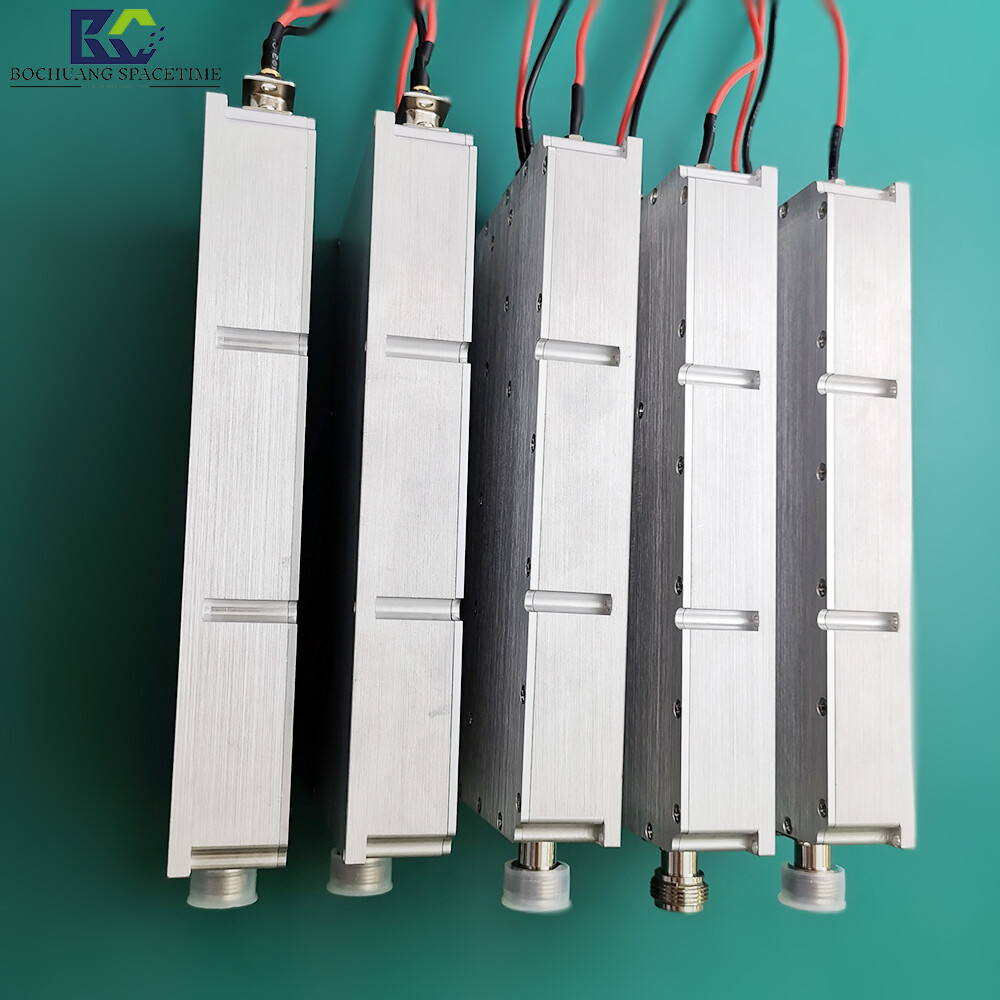

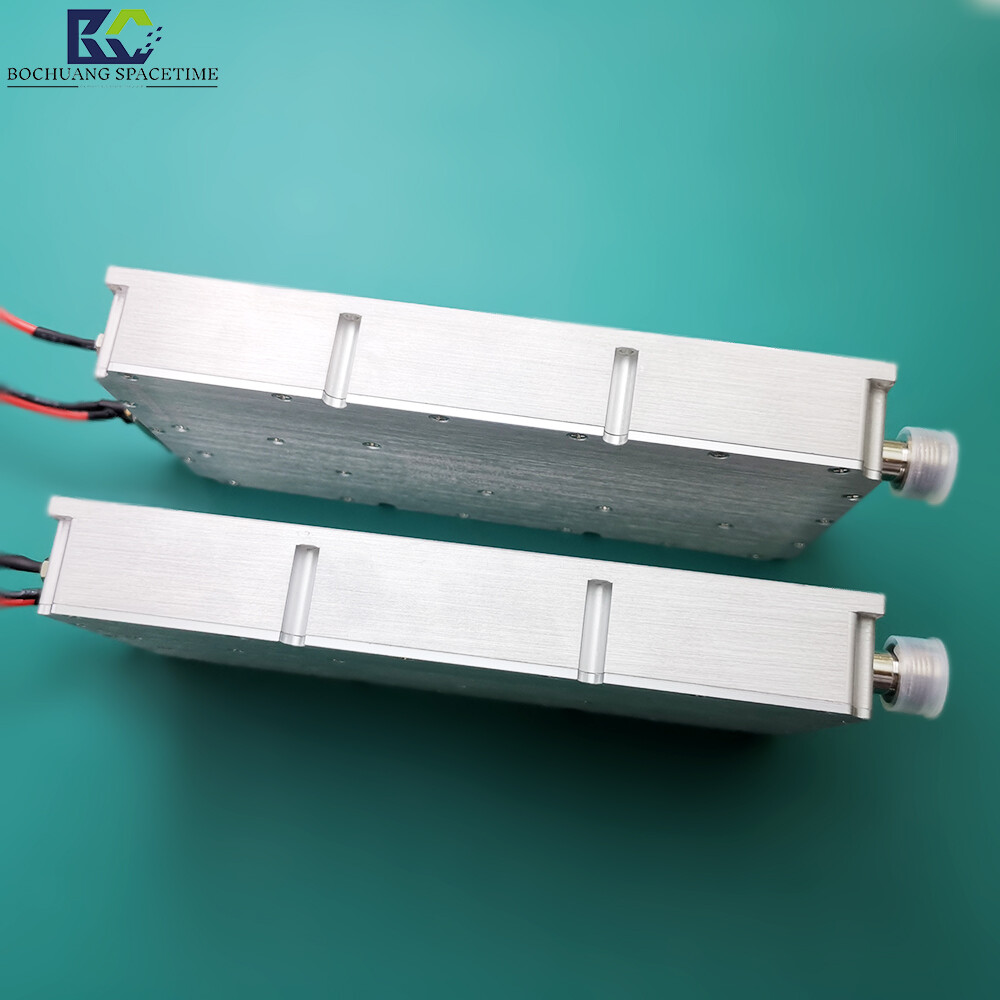

The BCSK-W100 features an industrial-grade aluminum alloy shielded enclosure, delivering excellent electromagnetic compatibility (EMC) and ensuring reliable long-term operation through precision thermal management.
operational stability. It is designed specifically forLow-Altitude Security EquipmentBuilt by integrators for portable jammers, fixed defense bases, and vehicle-based countermeasure platforms. Whether addressing consumer-grade...
Whether it's a high-end drone or a modified aircraft, this model2. 4G RF Interference ModuleDelivers powerful signal jamming capabilities to help your system maintain performance in complex electromagnetic environments.
Delivers exceptional defensive performance. We are committed to providing compliant, reliable solutions for B2B customers worldwide.RF Power Amplification Solutions, facilitating the deployment of low-altitude safety technologies.
Performance Features
Precise frequency coverageDeeply optimized for mainstream drone communication and video transmission bands from 2400 to 250 MHz, delivering excellent in-band flatness to ensureUAV Counter
ModuleSeamless coverage across the target frequency band to maximize interference effectiveness.
High power density outputDelivers 100W of saturated power output in a compact form factor, with industry-leading Power Added Efficiency (PAE). This high-efficiency design
Significantly reducedPortableDrone jammerpower consumption and thermal load.
Industrial-grade reliability design: Built-in multi-protection mechanisms including over-temperature, over-current, and VSWR protection. Even in cases of antenna mismatch or harsh environments, it
Effectively prevents module damage and meetsIndustrial-gradeRF Power Amplifierstringent standards
Wide voltage input adaptability: Supports a wide DC input range of 24V to 28V, compatible with common battery packs and vehicle power systems. The 2.5A rated current design includes headroom for
headroom to ensure stability during voltage fluctuations2. 4G Signal Jamming ComponentContinues to operate reliably.
Standardized, easy-to-integrate APIs: Equipped with standard SMA or N-type RF connectors (depending on configuration) and convenient power/control interfaces, significantly reducing R&D cycle time.
Period, isLow-Altitude Defense SystemIntegratethe ideal choice.

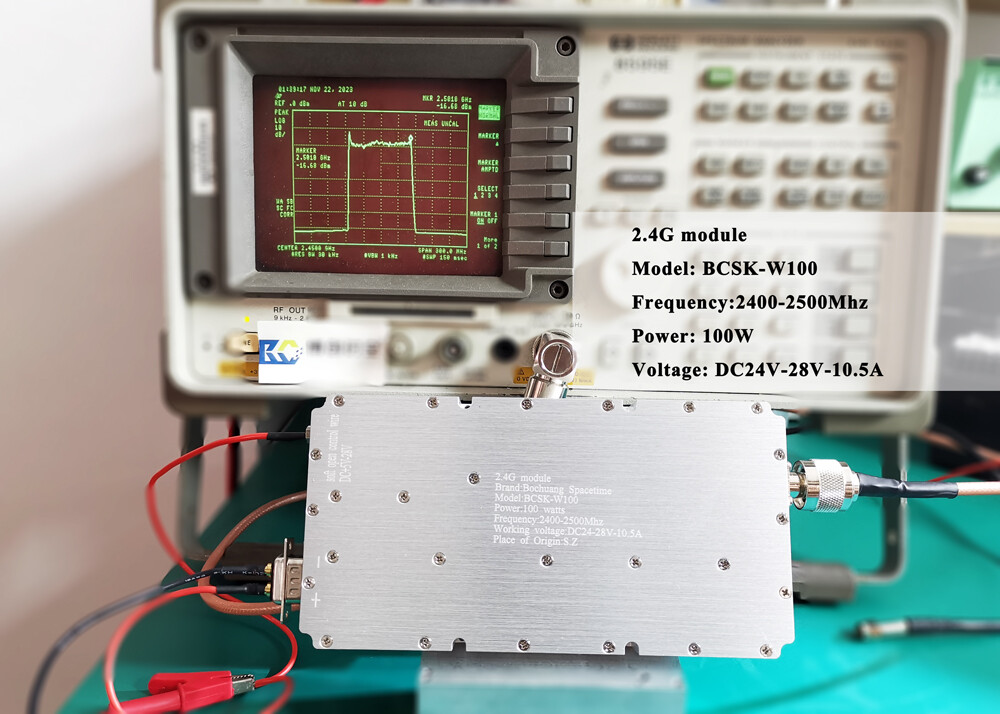

Technical Specifications
Parameter Items | Specifications | Notes |
|---|---|---|
Product Model | BCSK-W100 | 2. 4G Series |
Operating Frequency | 2400 - 2500 MHz | Overrides mainstream Wi-Fi and drone frequencies |
Saturation Output Power | ≥ 100 W (50 dBm) | @ P1dB |
Small-signal gain | ≥ 50 dB (typical) | Fine-tuned per batch |
Supply Voltage | DC 24V - 28V | Recommended 26V |
Operating Current | ≤ 10.5 A | @ Full power output |
Harmonic Suppression | ≤ -40 dBc | Second Harmonic |
Operating Temperature | -40°C to +85°C | Industrial-grade wide temperature |
Size/Weight | 175 x 91 x 25 mm / ~85g | Compact, lightweight design |

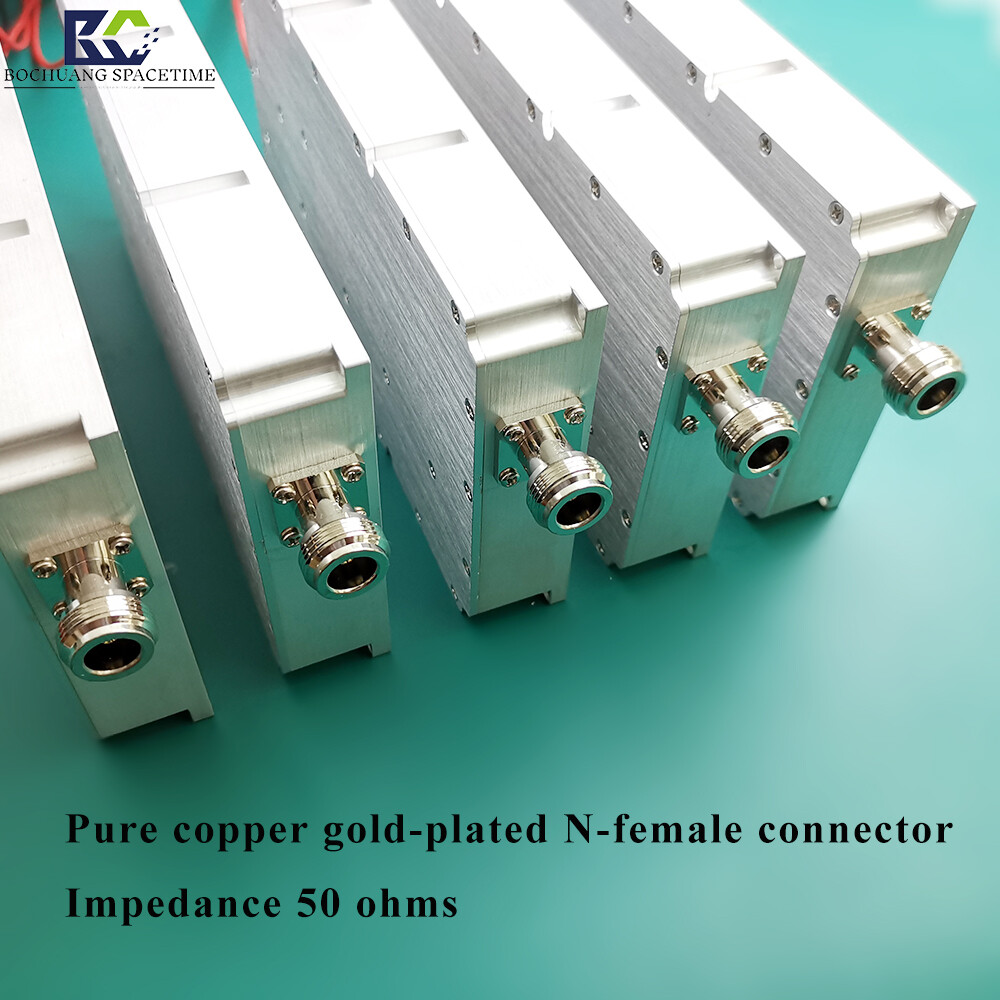

Interface Type | N-Female (RF) | Power/control connectors are customizable |
Frequently Asked Questions (FAQ)
Q1: Can the BCSK-W100 module be used directly in a handheld device?Drone Jammer？
A: Yes, the BCSK-W100 is designed specifically forPortable Drone JammerDesign. Its compact size, lightweight aluminum enclosure, and efficient heat dissipation make it ideal for
Integrate into handheld devices. Recommended to use with a compatible battery pack (24V–28V) and antenna.
Q2: What are the thermal requirements for the module during extended full-power operation?
A: Although the module features an efficient thermal design, the housing temperature will rise when operating at full power (10W) continuously. We recommend ensuring proper contact between the module base and the device during integration.
Ensure good contact with the outer casing or use forced-air cooling to maintain2. 4G RF Interference Modulelong-term reliability.
Q3: Does this module support pulse operation mode?
A: Yes. The BCSK-W100 features rapid response and can amplify pulse-modulated signals, making it suitable for certain specificUAV Defense SystemApplication (e.g., reduce average)
Power consumption) is highly favorable. For specific pulse parameters, please contact technical support.
Q4: Does the module automatically protect itself if the load is open-circuited or short-circuited?
A: Yes. The module includes a comprehensive VSWR protection circuit. When an antenna port anomaly is detected (e.g., open circuit, short circuit, or severe mismatch), it will automatically reduce...
Low power output or output cutoff to preventHigh-power RF Power AmplifierInternal component damage.
Q5: Can you provide customized frequency or power versions?
A: As a professionalDrone Countermeasure ModuleSupplierWe support OEM/ODM services. If you require other frequency bands (e.g., 5.8G, 900M) or different power levels,
For customizations at the {0} level, please contact us. We can tailor solutions to meet your specific needs.Low-Altitude Security EquipmentGet a tailored solution for your needs.
