Product Overview: High-Power Multi-Band Solution

BCSK-BLGTX800 is a premium 32x800mmOmnidirectional Fiberglass Antenna, designed for demanding industrial and defense applications. Unlike standard communication antennas, this device

Optimized design supports high-power transmission up to 10W-100W.Drone Jamming System(Unmanned aerial vehicle signal jammer), electronic warfare, and long-range signal

An ideal component for the system.

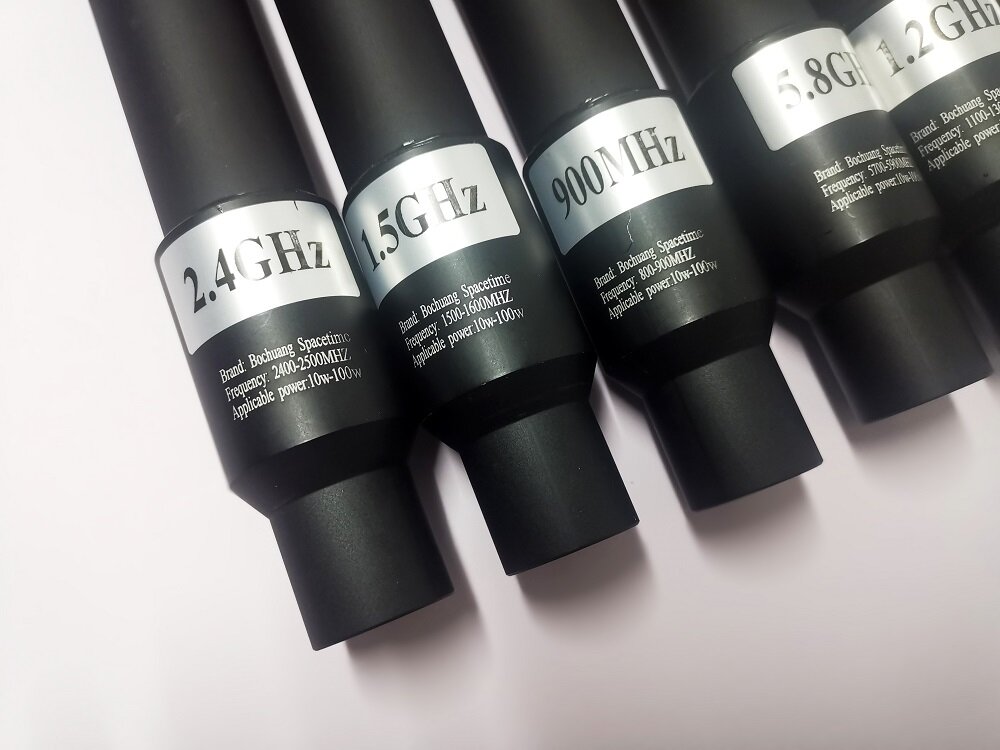

Built-in robust copper array for seamless coverage across key bands, including 433MHz, 900MHz, 1.2GHz, 1.5GHz (GPS), and 2.4GHz.

5.2GHz and 5.8GHz. Whether you're preventing unauthorized drones in fenced areas or boosting LoRa/IoT signals in remote locations, the BSK-BLGTX800 delivers.

Deliver reliable, 360-degree performance.

Key Features & Benefits

High Power Capacity: Supports continuous operation at high wattage outputs (peak up to 100W), ensuring your interference or transmission equipment performs at maximum efficiency without damaging the antenna.

Yes.

Ultra-wideband coverage: A single antenna replaces multiple single-band devices, supporting everything from low-frequency IoT (433/900MHz/1.2G/1.4G/2.4G) to high-speed data links and more.

Full range of drone control frequencies (2 4G / 5 2G / 5 8G). High-gain performance: Gain of 8-12 dBi with horizontal energy focusing, offering superior performance compared to standard dipole antennas.

Extends the system's effective coverage range.

Rugged Outdoor Design: Housed in a heavy-duty fiberglass radome with UV resistance and waterproofing, built to withstand harsh weather—ideal for roof or mast mounting.

Install.

Widely Applicable: Specifically Designed for Anti-Drone SystemsDrone DefenseOptimized for GPS spoofing protection, wireless ISP backhaul, and public safety communications.

Technical Specifications

FAQ

1. This Bochuang Space-Time (Bochuang SpaceTime) 32×800mmOmnidirectional AntennaCan it really handle 100W of high power?

Yes.Bochuang SpaceTimeThe BCSK-BLGTX800 is designed for high-power applications. Unlike standard communication antennas, it features an internal

Bold copper rod radiating elements and an optimized matching circuit deliver exceptional heat dissipation. Tested to reliably handle 100W continuous wave power input without damage, it's extremely

Suitable for drone jammers, vehicle-mounted interference systems, and high-power signal suppression devices.

2. Which frequency bands does this antenna cover? Does it support simultaneous coverage or is it single-band customized?

TheBochuang SpaceTimeThe series antennas offer exceptional flexibility. We can provide solutions covering a single specific frequency band (e.g., 2.4G only or GPS only).

1.5G) high-performance version, or an ultra-wideband version covering 433M to 5.8G.

Wideband Version: Ideal for scenarios requiring interference with multiple signals (e.g., remote control + video transmission + GPS).

Single-frequency version: Higher gain and better directionality at specific frequencies.

Please contact customer service before placing your order to confirm the specific frequency configuration you need.

3. 8-1 What does a 2dBi gain mean for an omnidirectional antenna?

For omnidirectional antennas, higher gain means the signal is more "flattened" in the horizontal plane, allowing it to travel farther.

The 8-1 2dBi high gain provides significantly greater horizontal coverage range compared to standard 3dBi rubber duck antennas.

This is for long distancesDrone DetectionConnecting to wireless bridges in remote or countermeasure-prone areas is critical for effectively reducing signal dead zones.

4. How is the antenna installed? What is its wind resistance performance?

This modelBochuang SpaceTimeAntenna dimensions are 32×800 mm. It features a lightweight design with minimal wind load. The bottom is typically equipped with a standard mounting bracket.

Base mounting (compatible with U-clamp pole installation). Its housing is made of high-strength fiberglass-reinforced plastic (FRP), offering excellent insulation and exceptional durability.

Resists salt spray corrosion and strong typhoons in coastal areas, making it ideal for long-term outdoor deployment.

5. What if my device connector is not N-type?

WeBochuang SpaceTimeStandard configuration typically includes N-type connectors (the most common industrial grade, designed for high voltage and high power). If you are using a handheld device...

or other specialized interfaces (such as F, TNC, 4.3-10 DIN, etc.), we can provide adapter cables or customize the connector type at the factory to ensure plug-and-play compatibility.

Ready to use.
