Band-specific Panel Directional Antenna 850M-5.8G 8-16dBi High-Gain Multi-Band RF Signal Booster BCSK-PBTX04 Anti-Drone Composite Antenna
This 4-band panel directional antenna (model BCSK-PBTX04), developed by Bochuang Shikong Communication Technology Co., Ltd., is designed for multi-band RF system integration. It covers four mainstream frequency bands: 850MHz–930MHz, 1560MHz–1620MHz, 2400MHz–2500MHz, and 5725MHz–5850MHz, with gains of 8dBi, 11dBi, 14dBi, and 16dBi respectively. Ideal for drone countermeasures systems, industrial IoT communications, wireless video backhaul, and spectrum monitoring, it features an integrated metal substrate with four independent radiating elements. A precision feed network ensures band isolation and optimized directionality, effectively reducing intermodulation interference. With support for customized frequencies and interfaces, it is fully compatible with mainstream RF equipment—making it the ideal choice for system integrators seeking to enhance multi-band signal coverage efficiency.
In Stock（450）
Product Overview
This model4 BandTablet Directional Antenna(Model BCSK-PBTX04) Designed for multi-band RF system integration, covering 850MHz-930MHz and 1560MHz-.
Four mainstream frequency bands: 1620MHz-2400MHz, 2500-5725MHz, and 5850-16MHz, with gains of 8dBi, 11dBi, 14dBi, and 16dBi respectively, suitable forNone
Human-Machine Countermeasure SystemIndustrial IoT communications, wireless monitoring backhaul, spectrum monitoring, and other scenarios. It features an integrated metal substrate structure with four built-in independent radiating elements.
Unit, achieves band isolation and directional optimization through a precision feed network, effectively reducing intermodulation interference. Supports customizable frequencies and interfaces, compatible with mainstream RF equipment; it is
The ideal choice for system integrators to enhance multi-band signal coverage efficiency.
Performance Features

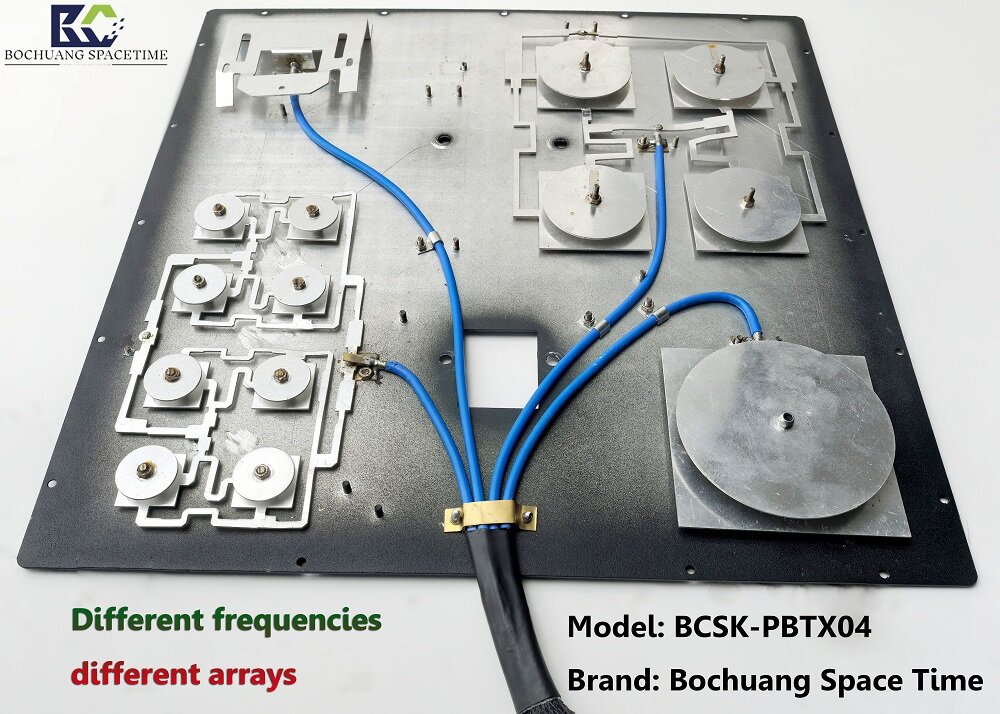

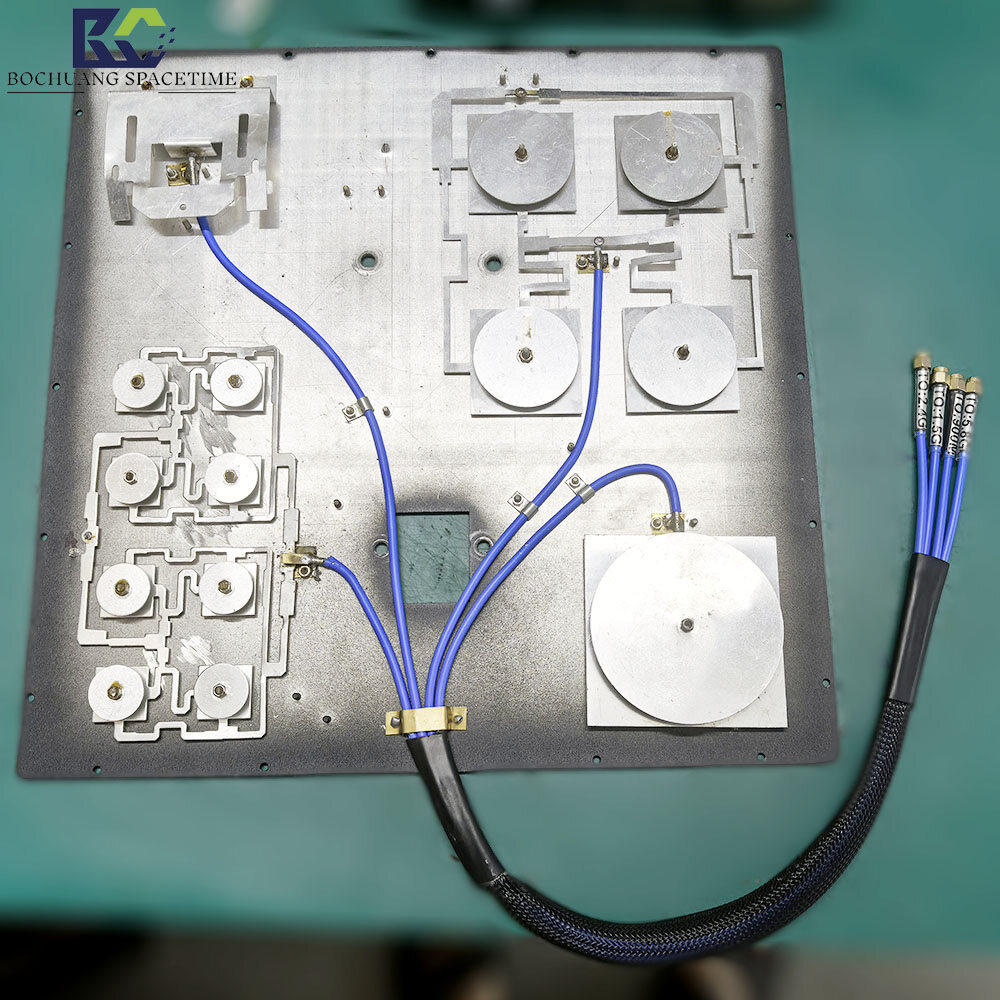

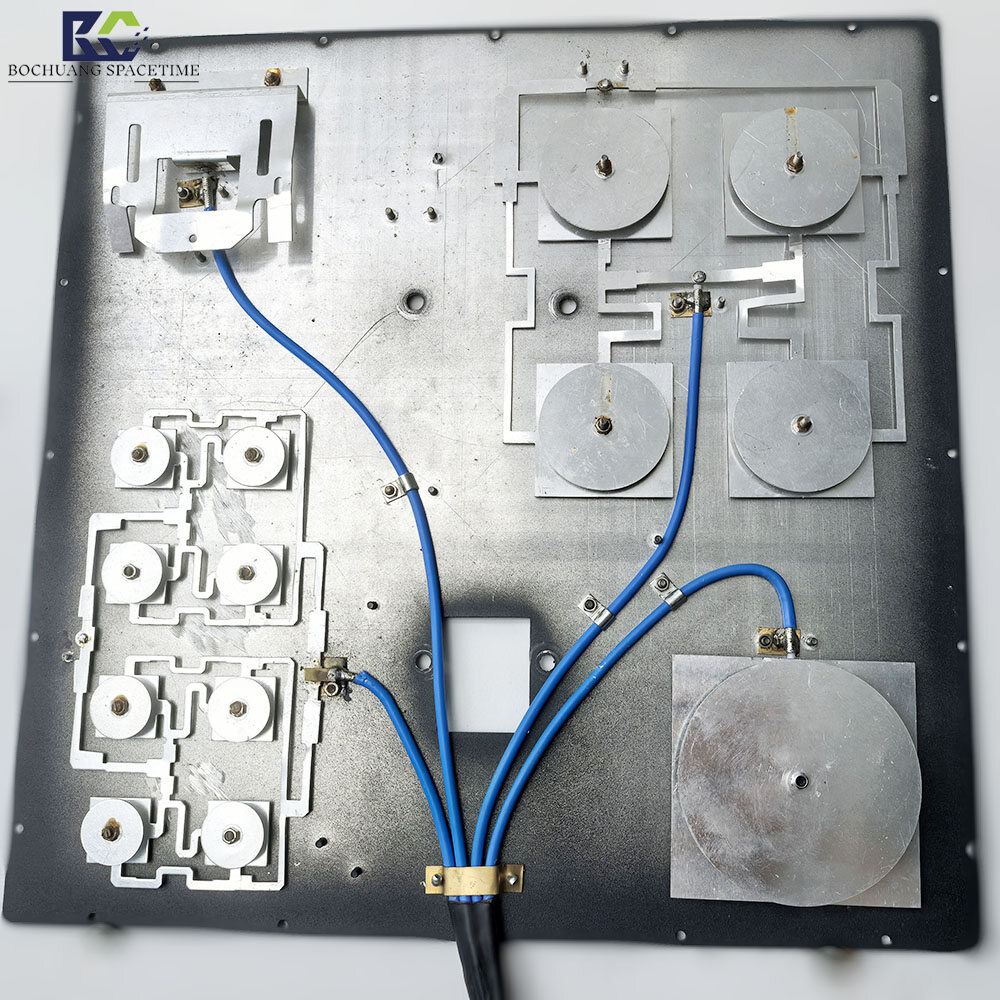

Four-band independent radiating elements: 850M/1.5G/2.4G/5.8G four sets of antenna elements are physically isolated to prevent inter-band interference, ensuring signal purity and transmission stability across all bands.
Qualify.
High-gain directional focusing: 5.8GHz band gain up to 1 6dBi, combined with a directional beam design for long-range, precise signal coverage—ideal for applications requiring strong directionality.
Industrial deployment scenarios.
Compact Metal Substrate Structure: 390×390mm size fits easily in tight spaces; the aluminum substrate offers excellent heat dissipation and EMI resistance, making it ideal for outdoor or...
High-load operating environment.

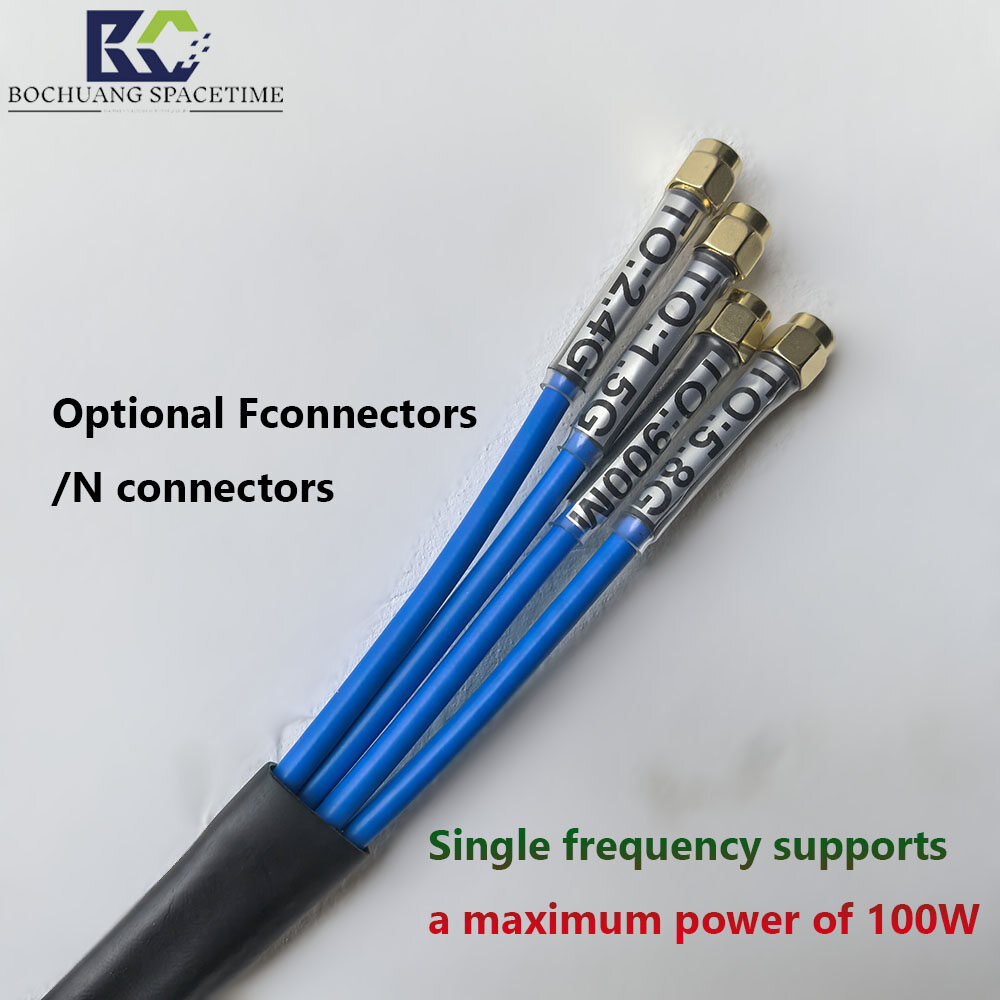

Standardize the SMA interfaceEquipped with four SMA female output ports for direct connection to mainstream RF modules, power amplifiers, or receiver devices—eliminating the need for adapters and simplifying system integration.
Process.
Wideband compatibility: Covers common industrial and communication frequency bands from 850MHz to 5.8GHz, supports multi-protocol device access, and enhances system scalability and future compatibility.
Capacitive.
Parameter Table
Parameter Item | Specification Value |
|---|---|
Model | BCSK-PBTX04 |
Operating Frequency Band | 850M-930M / 1.56G-1.62G / 2.4G-2.5G / 5.725G-5.85G |
Corresponding Gain | 8 dBi / 11 dBi / 14 dBi / 16 dBi |
Polarization Mode | linear polarization |
Interface Type | SMA Female ×4/N FemaleConnector |

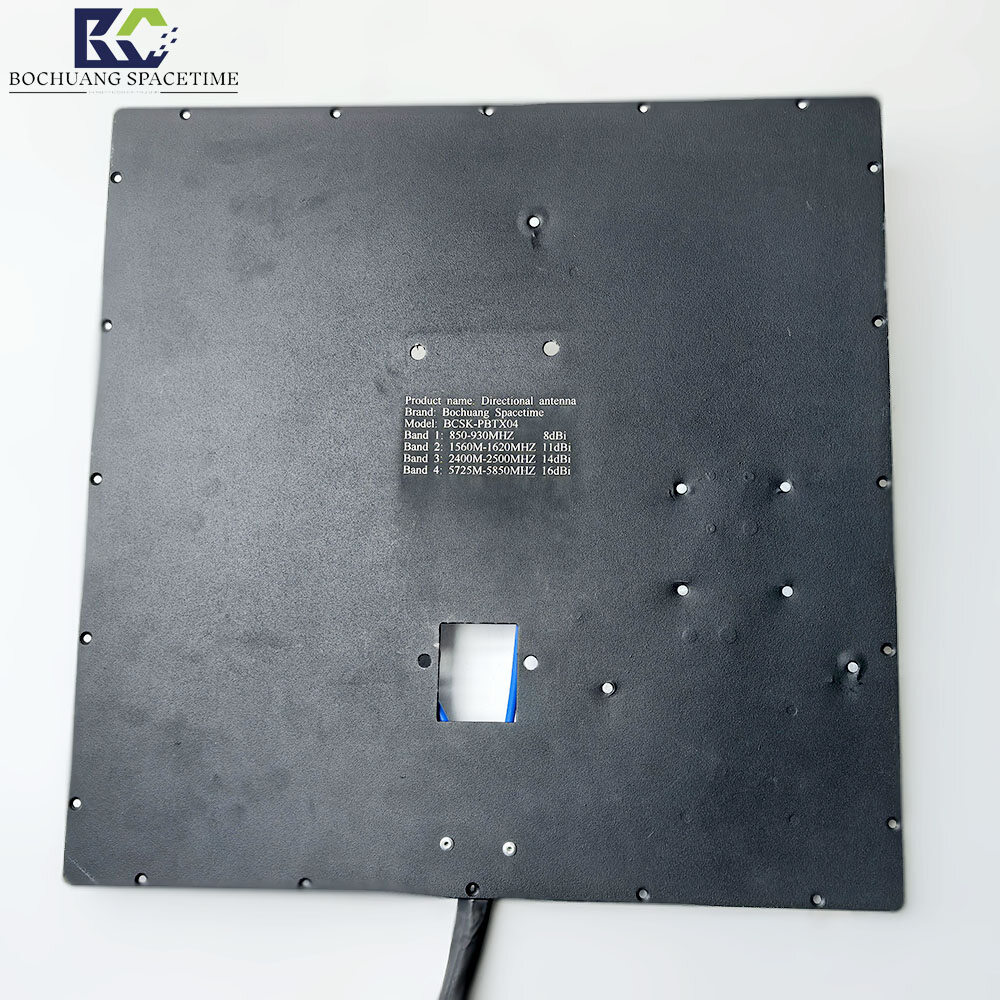

Dimensions | 390×390mm |
Material | Aluminum alloy substrate + copper feedline |
Installation Method | Wall-mounted / Bracket-fixed |
Frequently Asked Questions (FAQ)
Q: Does this antenna support custom frequencies or connectors?
A: Yes. We can adjust the operating frequency range or switch to N-type, TNC, or other connectors based on customer requirements.Standard APIto meet specialized system integration requirements.
Q: Do outdoor antennas require additional protection?
Recommend installing a waterproof cover or achieving IP65 rating.Protective CaseEspecially in humid, salt-spray, or high-UV environments, it extends device lifespan and maintains signal stability.
Q: Is this antenna suitable for drone countermeasure systems?
Yes, its high-gain directional characteristics effectively enhance signal reception and transmission for specific frequency bands and are commonly used inDrone DetectionBefore the signal of the interfering device
Endpoint.
Q: Do I need special tools or debugging during installation?
No complex debugging required; simply use the standard SMA interface.Connect RFPlug and play. Recommended for engineers with RF expertise.
Ensure optimal performance.
Q: Does the antenna support simultaneous multi-device connections?
A: Supported. Four independent output ports allow simultaneous connection to receivers of different frequency bands orLaunch ModuleEnable parallel operation across multiple systems without interference.
4-band-directional antenna for drone detection
High-gain flat-panel antenna 85 to 5.8ghz meters
customizable sma connector antenna panel
Compare specs within the same series
Compare frequency bands, power, gain, and interfaces by model in a horizontal layout. Parameters are parsed from the model title; unlisted items display as dashes.
| Model | Frequency Band | Power | Gain | API |
|---|---|---|---|---|
BCSK-PBTX04Current Model | 850 MHz, 5.8 GHz, 8 GHz | — | 16 dBi | — |
| 2 GHz, 3 GHz, 4 GHz | — | — | — | |
| — | — | — | — | |
| 420 MHz, 5.8 GHz | — | — | — | |
| 420 MHz, 5.8 GHz | — | — | — | |
| 2 GHz, 5 GHz | — | — | — |
FAQ
Which frequency bands does the BCSK-PBTX04 cover?
Operating frequency: 850 MHz, 5.8 GHz. Please verify the carrier bands at your deployment location or the target link before placing an order. If you need to adjust the frequency combination, please submit a customization request.
What are the application scenarios for BCSK-PBTX04?
This model is designed for communication transmission and receiving antenna projects. Please provide details on the site structure, target link, and operating environment so we can recommend a suitable configuration.
Does BCSK-PBTX04 support customization and bulk purchasing?
Supported. Customization available for frequency bands, interfaces, housing markings, and packaging. Samples can be used for evaluation and validation; test records are provided with bulk shipments.
What is the procurement process for BCSK-PBTX04?
Step 1: Submit your target frequency band, power level, and quantity. We'll provide a quote and recommended configuration within 1 business days. Step 2: Confirm sample specifications and testing requirements. Upon successful sample approval, place the order and pay the deposit. Step 3: Manufacture according to the confirmed frequency band combination and conduct factory testing. Include test records and packing list with shipment. Step 4: Ship per agreed trade terms. Pay the balance and receive all documents before shipment.
Does BCSK-PBTX04 support prototyping and small-batch purchasing?
Samples are available at 850 MHz, 5.8 GHz, and 8 GHz with specified power levels for system integration and field testing. Minimum order quantities for production are confirmed based on model, frequency combination, and appearance customization requirements. Sample costs will be handled per agreement upon placement of a formal order.
How is the lead time and test data for BCSK-PBTX04 agreed upon?
Production is scheduled by quantity and frequency band upon order confirmation. Lead time, test items, and acceptance criteria are included in the quote. Power, gain, and VSWR data for this model are available. Please specify if third-party testing is required before placing the order.
How should the export packaging and certification documents for BCSK-PBTX04 be handled?
Modules are shipped in anti-static packaging with reinforced outer boxes. The complete unit includes additional cushioning and moisture protection based on its form factor. Copies of existing certification documents are available; certified model coverage is subject to the certificate terms. Target market compliance requirements must be confirmed prior to order placement.
