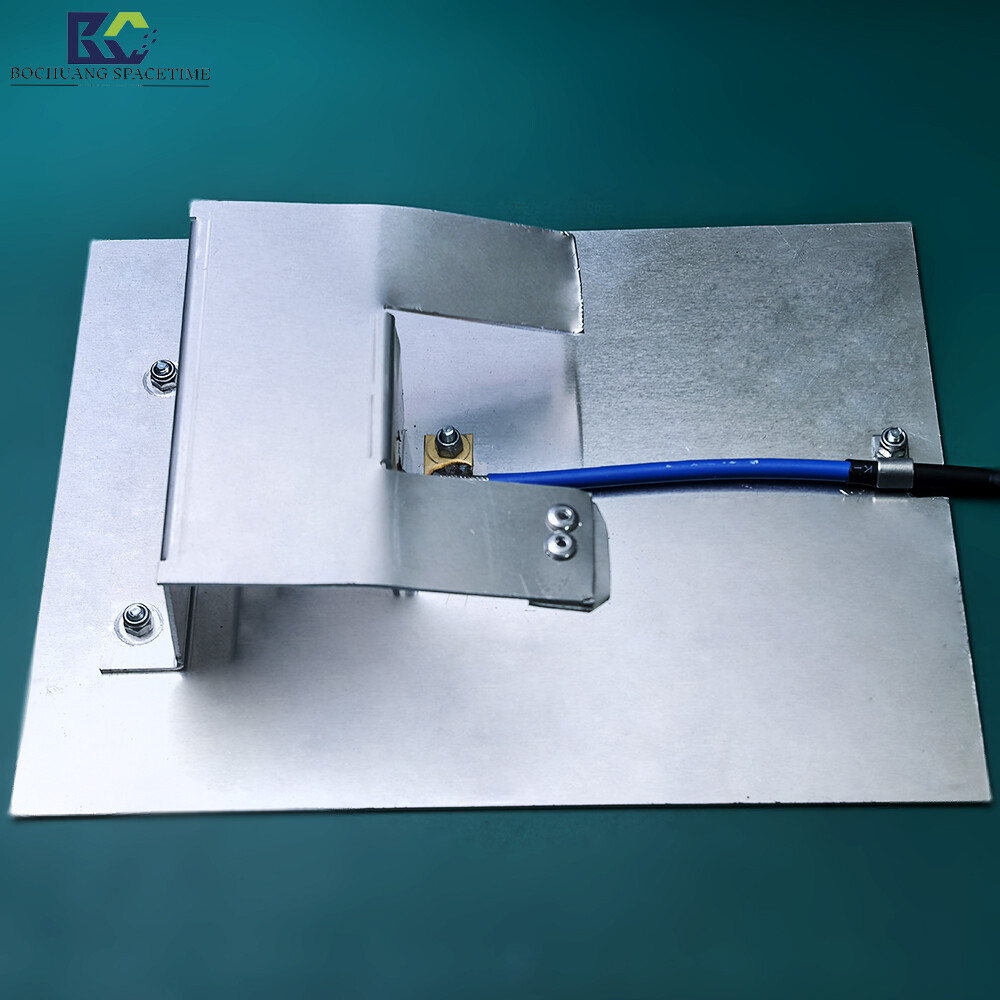

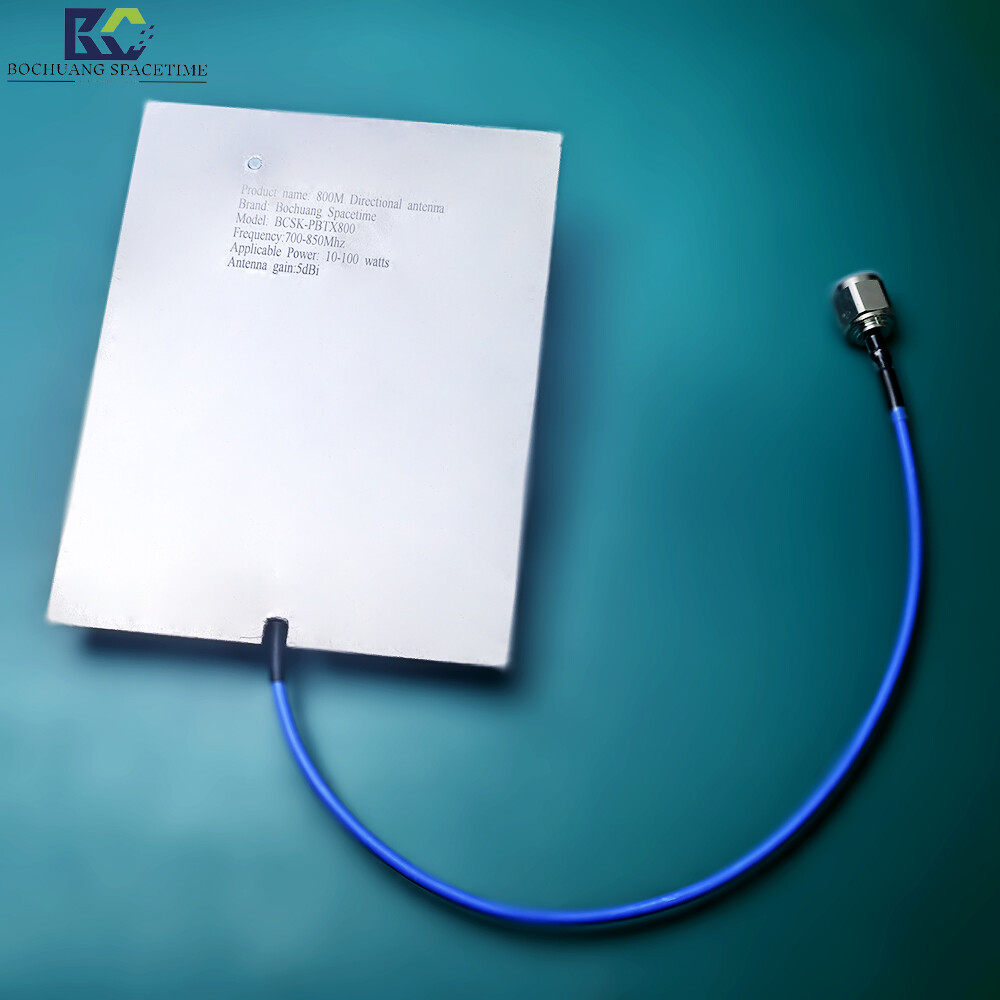

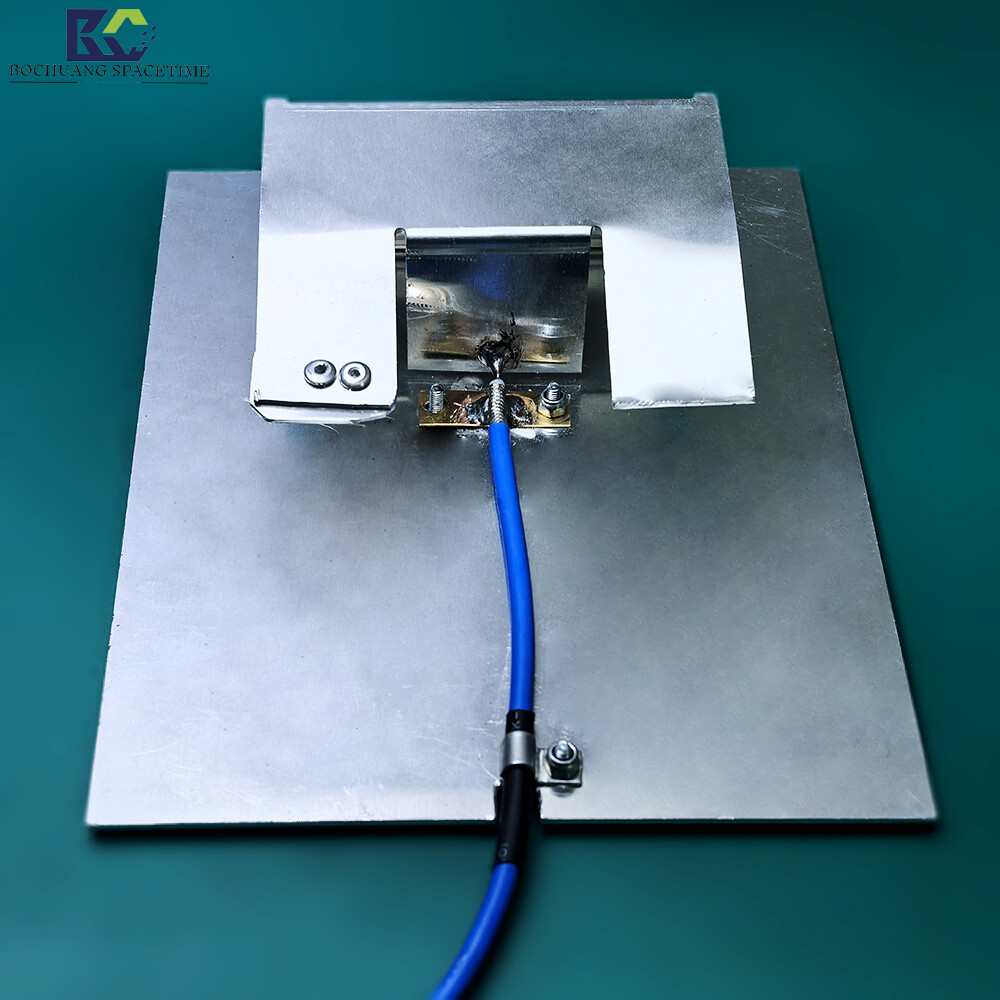

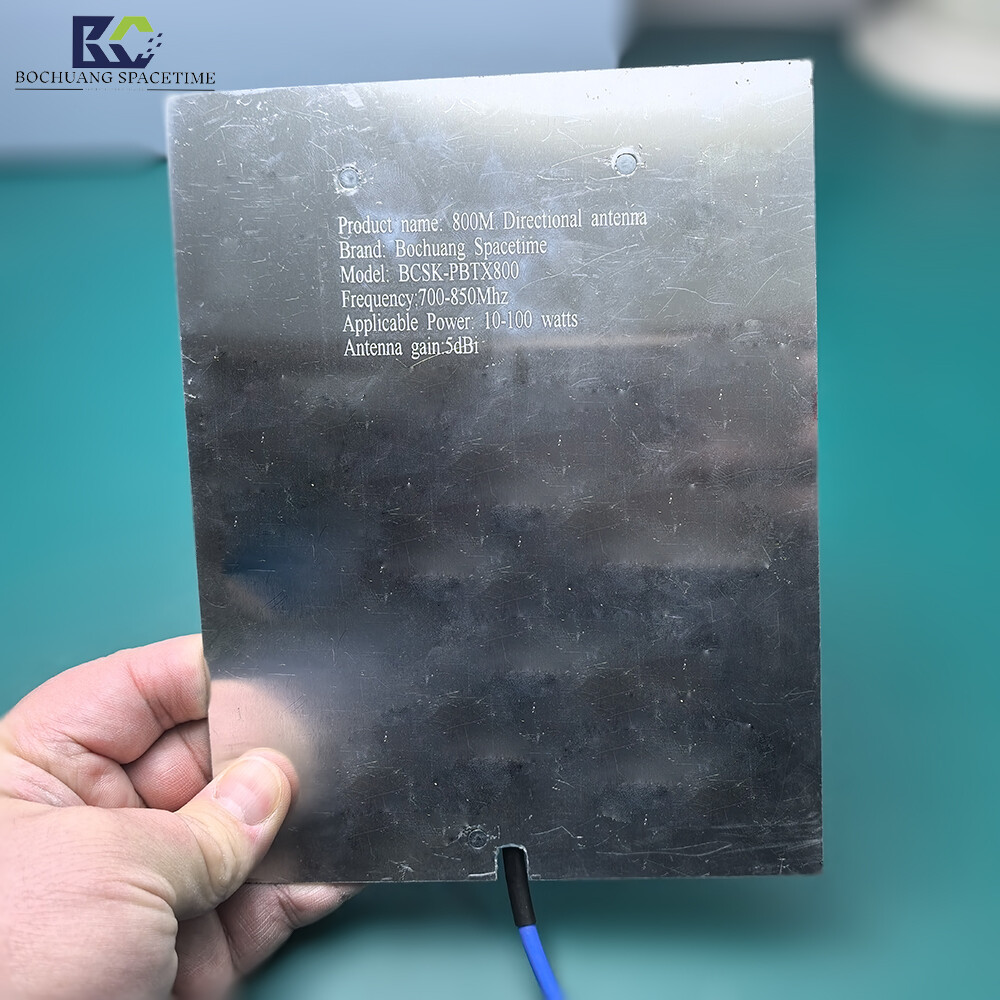

Aluminum Alloy Flat Panel Directional Antenna 700M-850MHz High-Gain Directional Antenna for Drone Countermeasures, 5G Base Stations, and Industrial IoT Coverage Systems
This high-precision directional aluminum alloy panel antenna is designed for targeted signal transmission and reception. Operating within the 700MHz to 850MHz frequency range, it supports high-power input from 10W to 100W, delivering 5dBi gain and a VSWR of ≤1.6 for stable performance in complex electromagnetic environments. Its lightweight aluminum structure features a compact footprint (180×140×40mm) and includes an N-Male connector for rapid deployment in drone countermeasures systems, 5G small cells, industrial IoT gateways, and directional relay links. The directional radiation pattern concentrates signal energy to enhance coverage in target areas while suppressing interference, making it ideal for high-gain wireless communication frontends. The housing offers dust and moisture resistance for reliable outdoor operation and supports customizable frequency responses and mounting solutions to meet B2B customers' flexible integration needs for directional RF systems.
In Stock (500units
Product Overview
This Bosheng Shikong (Bochuang SpaceTime）Aluminum AlloyTablet Directional AntennaDesigned for industrial-grade directional communication and signal enhancement scenarios, covering the following frequency bands:
700MHz to 850MHz, supports 10W–100W high-power input, 5dBi gain, VSWR ≤ 1.6, ensuring stable transmission in complex electromagnetic environments. The antenna is designed with
Lightweight aluminum alloy structure with compact dimensions (180×140×40 mm) and standard N-Male connectors for rapid deployment.Drone Countermeasure System, 5G Small Cell
Stations, industrial IoT gateways, and directional relay links。
Its directional radiation effectively focuses signal energy, enhancing coverage strength in target areas while suppressing interference from sources, making it ideal for buildingHigh-Directivity Wireless Communication Front-End
Choose. The enclosure is dustproof and moisture-resistant, designed for long-term outdoor operation. It supports customized frequency response and mounting bracket solutions to meet B2B customer needs.Directed RF solution
Solutionflexible integration requirements.
Performance Features
Broadband compatibility: Covers 700MHz to 850MHz, supports major communication standards such as GSM/4G/5G, and is trulyMultimodal Communication Antenna Solutions。
High Power Tolerance Design: Internal structure designed to stably handle input power from 10W to 100W, preventing signal distortion or component damage under high-power conditions. Suitable forHigh-Power Wireless Transmitter
Shooting System。
Precise targeted reach: 5dBi gain with VSWR ≤ 1.6 ensures concentrated signal projection for improved performance.Efficiency of long-range directional communication。
Compact, lightweight design: 180×140×40 mm, designed for compact installations in space-constrained devices such as UAV payloads, vehicle terminals, or wall-mounted gateways.
Industrial-grade protectionThe aluminum alloy housing is dust-proof, moisture-resistant, and UV-protected, making it ideal for long-term outdoor operation.OutdoorWireless Communication Antennaa reliable choice.
Customizable frequency support: Adjust resonant frequency to meet customer project requirements, enabling targeted band enhancement or narrowband applications for improved performance.Dedicated RF System Integration Efficiency。

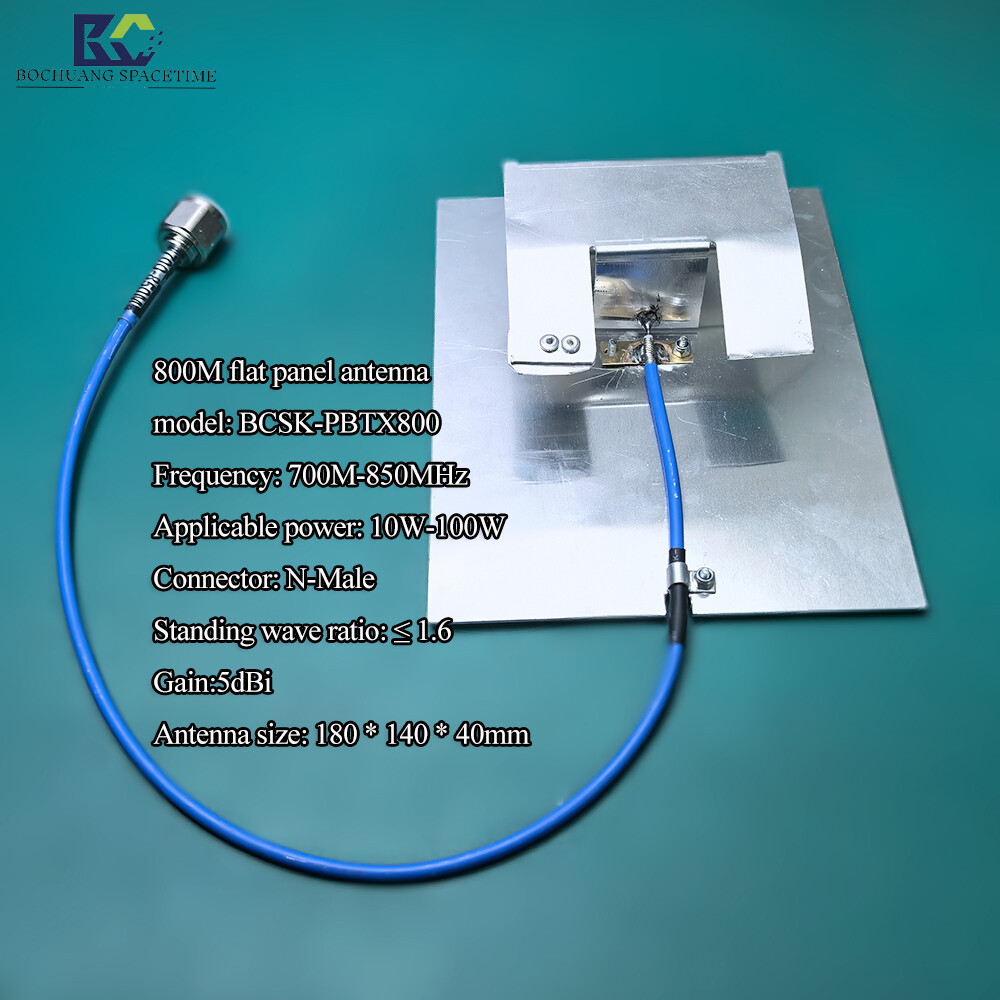

Parameter Table
Parameter Items | Specifications |
|---|---|
Model | BCSK-PBTX800 |
Frequency Range | 700MHz–850 MHz |
Applicable Power | 10W–100W |
Connector Type | Male |
VSWR | ≤1.6 |
Gain | 5 dBi |
Antenna Size | 180 × 140 × 40mm |
Casing Material | Aluminum Alloy |
Ingress Protection Rating | Dustproof, moisture-proof, and UV-resistant |
Use Cases | Drone Countermeasures, 5G base stations, industrial IoT |
Frequently Asked Questions (FAQ)
Q1: Does this antenna support custom frequencies?
A: Yes. We can adjust the resonant frequency based on customer project requirements to meet specific band reinforcement or narrowband applications, improving efficiency for dedicated RF system integration.
Q2: Is the antenna suitable for outdoor use?
A: Yes.Aluminum alloy housingFeatures dustproof, moisture-proof, and UV-resistant properties for reliable long-term outdoor operation. The ideal choice for outdoor wireless communication antennas.
Q3: Can this antenna be deployed for 5G base stations?
Yes. Its 700MHz–850MHz frequency range covers mainstream 5G bands, and with 5dBi gain and VSWR ≤ 1.6, it is ideal for directional coverage in 5G small base station scenarios.
Q4: Are additional brackets required for installation?
A: Recommended to use with a dedicated mounting bracket for optimalAntennaStabilizes angle and optimizes signal projection direction. Customizable mounting solutions available.
Q5: Does this antenna support multi-antenna array deployment?
A: Supported. Its compact size and standardized N-Connector InterfaceDesigned for seamless integration with multi-antenna arrays, ideal for industrial IoT gateways and large-scale directional coverage systems.
High-gain flat-panel antenna for UAV countermeasures
Outdoor Waterproof Directional Antenna 10W–100W
Need More Information?
Our technical team is ready to provide detailed specifications and customization options.
