BCSK-GSM30 Type 900MHz 3W RF Power Amplifier Module | Dedicated Component for GSM Mobile Signal Jammers and Drone Countermeasures

BCSK-GSM30 — Industrial-Grade 900MHz 30W High-PowerRF Power Amplifier ModuleDrone Defense and Strike System Accessories

1. Product Overview

Bochuang SpaceTime (BCSK-GSM30)Designed specifically for high-intensity electromagnetic environments900MHz RF Power Amplifier Module. This module

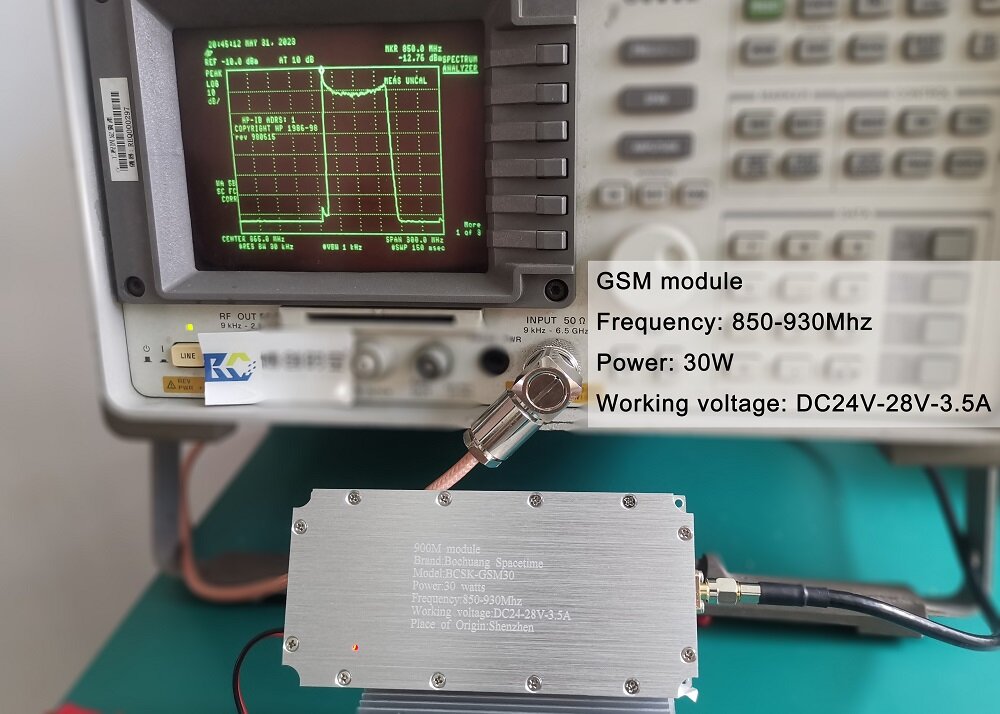

Core Working Frequency Band Coverage850-930 MHz, providing up to30Wsustained stable output power, essential for building large-scale mobile signal jamming systems and drone countermeasure equipment

The primary power source for backup systems and mobile communication signal enhancement systems.

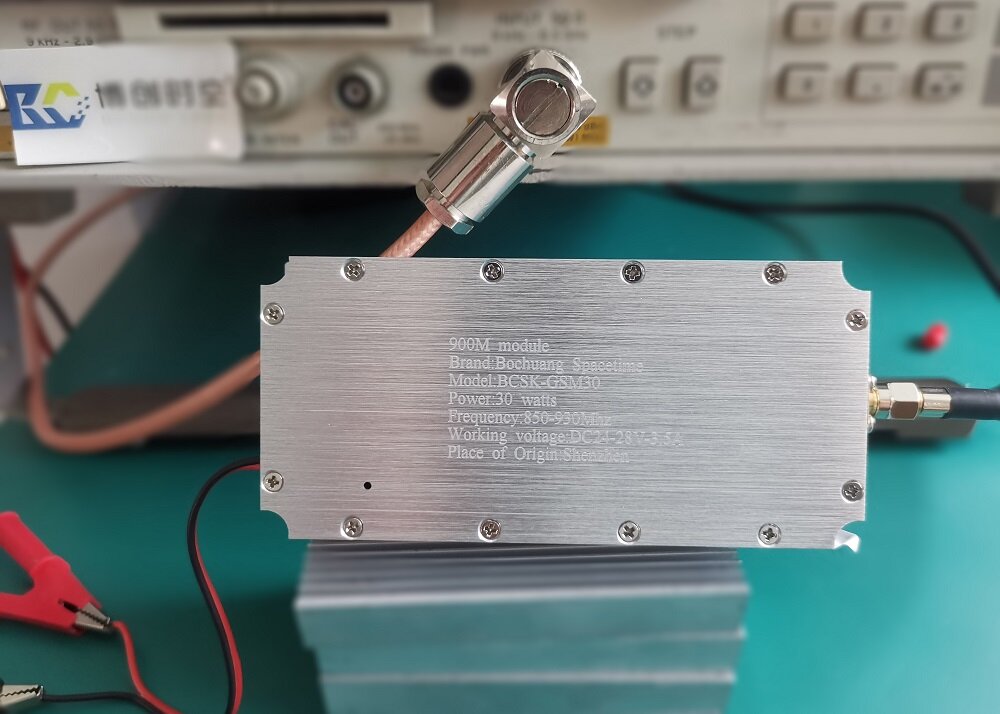

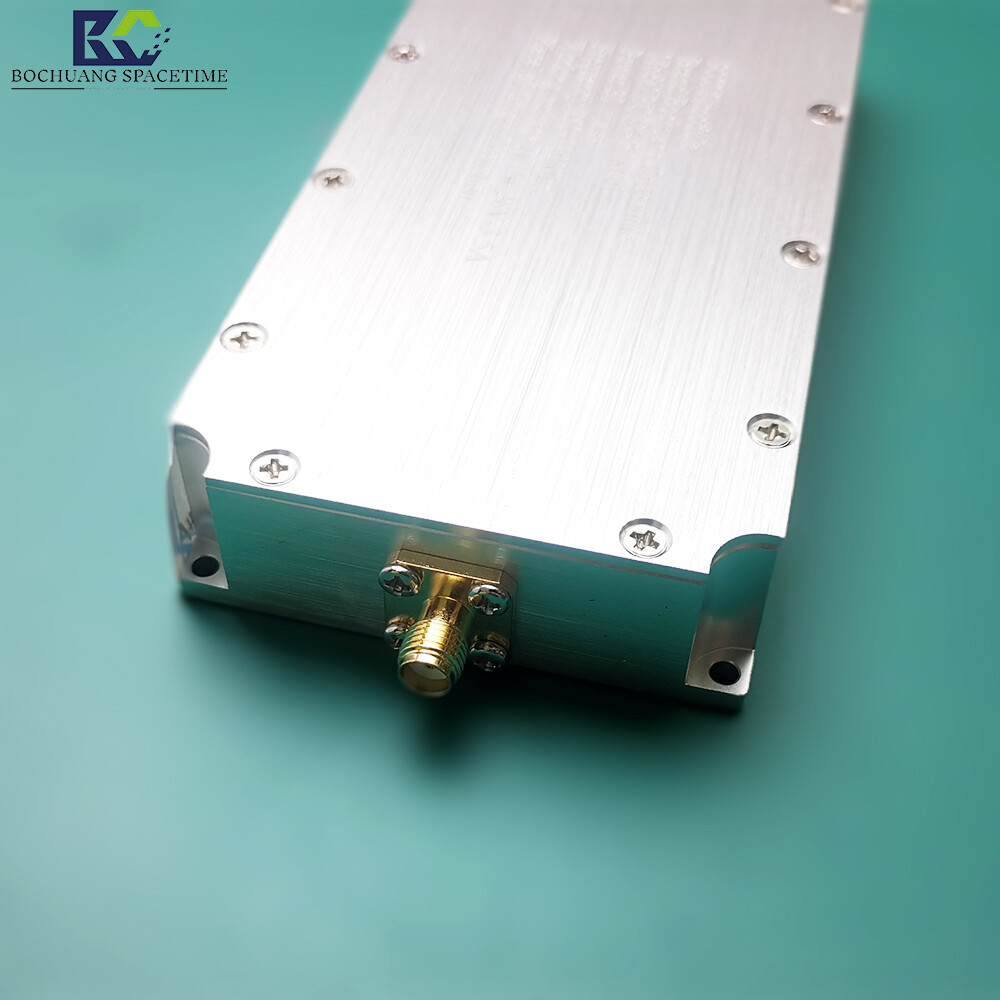

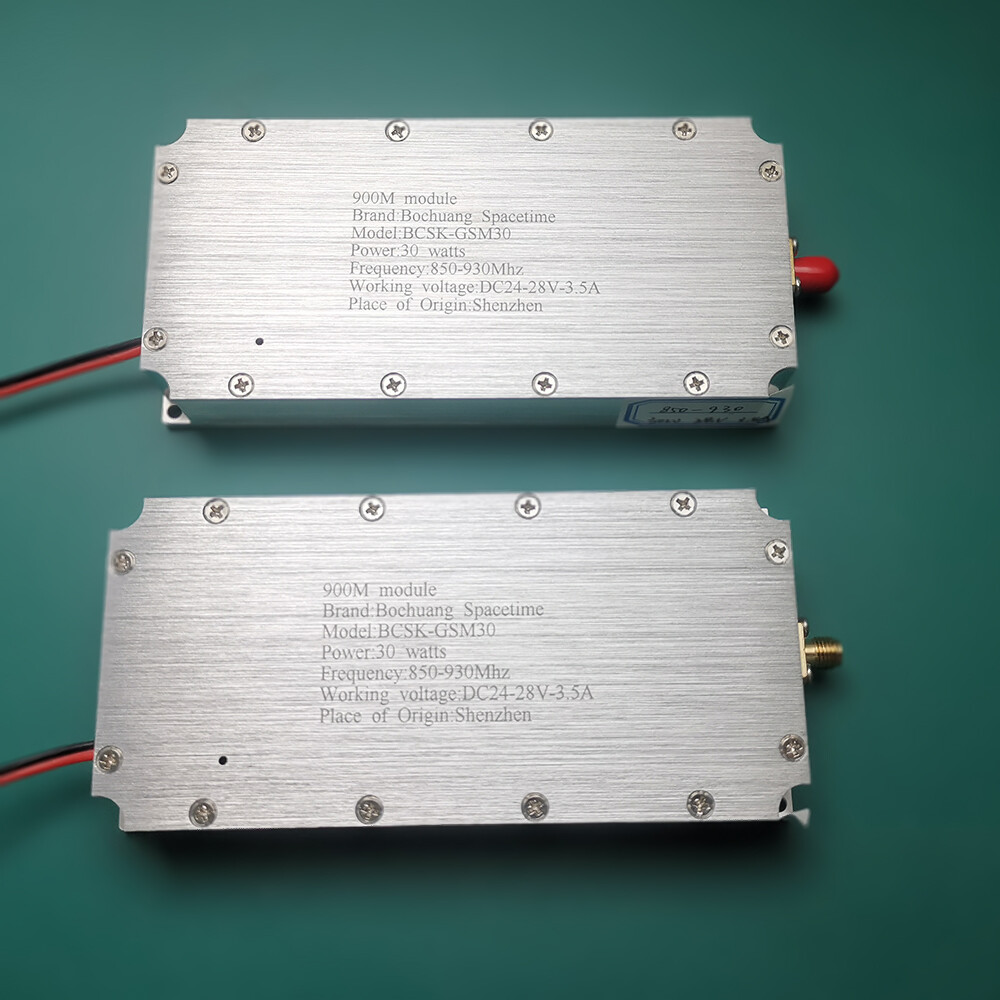

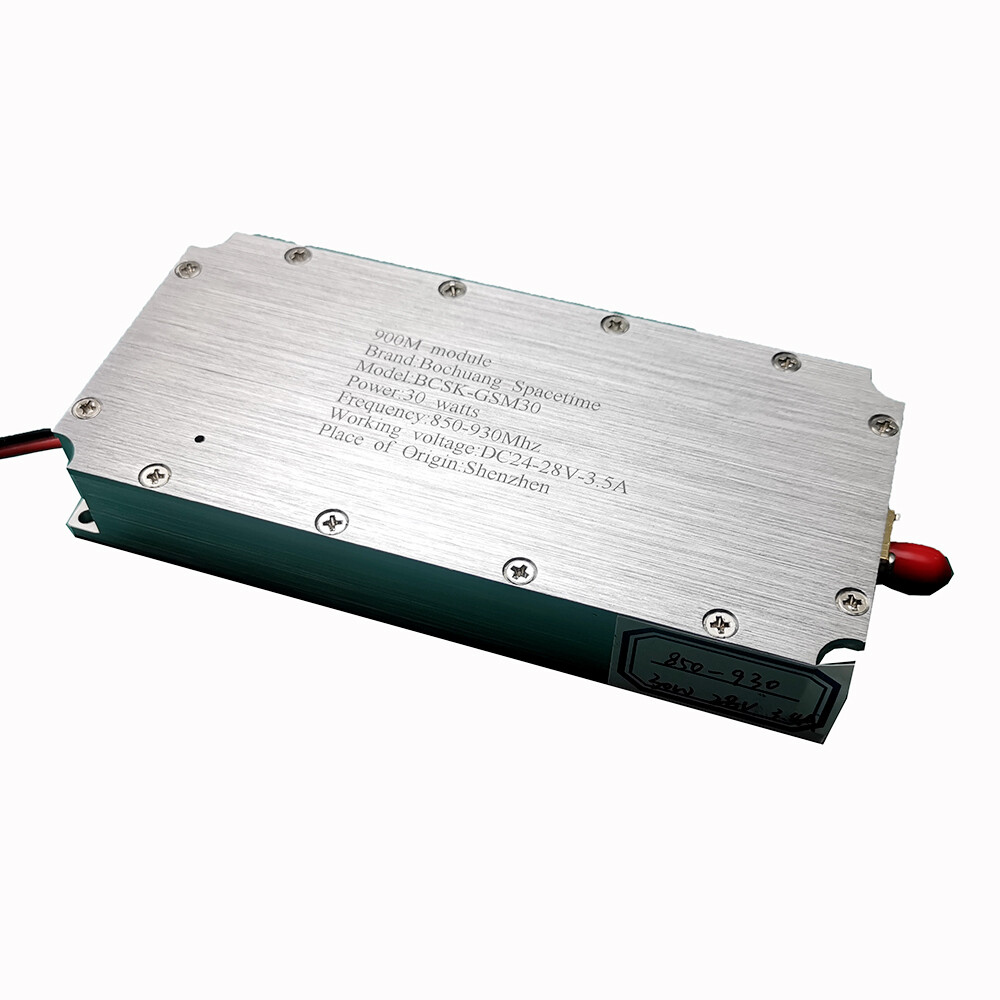

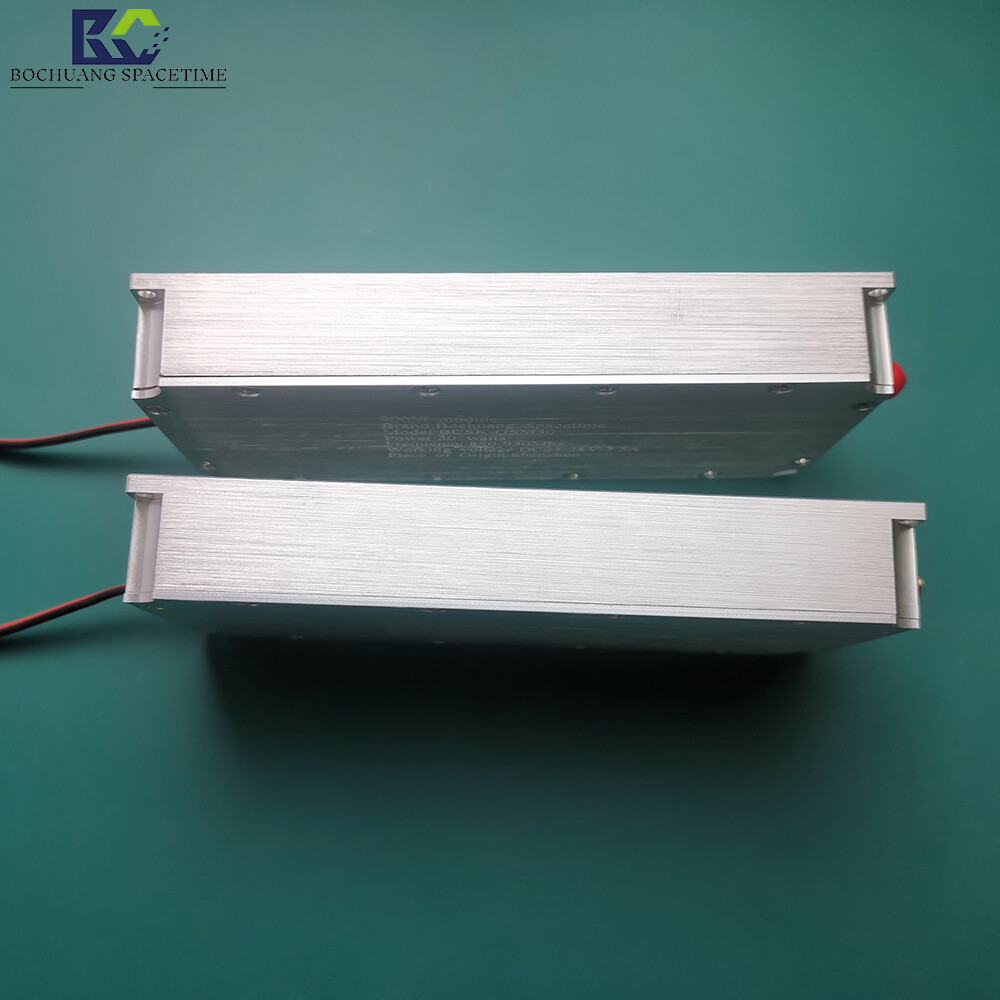

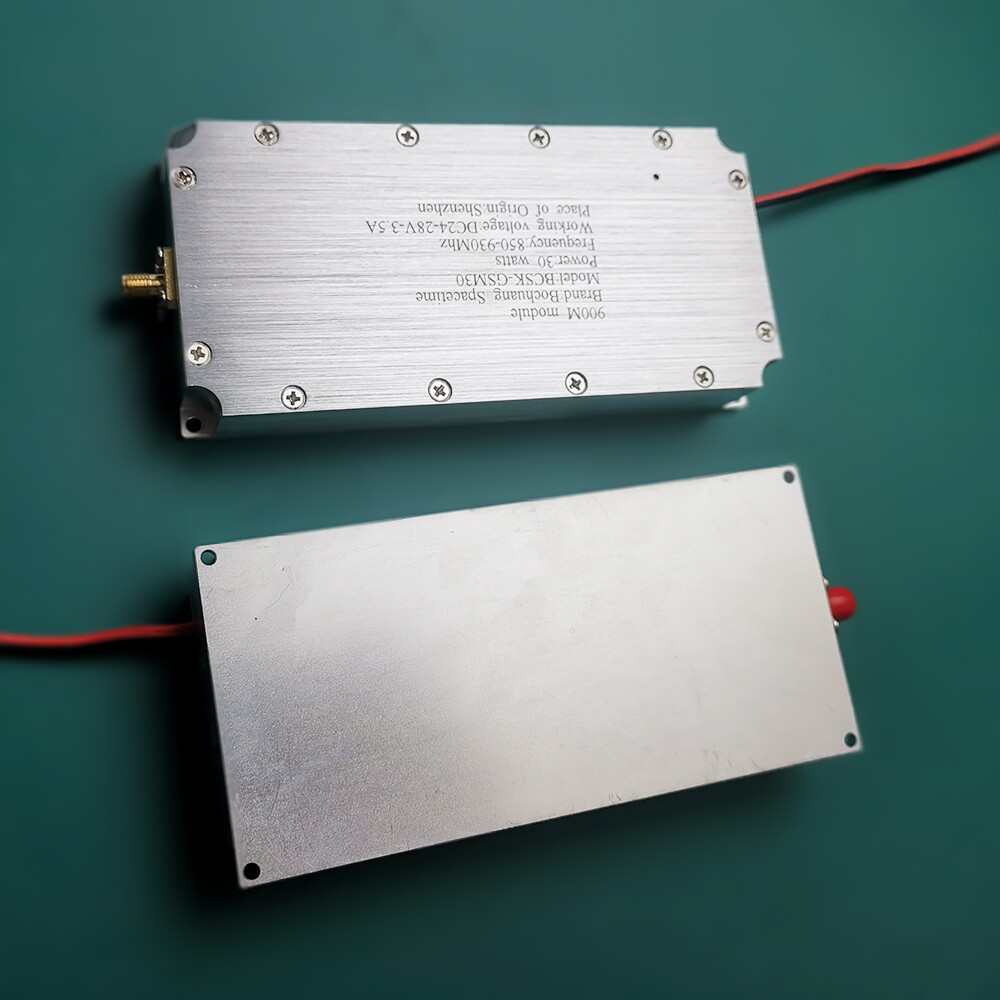

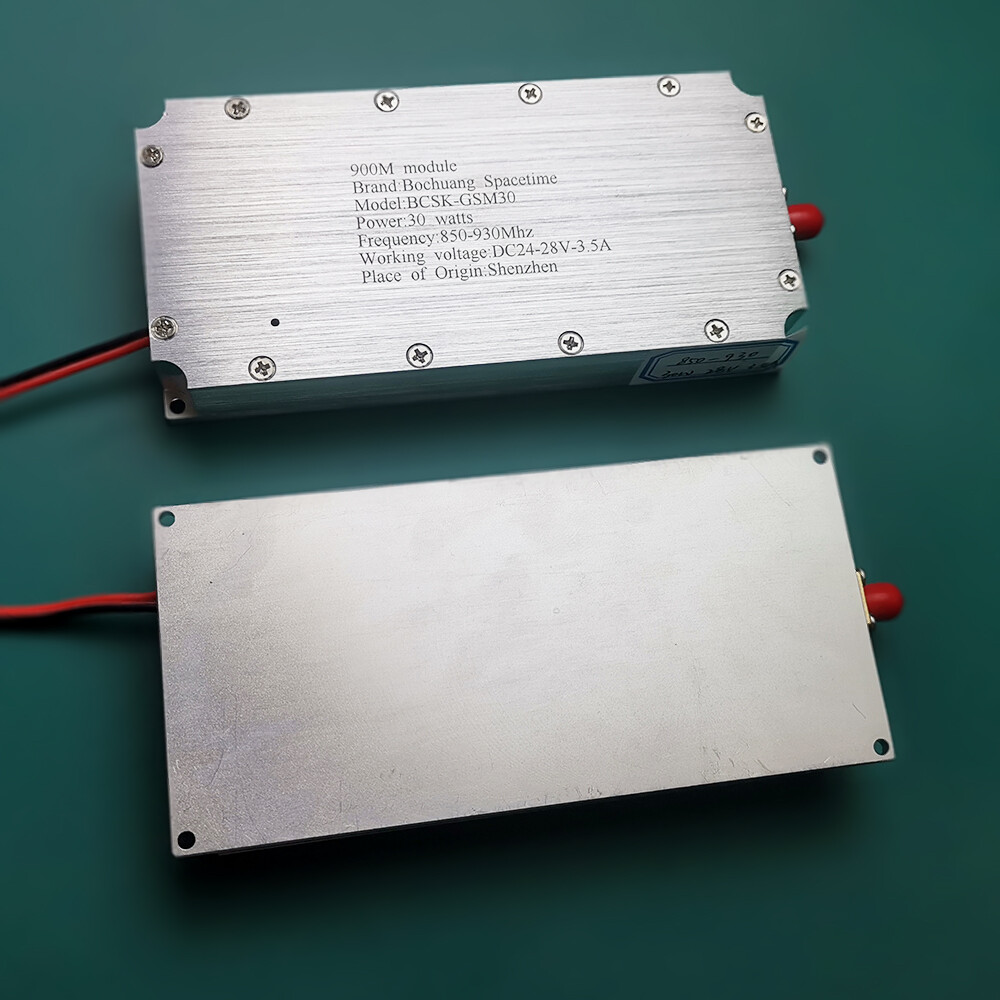

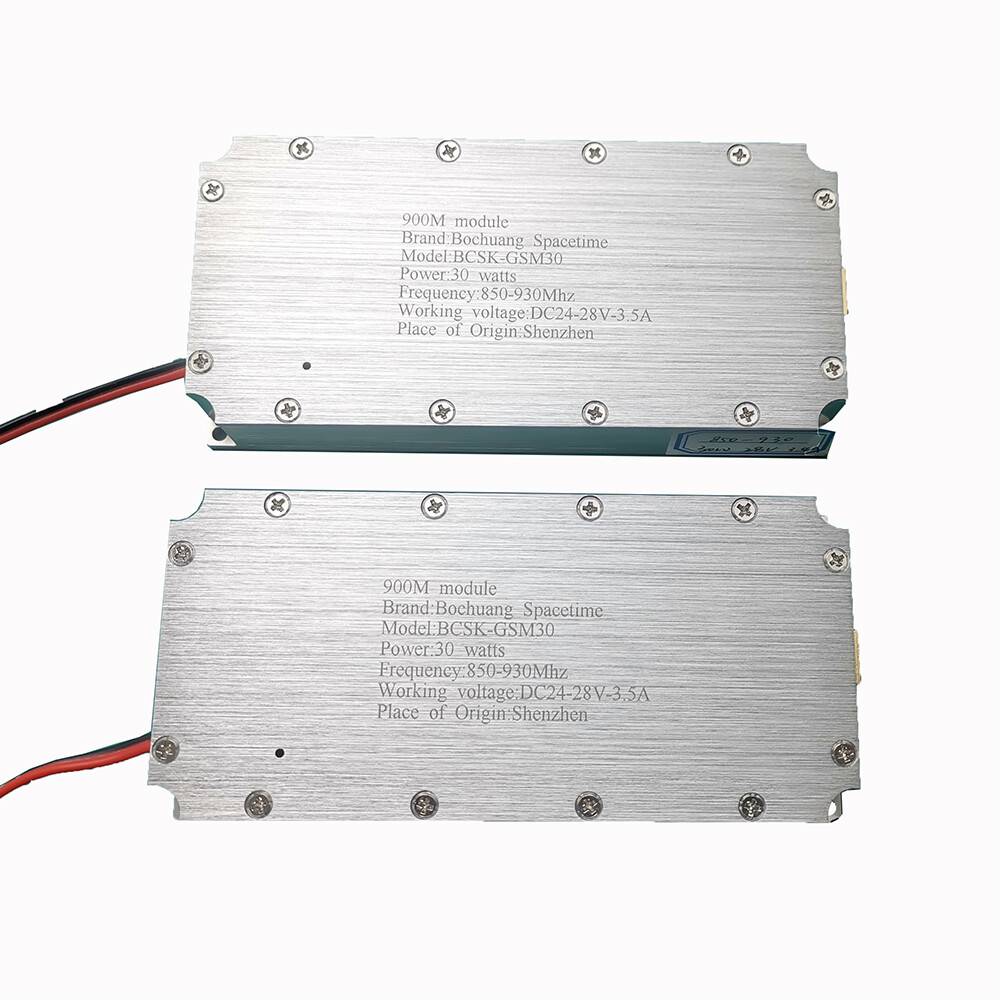

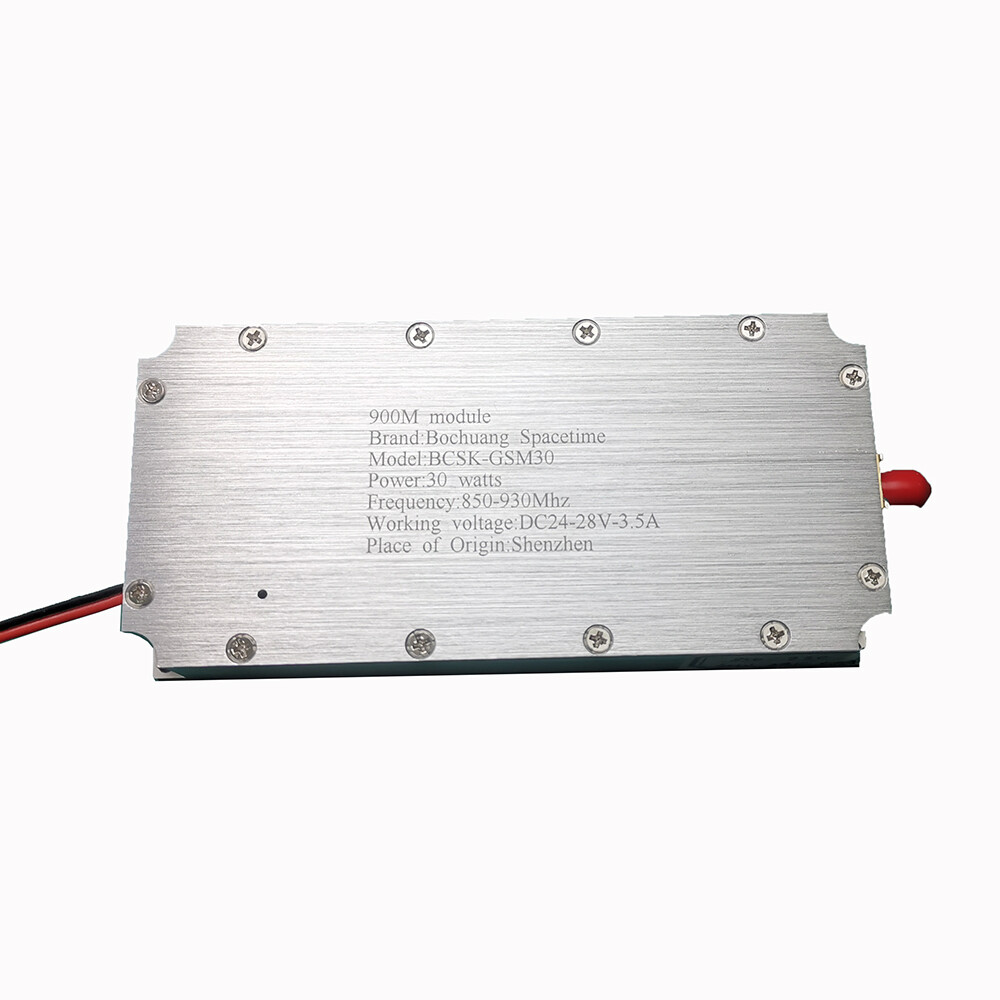

The BCSK-GSM30 features a rugged aluminum alloy enclosure that delivers superior electromagnetic shielding and effectively addresses heat dissipation challenges during high-power operation.

. Its wide voltage input design (DC24V-28V) combined with stable current consumption (approximately 3.5A) ensures high energy efficiency while maintaining peak performance.

rate. Whether it's signal jamming for GSM900/CDMA800 bands or enhancing signal coverage in specific areas, this module delivers exceptional linearity and

Spectrum purity meets the rigorous demands of professional-grade engineering integration.

2. Key Product Features

• Powerful 30W Output


  Rated output power reaches30 Watts, compared to ordinary10W Moduleor20W Module, its signal penetration and coverage have been significantly improved. Paired with the same frequencyHigh Gain

  AntennaEffectively meets signal control needs for complex terrain or large-scale areas.

• Precise coverage of 900M band


  Frequency range locked to850MHz - 930MHz. This prime frequency band perfectly covers GSM900 uplink/downlink and CDMA800 bands, making it ideal for resolving indoor deep-coverage issues.

  Key to solving signal issues in "hard-to-reach" areas such as stairwells and basements.

• Industrial-grade cooling and protection


  All-metal body design for efficient performanceRadiator, ensures the module maintains a controlled temperature during extended continuous operation (7x24 hours) to prevent thermal throttling. Additionally, the metal casing

  Effectively isolates external electromagnetic interference to ensure signal purity.

• Wide Voltage Compatibility Design


  SupportedDC24V-28VWide voltage input, maximum operating current3.5A. This design not only offers strong adaptability but also effectively protects precision RF circuits from voltage fluctuations.

  Damage, shorten equipment lifespan.

3. Technical Specifications

4. Frequently Asked Questions (FAQ)

Q1: What is the BCSK-GSM30 module primarily used for?

A:This module is primarily designed forGSM 900MHz bandCell Phone Signal Jammerwith drone jamming systemCommon applications include signal jammers for exam halls and mobile phone blockers in prisons.

Signal jamming systems, conference room anti-eavesdropping devices, and othersDrone Countermeasure SystemRF front-end amplification.

Q2: What power supply is needed for a 30W unit?

A:Since the module's rated operating current is3.5A, and may experience current surges at startup. We recommend using a power supply with an output voltage ofDC24V-28Vbetween, with a rated current up to

Less5A-10AofSwitching Power Supplyto ensure stability when the module operates at full power.

Q3: Can this module be connected directly to an antenna?

A: No.This is a high-power amplifier (PA) module that requires a heatsink fan. Connecting it directly to the fill will damage the module. Be sure to pair it with a large...Loose

Heateror dedicated DCPowerUse in conjunction with.

Q4: Does it require significant cooling? Do I need to add a fan?

A:The 30W RF module generates significant heat during operation. Although it uses a metal enclosure for heat dissipation, strong recommendations apply when operating in enclosed spaces or under continuous full-load conditions.

Add a large heatsink orCooling Fanto prevent thermal throttling or performance degradation.
