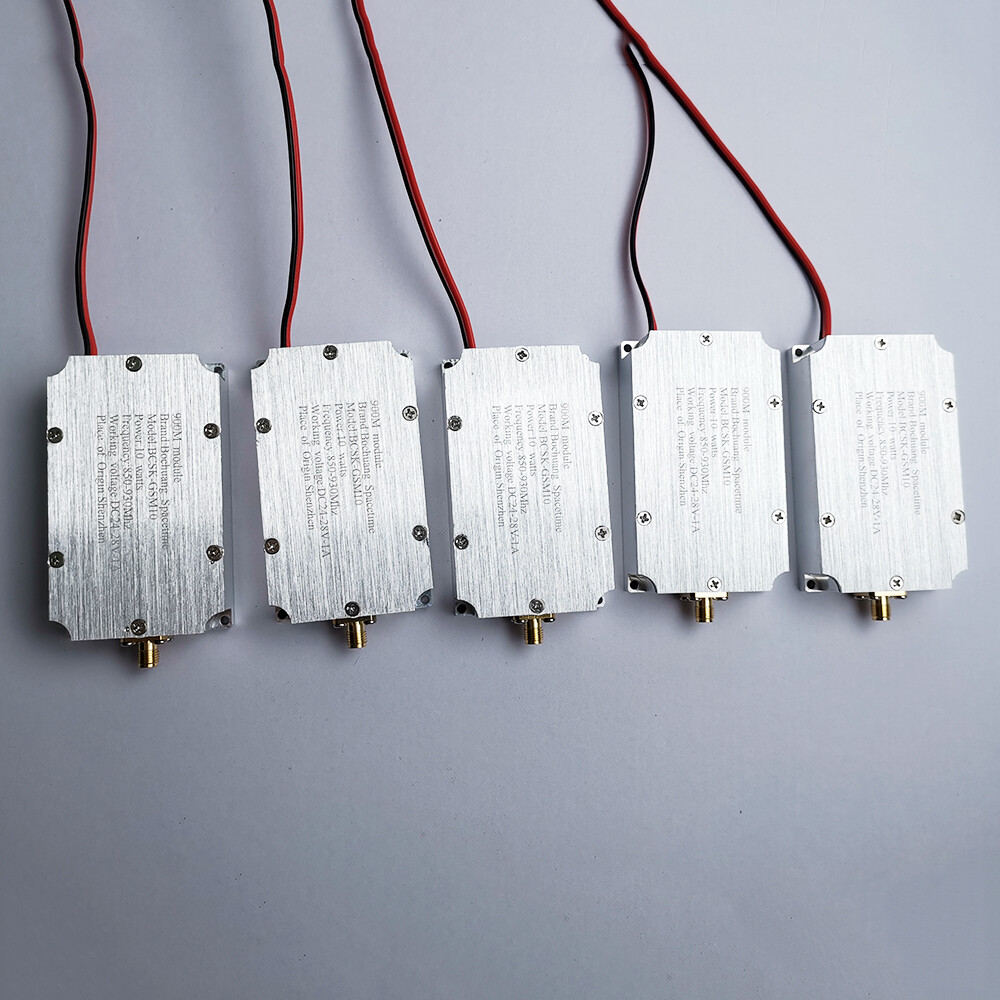

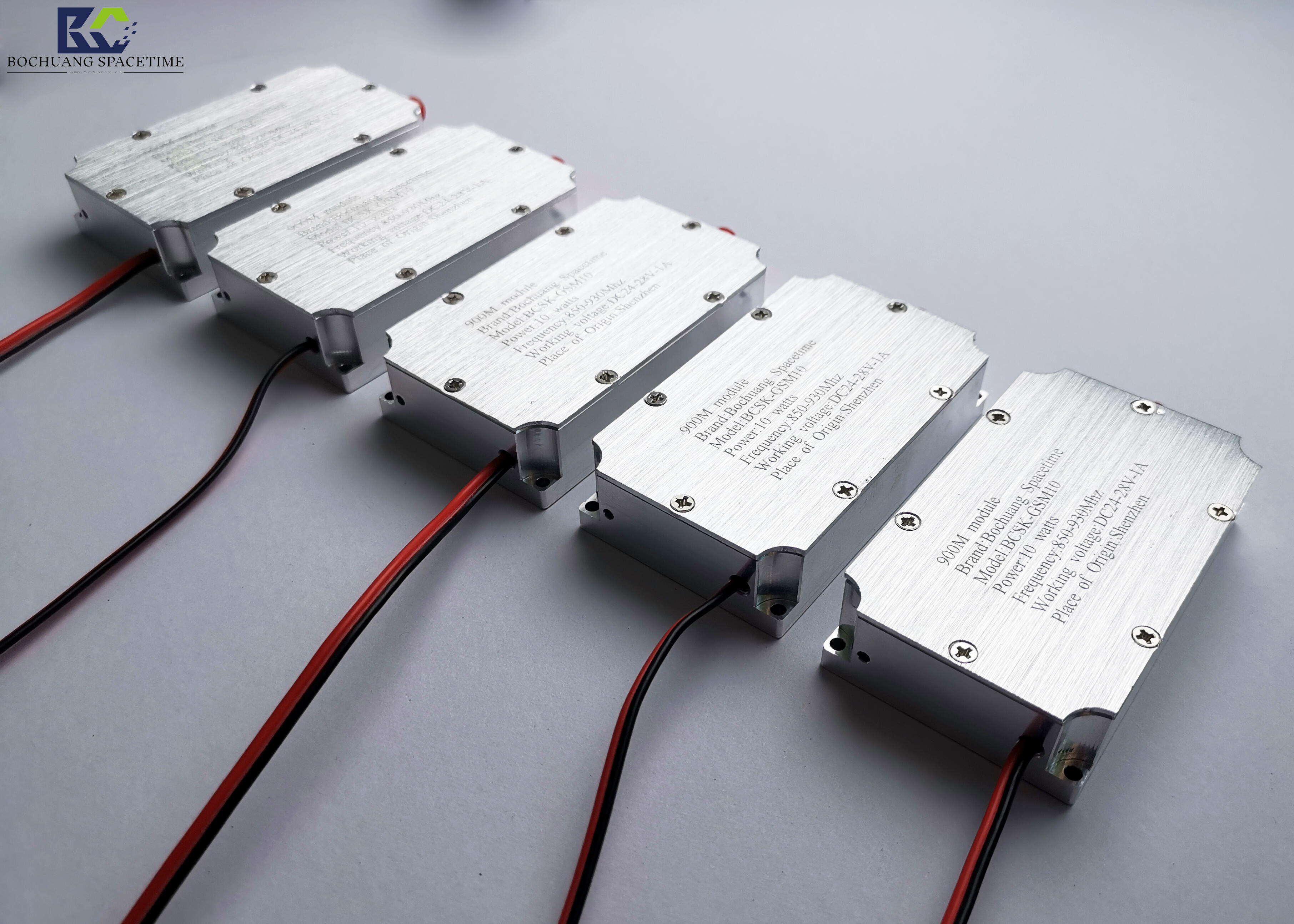

BCSK-GSM10 900MHz 1W RF Power Amplifier Module by Bochuang Space-Time | For GSM/CDMA Signal Jamming and Drone Countermeasure Systems
The BCSK-GSM10 is a high-stability, wide-bandwidth 900MHz RF power amplification module. Operating from 850 to 930 MHz with an output power of up to 10W, it supports a wide input voltage range of DC 24V–28V. Designed for signal enhancement or interference in GSM, CDMA, and other mobile communication bands, the module features a compact metal enclosure with excellent heat dissipation and electromagnetic compatibility (EMC). It integrates seamlessly into industrial-grade applications such as cell phone signal jammers, drone countermeasure systems, and exam room shielding equipment. With a clean spectrum and strong out-of-band suppression, the BCSK-GSM10 ensures stable operation in complex electromagnetic environments, making it the ideal core component for directional interference or signal coverage solutions.
In Stock (500units
BCSK-GSM10 —— 900MHz High-Stability RF with Signal SourcePower Amplifier Module
Product Overview
In core components of wireless communication jamming and countermeasure systems, signal source purity and power output stability are critical.Bochuang Space-Time (Bochuang
SpaceTime) BCSK-GSM0Designed for industrial-grade applications900MHz RF Power Amplifier Module. This module precisely covers850-930 MHzFrequency
section, providing up to10WIts stable and continuous output power is the critical "heart" for building GSM, CDMA mobile phone signal jammers and drone countermeasure systems.
The BCSK-GSM10 features a compact, all-aluminum enclosure that delivers excellent electromagnetic shielding and rapid heat dissipation even under heavy load. Its wide voltage input...
Incorporates DC24V-28V design for seamless adaptation to diverse power environments. Whether for upgrading anti-cheating systems in exam halls or securing prisons and classified facilities,
signal control system integration, thisModuleBoth deliver superior out-of-band rejection and linearity to maximize interference effectiveness and ensure system reliability.
Key Features
Precise coverage of 900M band
Designed specifically for mobile communications in low-frequency bands, with a frequency range locked to850MHz-930MHz. This frequency band includes GSM900 and CDMA800, which offer exceptional penetration.
is the core frequency band for solving signal blocking challenges in deep indoor areas or basements.
1W powerful and stable power output
Rated output power reaches10W, providing ample energy reserves for single-channel jamming systems. Paired with high-gain antennas, it effectively suppresses targets within a range of hundreds of meters.
Label signals to ensure comprehensive coverage with no blind spots.
Superior spectral purity and linearity

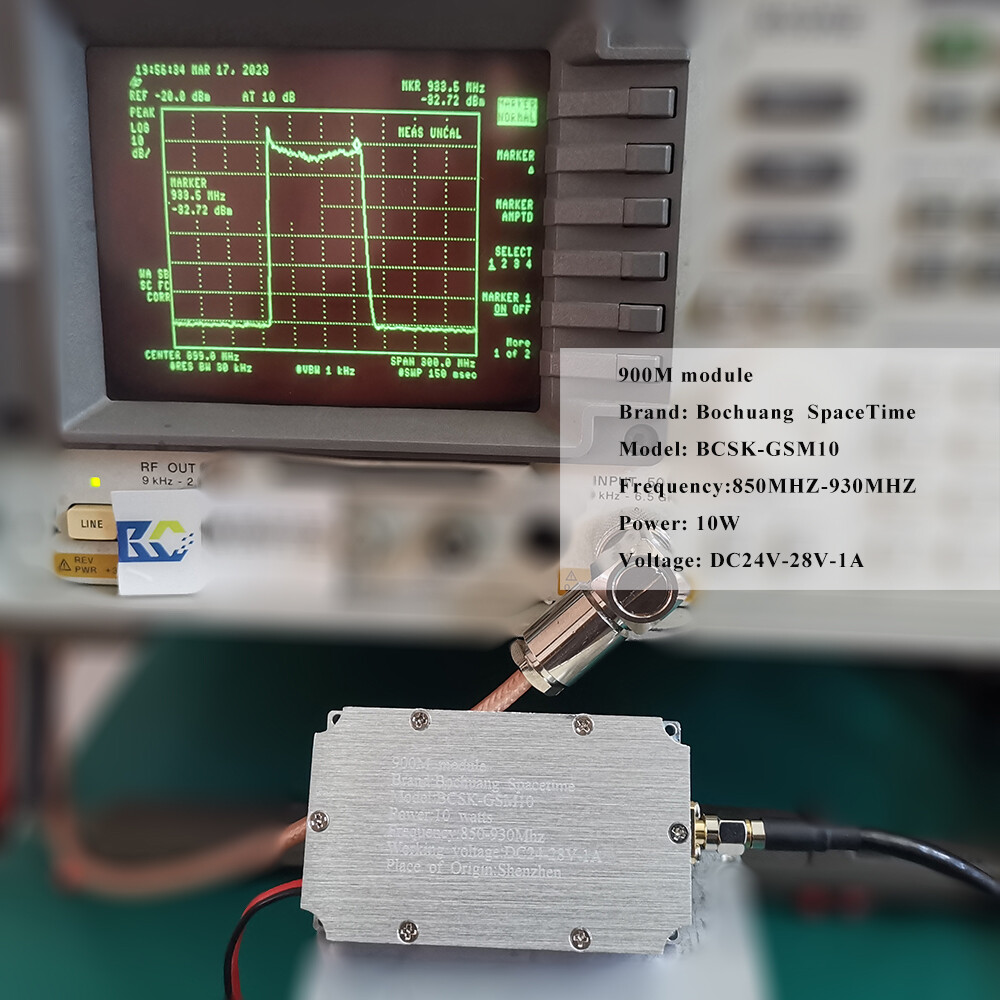

As a precision-tested RF module, the BCSK-GSM10 delivers excellent out-of-band suppression (as shown in the spectrum analyzer plot: flat top and steep edges).
clutter). This means it generates minimal clutter when emitting jamming signals, avoiding unintended interference with unrelated frequency bands and complying with professional electromagnetic compatibility standards.

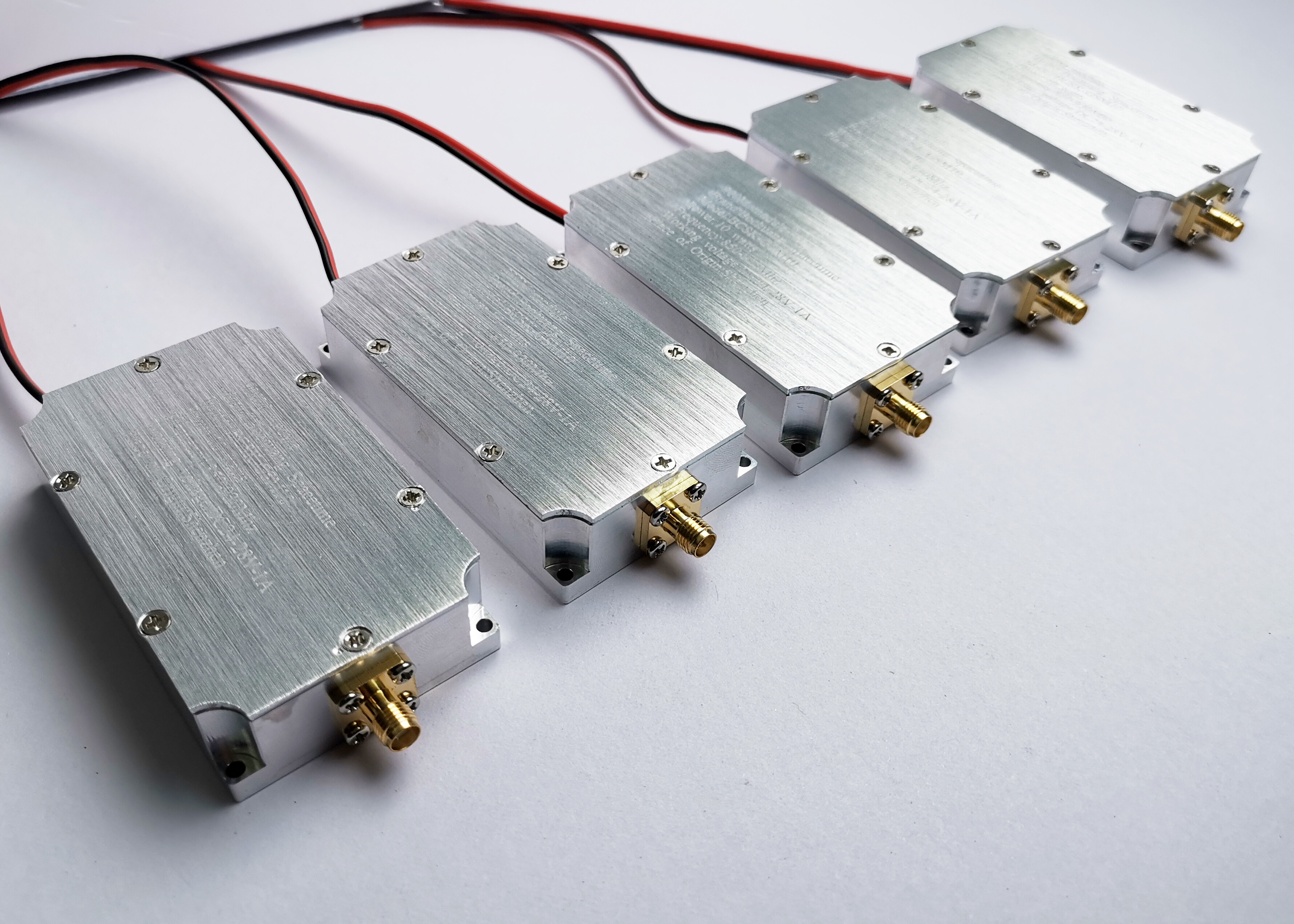

Industrial-grade durability and thermal design
The housing is made of thickened aluminum alloy, serving as both a heat sink and a shield. This design ensures thermal stability during extended continuous operation (7x24 hours).
to prevent power degradation or component damage due to overheating.
Broad system integration compatibility
Standard RF interface (SMA/N-type optional) and a universal DC24V-28V power interface for easy integration into existing jammer chassis.Drone Jammer
or an ideal replacement or upgrade component for fixed vehicle-mounted UAV countermeasure systems.
Technical Specifications
Item | Technical Specifications | Notes |
|---|---|---|
Brand | Bochuang SpaceTime | Factory Direct, Genuine Original |
Model | BCSK-GSM10 | 900MAnti-DroneDevice-specific module |
Center Frequency | 850 MHz - 930 MHz | Override GSM/CDMA/LTE Band 5/8 |
Output Power (Power) | 10 Watts (10W) | Typical value, continuous and stable |
Supply Voltage | DC 24V - 28V | Wide voltage design with high tolerance |
Supply Current | 1A (Max) | Ensure the power supply matches the required wattage. |
Connector Type | SMA-F / N-F (Customizable) | RF Output Standard Interface |
Operating Temperature (Temp) | -20°C to +60°C | Industrial-grade wide-temperature operation |
Dimensions | Compact Micro-Design | Easily fits into various chassis |
Application | Phone BlockingDrone Countermeasures | For DIY assembly or replacement repairs |
Frequently Asked Questions (FAQ)
Q1: This 10W module can be used directly toCell Phone Signal Jammer?
A:This is a radio frequency amplifier module (component), the core part of a jammer. Used alone, it has no shielding effect; base stations automatically switch to other strong-signal frequency bands.
Change. Therefore, you need to install all frequency bands in a single shielded enclosure and connect the heat sinks, fans, power adapter, and corresponding
900M 2G/3G/4G/5G bandAntennaand must be paired with a control circuit board to form a complete unitCell Phone Signal Jammer。
Q2: What signal does this module primarily block?
A:Its frequency range is 850-93 MHz, primarily designed forGSM900(Mobile/Unicom 2G),CDMA800(Telecom 2G/3G) and parts of)LTE
Band 5/8(4G Low-band) signals. These bands have strong diffraction capabilities and are key targets for indoor shielding.
Q3: Can it be powered by DC12V?
A:No. The design operating voltage for this module isDC24V-28VUsing 12V voltage may result in severe power deficiency or failure to operate; conversely, excessive voltage can
May damage the module. Please use matching Bochuang Space-Time DC power supply.Switching Power Supply。
Q4: Does this module require high thermal dissipation?
A:1W RF output generates heat. Although the module features an aluminum alloy housing for passive cooling, we strongly recommend addingscattered
Trending Nowor smallCooling Fanto maintain optimal performance and extend lifespan.
Q5: Can other frequencies be customized?
A:This link corresponds to the 900M band. Bochuang Shikong supports customization for other bands (such as 2G/3G/4G/5G/6G/8G1.5G, 2.4G WiFi, 5.8G, etc.).RF power
Gain Amplification ModuleFor inquiries, please contact Bocom Space-Time customer service for a customized solution.
