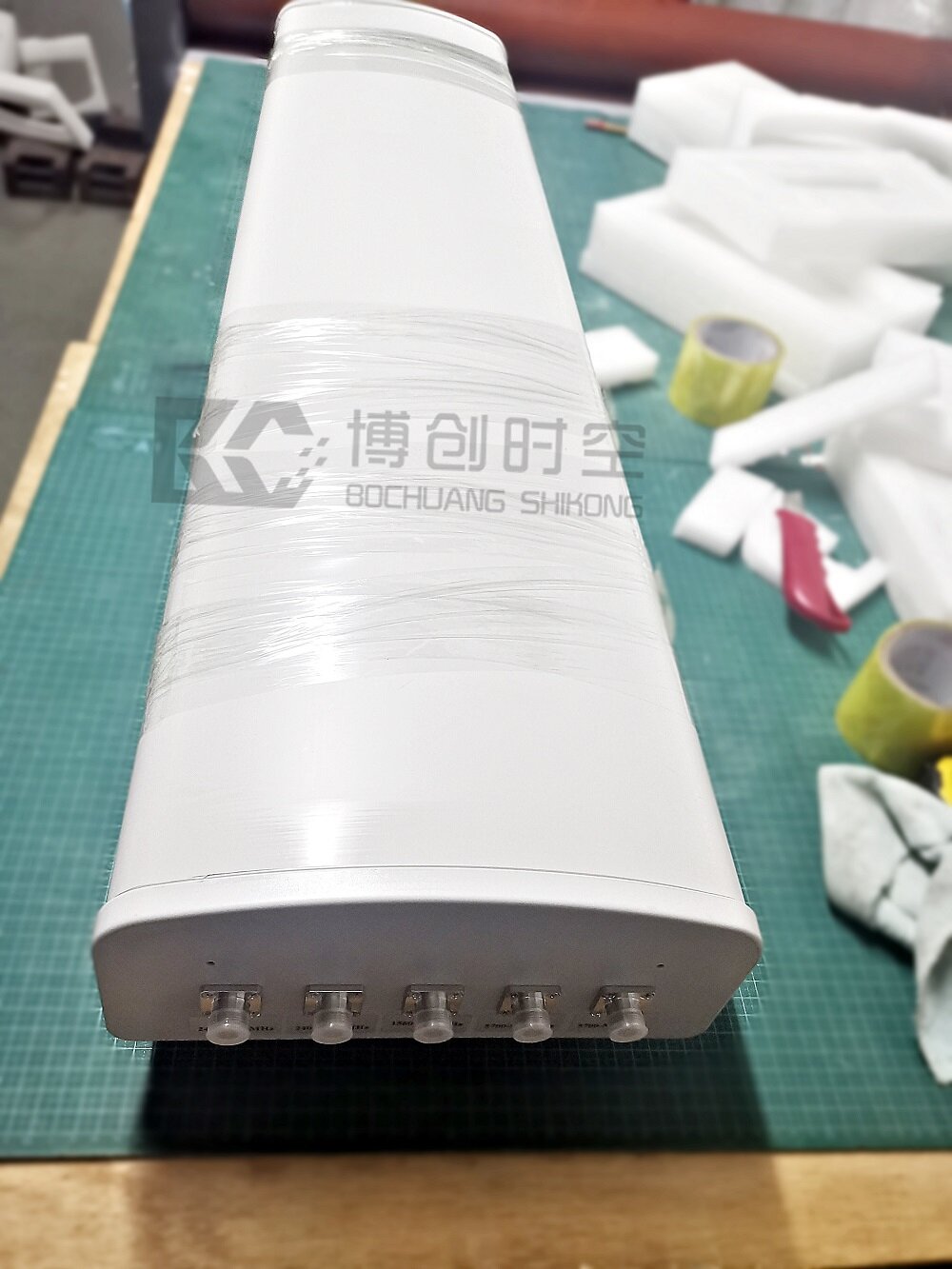

Bochuang Space-Time BSK-JZTX06 Outdoor 6-Band Base Station Directional Antenna | 900M–5.8G Full-Band Coverage, 100W High Power, 65° Beamwidth, 5G/4G/WiFi Communication Panel Antenna

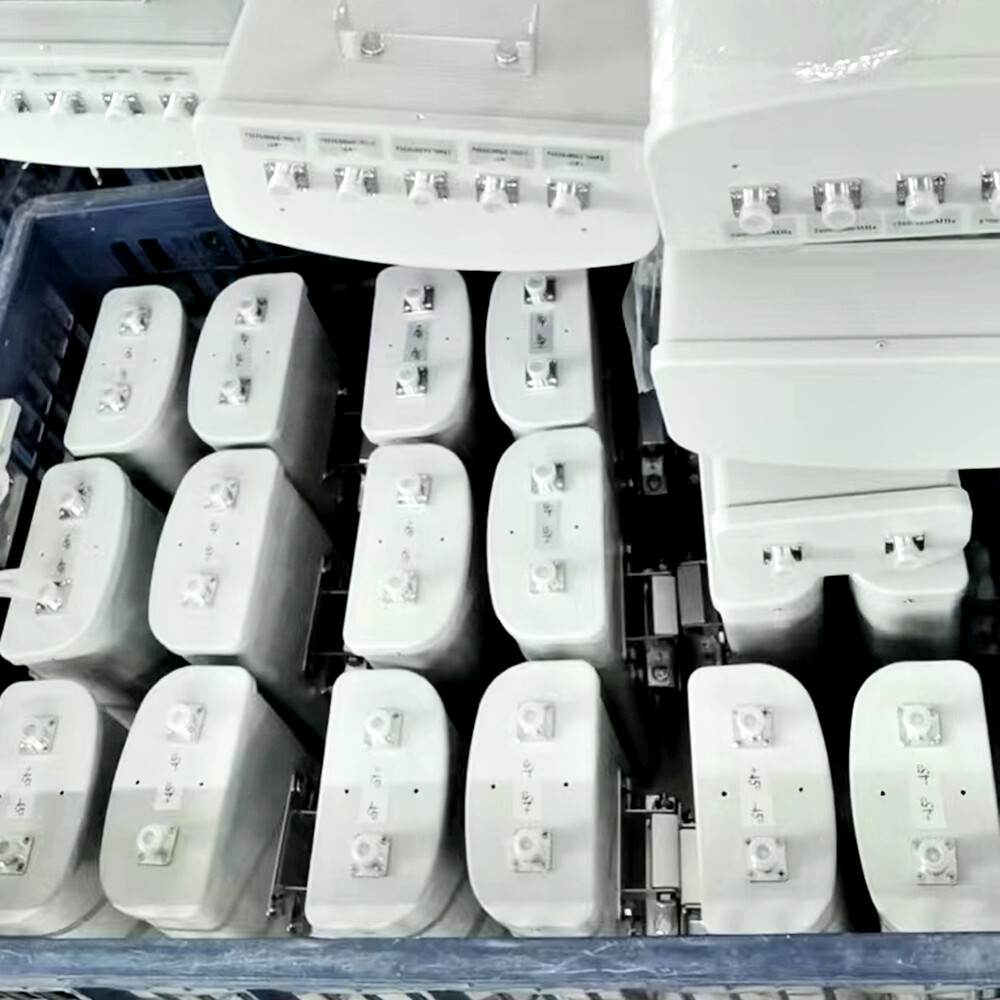

The BCSK-JZTX06 is a high-performance outdoor six-band panel directional antenna designed for complex wireless communication environments. Encased in a compact UPVC radome, it integrates 6 independent ports covering frequencies 900MHz, 1.2GHz, 1.6GHz, 2.4GHz, and 5.8GHz (including dual 5G bands 5150-5300MHz and 5725-5850MHz). It fully supports 2G/3G/4G/5G mobile communications, GPS positioning, and WiFi 6 wireless coverage. With a power capacity of 100W and a VSWR ≤1.5, the antenna ensures efficient and stable signal transmission. Its rugged industrial design features mechanical downtilt adjustment (0-15°) and pole mounting capabilities, withstanding temperatures from -30℃ to 65℃ and winds up to 36.9m/s. Ideal for base station construction, private network communications, and long-range wireless bridging.
In Stock (500units
Bochuang Spacetime (BCSK-JZTX06) Six-Band Base Station Directional Antenna Design, Suitable for High PowerDrone Countermeasures|Base Station|Mobile Signal Booster
1. Key Selling Points
Six-band integration, simple deployment:Integrates six independent ports: 900MHz, 1.2GHz, 1.6GHz, 2.4GHz, and 5.8GHz (dual-band) in one unit.AntennaReplace multiple
The device significantly reduces tower and mast load and wind resistance.
Industrial-Grade High Power Capacity:Supports continuous wave power input up to 100W, combined with a VSWR of ≤1.5, ensuring signal integrity in high-power transmission environments.
Efficient and stable transmission.
Durable Outdoor Design:Features a high-strength UPVC radome with excellent UV resistance and corrosion protection; supports mechanical downtilt adjustment from 0° to 15° for optimal coverage.
Complex base station coverage requirements.
Wide temperature and humidity range adaptation:Operates reliably in extreme temperatures from -30°C to +65°C and humidity up to 95%, with wind resistance of 36.9m/s. Designed for harsh outdoor environments.
Environment Setup.
2. Detailed Technical Specifications
Parameter Items | Detailed Metrics | Notes |
|---|---|---|
Product Model | BCSK-JZTX06 | Outdoor 6-PortDirectional Panel Antenna |
Frequency Range | P1: 860-928 MHz | Overwrite 2G/3G/4G/5G/WiFi/GPS |
Antenna Gain | 13±1 / 15±1 / 16±1 dBi | High-gain directional coverage |
Port Count | 7 (6 frequency bands + polarization separation) | Supports MIMO configuration |
Voltage Standing Wave Ratio (VSWR) | ≤ 1.5 (most frequency bands) / ≤ 2.0 | Excellent impedance matching |
Horizontal Beamwidth | 65° - 85° | Sector coverage |
Vertical Beamwidth | 25° / 20° / 9° | Automatically adjust by frequency band |
Front-to-back ratio | ≥ 20 / 23 / 25 dB | Strong anti-interference capability |
Maximum Power | 100W | Suitable for base station transmission |
Interface Type | 7 * N-Female (N-type female) | Standard RF Interface |
Antenna Size | 900 x 416 x 136 mm | Compact design |
Antenna Weight | 12 ± 0.3 kg | Lightweight design |
Operating Temperature | -30℃ ~ +65℃ | Wide-temperature operation |
Ingress Protection Rating | Wind Resistance 36.9m/s | Withstands harsh weather |
3. Product Deep Dive & Use Cases
Why choose a six-band panel antenna?

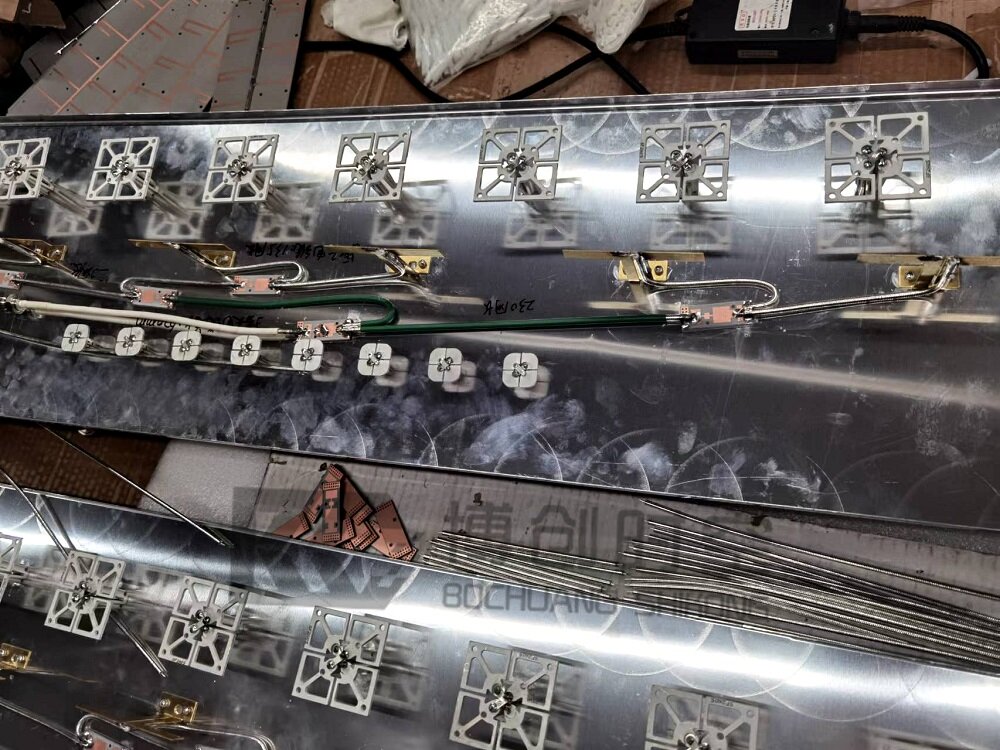

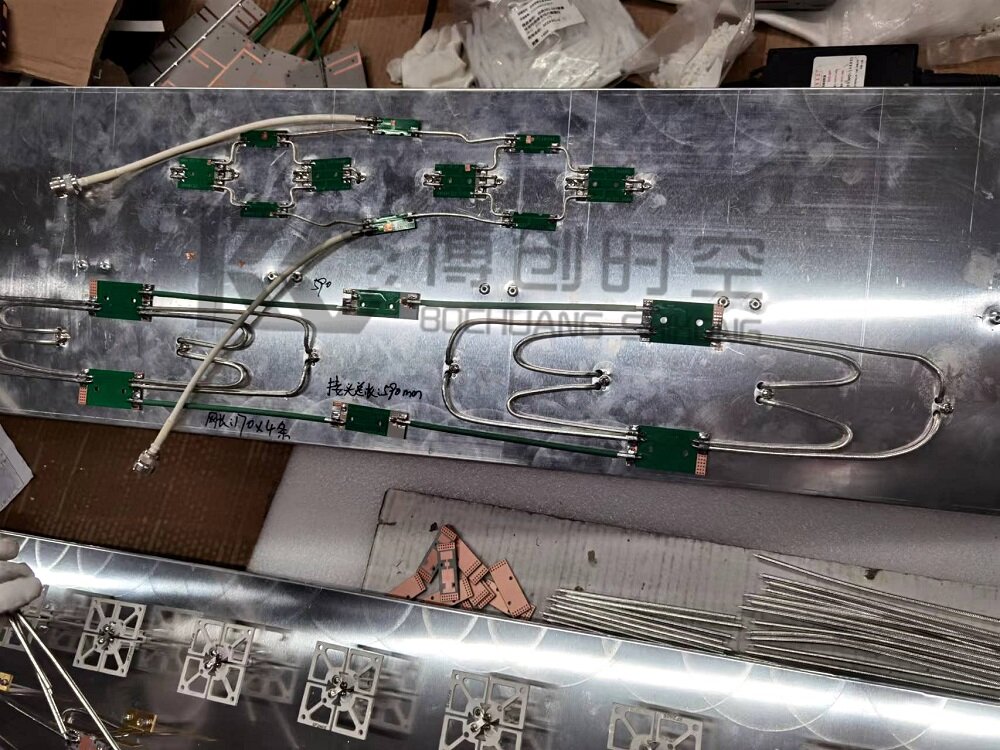

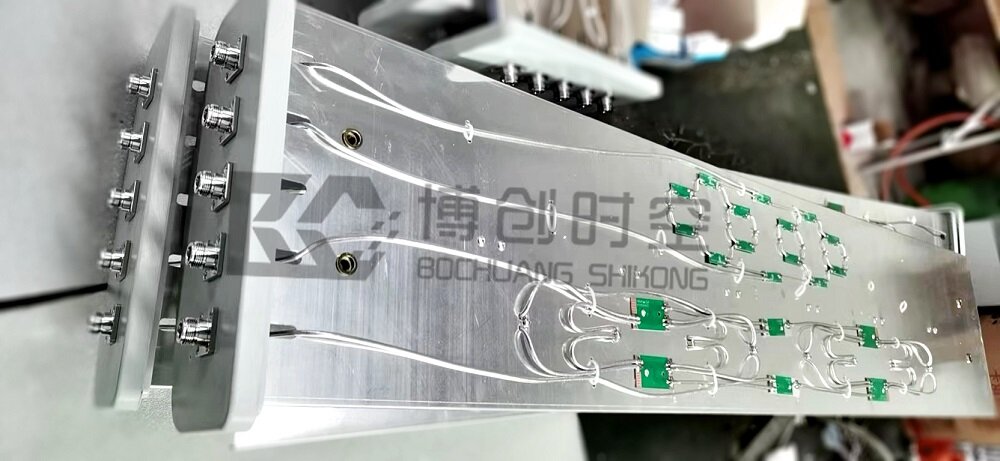

In the 5G era, space on base station towers is at a premium.BCSK-JZTX06Its core value lies in **integrating multiple networks into one**. It consolidates, within a single physical radome, the...
Seven ports from 900MHz to 5.8GHz (including dual-polarization), meaning carriers or integrators don't need to install separate units for each frequency band.Antenna。
Reduce wind load:Reduce wind exposure on towers to enhance base station safety.
Reduce costs:Reduce costs for poles, feeders, and installation labor.
Discreet and stylish:A single large antenna looks cleaner than multiple smaller antennas side by side.
Typical Use Cases

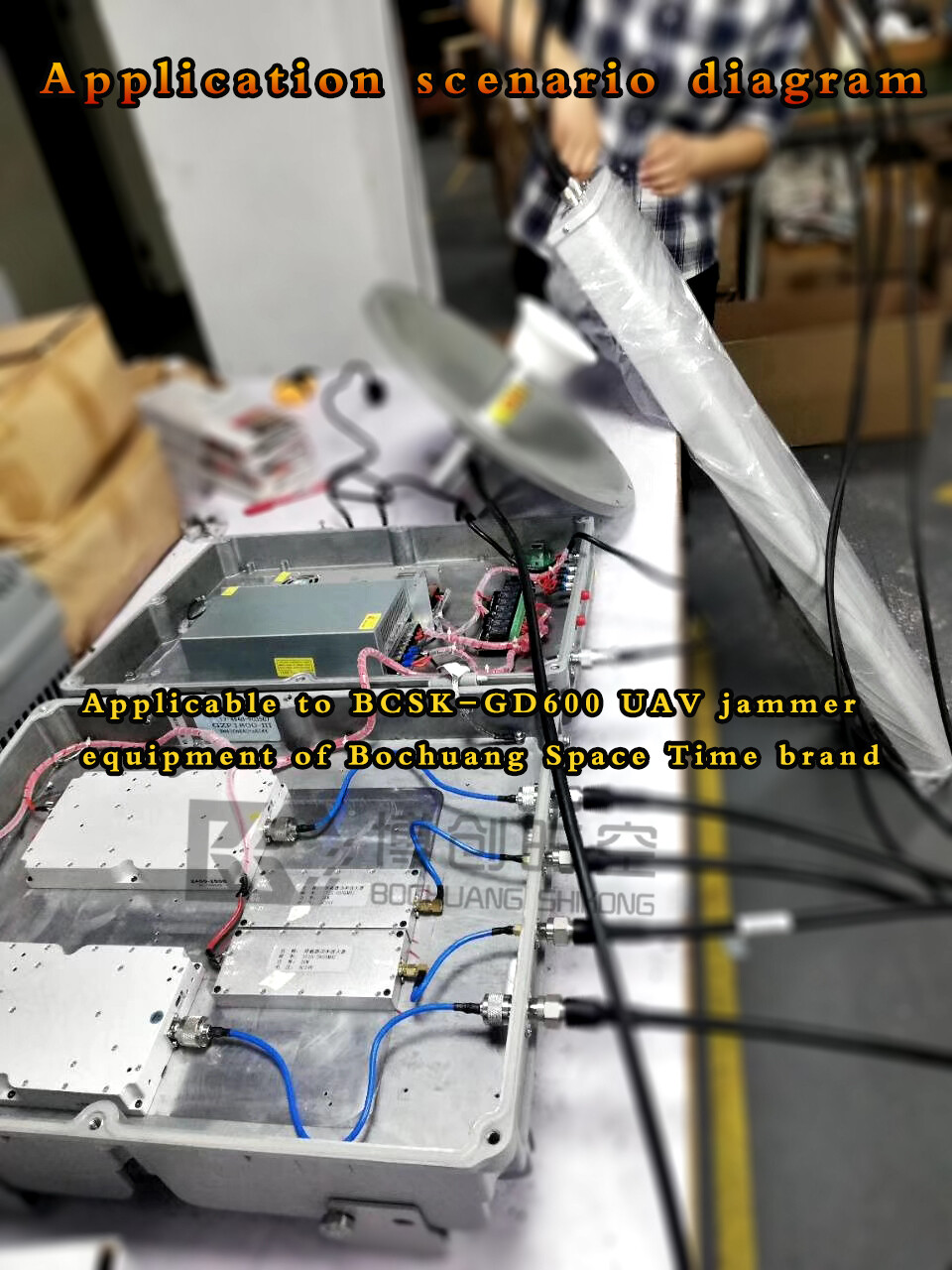

UAV Countermeasure System:FixedDrone DefenseDrone Detection and Strike System Solution
Mobile Communication Base StationSimultaneously covers 2G/4G/5G bands, used as a sector antenna.
Private Network CommunicationDedicated network system for public security, fire departments, and other agencies requiring multi-band coordination (e.g., 1.4G/1.8G).
Long-Range Wireless Bridge:Use the 2.4G and 5.8G high-frequency bands for high-bandwidth data backhaul.
Public Safety & Surveillance:Integrate WiFi monitoring backhaul with command and dispatch communications.
4. Frequently Asked Questions (FAQ)

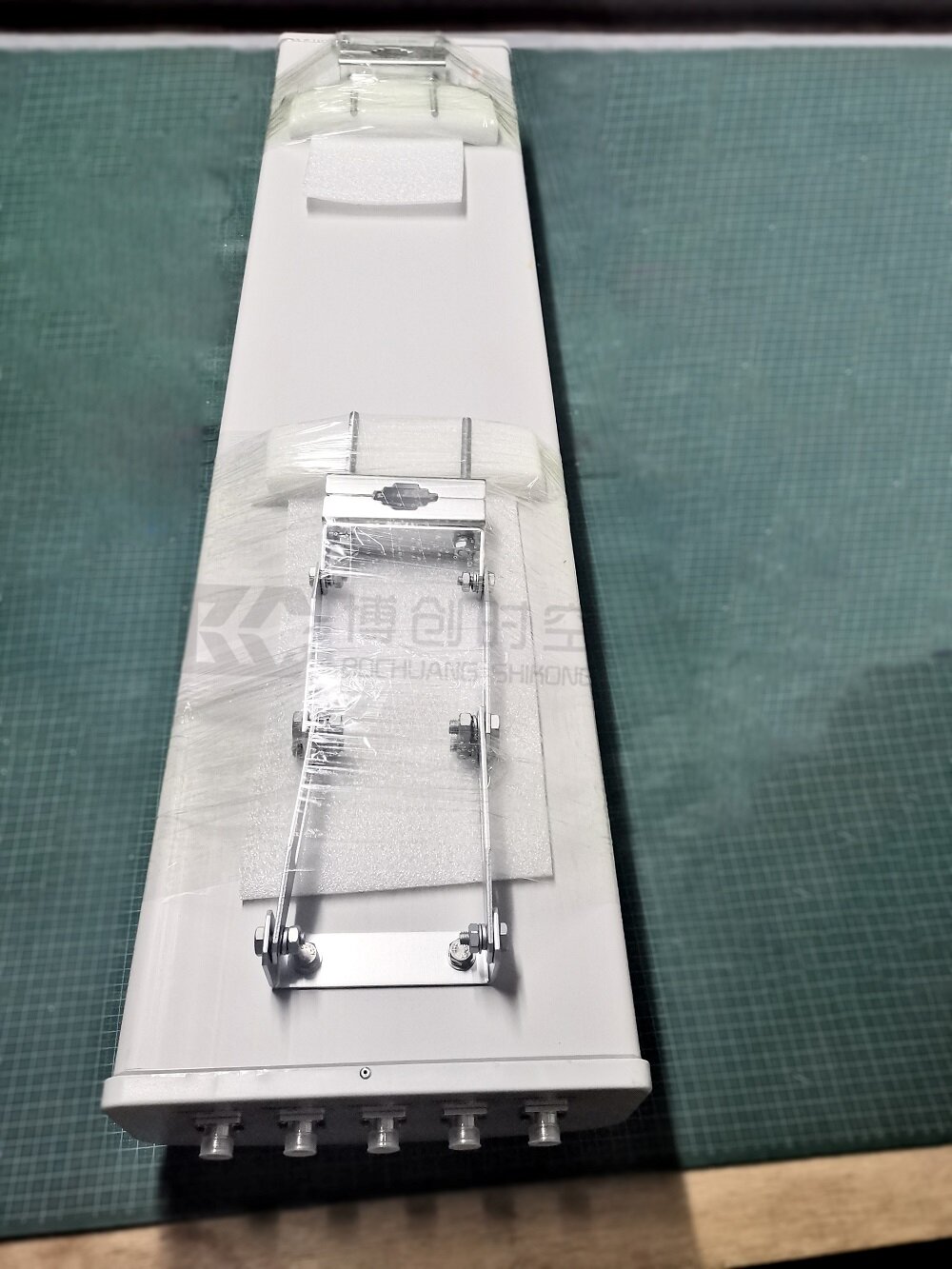

Q: What is the connector type for this antenna? Is it waterproof?
A: Standard configuration includes 7 N-Female connectors.Connector, this isBase station antennaThe most universal interface standard. The interface features a waterproof design, working with waterproof tape to
Achieves IP5 or higher protection rating, suitable for outdoor heavy rain environments.

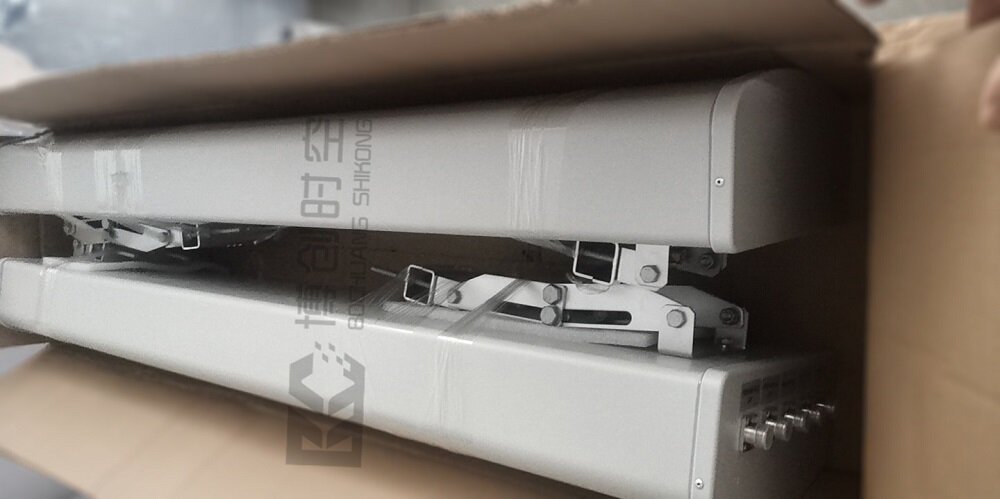

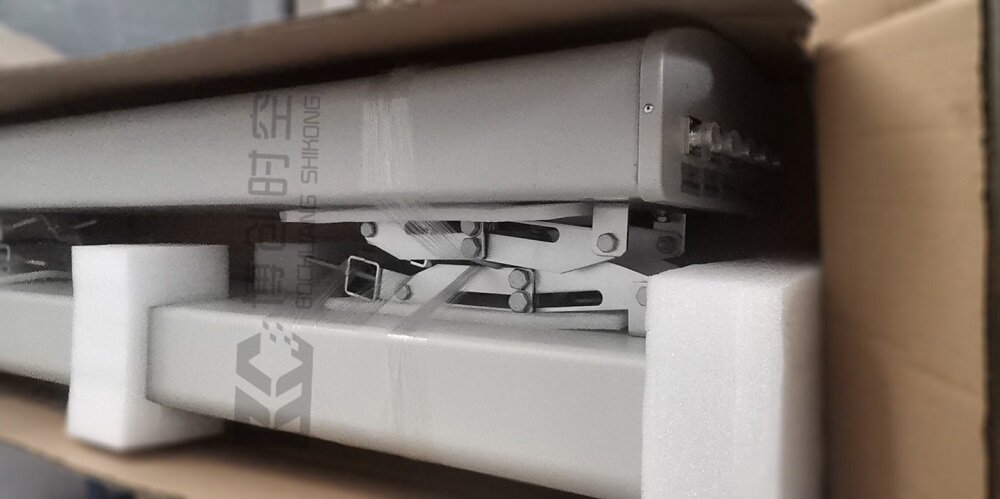

Q: Does the antenna support mechanical downtilt? What is the angle range?
A: Yes. BCSK-JZTX06 is equipped with a mechanical adjustment bracket and supports0-15°mechanical downtilt adjustment. This enables precise control of the base station coverage area and reduces interference with neighboring cells.
disruption is critical.
Q: What is the gain for the 5.8G band?
A: Delivers excellent antenna gain in the 5.8 GHz high-frequency band (5725-5850 MHz) with a horizontal beamwidth of 65-85°, making it ideal for high-capacity hotspot coverage or
Directed data transfer.
