BCSK-JZTX10-N-K Outdoor 10-Band Base Station Directional Antenna | 300-5925MHz Ultra-Wideband 100W High-Power 5G/4G/WiFiMulti-Frequency Drone Jammer Antenna
The BCSK-JZTX10-N-K is a high-performance outdoor 10-port directional panel antenna designed for complex wireless communication environments requiring multi-band integration. Encased in a compact UPVC radome, it integrates 10 independent ports covering frequency ranges of 300-400MHz, 400-500MHz, 500-600MHz, 600-700MHz, 700-860MHz, 860-1000MHz, 950-1100MHz, 1100-1300MHz, 2.4GHz, and 5.8GHz. It fully supports VHF/UHF, LTE, 5G mobile communications, and WiFi 6 coverage. With a power capacity of 100W and a VSWR of ≤2.0, the antenna ensures efficient and stable signal transmission. Its rugged industrial design supports pole mounting and withstands winds up to 36.9m/s and operating humidity levels of 10-95%, making it an ideal choice for base station deployment, private networks, and long-range wireless bridges.
In Stock (500units
Bochuang Spacetime BCSK-JZTX10-N-K 10-Band Base Station Directional AntennaDesigned for high-power applications above 5000 metersDrone Defense and Strike
Device | Base Station Mobile Signal Booster
1. Key Selling Points
Ten-band integration, streamlined deployment:One unit with 10 independent ports integrated from 300MHz to 5925MHz.AntennaReplace multiple devices to significantly reduce tower load and wind resistance
Obstruct is the ultimate solution for spectrum integration.
Ultra-wideband coverage:Frequency range covers 300-400/400-500/500-600/600-700/700-860/860-1000/950-1100/1100-1300/2400-
2500/5700-5925MHz, fully supports VHF/UHF private networks, LTE, 5G, and WiFi 6 communications.
Industrial-Grade High Power Capacity:Supports continuous wave power input up to 100W, with a VSWR of ≤2.0, ensuring reliable signal transmission in high-power transmit environments.
High-efficiency and stable output.
Durable Outdoor Design:Equipped with a high-strength UPVC radome, offering superior UV resistance and corrosion protection; withstands 36.9m/s wind force and 10-95% of...
Operating humidity: Built for harsh outdoor environments.
2. Detailed Technical Specifications
Parameter Items | Detailed Metrics | Notes |
|---|---|---|
Product Model | BCSK-JZTX10-N-K | 10-Port OutdoorDirectional Panel Antenna |
Frequency Range | P1: 300-400 MHz | Overwrite VHF/UHF/4G/5G/WiFi |
Antenna Gain | 4/4/4/8/8/9/9/9/14/14 ±1 dBi | Multi-band differential gain |
Port Count | 10 | Supports MIMO and multi-system access |
Voltage Standing Wave Ratio (VSWR) | ≤ 2.0 | Excellent impedance matching |
Horizontal Beamwidth | 90°/85°/75°/65° ±15°/10° | Sector coverage |
Vertical Beamwidth | 65° ±10° / 32° ±5° | Automatically adjust by frequency band |
Front-to-back ratio | ≥ 15 / 18 / 20 / 23 / 25 dB | Strong anti-interference capability |
Port Isolation | ≥ 23 dB | Ensure seamless multi-system coexistence without interference |
Maximum Power | 100W | Suitable for base station transmission |

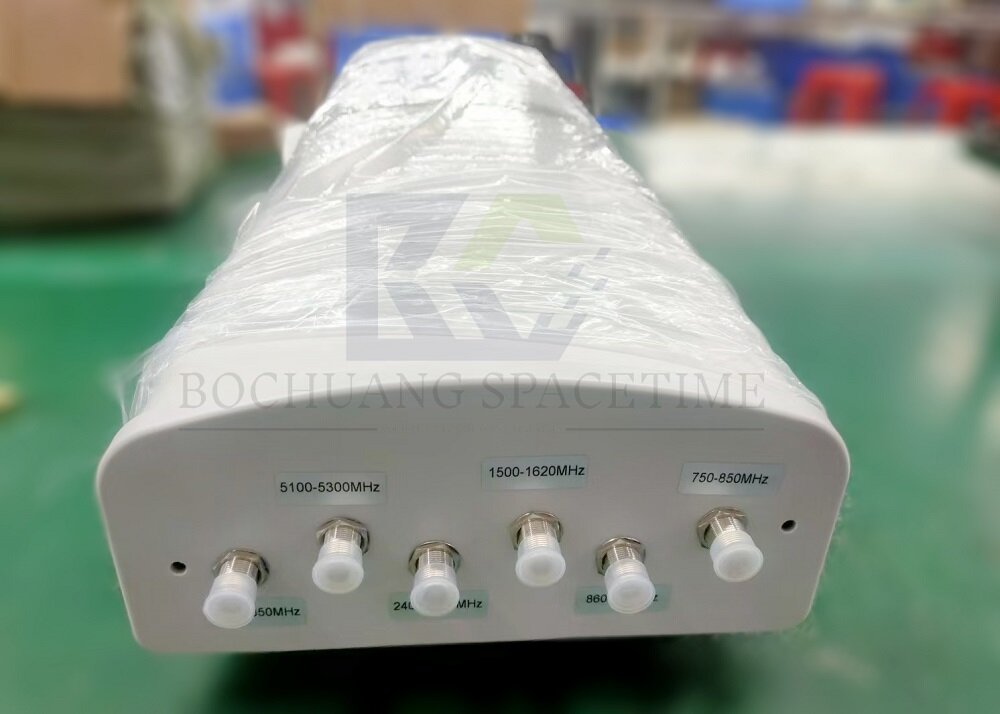

Interface Type | 10 * N-Female (N-type female) | Standard RF Interface |
Input Impedance | 50Ω | Standard Impedance |
Antenna Size | 1200 x 416 x 136 mm | Compact design |
Antenna Weight | 13.5 ± 0.1 kg | Lightweight design |
Operating Temperature | -30°C ~ +65°C (estimated) | Wide-temperature operation |
Operating Humidity | 10% - 95% | Suitable for humid environments |
Ingress Protection Rating | Wind Resistance 36.9m/s | Withstands harsh weather |
Radome Materials | UPVC | UV-resistant and corrosion-resistant |
Lightning Protection | DC Ground | DC Grounding |
3. Product Deep Dive & Use Cases
Why choose a 10-band ultra-wideband antenna?
In the era where 5G and private networks coexist, tower space and load-bearing capacity are valuable resources.BCSK-JZTX10-N-KIts core value lies in ** "a one-stop solution."
**. It integrates ten ports—from 300MHz low-frequency private networks to 5.8GHz high-frequency WiFi—within a single physical radome, meaning operators or integrators no longer need separate units for each...
Install a separate antenna for each frequency band.
Reduce wind load and weight:Significantly reduces wind exposure and overall weight on towers, enhancing base station structural safety.
Reduce Total Cost of Ownership (TCO):Reduce pole count,feederInstallation labor and ongoing maintenance costs.
Simplify network deployment:Ideal for complex sites requiring simultaneous coverage of public safety (VHF/UHF), commercial cellular (4G/5G), and wireless backhaul (WiFi).
scenery.
Typical Use Cases

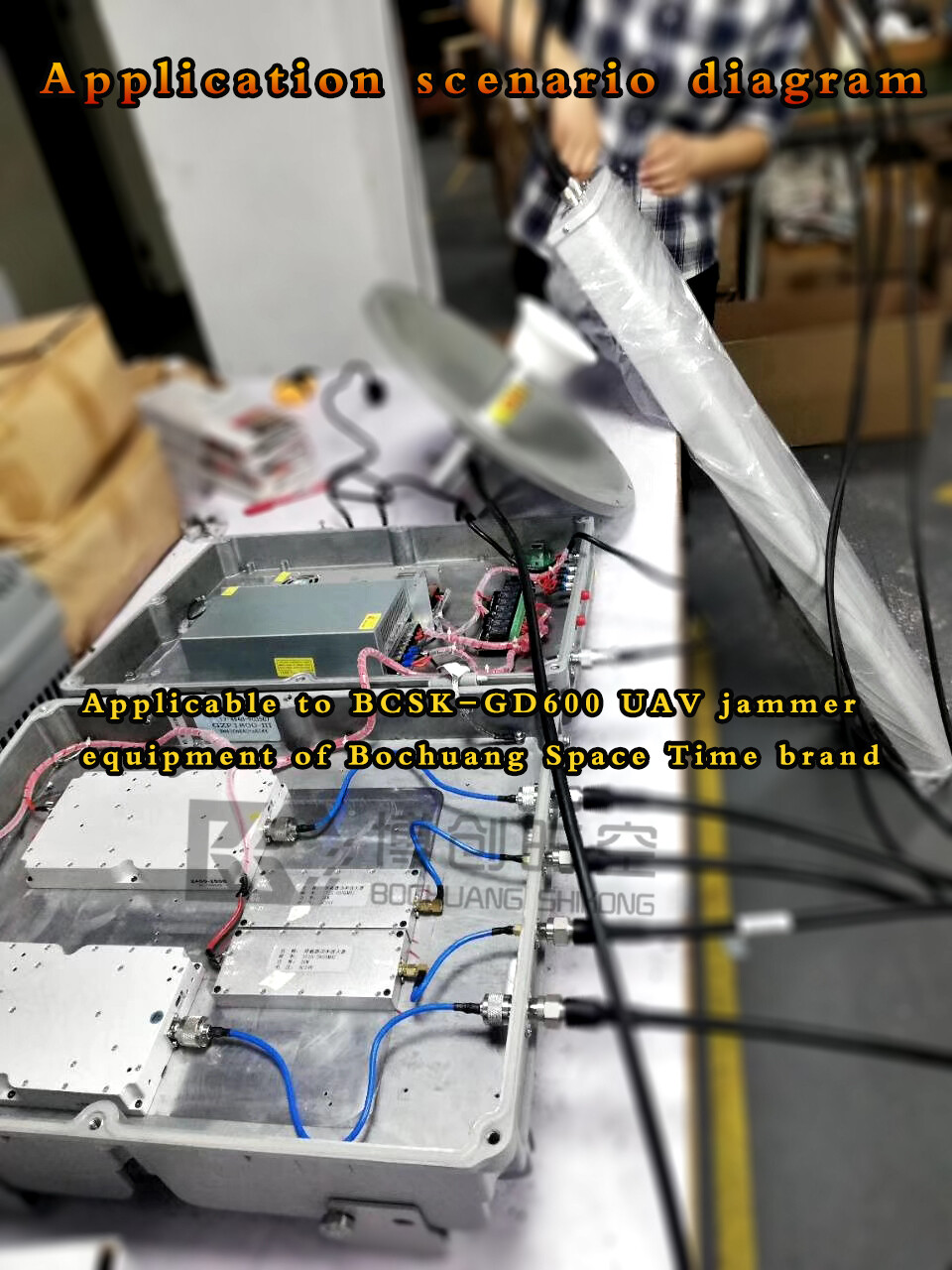

Drone Countermeasures:5 kmDrone Defense and StrikeSystem Detection, Base Station Mobile Signal Booster Solution.
Public Safety and Dedicated Network Communication:Simultaneously covers multiple private network bands from 300 to 130 MHz, meeting command and dispatch needs for public security, fire departments, traffic agencies, and more.
Multi-operator shared base station:One-stop antenna solutions for multiple operators on space-constrained rooftops or towers.
Full coverage in remote areas:Consolidate cellular backhaul (5.8GHz) and terrestrial coverage (low-band) on a single site to rapidly deploy communication services.
Temporary Base Station for Large-Scale Events:Rapid deployment: one antenna meets complex on-site communication assurance needs.
4. Frequently Asked Questions (FAQ - SEO Optimized)
Q: Will there be interference between the 10 ports of this antenna?
A: No. The BCSK-JZTX10-N-K is designed with high port isolation of ≥23dB to effectively prevent mutual interference between signals in different frequency bands, ensuring independent operation of each system.
Work reliably.
Q: What is the lightning protection performance of the antenna?
A: AntennaBuilt-in DC ground surge protection effectively dissipates induced lightning currents to safeguard expensive downstream communication equipment. Installation is recommended.
At this time, securely connect the antenna bracket to the tower's grounding system to achieve optimal protection.
Q: Is this antenna suitable for coastal areas?
A: Excellent fit. The radome is made of UPVC, offering superior resistance to salt spray corrosion and UV degradation, combined with a robust mechanical structure and 36.9m/s wind load rating.
Level, fully capable of long-term operation in harsh coastal environments.
