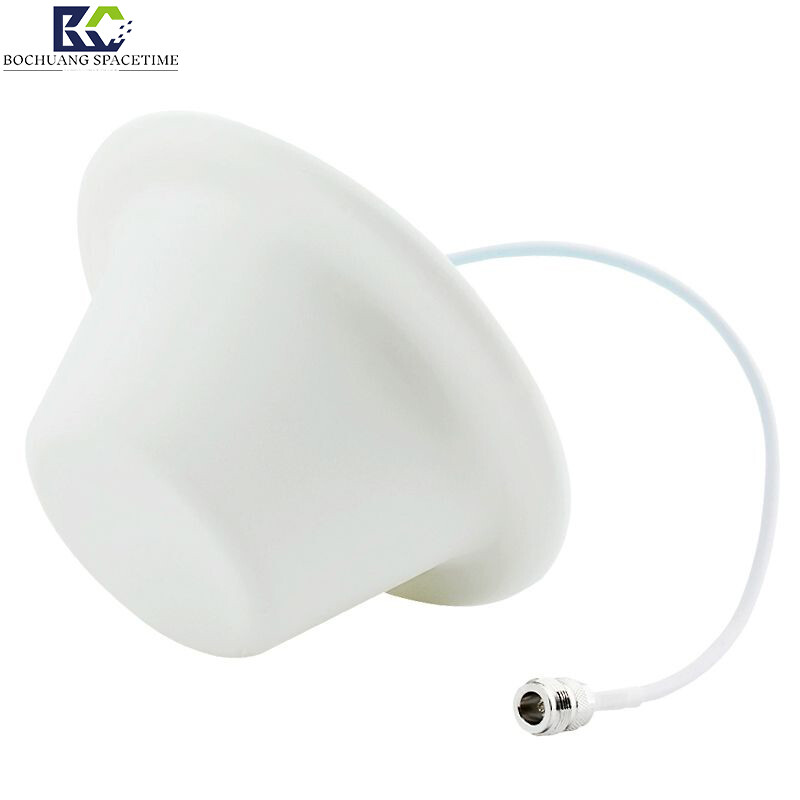

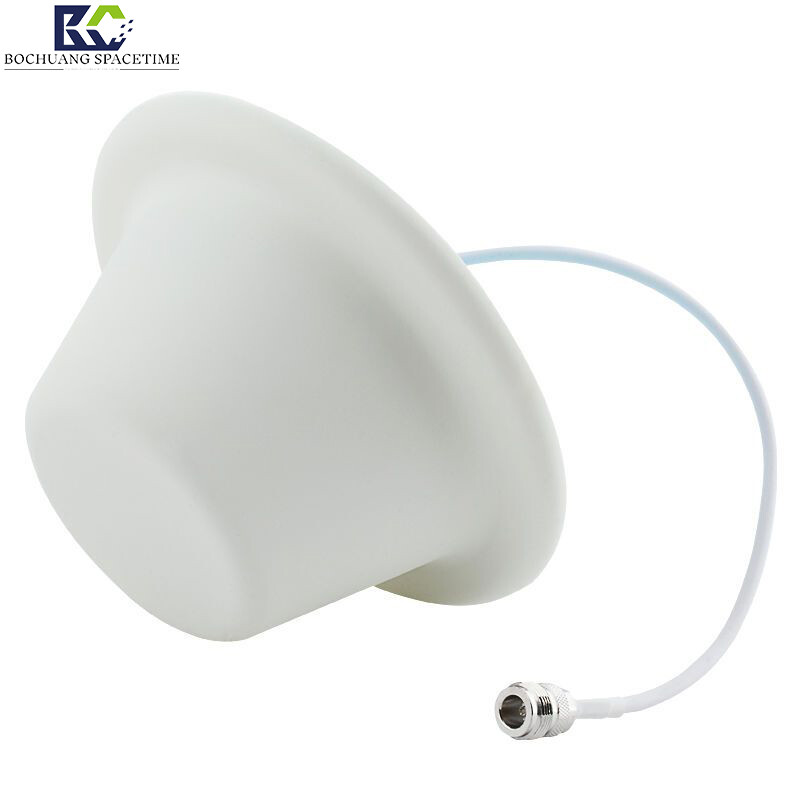

Bocchuang Space-Time BSK-MGTTX3700 5G Indoor Omni-Directional Ceiling Antenna | 800-3700MHz Wideband, Mushroom Head Design for Mobile Signal Amplifiers, WiFi Coverage, and DAS
The BCSK-MGTTX3700 is a high-performance indoor omnidirectional ceiling antenna featuring a classic "mushroom" design. It supports 806-960 MHz, 1710-2170 MHz, 2300-2700 MHz, and 3300-3700 MHz multi-band frequencies, compatible with 2G/3G/4G/5G and Wi-Fi 2.4G/5G signals. Gain ranges from 1.5dBi to 4 dBi depending on the band. The vertical polarization design ensures 360° coverage with no blind spots. Equipped with an SMA male connector and mounting nut for quick installation on ceilings or walls, it is ideal for mobile signal boosters, indoor distribution systems, enterprise wireless coverage, and smart home relay applications. Constructed from flame-retardant ABS material, it offers excellent weather resistance for long-term stable operation, making it the ideal choice for system integrators and communication contractors.
In Stock (5000units
Product Overview
The BOCCHUANG SHIKONG BSK-MGTTX3700 is a high-performance indoor omnidirectional ceiling-mount antenna featuring a classic "mushroom head" design. It supports 806-960MHz, 1710-
2170MHz, 2300-2700 MHz, 3300-3700 MHz multi-band; compatible with 2G/3G/4G/5G and Wi-Fi 2.4G/5G signals. Gain varies by frequency band up to
1.5dBi to 4 dBi. Vertical polarization ensures 360° omni-directional coverage with no dead zones. Equipped with an SMA male connector and mounting nut for quick installation on ceilings or walls, widely used in...
For mobile signal boosters, indoor distribution systems, enterprise wireless coverage, and smart home repeaters. The housing is made of flame-retardant ABS material with strong weather resistance, suitable for long-term stable operation.
Reliable operation makes it the ideal choice for system integrators and telecommunications contractors.
Product Details
Ultra-wideband coverage:806-3700MHz full-band support; one device handles 2G/3G/4G/5G and Wi-Fi 2.4G/5G—no need to swap.Antenna。
High-Gain Omnidirectional Radiation:Gain up to 4dBi (3300-3700MHz); vertical polarization design ensures 360° uniform coverage, eliminating signal dead zones.
Industrial-Grade Durable Design:Flame-retardant ABS housing with an aluminum alloy base; heat-resistant and anti-aging, ideal for high-intensity environments like shopping malls, hotels, and factories.

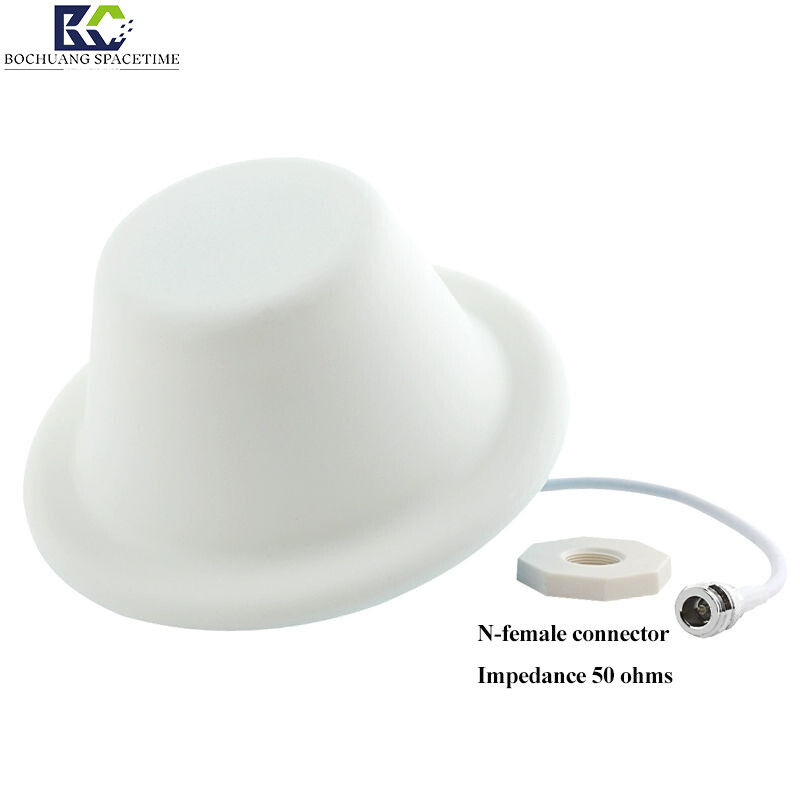

Plug-and-play installation:Standard: N-type female connectorConnector+ Install the nut; deploy on ceiling or wall in 5 minutes with no professional tools required.
I. Core Parameter Table
Parameter Item | Value/Description | SEO keyword integration |
|---|---|---|
Model | BCSK-MGTTX3700 | Bocuang Space-TimeCeiling Antenna, 5GOutdoor Antenna |
Operating Frequency Band | 806-960MHz / 1710-2170MHz / 2300-2700MHz / 3300-3700MHz | 4G/5G full-band, WiFi 2.4G/5G compatible |
Gain | ≥1.5dBi (Low Band) / ≥3.5dBi (Mid Band) / ≥4dBi (High Band) / ≥3.5dBi (5G) | High-gain ceiling antenna, multi-band gain |
Polarization Mode | Vertical polarization | Omnidirectional coverage, 360° no blind spots |
Interface Type | N-type female connectorConnector | Signal BoosterComplementary, Distributed Systems |
Installation Method | Ceiling/Wall Mount, Includes Nut Accessories | Indoor installation, rapid deployment |
Casing Material | Flame-Retardant ABS | Weather-resistant and reliably stable for long-term operation |
Use Cases | Home, Office, Mall, Basement, Smart Home | Mobile signal boosting, enterprise Wi-Fi coverage |
II. Frequently Asked Questions
Q1: Does this antenna support both 4G and 5G?
Yes, BCSK-MGTTX3700 covers 806-960 MHz (low band), 1710-2170 MHz (mid-band 4G), and 2300-2700 MHz (high-band 4G).
Band/WiFi 2, 4G), 3300-3700MHz (5G mainstream bands) for true "one-device-fits-all" compatibility, adapting to future network upgrades without needing to change antennas.
Q2: Why does gain vary across different frequency bands?
This is determined by the antenna's physical structure and frequency characteristics. At lower frequencies, wavelengths are longer, resulting in relatively lower radiation efficiency and a gain of 1.5dBi. At higher frequencies, shorter wavelengths enable
More focused beamwidth with up to 4dBi gain. This design ensures balanced coverage across all frequency bands, preventing overly strong or weak signals in any band.
Q3: Where can this be installed?
A: Ideal for any indoor space requiring uniform coverage, such as:
Home: Eliminate Wi-Fi dead zones in bedrooms and bathrooms.
Office: Enhance call quality in meeting rooms and open workspaces
Malls & Hotels: Ensure seamless Wi-Fi and mobile payment experiences for customers

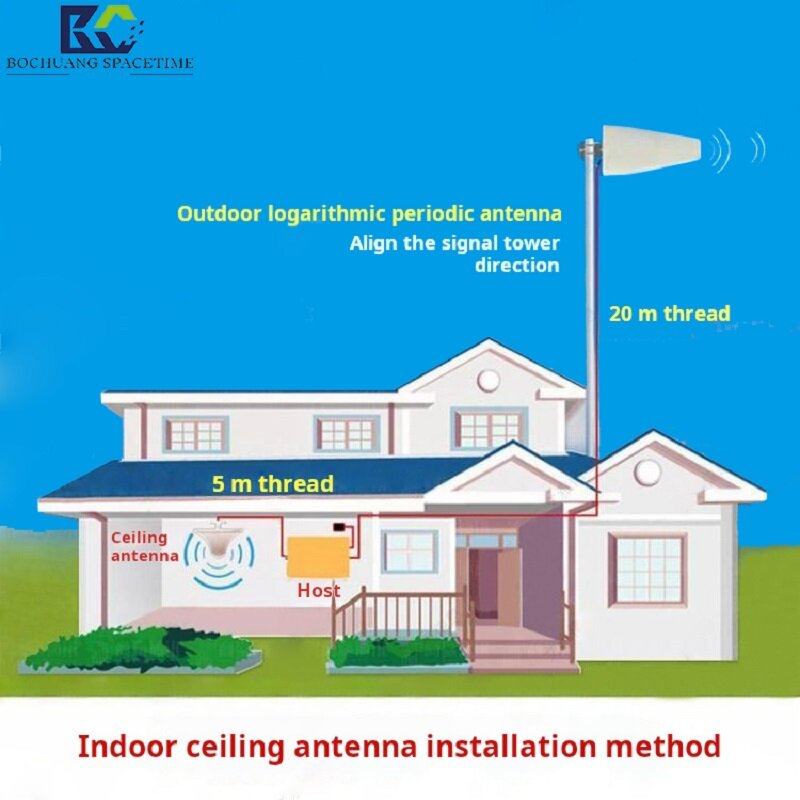

Basement/Garage: CoordinateSignal BoosterAchieve "zero blind spot" coverage

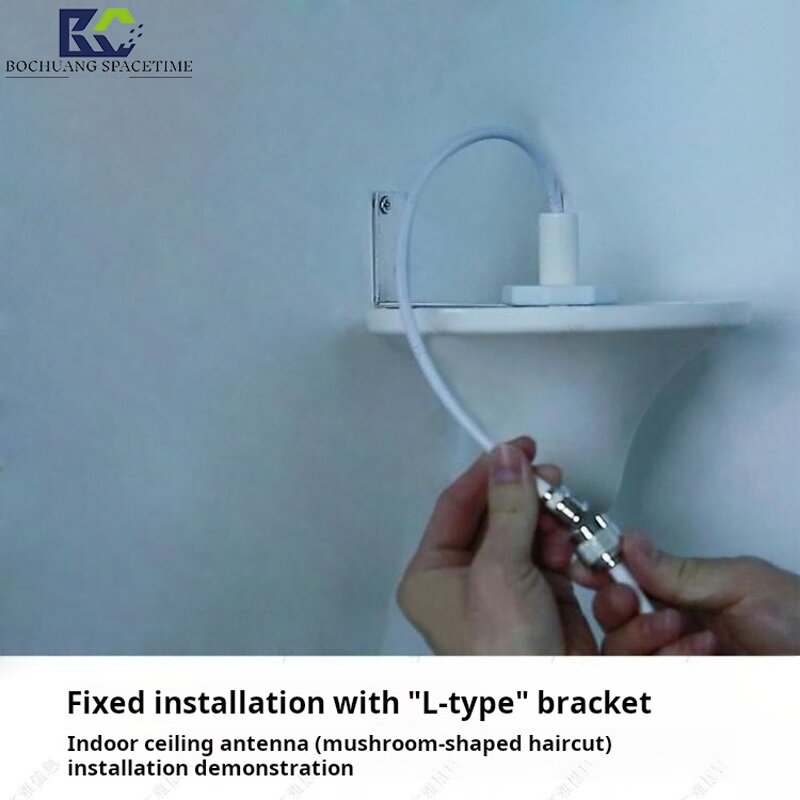

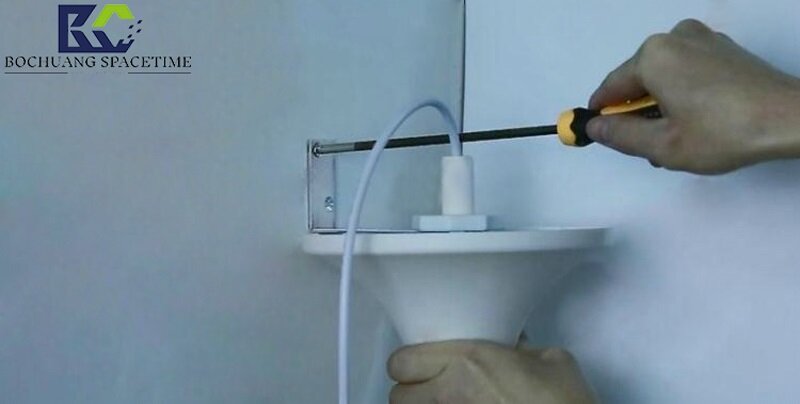

Q4: Is installation complicated? Do I need a professional?
A: Super simple! The product comes with an N-type female connector.ConnectorWith mounting nuts, simply secure the antenna to the ceiling or wall and connect it.Signal Amplifier Main Unitor router
Yes. Non-professionals can complete deployment in 10 minutes, making it ideal for DIY users and small contractors.
