Bochuang Times BCSK-SJG30 Type 850M-965MHz 30W RF Power Amplifier Module | Designed for GSM/CDMA/2G Mobile Signal Jamming and UAV Countermeasure Systems

BCSK-SJG30 Industrial-Grade 900MHz 30W High-PowerRF Power Amplifier Module

1. Product Overview

Bochuang SpaceTime (BCSK-SJG0)Designed specifically for high-intensity electromagnetic environments900MHz RF Power Amplifier Module. This module

Core Working Frequency Band Coverage850-965 MHz, providing up to30Wsustained stable output power, essential for building large-scale mobile signal jamming systems and drone countermeasure equipment

The primary power source for backup systems and mobile communication signal enhancement systems.

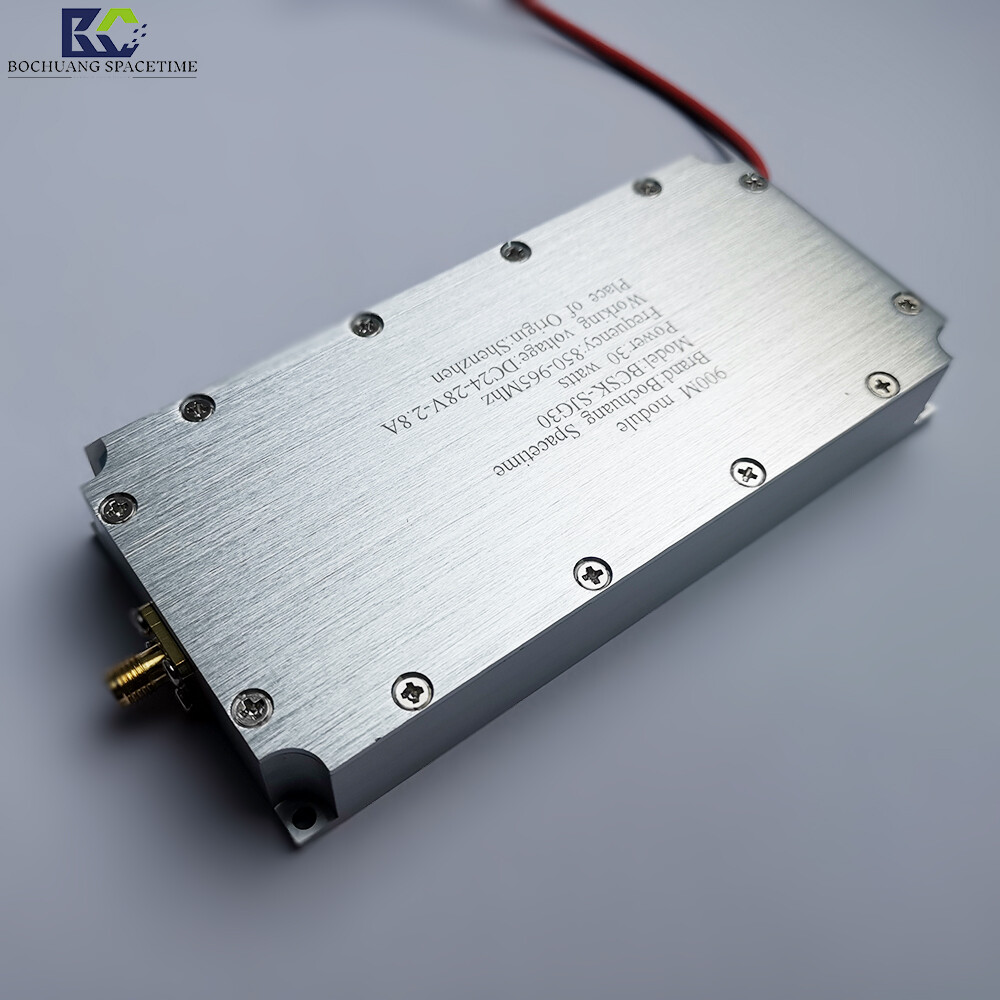

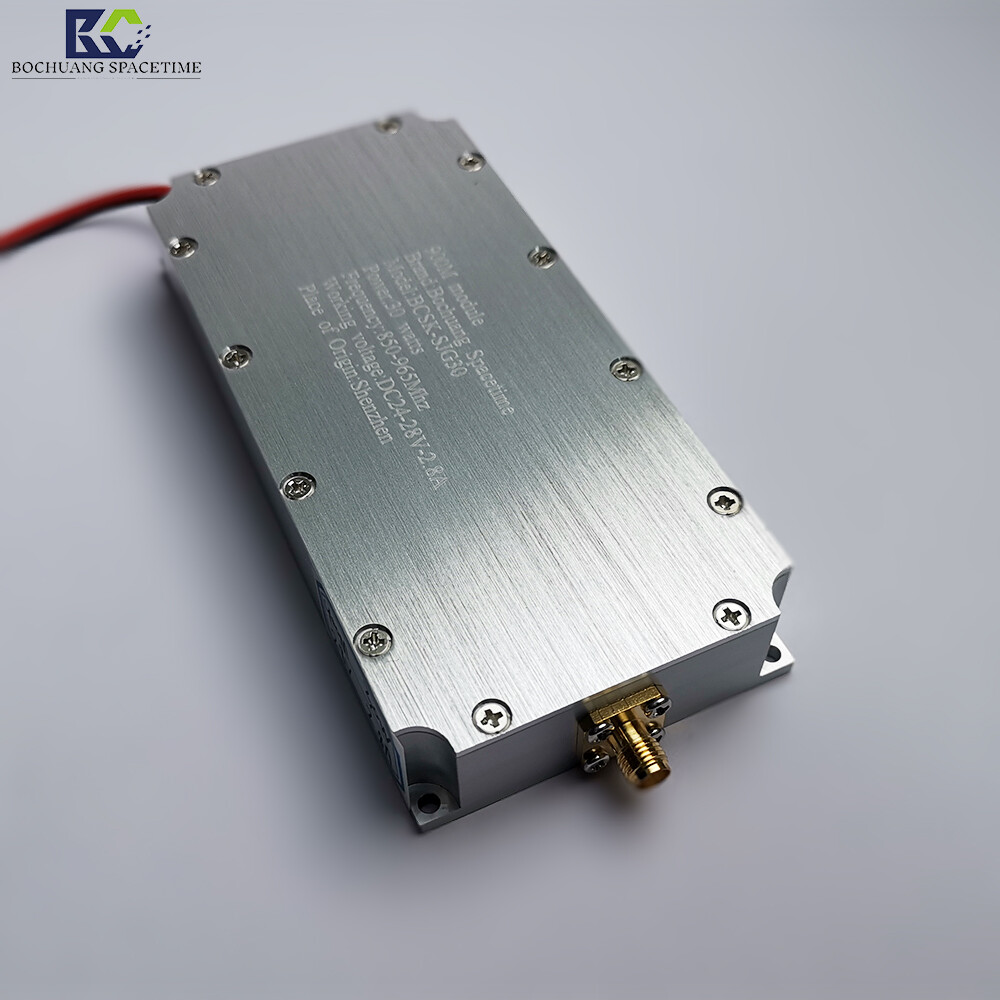

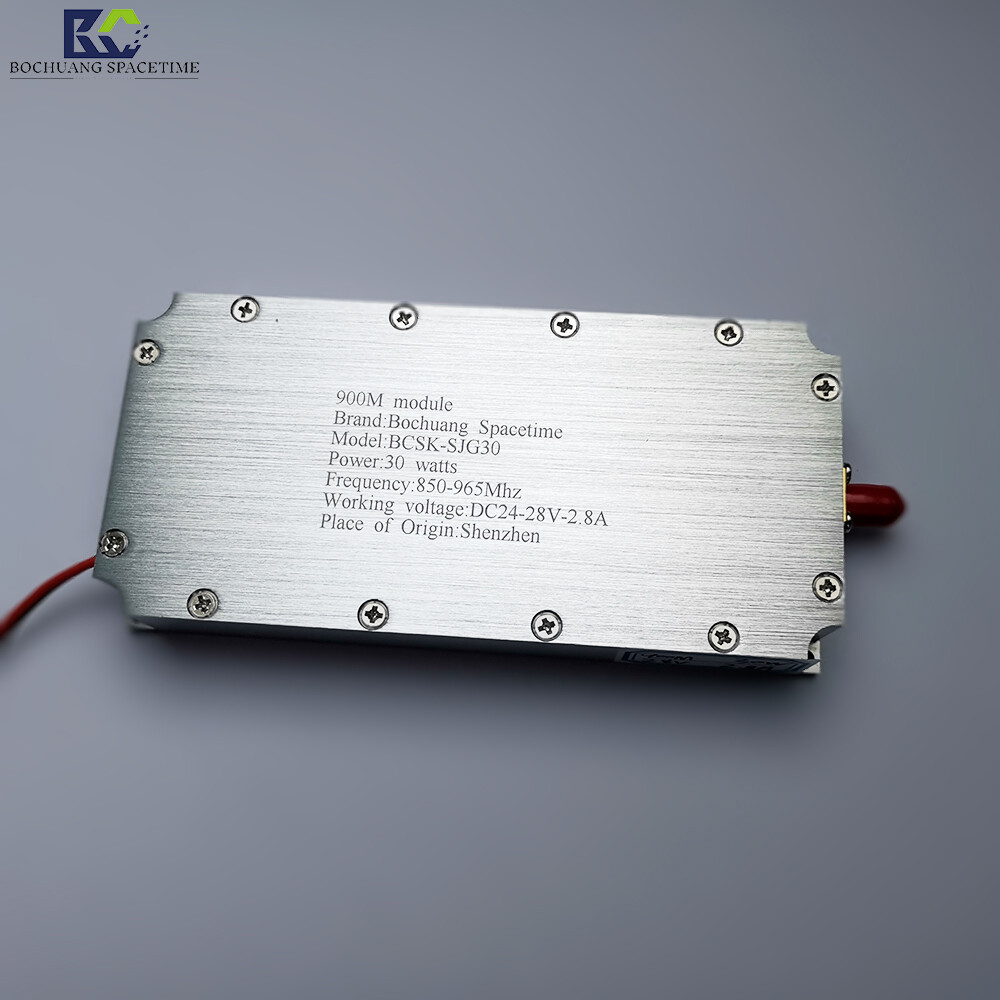

The BCSK-SJG30 features a rugged aluminum alloy enclosure that delivers superior electromagnetic shielding and effectively addresses heat dissipation challenges during high-power operation.

Its wide voltage input design (DC24V-28V) and low current consumption (approximately 2.8A) deliver high performance with exceptional energy efficiency. Whether

Whether suppressing signals across GSM900/CDMA800 bands or enhancing coverage in specific areas, this module delivers with exceptional linearity and spectral purity.

Meets the rigorous demands of professional-grade engineering integration.

2. Key Product Features

• Powerful 30W Output


  Rated output power reaches30 Watts, compared to standard 10W modules, it offers significantly improved signal penetration and coverage. Paired withhigh-gain antenna, effectively address

  Signal control needs for complex terrain or large-scale areas.

• Precise coverage of 900M band


  Frequency range locked to850MHz - 965MHz. This prime frequency band perfectly covers GSM900 uplink/downlink and CDMA800 bands, making it ideal for resolving indoor deep-coverage issues.

  Key to solving signal issues in "hard-to-reach" areas such as stairwells and basements.

• Industrial-grade cooling and protection


  The all-metal chassis acts as an efficient heat sink, maintaining stable temperatures during continuous operation (7x24 hours) to prevent thermal throttling. Additionally, the metal enclosure

  Effectively isolates external electromagnetic interference to ensure signal purity.

• High-efficiency design


  Delivers 30W of high-power output while keeping the operating current at2.8ALeft (24V) to Right (28V), demonstrating excellent circuit design efficiency and reducing power system

  system burden and overall energy consumption.

• Broad System Integration


  Standard RF and universal DC power interfaces enable easy replacement of legacy modules or seamless integration into new PCB designs, making them widely applicable forExam Hall Anti-

  Cheatingprison signal management, confidential meeting rooms, and other scenarios.

3. Technical Specifications Table

4. Frequently Asked Questions (FAQ)

Q1: What device is the BCSK-SJG30 module designed for?

A:It primarily serves as a core component forCell Phone Signal Jammer(particularly blocking on GSM9 00 channels),UAV Defense System(For devices using the 900MHz frequency band)

drones with video transmission or remote control) and someMobile Communication RepeaterSignal Booster UsagePassive Power Amplifier Module）。

Q2: What does 30W power mean? What is the coverage range?

A:30W falls into the medium-to-high power range. In practical applications, paired with a frequency ofDirectional AntennaOrOmnidirectional Antenna, single module can effectively control the radius within 5-100 meters

Target signals within range (varying distances based on signal strength). Compared to common 5W or 10W modules, it offers superior wall-penetrating capability and anti-interference performance.

Q3: Is the power supply requirement for this module strict?

A:Not strict. It supportsDC 24V to 28Vwide voltage input, meaning you can directly use BOCUO SHIKONG (Bochuang SpaceTime) Standard 24V

Switching Power SupplyPower supply can also use a 28V communication power system, offering excellent compatibility. Operating current is approximately 2.8A; please ensure your power adapter has sufficient power headroom.

(5A or higher recommended).

Q4: Does it support all SIM cards from China Mobile, China Unicom, and China Telecom?

A:This module covers850-965 MHzFrequency bands. This mainly includes GSM 2G signals from China Mobile and China Unicom, as well as CDMA signals from China Telecom and China Unicom. If

Blocking 4G/5G signals usually requires combining them with other frequency bands (e.g., 1800M, 2100M, 2600M, 3400M, 3600M, etc.).Power Amplifier ModuleUse in combination.

Q5: Does the module generate significant heat? Is a fan required?

A:The 3W power output generates some heat, but the module features an aluminum alloy casing to assist with heat dissipation. It typically operates normally in a well-ventilated chassis.

If the space is enclosed or in a high-temperature environment, it is recommended to install a largeRadiatorand DC24VIndustrial Fanto extend its lifespan.
