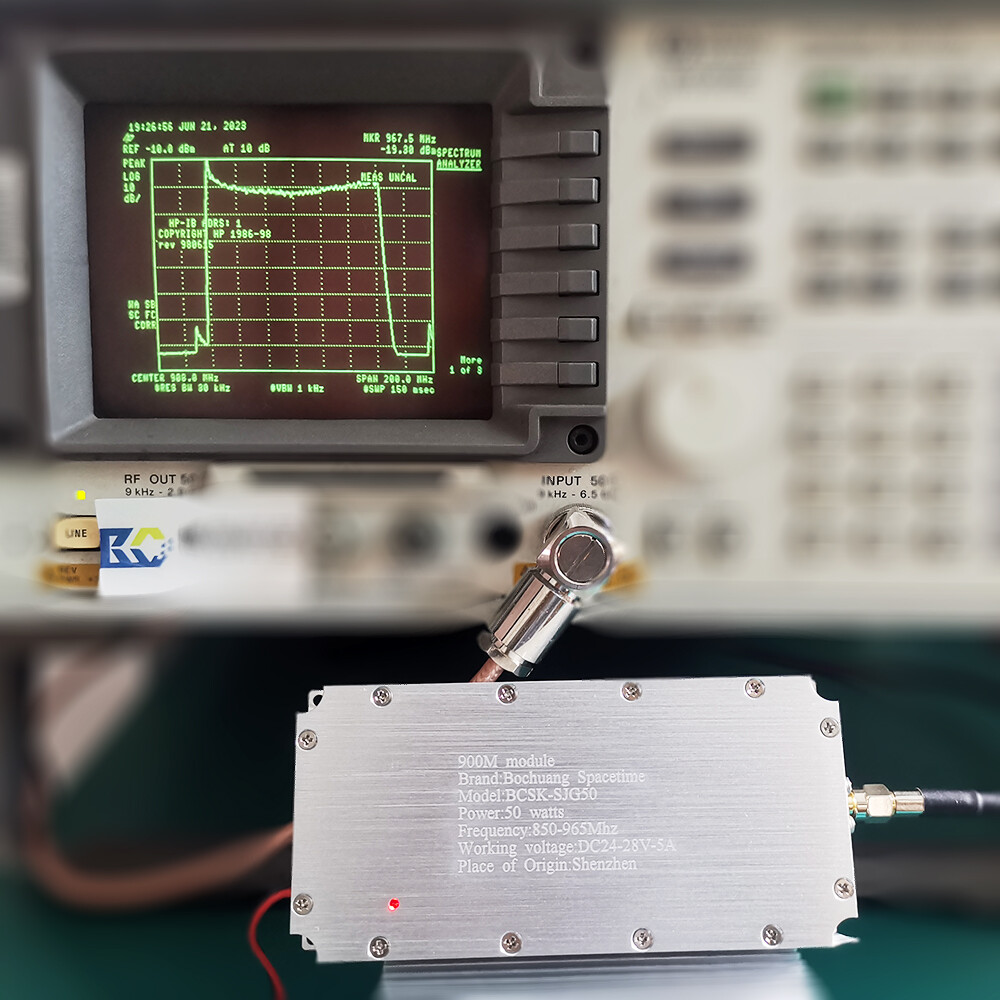

BCSK-SJG50 Model 900MHz 5W RF Power Amplifier Module | For GSM Signal Jamming and Drone Countermeasure Gun Systems

BCSK-SJG50 – Industrial-Grade 900MHz 50W Ultra-High PowerRF Power Amplifier Module| Anti-drone defense and strike system solutions

1. Product Overview

Bochuang SpaceTime BCSK-SJG0Designed for high-intensity electromagnetic countermeasure environments.900MHz RFPower Amplifier Module. This

Core Operating Frequency Range of the Module850-965 MHz, providing up to50WContinuous and stable output power is essential for building large-scale mobile signal jamming systems and drone countermeasures.

Core power source for manufacturing equipment and mobile communication signal enhancement systems.

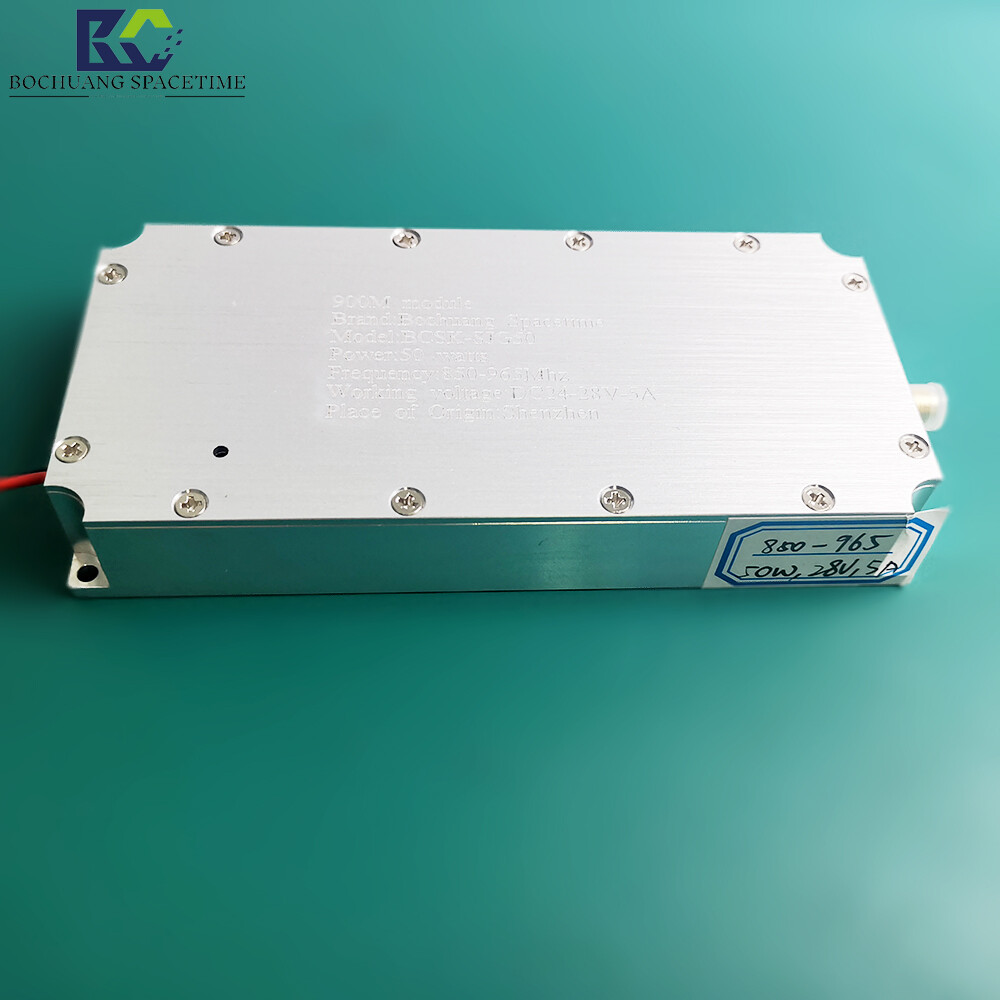

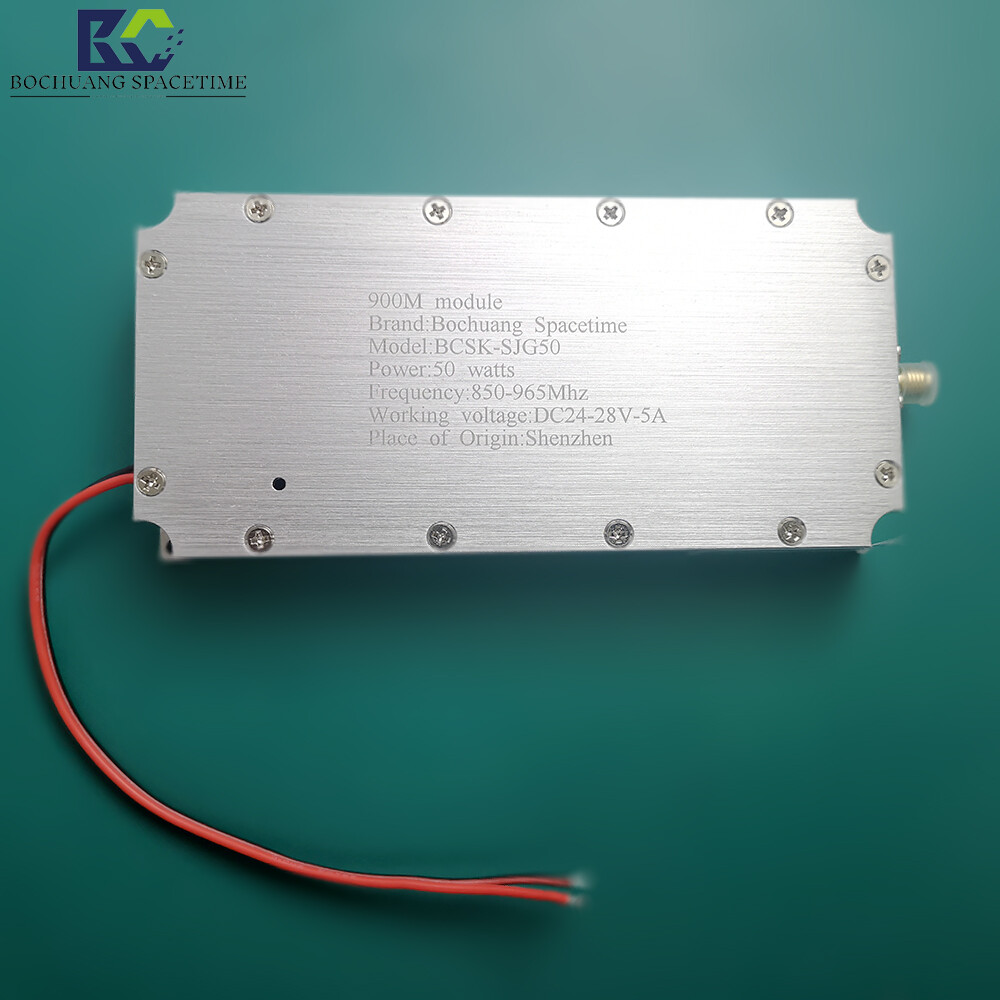

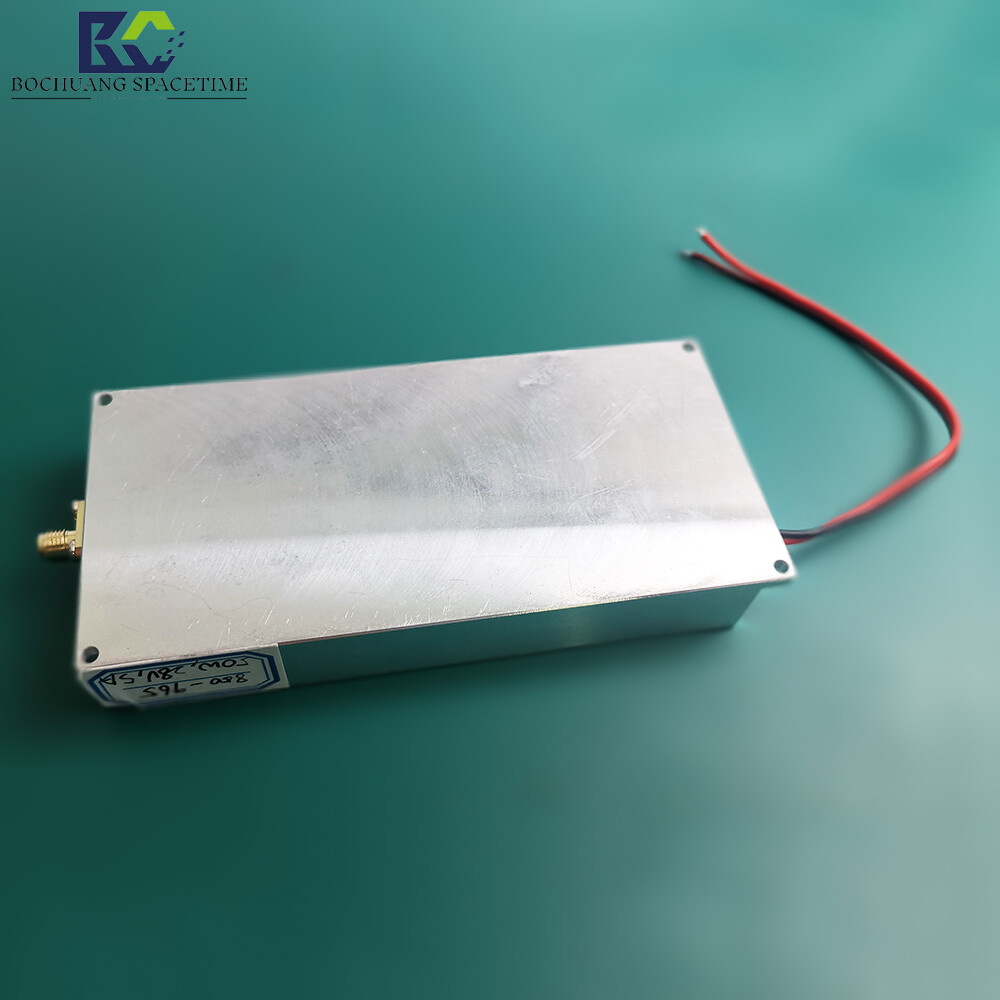

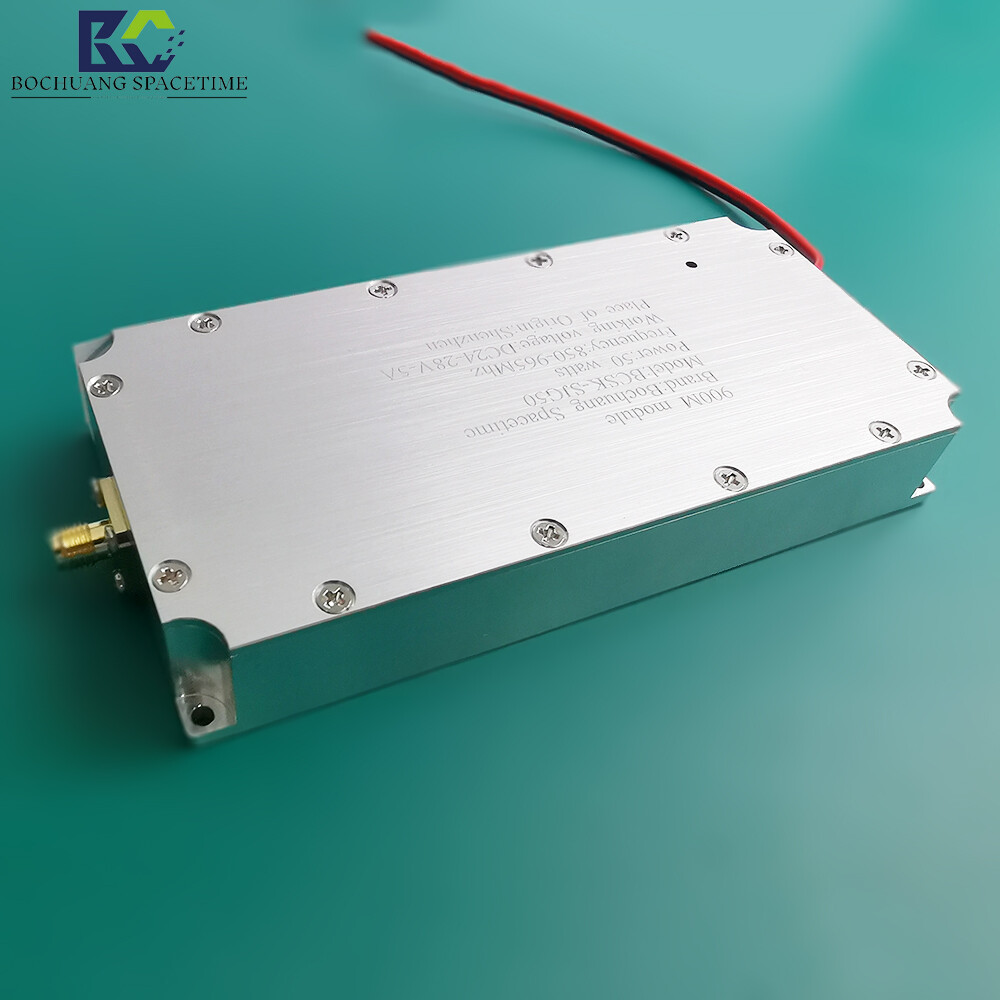

The BCSK-SJG50 features a rugged metal aluminum alloy enclosure that delivers superior electromagnetic shielding and effectively addresses heat dissipation challenges during 50W high-power operation.

. Its wide voltage input design (DC 24V–28V) combined with stable current consumption (approximately 5A) ensures high performance while delivering exceptional energy efficiency.

Whether for jamming signals in the GSM900/CDMA800 bands or enhancing signal coverage in specific areas, thisModuleall deliver outstanding linearity and spectral performance

Purity meets the rigorous demands of professional-grade engineering integration.

2. Key Product Features

• Powerful 50W Power Output


  Rated output power reaches50 Watts, compared to ordinary10W Moduleor20W Module, offering significantly improved signal penetration and coverage. Paired withhigh-gain antenna，

• Effectively meets signal control needs for complex terrain or large-scale areas.

• Ultra-wide 900M frequency band coverage


  Frequency range locked to850MHz - 965MHz. This golden frequency band perfectly covers GSM900, CDMA800, and certain LTE Bands 8/20. It is

  The key to solving signal issues in challenging indoor areas like deep interiors and basements.

• Industrial-grade cooling and protection


  All-metal body design for efficient performanceRadiatorEnsures the module maintains a controllable temperature even under prolonged full-load operation. Additionally, the metal casing effectively prevents electromagnetic leakage from interfering with its

  It is an EMC-compliant sensitive device.

• High Stability and Low Noise


  Bochuang Space-Time Module uses high-quality gold plating.RF componentsHigh out-of-band rejection and low spurious components. This means the target signal is amplified without generating excessive interference.

  interference noise, ensuring the system's purity and effectiveness.

3. Technical Specifications

4. Frequently Asked Questions (FAQ)

Q1: What are the primary application scenarios for the BCSK-SJG50 module?

A:This module is designed for applications requiring high-power RF output, including but not limited to:

1. Cell Phone Signal Jammer：For exam halls, prisons, conference rooms, and other locations requiring GSM/CDMA signal blocking.

2. Drone Countermeasure SystemAs the core component of the launch unit, used to cut off the video transmission or remote control link of drones operating on the 90 MHz band.

3. Signal Booster / RepeaterGSM network coverage extension in remote areas or signal dead zones (Passive Power Amplifier Module）。

Q2: What are the specific power supply requirements for 50W?

A:Since the module operates at DC 24V–28V with a maximum current of 5A, we recommend a power supply rated for at least150W (24V/6A or higher)ofSwitching Power Supply, to ensure

Ensures stable long-term operation by preventing undervoltage and overload during peak output.

Q3: Can this module be connected directly to an antenna?

A:Yes, the module has already been installed internally by Bochuang Space-Time.Isolator(Isolator)orFilter. Isolators can protectAmplifier Modulenot reflected back by the antenna

Standing waves can cause damage, while the filter removes harmonics to produce a cleaner output spectrum that complies with regulatory requirements.

Q4: Does this module support continuous operation? How is heat dissipation handled?

A:This module is designed for continuous operation. Due to its metal heat-dissipating enclosure, it must be securely mounted on a grounded metal chassis floor during installation, or

Install additional industrialCooling Fan/LargeHeat sink for improved heat dissipation and extended lifespan.
