Bocreate Time & Space BSK-ZH06 6-Band PCB Directional Antenna | 433M+900M+1.2G+1.5G+2.4G+5.8G High-Gain SMA Connector for UAV Jamming Guns, Signal Blocking, and Communication Enhancement
The BOCUANG SpaceTime BSK-ZH06 is a high-performance six-band combined PCB directional antenna. It covers all major frequency bands including 433MHz IoT, 900MHz cellular, 1.2GHz FPV, 1.5GHz GPS, 2.4GHz WiFi/Bluetooth, and 5.8GHz drone remote control. Featuring an SMA male connector, its compact dimensions of 280×85×60mm and RF cable length of 100-150mm make it ideal for integration into handheld jammers, vehicle-mounted systems, or fixed base stations. Built with a multi-layer PCB microstrip array, the antenna delivers up to 16-18dBi gain, a beamwidth of ≤20°, and a VSWR of ≤1.5. It supports continuous input power from 10-50W, ensuring efficient energy concentration and low-loss transmission. Widely used in drone countermeasures, WiFi/Bluetooth signal jamming, GPS spoofing defense, and security surveillance, it is the ideal choice for system integrators and RF engineers.
In Stock (500units

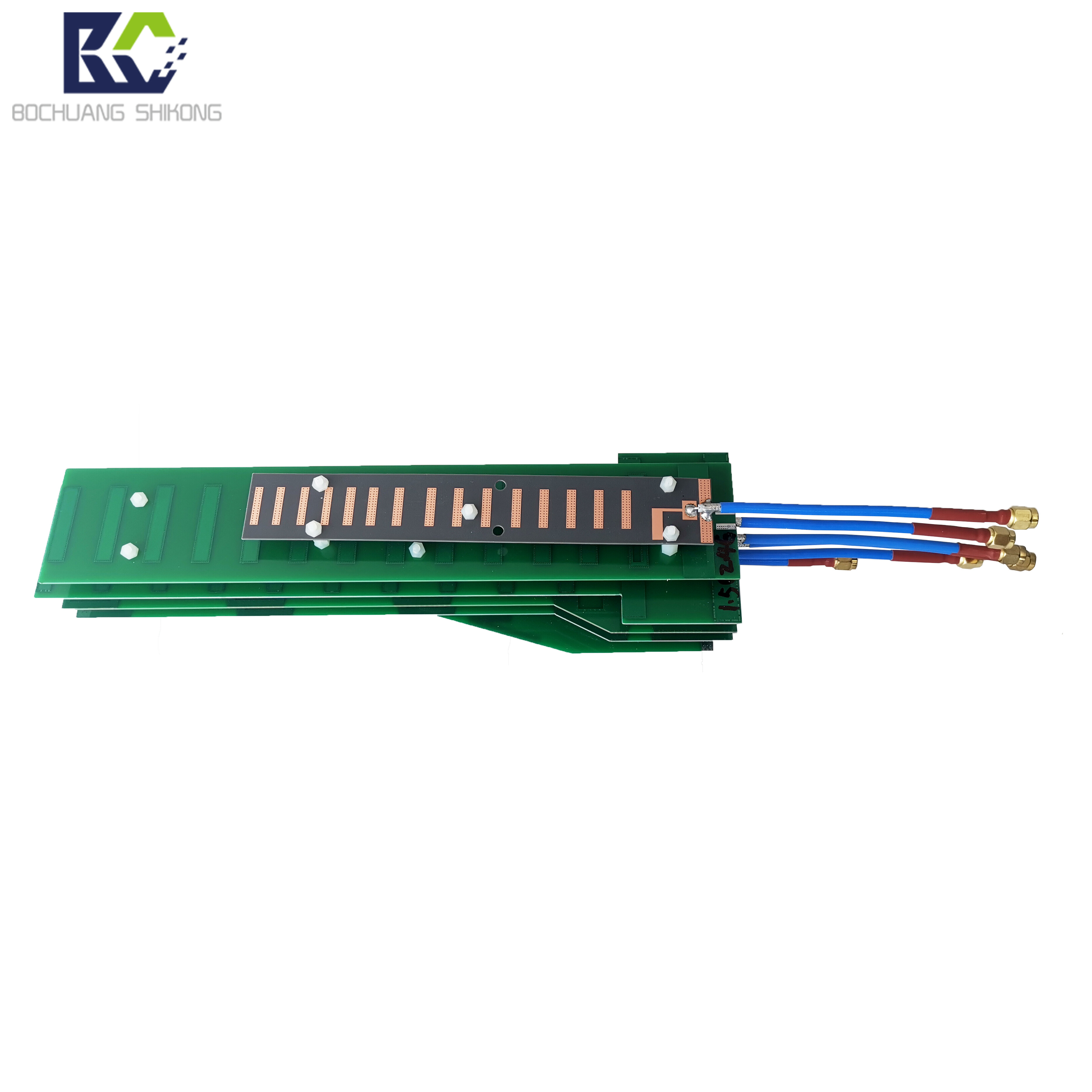

Bochuang Spacetime Six-Band ComboPCB Directional Antenna(BCSK-ZH06)
1. Key Selling Points
Full-band coverage:Exclusive 6-in-1 design supporting 433M/900M/1.2G/1.5G/2.4G/5.8G, ensuring seamless coverage for mainstream drones and IoT devices across all frequencies.
High-gain directional:16-18dBi high gain with ≤20° narrow beamwidth focuses energy for extended interference range.

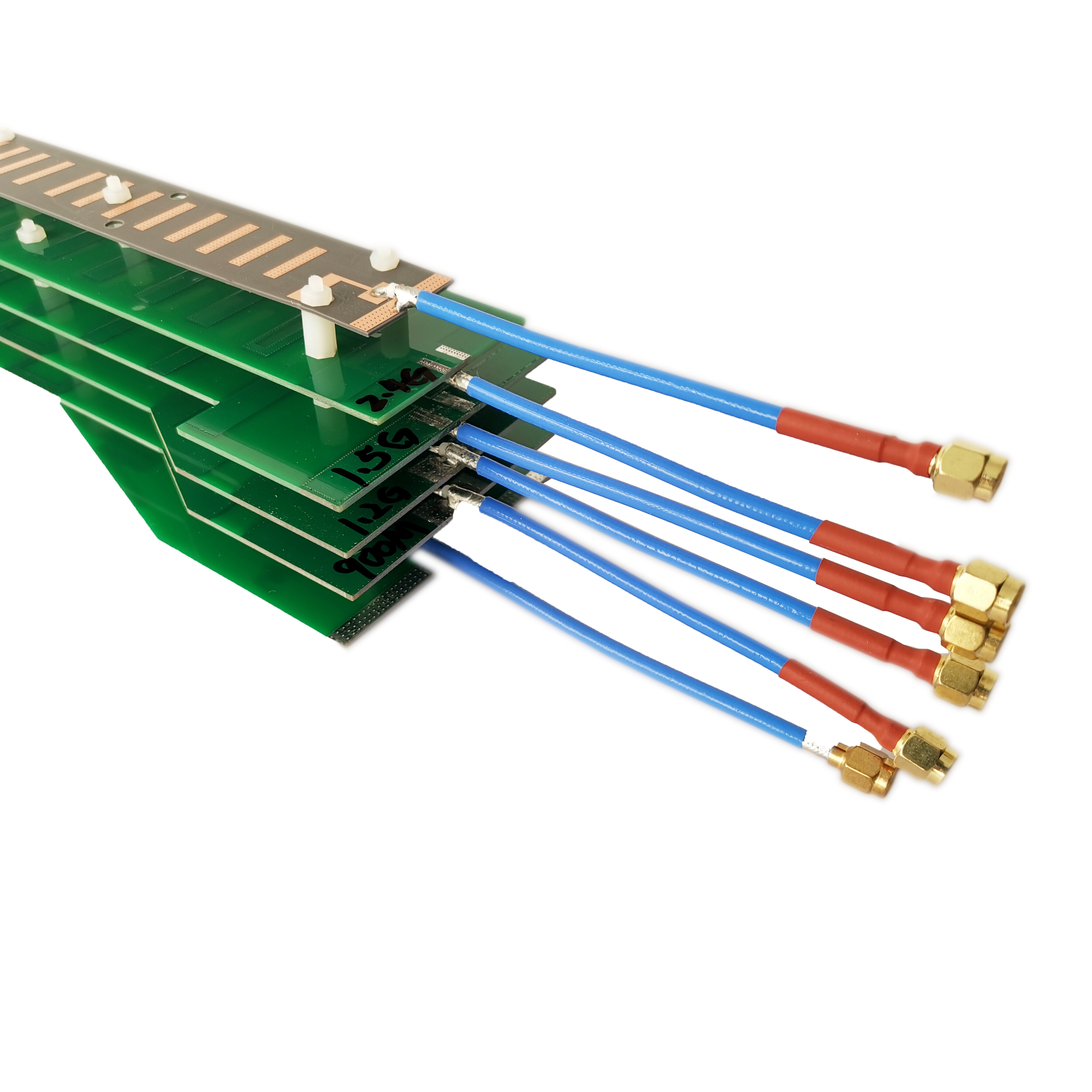

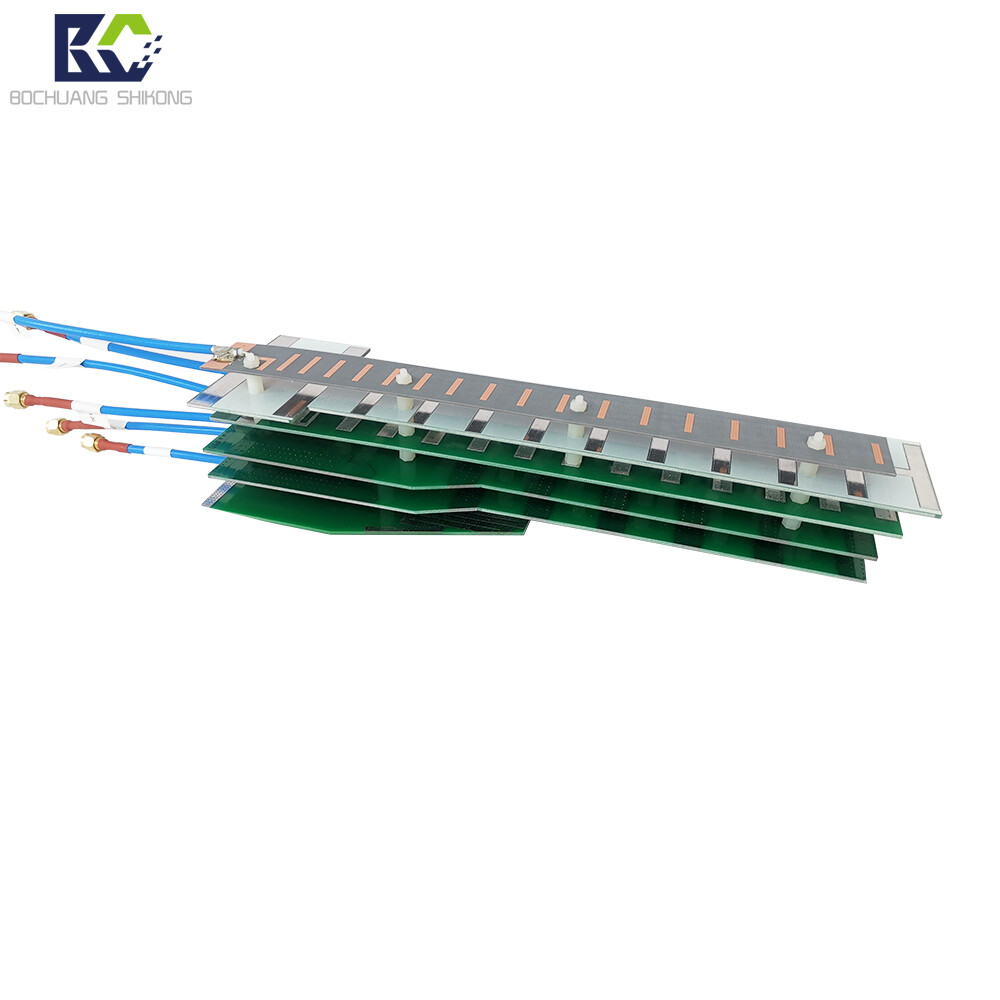

Compact Integration:Integrates 6 independent radiating elements within a 28mm length. Compact design for easy integration into handheld devices.
Industrial-grade quality:Constructed with high-grade FR4 material and precision microstrip technology, VSWR ≤ 1.5, capable of handling 10-50W power.
2. Detailed Technical Specifications
Parameter Items | Detailed Metrics | Notes |
|---|---|---|
Product Model | BCSK-ZH06 | Bochuang Shikong Hexa-Frequency Flagship Model |
Operating Frequency | 433MHz + 900MHz + 1.2GHz + 1.5GHz (GPS) + 2.4GHz + 5.8GHz | Overrides FPV, remote control, video transmission, navigation, and IoT frequency bands |
Antenna Gain | 16 - 18 dBi (Typical) | High-gain directional radiation |
Horizontal/Vertical Beamwidth | ≤ 20° (Typical) | Narrow beam, strong anti-interference capability |
Voltage Standing Wave Ratio (VSWR) | ≤ 1.5 | Excellent impedance matching performance |
Input Impedance | 50 Ω | Standard RF System Impedance |
Polarization Mode | Linear Polarization | Suitable for most communication scenarios |
Maximum Power Capacity | 10W - 50W (Continuous Wave) | Supports long-term continuous operation |
Interface Type | SMA Male Connector | Gold-plated finish for secure connection |

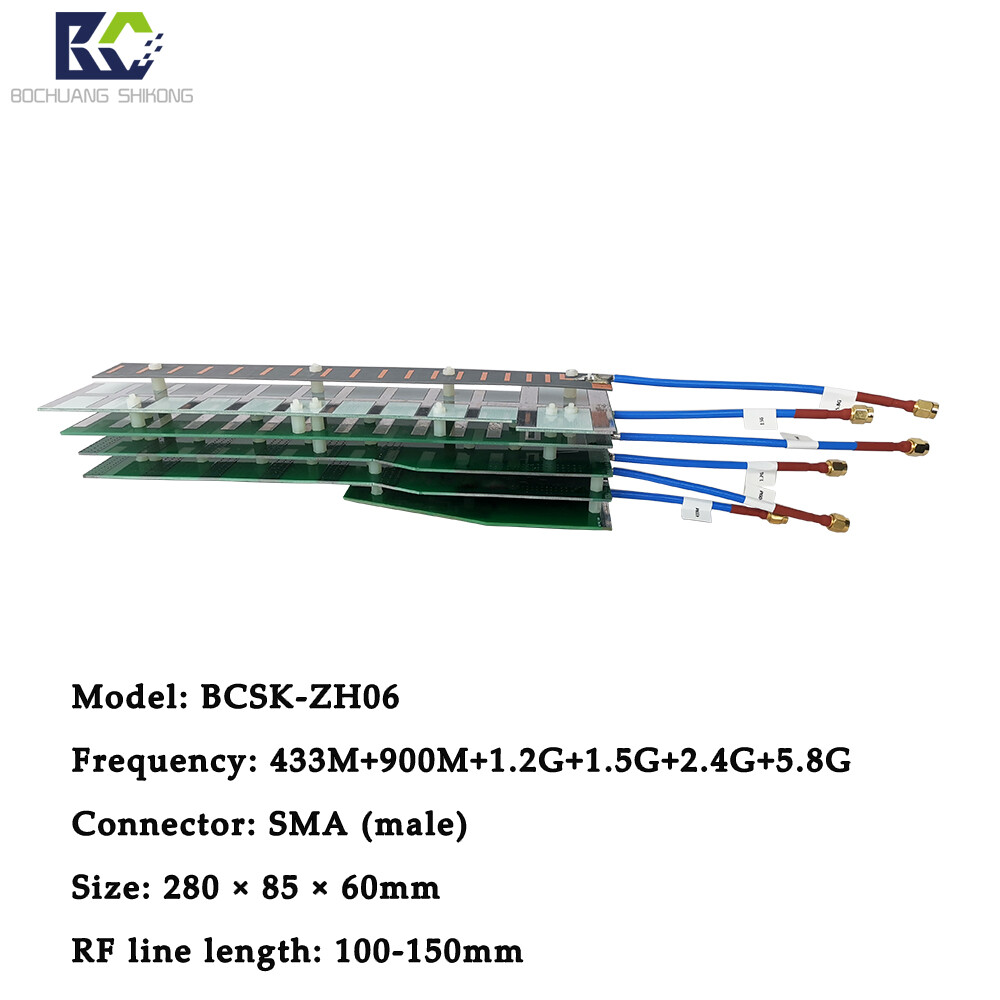

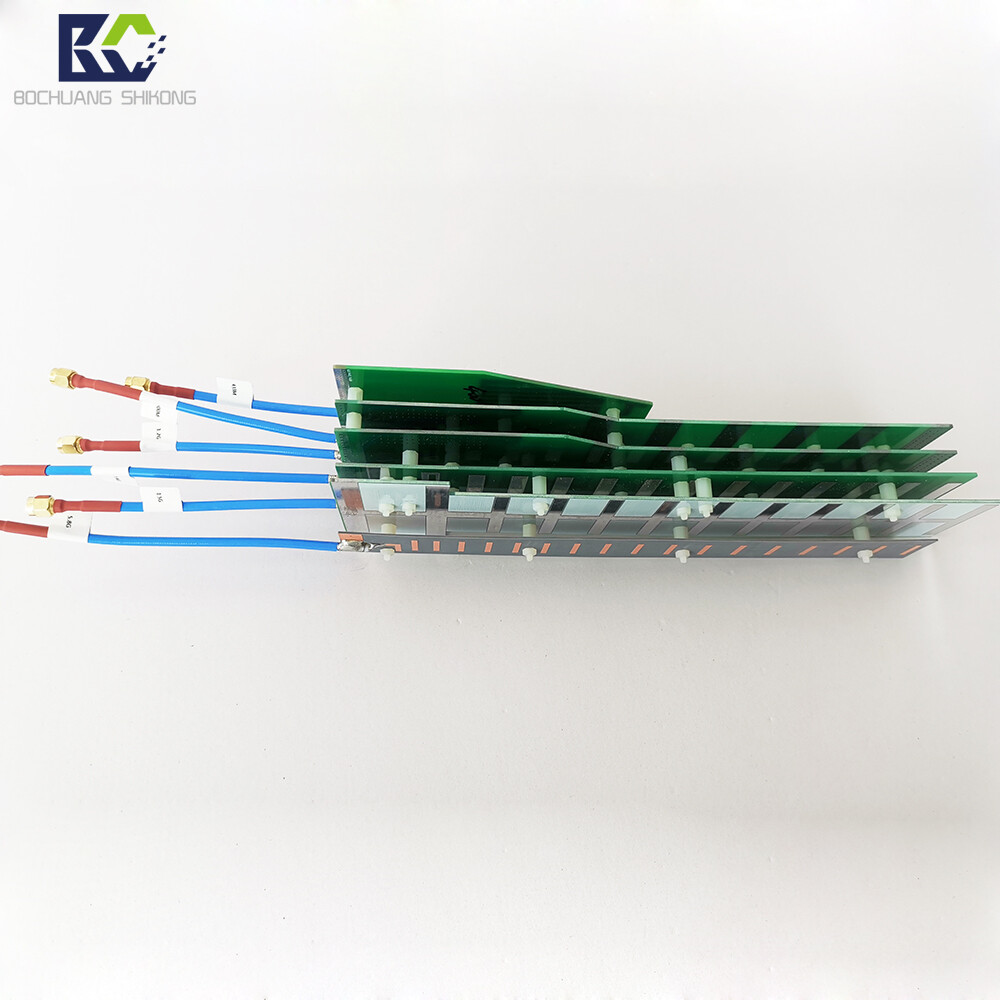

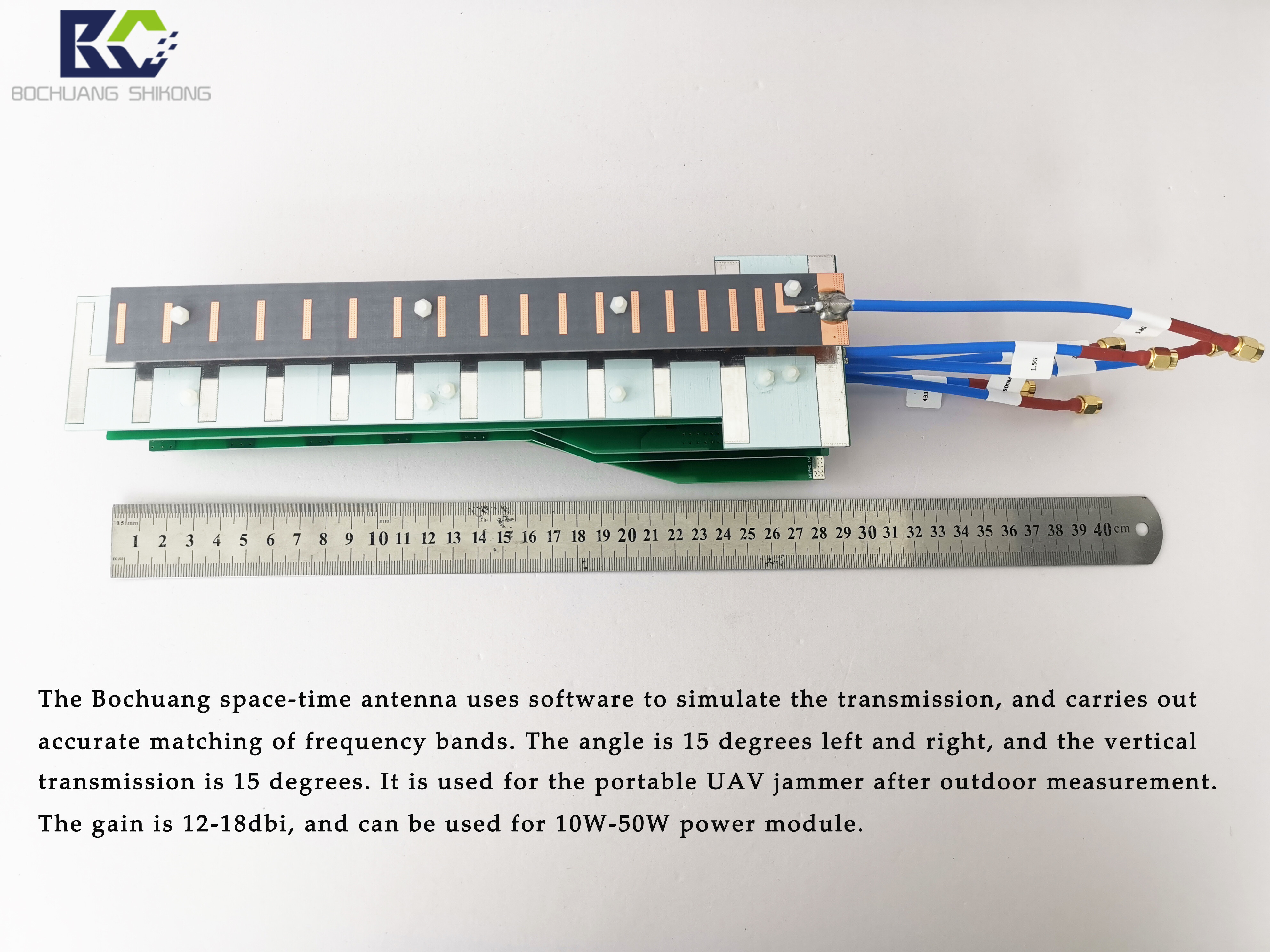

Physical Dimensions | 280 × 85 × 60 mm | Compact stacked structure |
Feeder Length | 100 - 150 mm | Customizable Length |
3. Product Overview & Use Cases
Product Overview
The BSK-ZH06 is designed specifically for complex electromagnetic environments.6-Band CombinationPCB Directional Antenna. It overcomes the limitations of traditional single-frequency or dual-frequency antennas by integrating

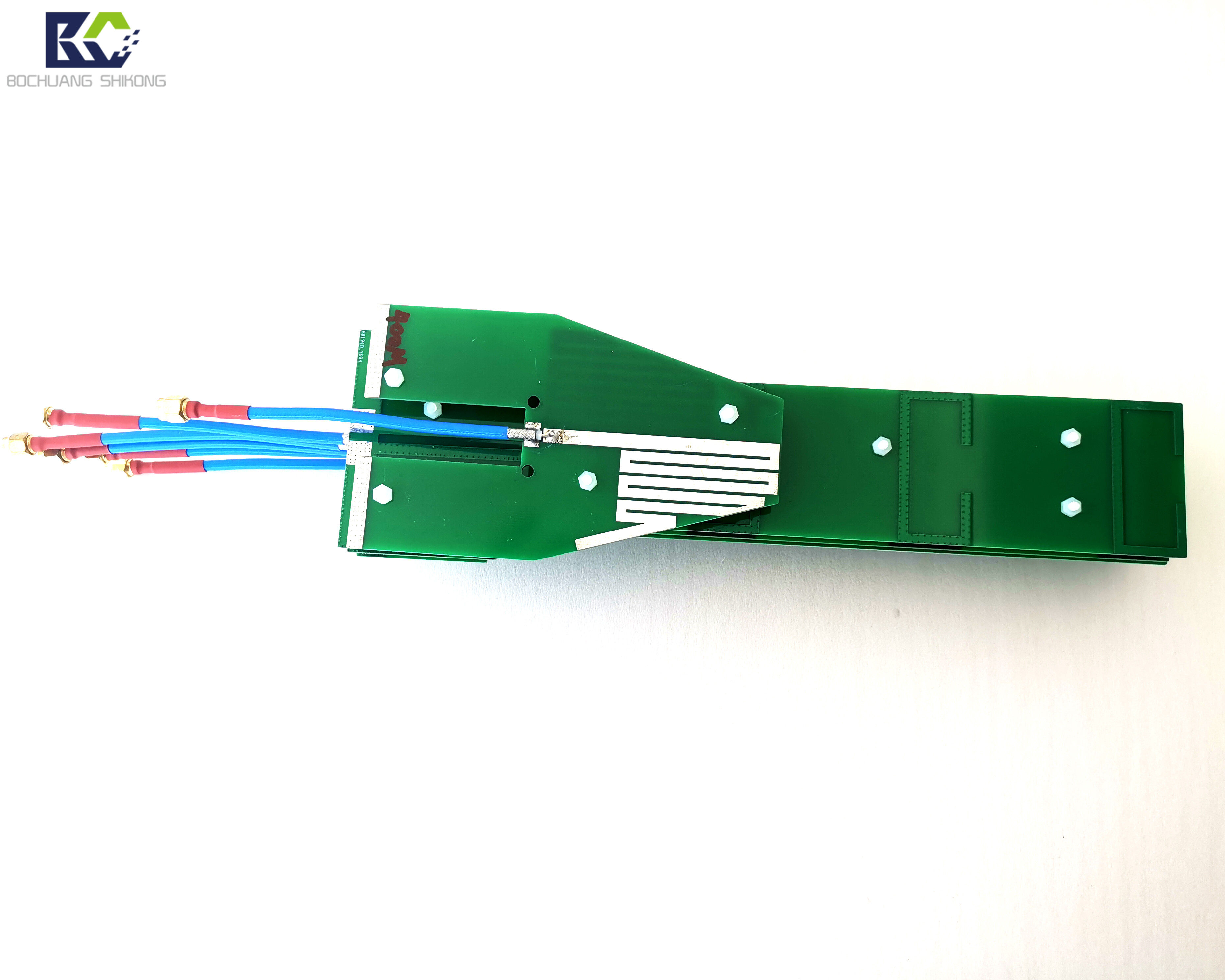

Perfectly integrates 433MHz low-frequency and 5.8GHz high-frequency bands into a compact 280mm × 85mm × 60mm enclosure.ModuleThe antenna uses an advanced multi-layer PCB microstrip array.
Technology not only ensures low mutual interference across frequency bands but also delivers gains up to 16-18 dBi, making it ideal for portable drone countermeasures and fixed signal jamming systems.
Core Components.
Why choose BCSK-ZH06?
Ultra-wide spectral response:From 433MHz's industrial remote control to 5.8GHz's high-definition video transmission, and on to 1.5GHz's GPS/BeiDou navigation signals—one antenna solves it all.
issues, significantly reducing system integration complexity and cost.
Superior directional performance:Compared to omnidirectional antennas, the directional characteristics of BCSK-ZH06 concentrate energy more effectively, significantly extending the effective range at the same power level and
No electromagnetic interference with non-target areas behind.
High-Reliability Design:Rigorously tested for harsh environments, including high temperatures and humidity. The SMA male connector features high-standard gold plating to ensure durability during frequent plug-and-unplug cycles.
Maintains low-loss connections even in vibrating environments.
Typical Use Cases
UAV Defense System(C-UAS):Full-spectrum jamming for consumer and modified drones, including disruption of remote control links (2.4G/5.8G/900M/433M) and guidance
Deception/Blocking (1.5G).
Electronic Warfare and Security:Signal control in secure facilities to prevent unauthorized eavesdropping or data transmission.
Radio Monitoring and Direction Finding:High-gain receive front-end for capturing weak signals.
Research & Testing:Multi-band RF signal source for laboratory testing.
4. Frequently Asked Questions (FAQ)
Q: What is the maximum power rating for this antenna?
A: BCSK-ZH06 ComboDirectional AntennaDesign for a continuous wave power capacity of 10W–50W. In actual applications, it is recommended to configure the power appropriately based on heat dissipation conditions to ensure long-term reliability.
Long-term stability.
Q: Will 433MHz and 5.8GHz cause interference when mounted on the same board?

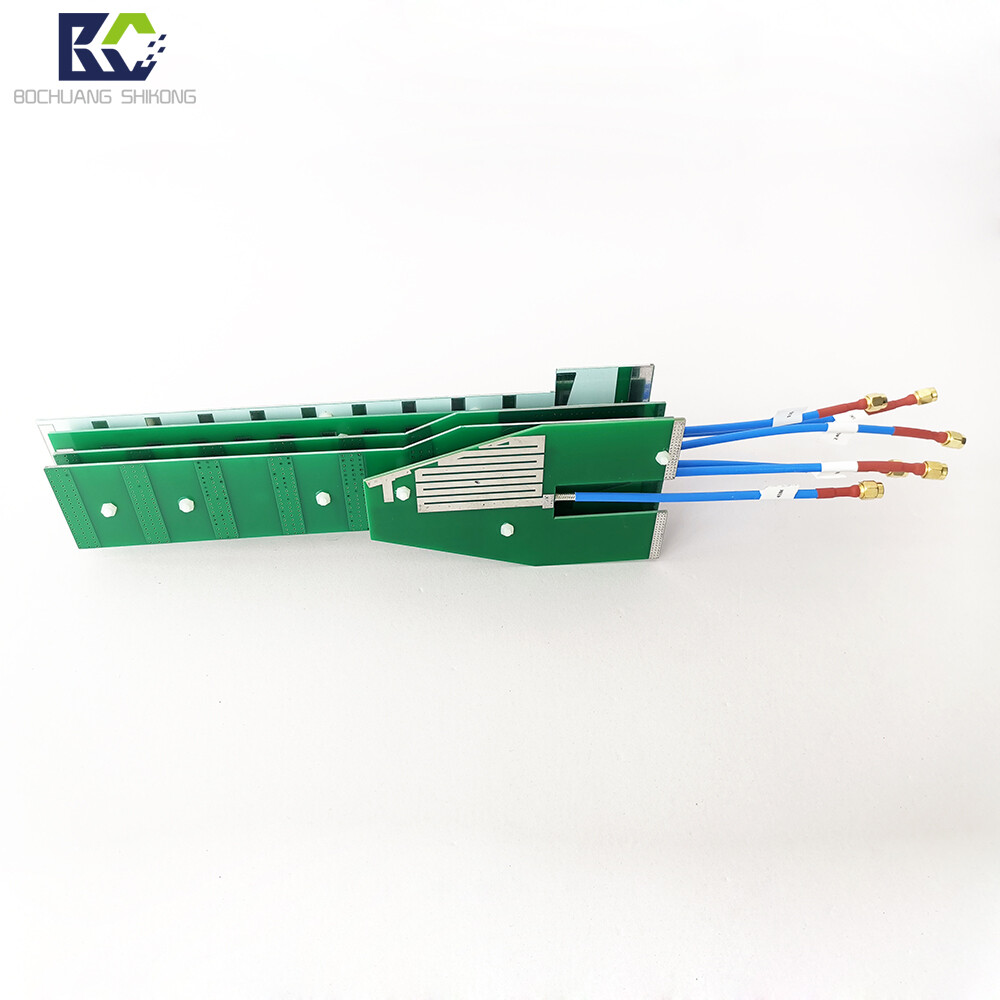

A: No. We used specialized filtering design and isolation trench technology to ensure port isolation between the low-frequency band (433M/900M) and the high-frequency band (2.4G/5.8G).
Isolation exceeds 25 dB, ensuring independent operation of each channel.
Q: Can other frequency bands be customized?
A: Yes, BOCOM Space-Time possesses strong R&D capabilities. In addition to the standard BSK-ZH06, we can also customize specific frequency band combinations (such as adding
1. 2G FPV band or adjust bandwidth.
Q: How is it installed?

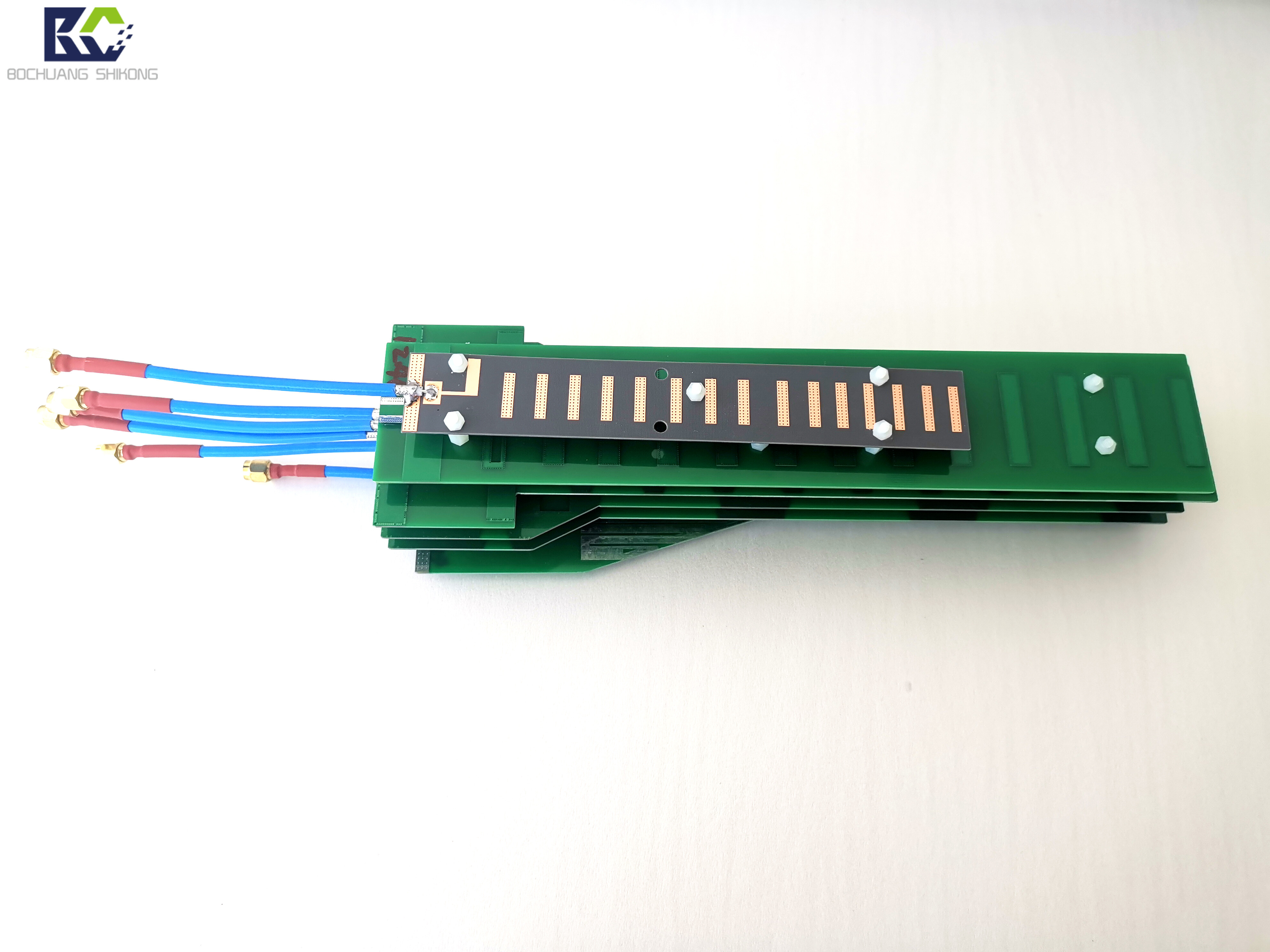

A: Mounting holes are provided on the back of the antenna for screw installation. Due toDirectional AntennaWhen installing, ensure the antenna's front side (PCB face) is oriented toward the target area.
Need More Information?
Our technical team is ready to provide detailed specifications and customization options.
