Bochuang Space-Time BSKS-SJ1G50 1000M Microwave Power Amplifier Module 940-1060MHz Model 50W GSM/3G Band RF Power Amplifier, Industrial Grade DC24V-28V Power Supply, Direct from Shenzhen Manufacturer
This microwave power amplifier module is manufactured by BOCUANG Space-Time, model BCSK-SJ1G50. Designed for GSM/3G communication systems, wireless repeaters, IoT base stations, and emergency communication equipment, it operates across the 940-1060 MHz frequency band with a rated output power of 50W. It supports a wide voltage input range of DC 24V-28V and draws ≤4.7A, ensuring stable and efficient performance. Encased in a metal shielded housing with SMA connectors, the module offers strong anti-interference capabilities and is ideal for urban coverage hole-filling, rural signal enhancement, industrial IoT gateways, and similar applications. Directly supplied from Shenzhen, it supports bulk customization and long-term supply agreements, making it the ideal choice for system integrators and engineering contractors procuring microwave power amplifier modules in volume.
In Stock (200units
Product Overview
The BCSK-SJ1G50 is a communication system designed specifically for GSM/3G.Microwave Power Amplifier Module, operating frequency range 940-106 MHz, rated output power

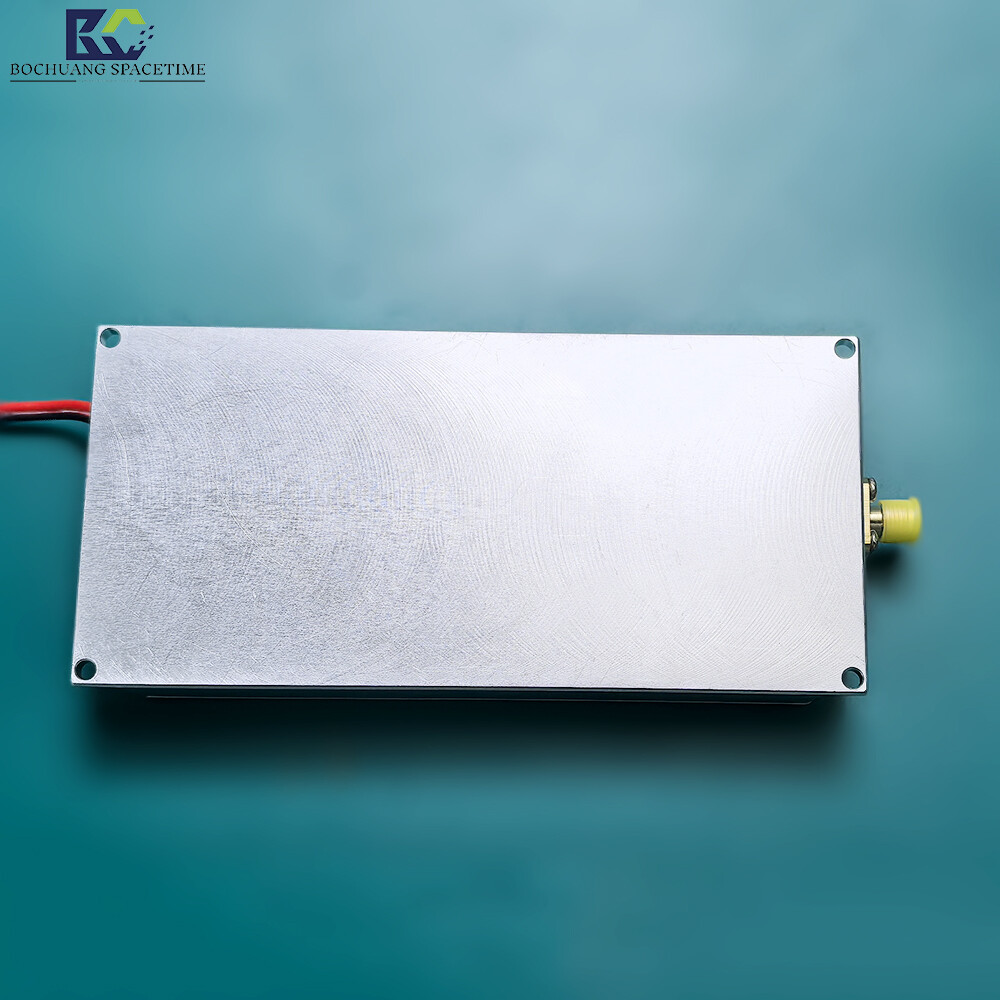

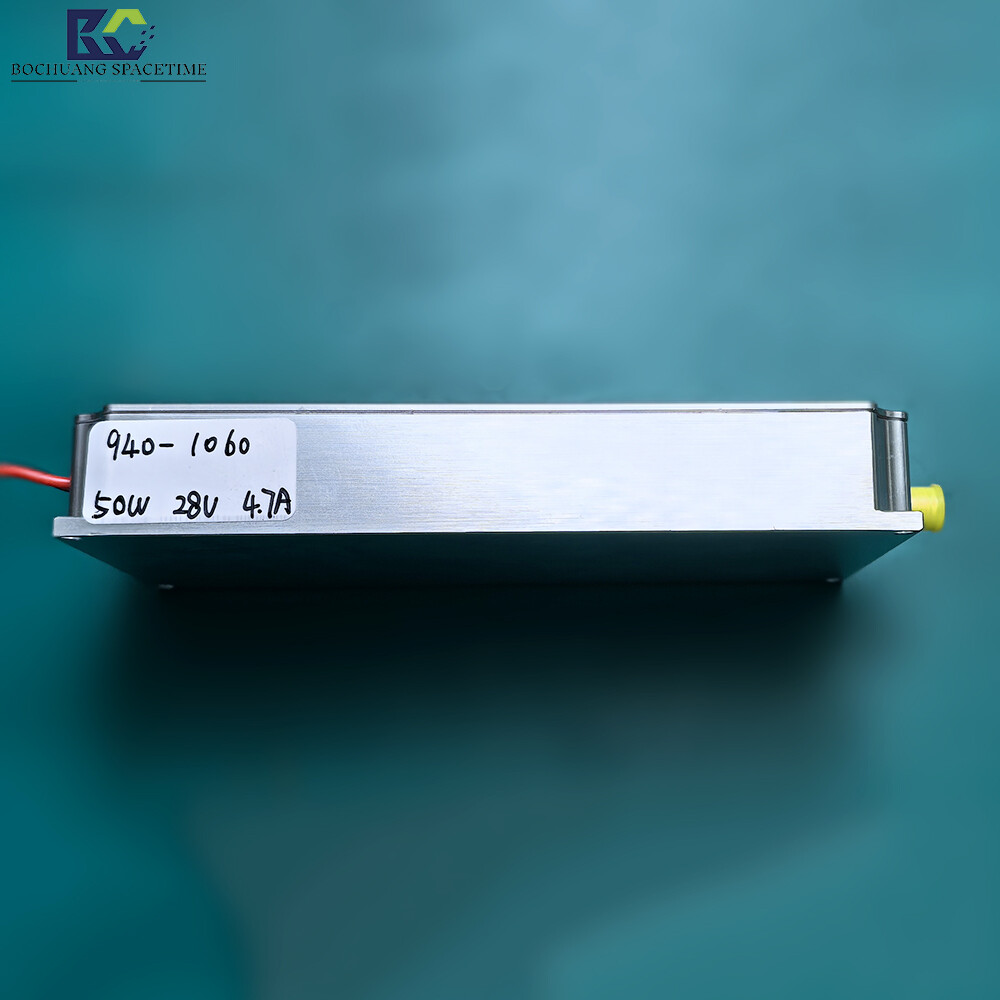

50W, supports DC24V–28V wide voltage input with current ≤ 4.7A for stable and efficient operation. The module features a metal-shielded enclosure and SMA connectors for superior interference resistance.
Ideal for urban coverage gaps, rural signal enhancement, and industrial IoT gateways. Direct from Shenzhen OEM; supports bulk customization and long-term supply agreements. A trusted systems integrator.
Engage with engineering contractorsMicrowave Power Amplifier ModuleBulk Purchasethe ideal choice.
Key Features
Precise Band MatchingOptimized for the 940-1060 MHz GSM/3G band to ensure distortion-free signal amplification and compatibility with mainstream base stations and user devices.
High Stability OutputRated at 5W, operates continuously without degradation. Built-in overcurrent and overvoltage protection circuits ensure device safety.
Compact industrial designMetal enclosure with screw-fixed mounting, compatible with standard racks or embedded installations. Meets industrial-grade shock and vibration resistance requirements.
Low power, high efficiency: DC24V-28V wide-voltage input, current ≤4.7A; reduces system power consumption and extends battery life for powered devices.
Factory-grade quality guaranteeManufactured by Shenzhen Bochuang Space-Time at the factory; each batch includes a quality inspection report to ensure performance consistency and reduce engineering integration risks.
Technical Specifications Table
Parameter Item | Specification Value |
|---|---|

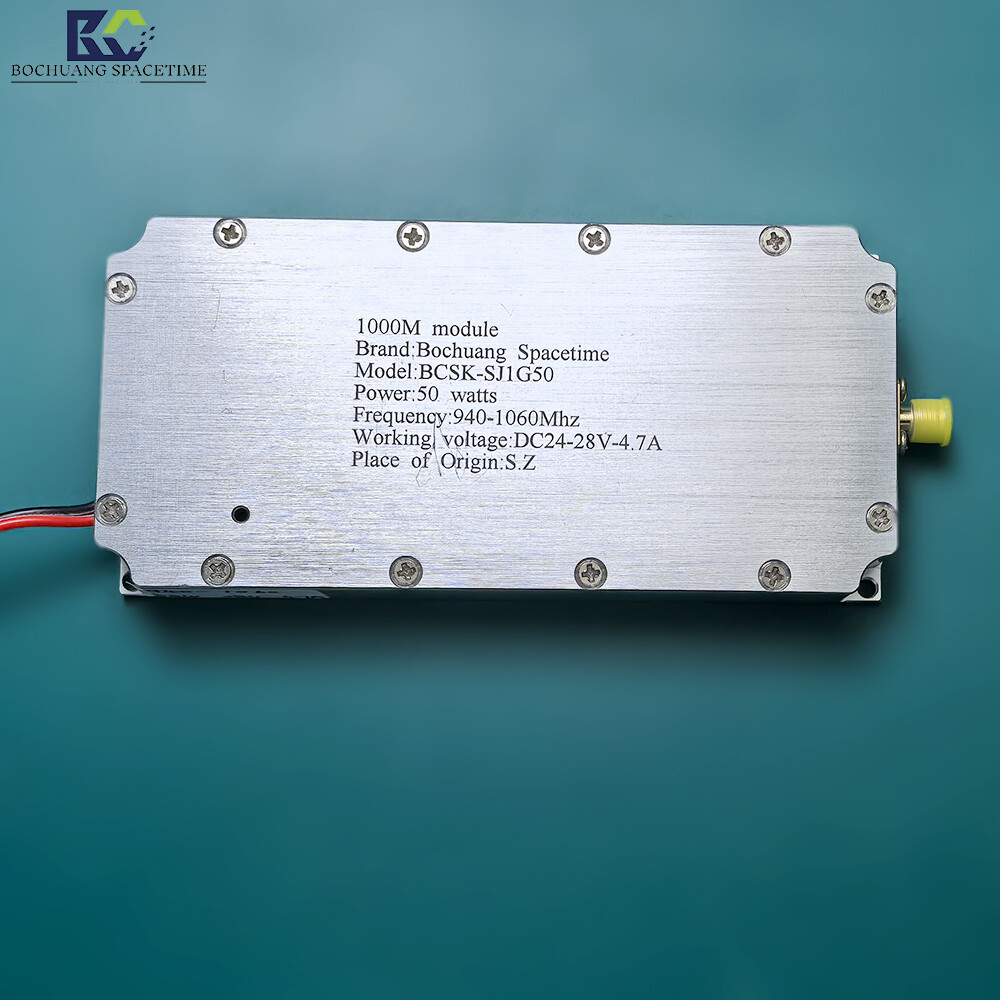

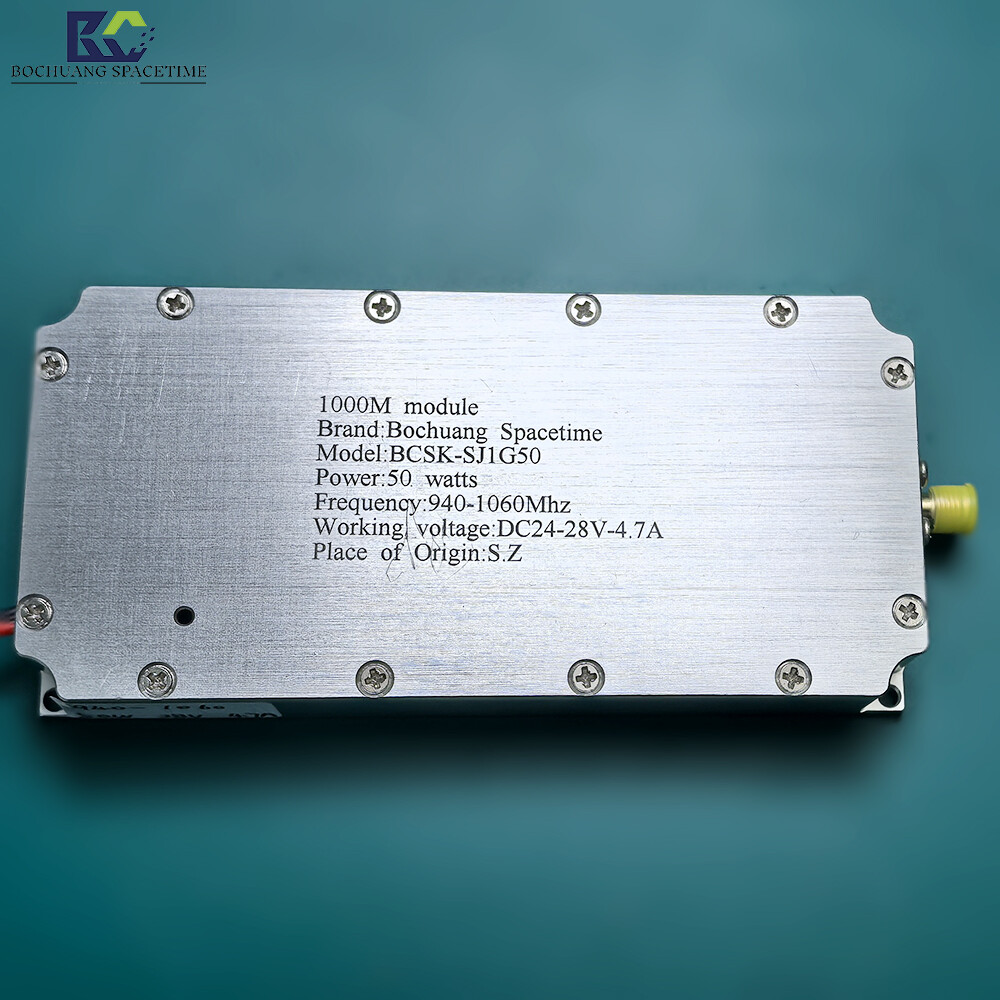

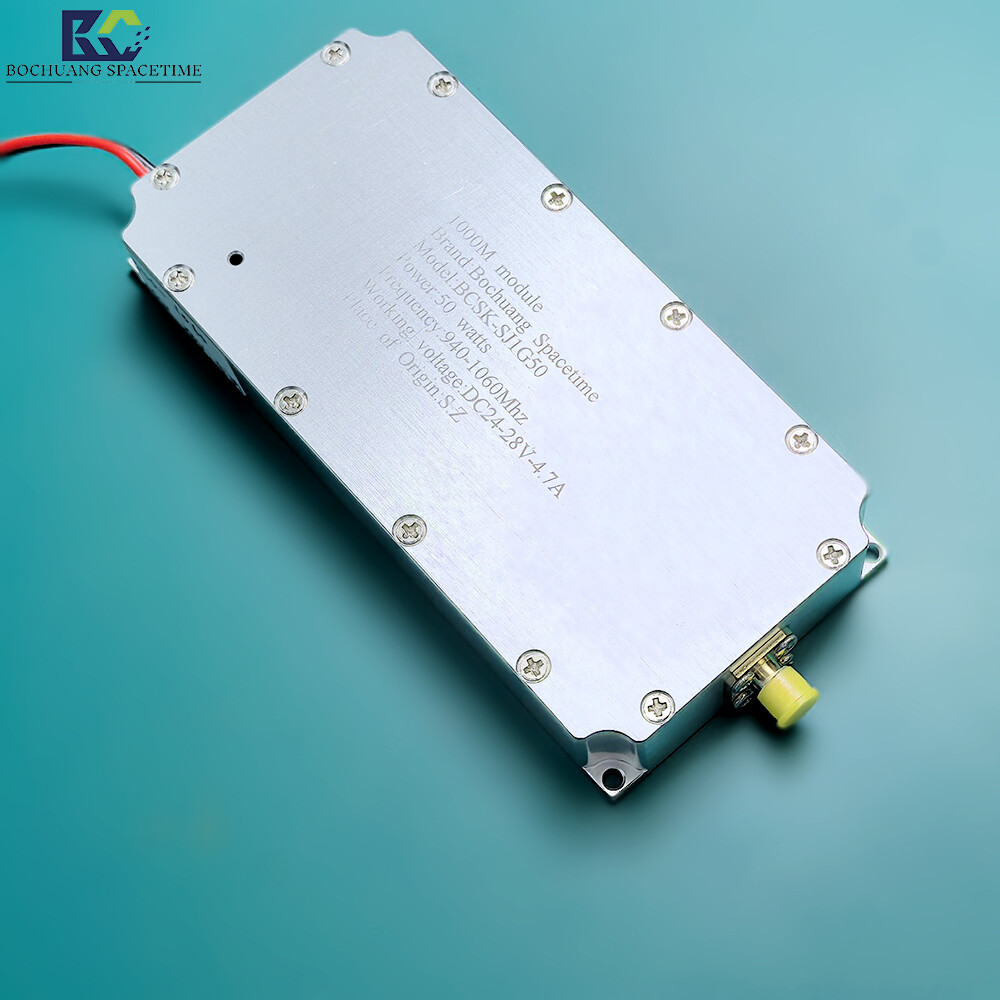

Model | BCSK-SJ1G50 |
Operating Frequency Band | 940-1060 MHz |
Rated Output Power | 50W |
Input Voltage | DC24V-28V |
Operating Current | ≤4.7A |

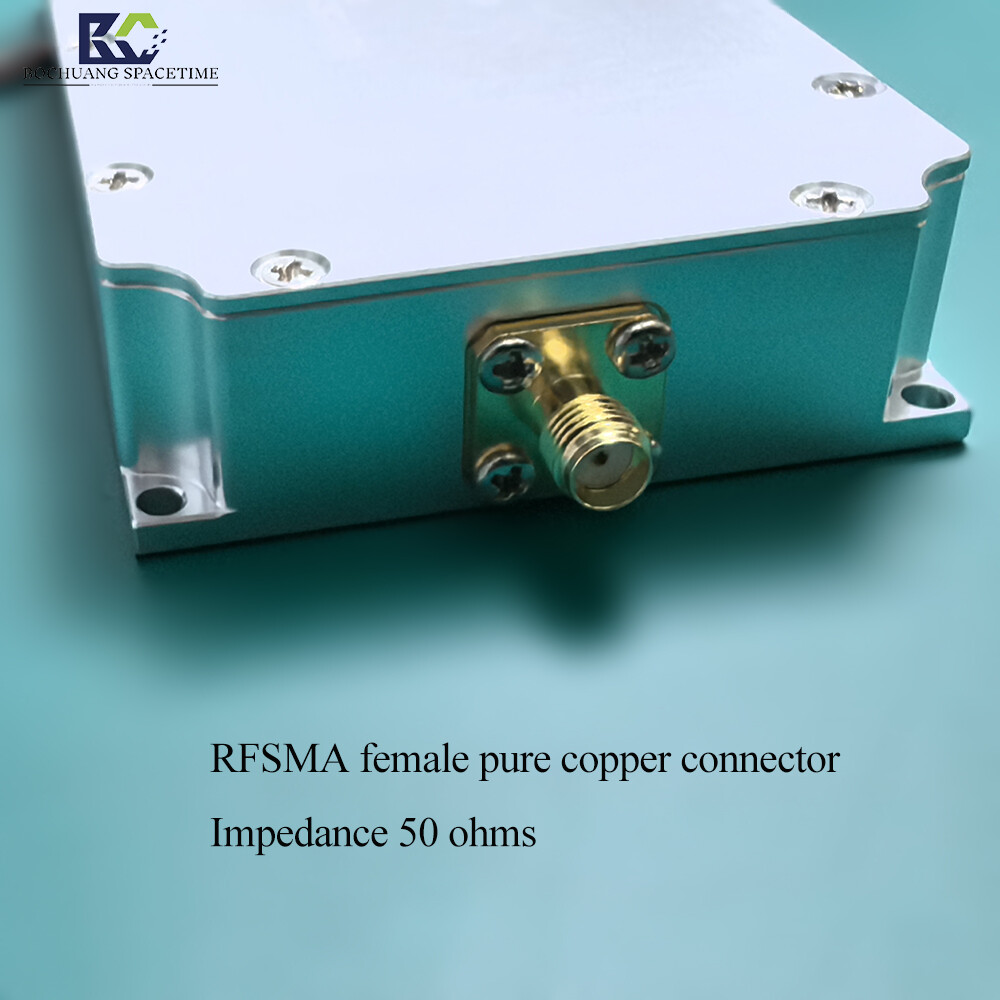

Interface Type | SMA female |
Casing Material | Aluminum AlloyShield casing |
Installation Method | Four-corner screw fastening |
Operating Temperature | -40℃ ~ +85℃ |
Origin | Shenzhen |
FAQ
Q1: Which communication systems is this microwave power amplifier module suitable for?
A1: BCSK-SJ1G50 is designed for GSM/3G communication systems and also suitable for wireless relay interruptions, IoT base stations, and emergency communication equipment isolation. Frequency coverage includes
940-1060MHz, compatible with mainstream base stations and terminals.
Q2: Does the module support wide voltage input? What are the power supply requirements?
A2: Supports wide voltage input of DC 24V-28V, operating current ≤ 4.7A. Recommended use.Stabilized Power SupplyEnsures long-term stable operation and prevents output fluctuations due to voltage variations.
Yes.
Q3: Is this module suitable for outdoor or industrial environments?
A3: Yes, the module features an aluminum alloy shielded enclosure with four corners.screwFixed structure with industrial-grade seismic and vibration resistance. Operating temperature range: -40°C to +85°C. Suitable for...
For outdoor, server room, or embedded installation scenarios.
Q4: Do you offer bulk purchasing and customization services?
A4: Direct from Shenzhen factory. Supports bulk customization and long-term supply agreements. We can adjust frequency bands, power levels, or interface types per your requirements. Contact us for a quote and more information.
