Bochuang Shikong BSKS-W1 00 2.4G Signal Source RF Power Amplifier Module 100W High Power 2400-2500MHz Anti-UAV Special Industrial-Grade RF Amplifier

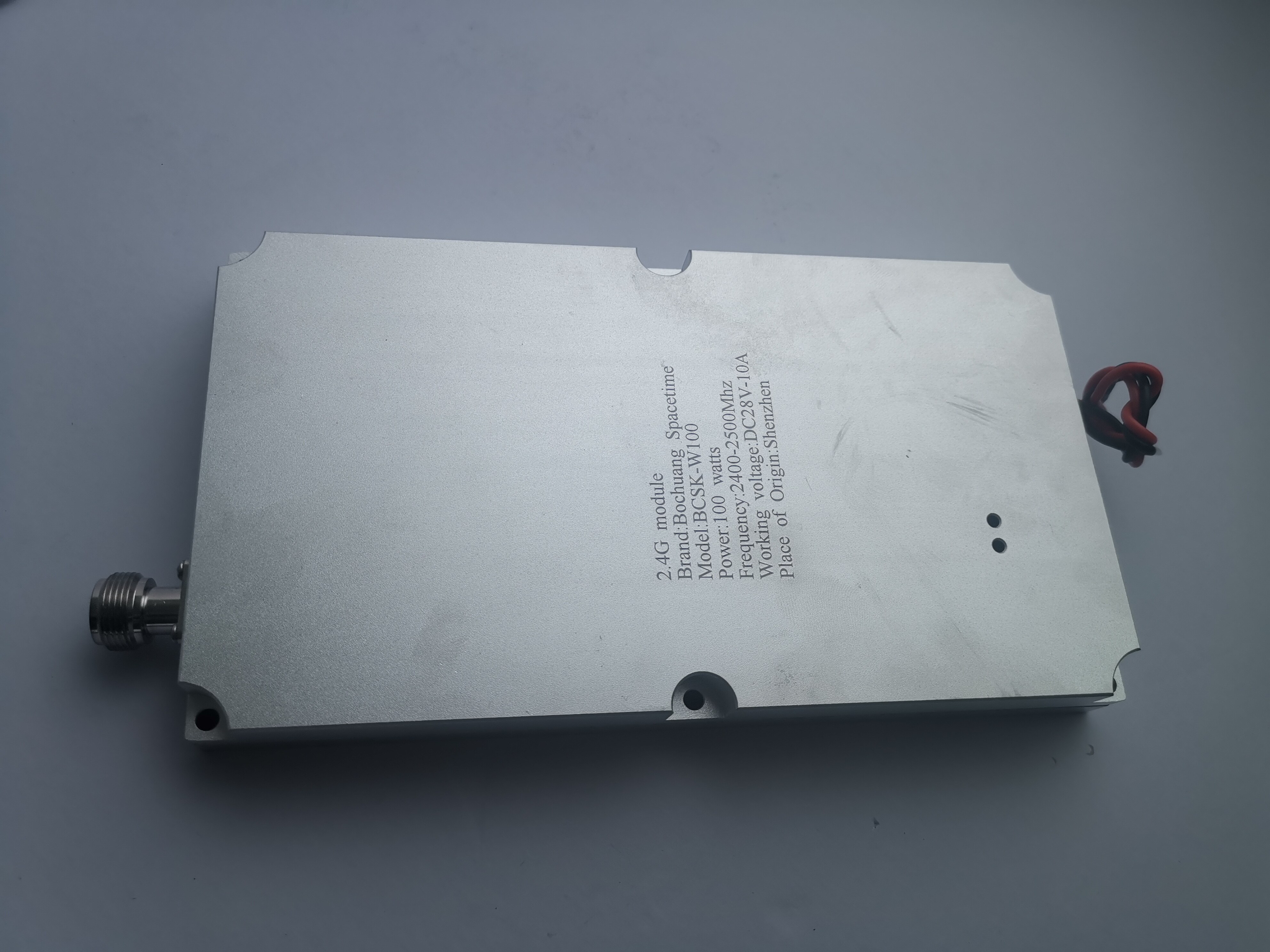

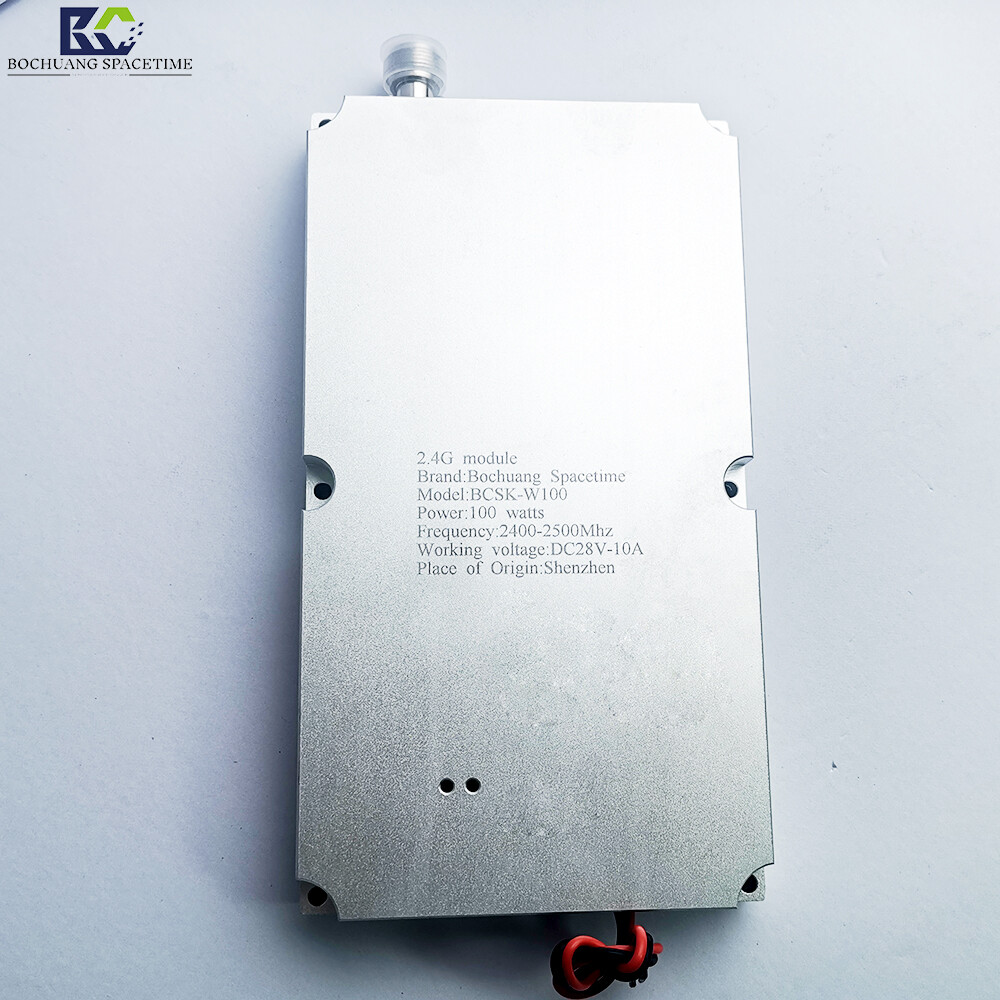

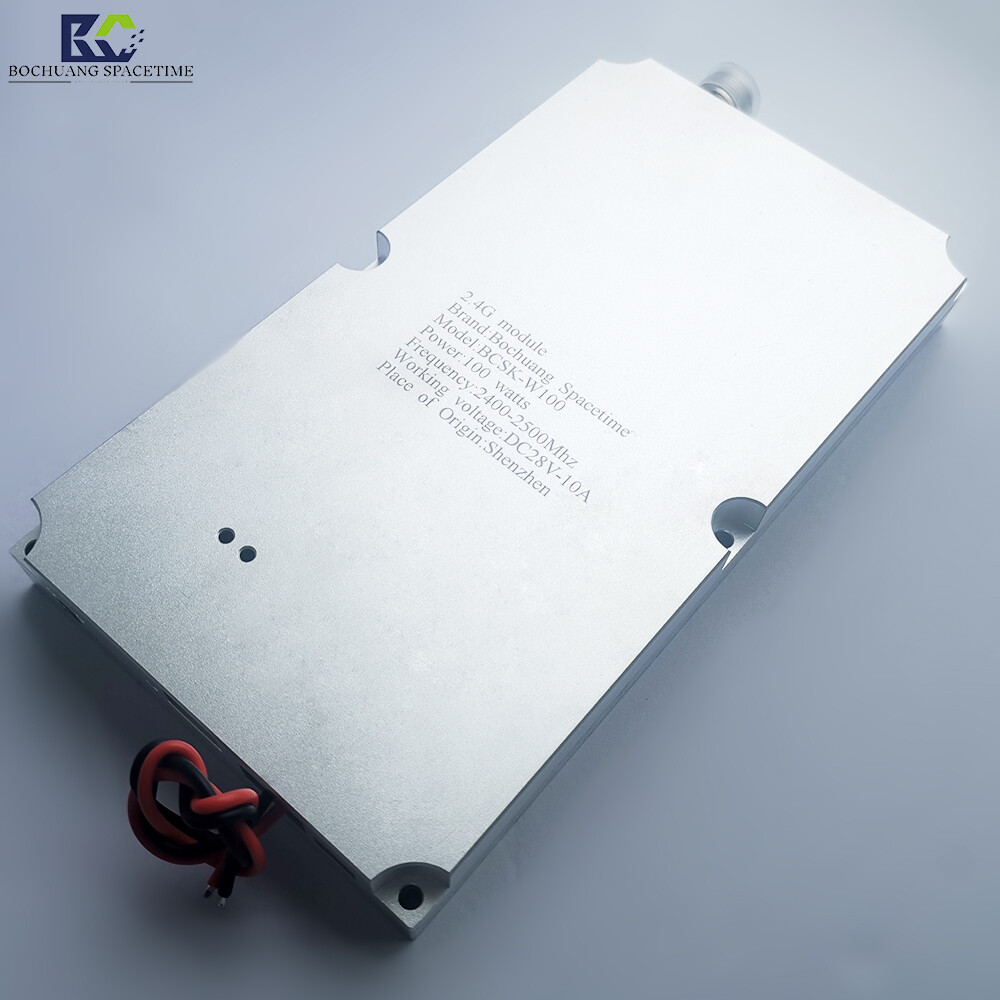

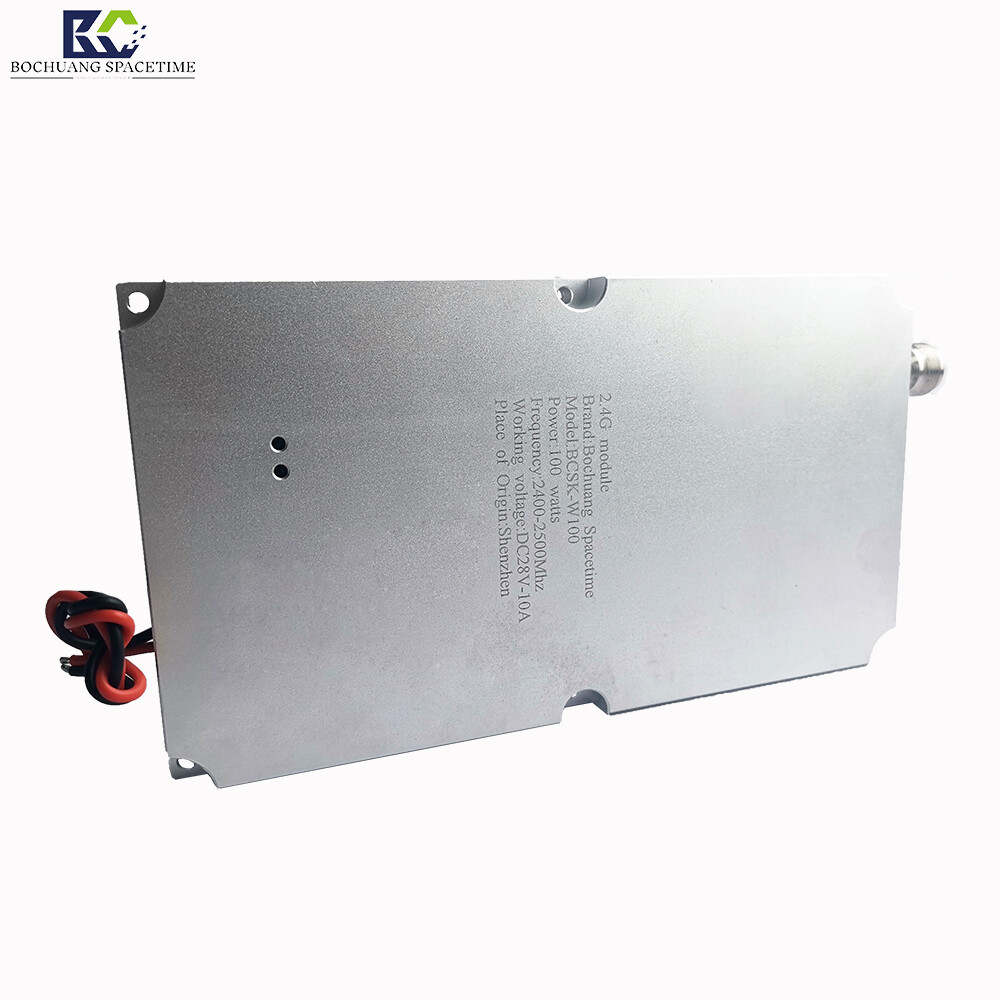

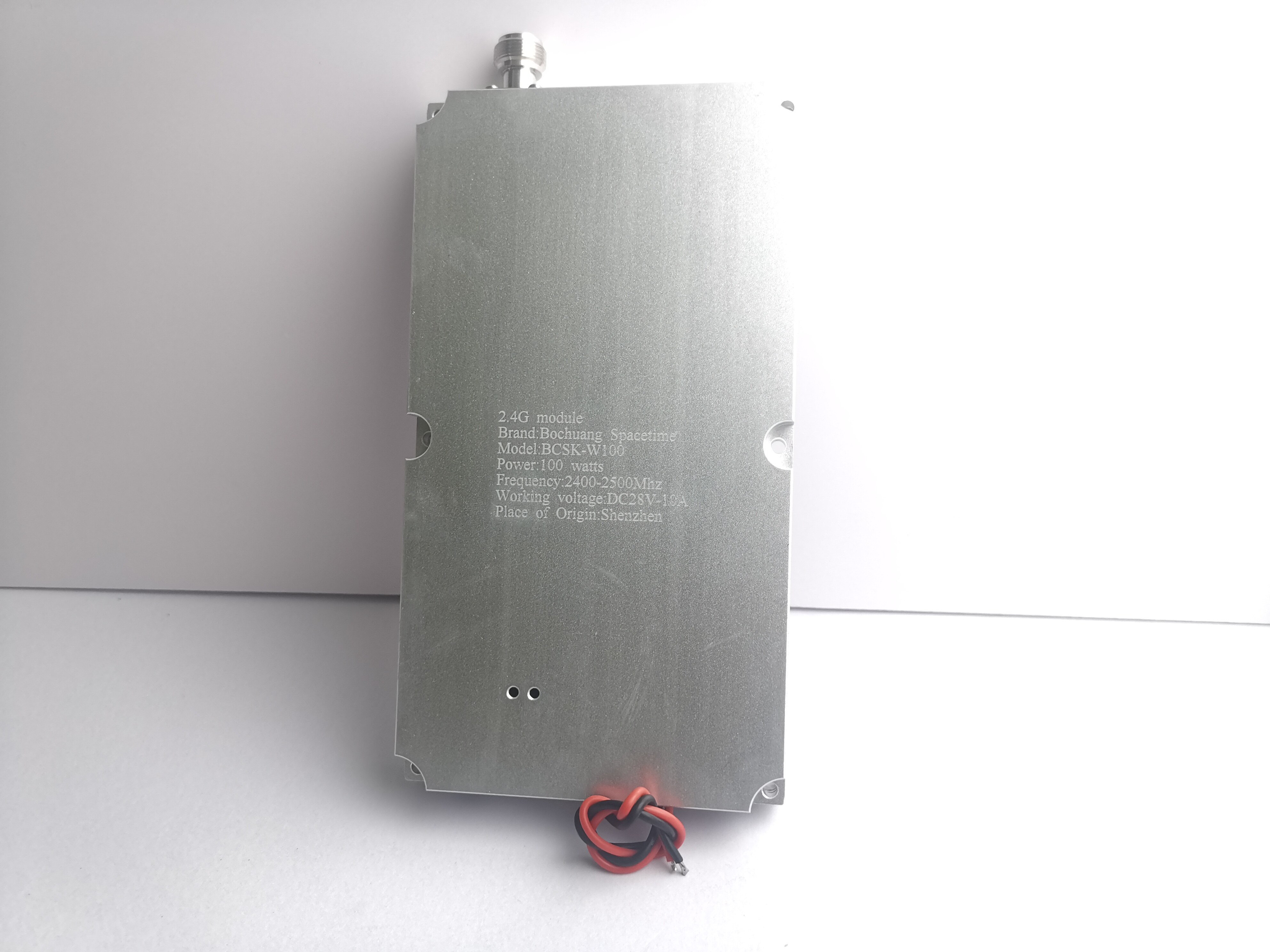

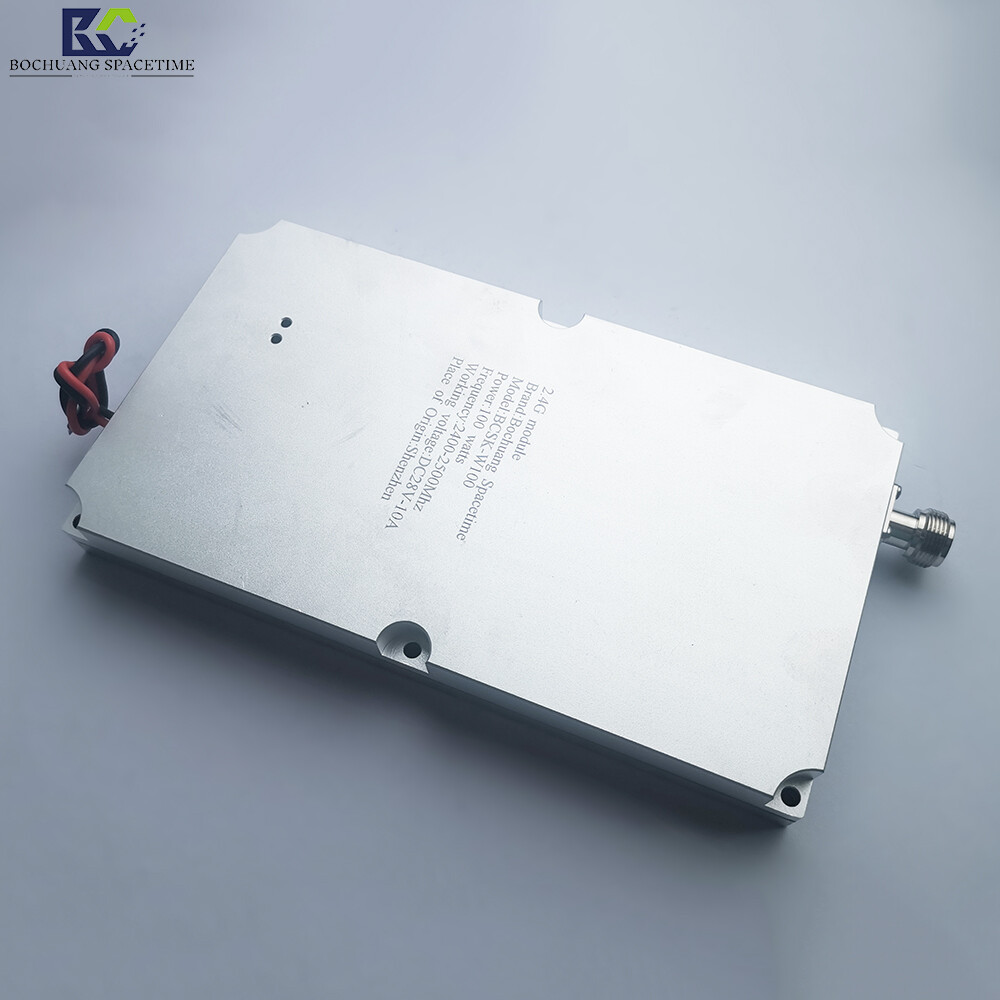

The BSK-W100 is a 2.4GHz band power amplifier module designed for high-power RF applications, delivering up to 100W of output power across a precise frequency range of 2400-2500 MHz. It is ideal for drone countermeasure systems, wireless video transmission enhancement, and industrial IoT signal relay. Housed in a rugged metal enclosure, it supports stable DC28V-10A power supply with excellent heat dissipation and environmental resilience, operating reliably from -35°C to +65°C. Manufactured by Shenzhen's original factory, this cost-effective RF solution integrates seamlessly into security and communication equipment, offering a superior alternative to imported high-end power amplifiers.
In Stock (500units
Product Overview
The BSK-W100 from Bochuang Shikong is a 2.4GHz-band device designed for high-power RF applications.Power Amplifier Module, with output power up to 100 watts and a precise frequency range
Covers 2400–2500 MHz, widely applicableDrone Countermeasure Systemscenarios such as wireless video transmission interruption and industrial IoT signal loss. The product features a rugged metal enclosure with a mounting bracket.
Provides stable DC28V-10A power with excellent heat dissipation and environmental adaptability. Operates reliably from -35°C to +65°C, ensuring continuous performance in harsh industrial environments.
Relies on operation. As a cost-effective RF solution manufactured by the Shenzhen original factory, this module can be seamlessly integrated into various security and communication devices, making it an ideal replacement for imported high-endAmplifier Module
Blockthe ideal choice.
Key Features
High-Power Output: Rated power 100W, designed for long-distance and high-interference scenarios. Suitable forDrone Countermeasures、Wireless Communication DefenseFor high-demand applications.
Precise Frequency CoverageOperating frequency: 2400-2500 MHz, perfectly compatible with mainstream Wi-Fi, Bluetooth, and drone communication bands to maximize signal interference suppression or enhancement.
Industrial-grade stability: Metal enclosure + high efficiencyCoolingDesigned to operate in wide temperature ranges from -35°C to +65°C, suitable for complex environments including outdoor, vehicular, and airborne applications.
Standard Interface CompatibilityEquipped with SMA or N-type female RF connectors, 50Ω impedance for quick integration with various antennas, filters, and combiners.

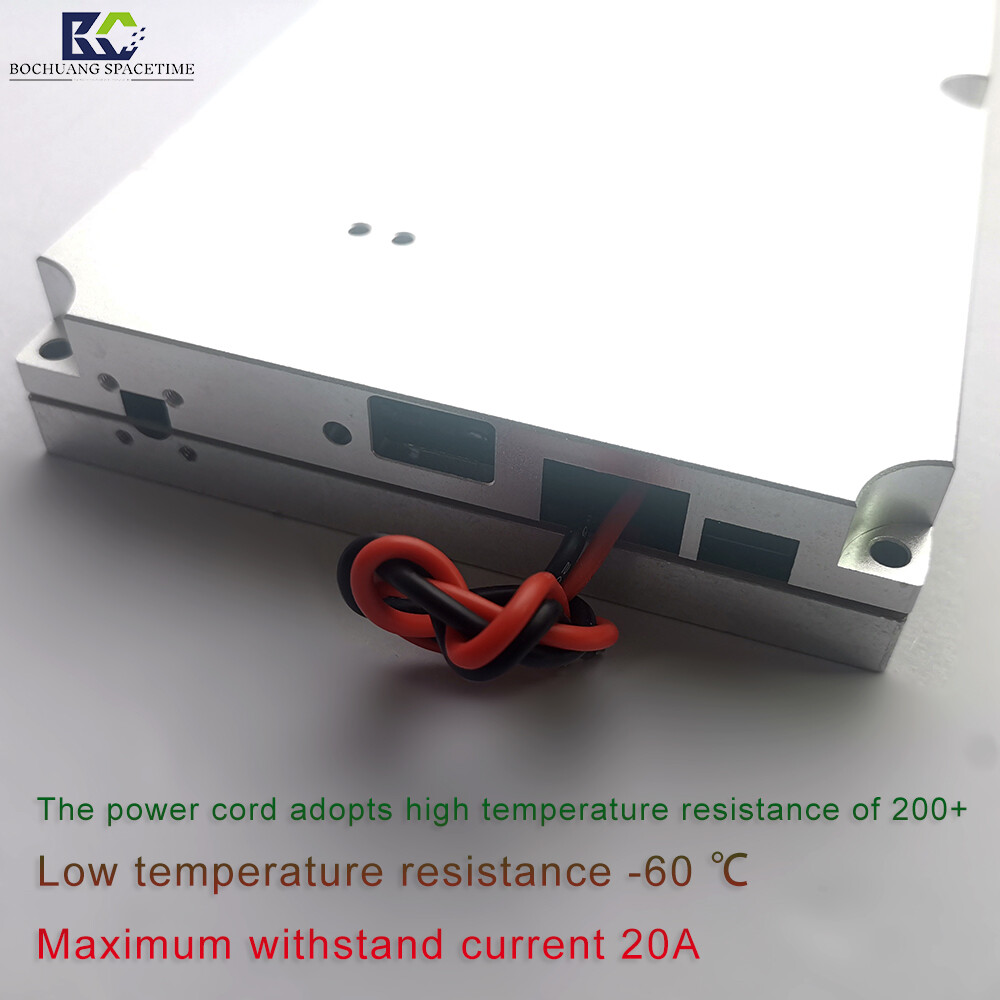

Low power, high efficiency: DC28V-10A power supply design with high conversion efficiency and low heat generation, extending the overall system lifespan.
Factory-direct guaranteeLocally manufactured in Shenzhen with support for custom development, complete technical documentation, and after-sales service to minimize integration risks.
Parameter Table
Parameter Item | Specification Value |
|---|---|
Brand | Bochuang Spacetime |
Model | BCSK-W100 |
Operating Frequency | 2400-2500 MHz |
Output Power | 100W |
Supply Voltage | DC 28V |
Operating Current | 10A |

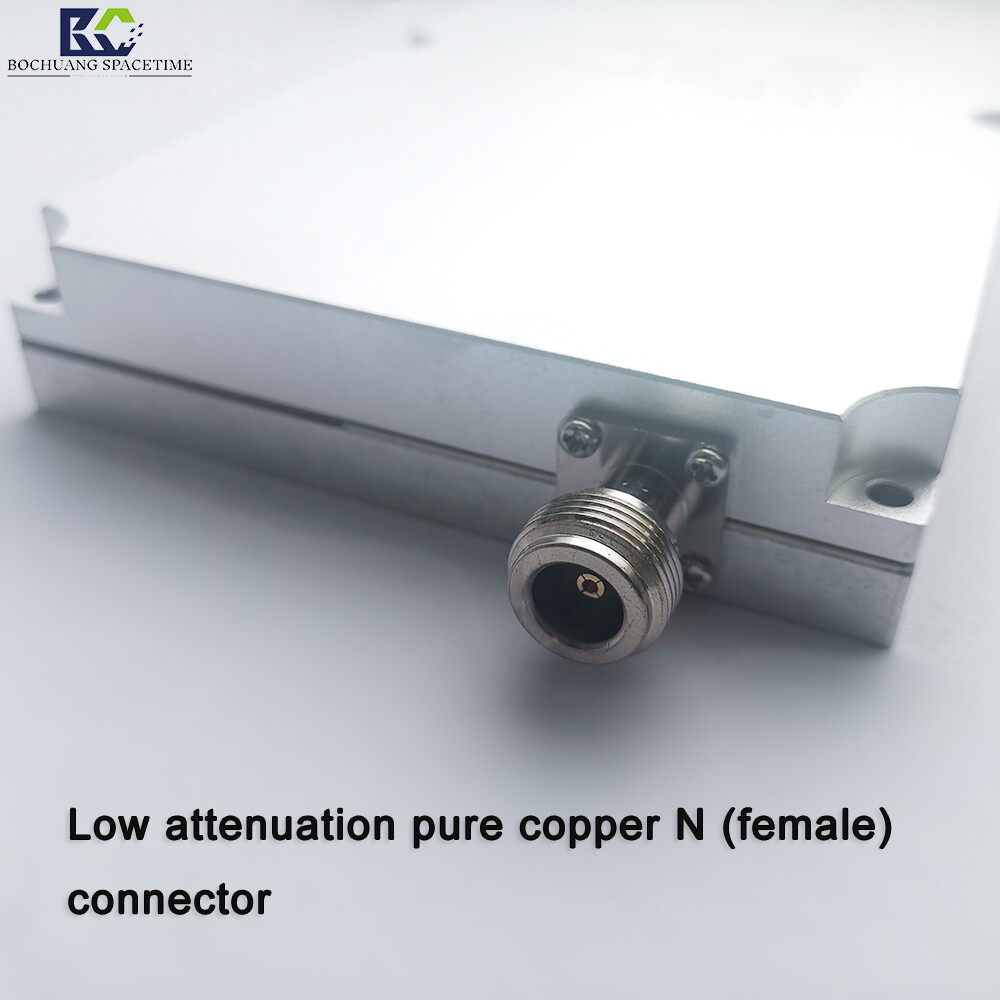

RF interface | N-type female |
Impedance | 50Ω |
Operating Temperature | -35℃ ~ +65℃ |
Storage Temperature | -40℃ ~ +85℃ |
Operating Humidity | 0% ~ 90% RH |
Origin | Shenzhen |
Frequently Asked Questions (FAQ)
Q1: Does the BCSK-W100 module support continuous full-power output?
Yes. Designed for industrial-grade continuous operation, it can deliver stable output of 100W power for extended periods under proper cooling conditions. A heatsink or active air-cooling system is recommended.
Use.
Q2: Can this module be used on the 5.8GHz band?
Not supported. BCSK-W100 is designed for the 2.4GHz frequency band. For 5.8GHz applications, please choose Bochuang Shikong.BCSK-Y100Model.
Q3: Does the module require an external drive signal?
A: Not required. This module includes a signal source.Power AmplifierNo frontend required. 2.4GHz RF input signal (typically -10 dBm to 0 dBm) directly enables full power operation.
rate output.
Q4: Are SDKs or control interfaces provided?
A: Standard edition is fully analog.Amplifier ModuleNo digital control interface. For remote monitoring or power adjustment, contact technical support to customize a version with GPIO or UART control.
Version.
Q5: Module dimensions and installation method?
Dimensions: approximately 175mm × 91mm × 25mm (L×W×H; actual dimensions may vary). Features mounting holes at all four corners.screwFixed or DIN-rail mount, compatible
Standard rack orOutside the deviceShell.
