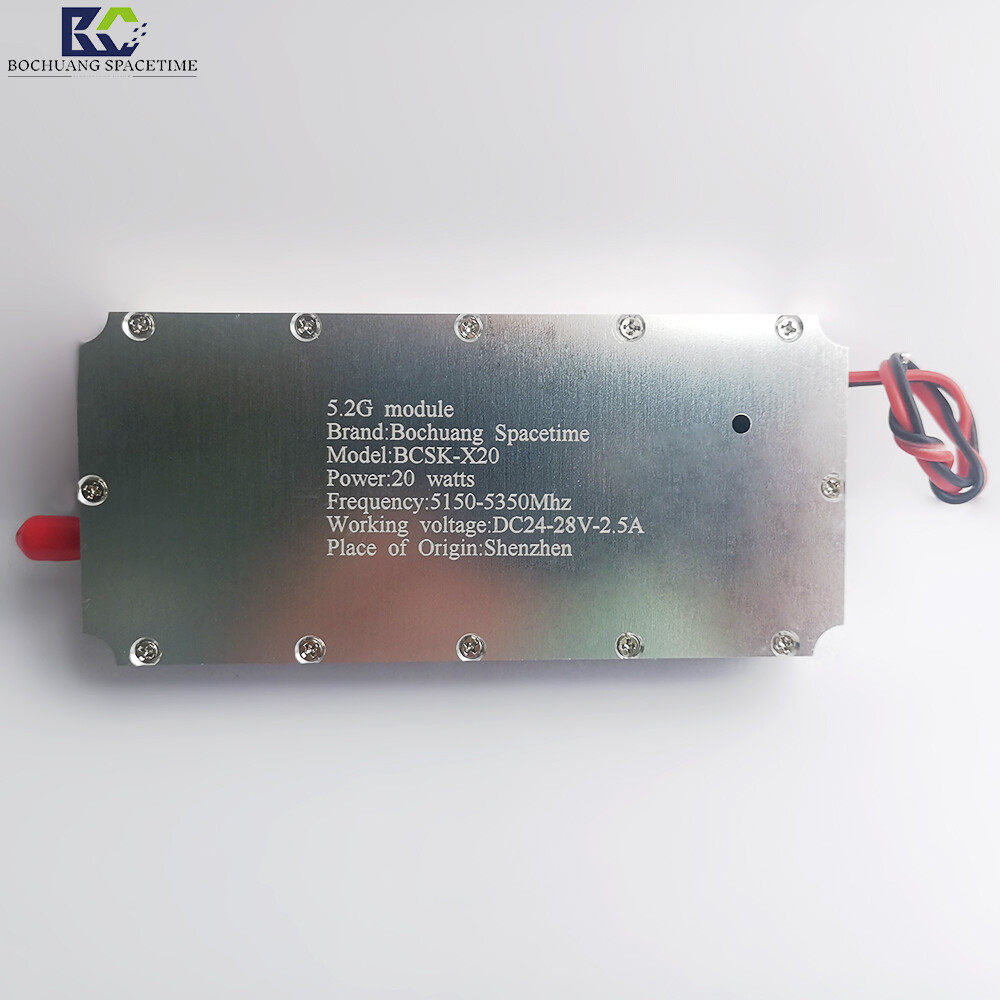

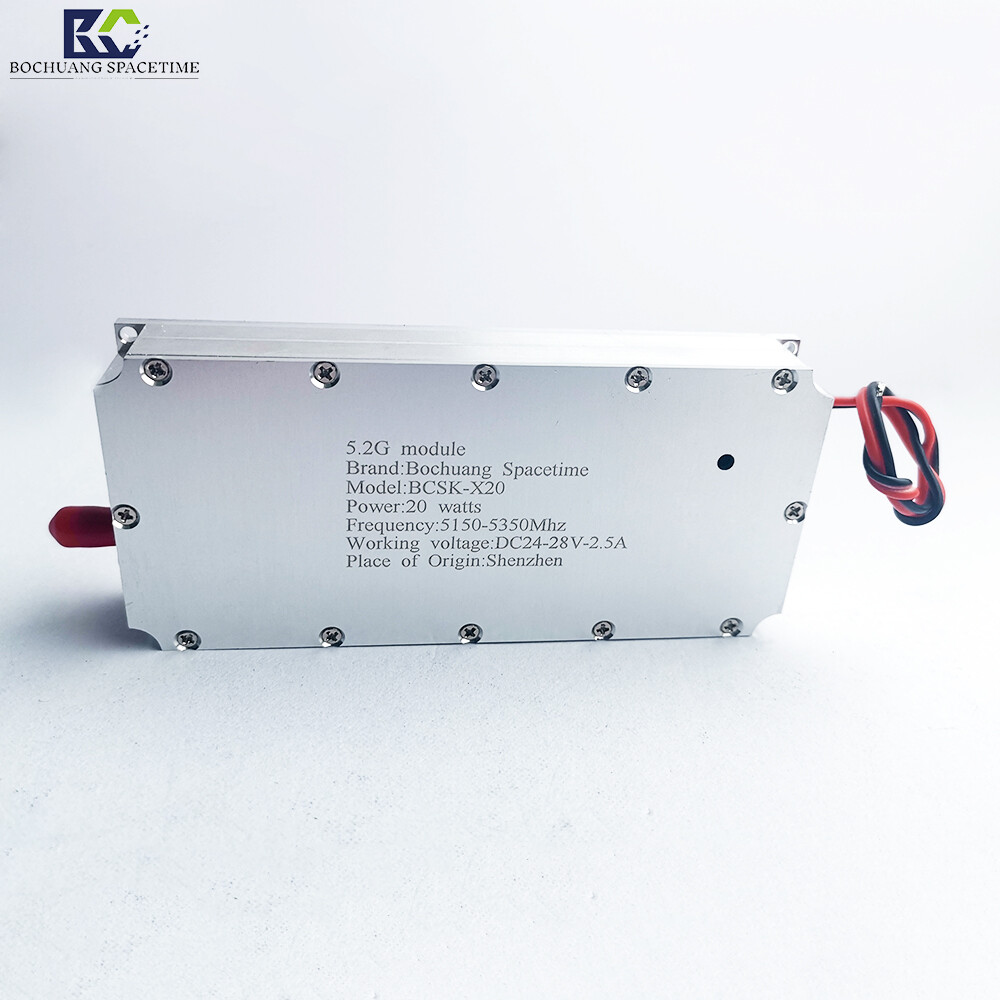

Bochuang Time-Space BSKS-X20 5.2G RF Power Amplifier Module 20W 5150-5350MHz GAN Industrial-Grade Amplifier for UAV Countermeasures
The BCSK-X20 is a 5.2GHz band power amplifier module designed for high-power RF applications. It delivers up to 20 watts of output power and precisely covers the frequency range of 5150-5350 MHz, making it ideal for drone countermeasure systems, wireless video transmission enhancement, and industrial IoT signal relay. Encased in a rugged metal housing, it supports stable DC 24V-28V/2.8A power supply and features excellent heat dissipation and environmental adaptability. Operating reliably within a temperature range of -35°C to +65°C, this Shenzhen-manufactured, cost-effective RF solution integrates seamlessly into various security and communication devices, serving as an ideal replacement for imported high-end power amplifier modules.
In Stock (500units
Bochuang Times BSK-X20 5.2GHZ RF Power Amplifier ModuleGAN High-Efficiency Chip with Ring Isolator for Multi-Module Protection
Product Overview
The BCSK-X20 is a 5.2GHz-band device designed for high-power RF applications.Power Amplifier Module, with output power up to 20 watts and a precisely covered frequency range
5150-5350MHz, widely applicableDrone Countermeasure SystemFor scenarios such as wireless image transmission enhancement, signal isolation, and industrial IoT signal interruption. The product features a rugged metal enclosure.
Supports stable DC24V-28V/2.8A power supply with excellent heat dissipation and environmental adaptability. Operates within a temperature range of -35°C to +65°C, ensuring reliable performance in harsh industrial environments.
Reliable, continuous operation. As a cost-effective RF solution manufactured by the original Shenzhen factory, this module integrates seamlessly into various security and communication devices, making it an ideal replacement for imported alternatives.
Amplifier Modulethe ideal choice.
Key Features
High-Power Output: Rated power 20W, designed to meet mid-to-long-range interference suppression or signal enhancement needs; suitable forDrone Countermeasures, wireless communication defense, and other scenarios.
Precise Frequency CoverageOperating frequency: 5150-535 MHz. Perfectly matches mainstream Wi-Fi 5 GHz bands and drone communication frequencies to ensure optimal signal interference reduction or enhancement.
Dahua

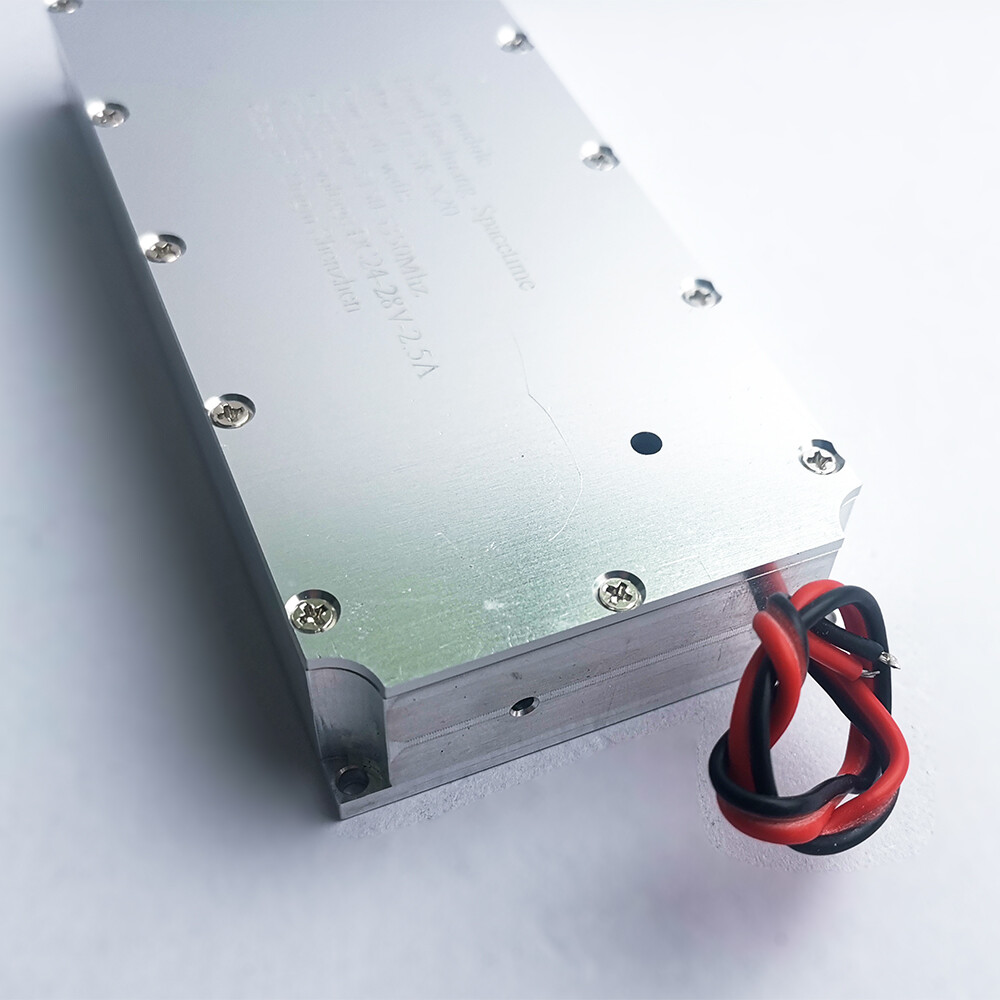

Industrial-grade stabilityMetal enclosure with efficient heat dissipation; supports operation from -35°C to +65°C, suitable for harsh environments such as outdoor, vehicle-mounted, and airborne applications.

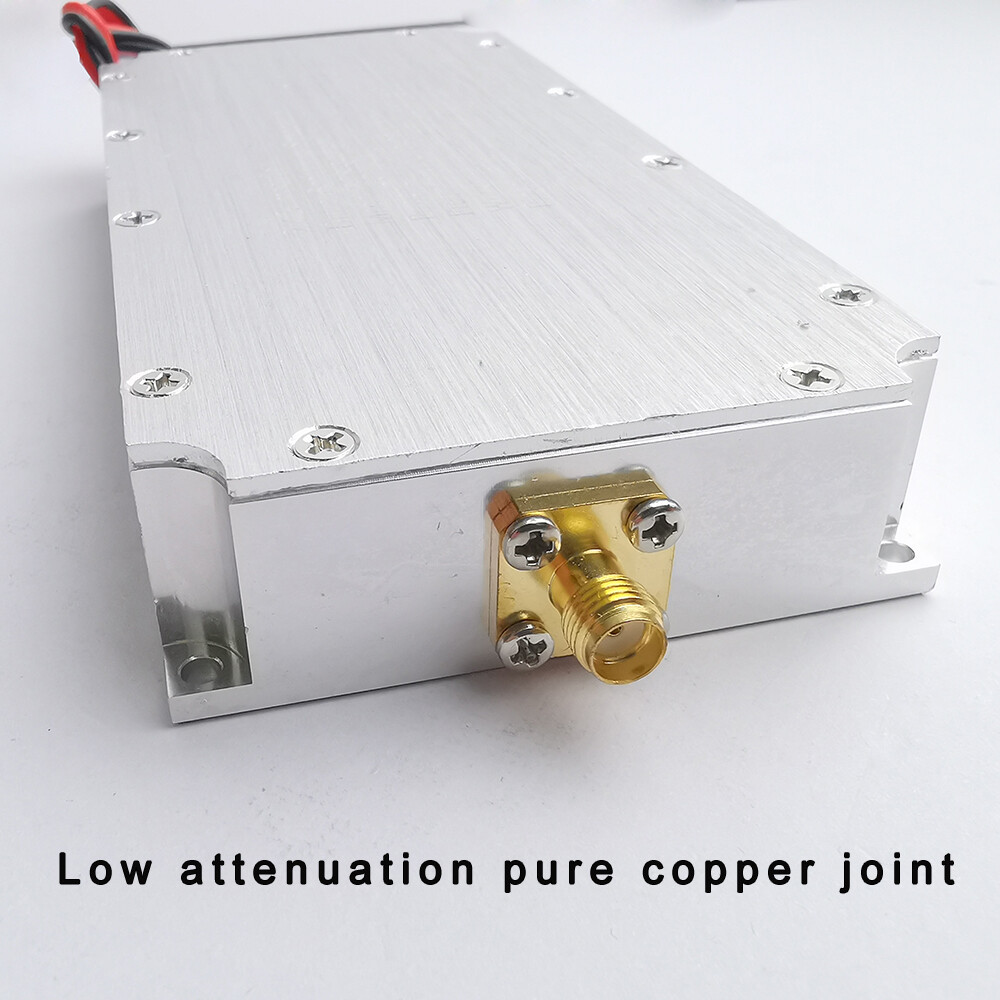

Standard Interface Compatibility: Uses SMA or N-type female connectorRF interface, impedance 50Ω, compatible with variousAntennaQuick connection for filters and combiners.
Low power, high efficiencyDC24V-28V/2.8A power supply design with high conversion efficiency, low heat generation, and extended system lifespan.
Factory-direct guaranteeLocally manufactured in Shenzhen with support for custom development, complete technical documentation, and after-sales service to minimize integration risks.
Parameter Table
Parameter Item | Specification Value |
|---|---|
Brand | Bochuang Spacetime |
Model | BCSK-X20 |
Operating Frequency | 5150-5350 MHz |
Output Power | 20W |
Supply Voltage | DC24V-28V |
Operating Current | 2.8A |
Interface Type | SMA/N Female Connector (50Ω) |
Operating Temperature | -35℃ ~ +65℃ |
Casing Material | Aluminum Alloy + Heatsink Fins |
Origin | Shenzhen |
Frequently Asked Questions (FAQ)
Q1: Which drone countermeasure scenarios is the BCSK-X20 suitable for?
A1: Designed for the 5.2GHz band, this module effectively disrupts video transmission and control signals of mainstream consumer drones. Ideal for airports, prisons, and major event security.
Regional low-altitude defense system.
Q2: Does it support continuous long-term operation?
A2: Yes. The module features an industrial-grade thermal design and supports 7×24 hours of continuous operation. However, we recommend adding external cooling for extended use.Cooling FanorHeatsinkMake
, to extend service life.
Q3: Can it be used in combination with modules from other frequency bands?
A3: Yes, the BCSK-X20 is designed with a standard 50Ω impedance and can be2. 4G Module、5.8G Module、1. 5G ModuleCombining multi-band amplifier modules to build a multi-band unmanned system.
Countermeasure system.
Q4: Do you offer technical support and customization services?
A4: BOCUO provides complete installation documentation, driver support, and custom development services. We can adjust frequency, power, or interface types based on your requirements. Please contact us.
Get detailed plan.
Need More Information?
Our technical team is ready to provide detailed specifications and customization options.
