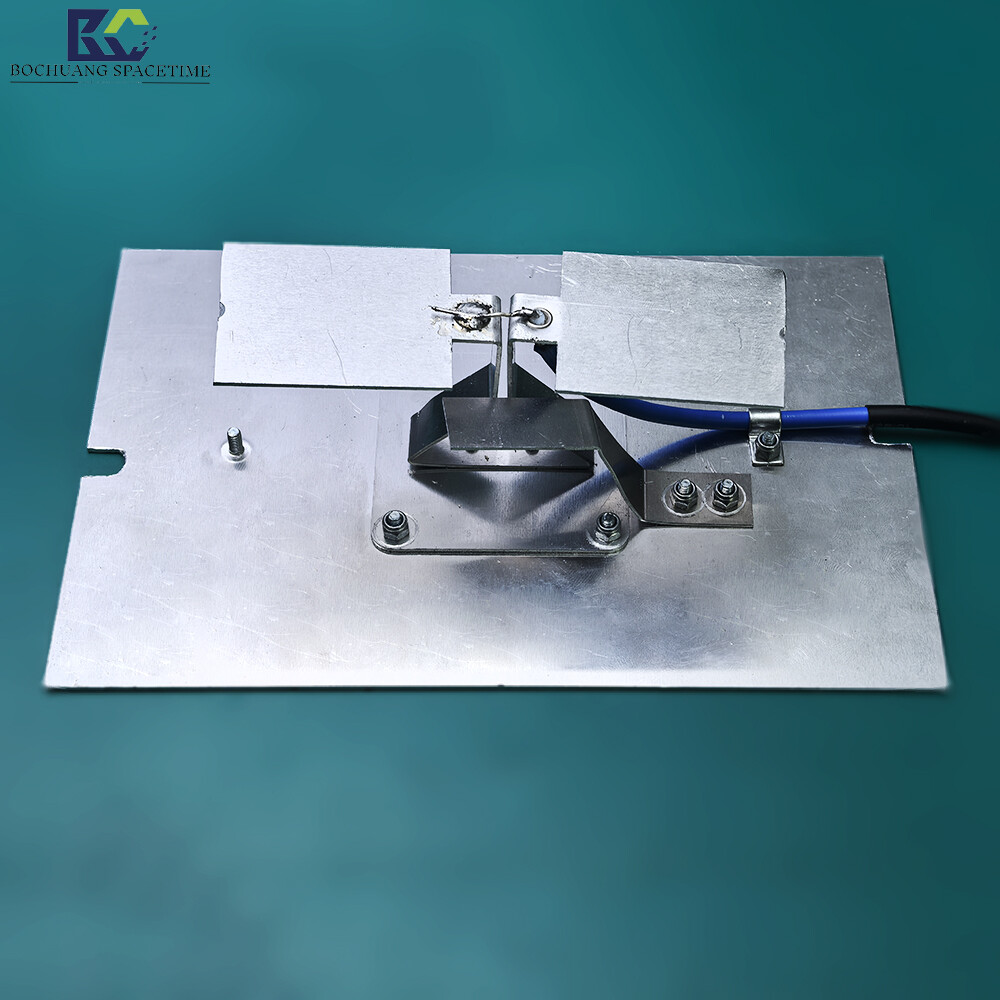

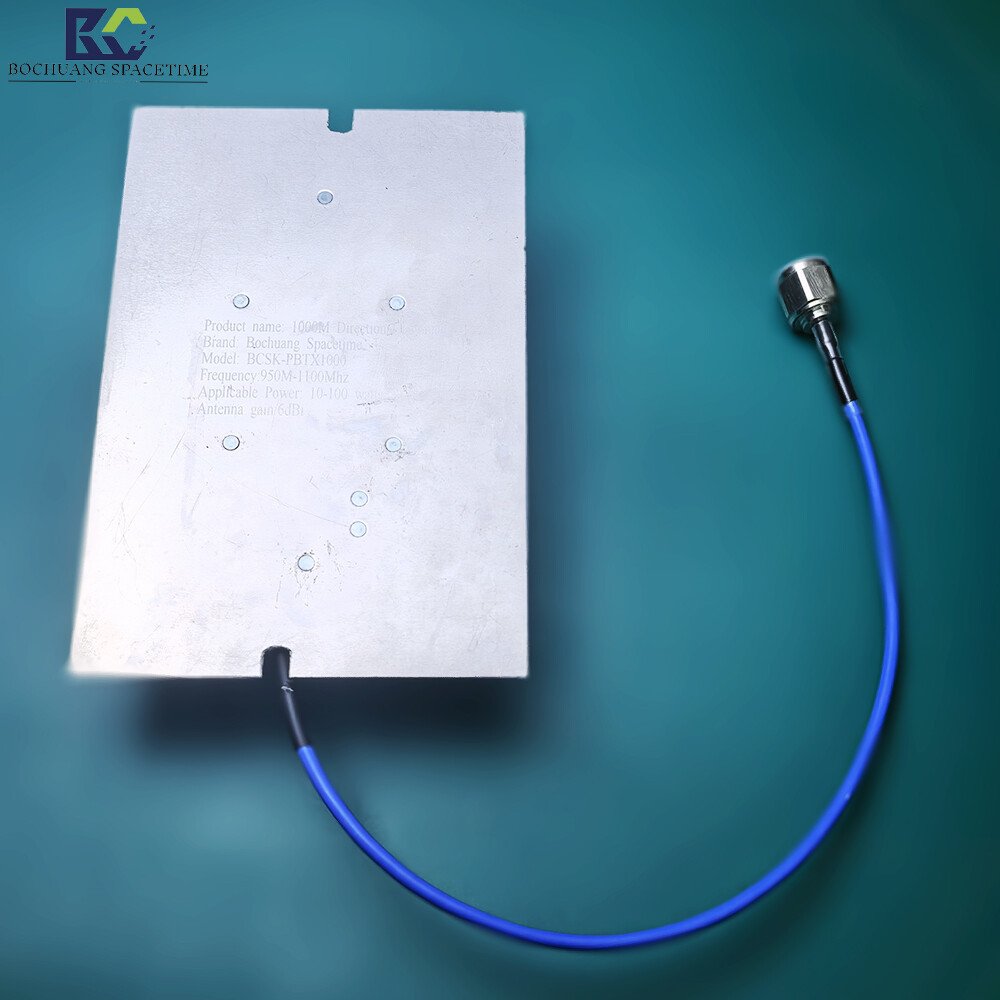

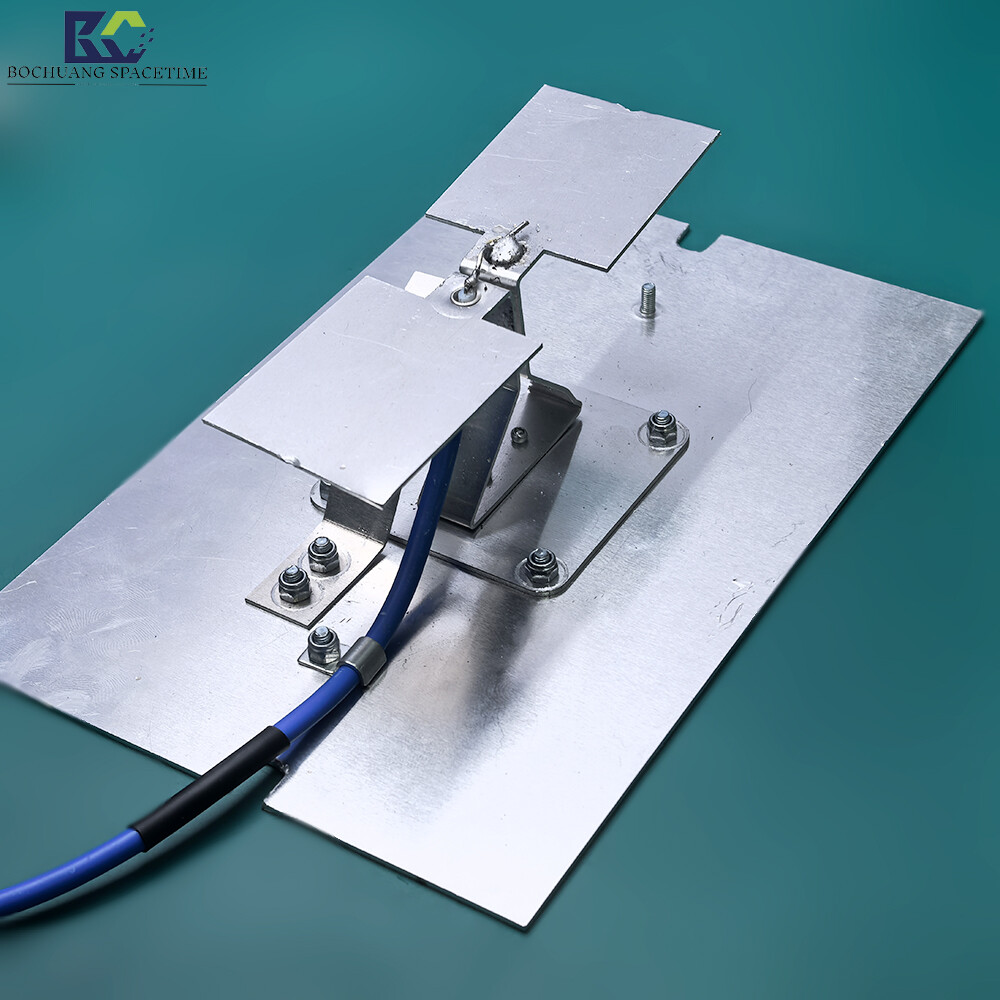

Panel Directional Antenna 950-1100MHz 5dBi Industrial RF Module for Drone Countermeasures, IIoT, and Long-Range Point-to-Point Communication Systems
This directional panel antenna is engineered for high-frequency directional communication and long-range signal coverage. It precisely operates from 950MHz to 1100MHz, delivering 5dBi gain and supporting 10W–100W high-power input with a VSWR ≤ 1.8 for stable, low-loss transmission even in complex electromagnetic environments. Constructed from lightweight aluminum alloy, its compact footprint (180×120×50mm) features a standard N-Male connector for rapid deployment in drone countermeasure systems, industrial IoT gateways, long-distance point-to-point relay links, and FPV video transmission setups. Its directional radiation pattern concentrates signal energy to enhance coverage strength in target areas while suppressing interference, making it the ideal choice for building high-gain wireless communication frontends. The rugged, dust- and moisture-resistant housing ensures reliable outdoor operation. Custom frequency response profiles and mounting solutions are available to meet B-end clients' flexible integration needs for directional RF solutions.
In Stock (100units
Product Overview
This modelTablet Directional AntennaEngineered for industrial-grade directional communication and long-range signal coverage, operating precisely across the 950MHz to 1100MHz frequency band with 5dBi gain.
Supports high-power input from 10W to 100W with a VSWR ≤ 1.8, ensuring stable, low-loss signal transmission even in complex electromagnetic environments. The antenna is constructed from lightweight aluminum alloy.
Compact structure with dimensions 180×120×50 mm, equipped with standard N-Male connectors for rapid deployment.Drone Countermeasure SystemIndustrial IoT gateway, long-range
Point-to-Point Relay Link and FPV Video Transmission System。
Its directional radiation effectively focuses signal energy, enhancing coverage strength in target areas while suppressing interference from sources, making it ideal for buildingHigh-Directivity Wireless Communication Front-End
Choose. The aluminum alloy enclosure offers dust and moisture resistance for reliable long-term outdoor operation. It supports customized frequency response and mounting bracket solutions to meet B2B customer requirements.Targeted
Frequency Solutionsflexible integration requirements.
Performance Features
High-gain directional radiation: 5dBi gain with VSWR ≤ 1.8 ensures concentrated signal projection for improved performance.Efficiency of long-range directional communication。
Broadband compatibility: Covers 950MHz to 1100MHz, supports major communication standards such as GSM/4G/5G, and is trulyMultimodalCommunication AntennaSolutions。
High Power Tolerance Design: Internal structure designed to stably handle input power from 10W to 100W, preventing signal distortion or component damage under high-power conditions. Suitable forHigh-Power Wireless Transmitter
Shooting System。
Compact, lightweight design: 180×120×50 mm, designed for compact installations in space-constrained devices such as UAV payloads, vehicle terminals, or wall-mounted gateways.
Industrial-grade protectionThe aluminum alloy housing is dust-proof, moisture-resistant, and UV-protected, making it ideal for long-term outdoor operation.Outdoor WirelessCommunication Antennaa reliable choice.
Customizable frequency support: Adjust resonant frequency to meet customer project requirements, enabling targeted band enhancement or narrowband applications for improved performance.Dedicated RF System Integration Efficiency。

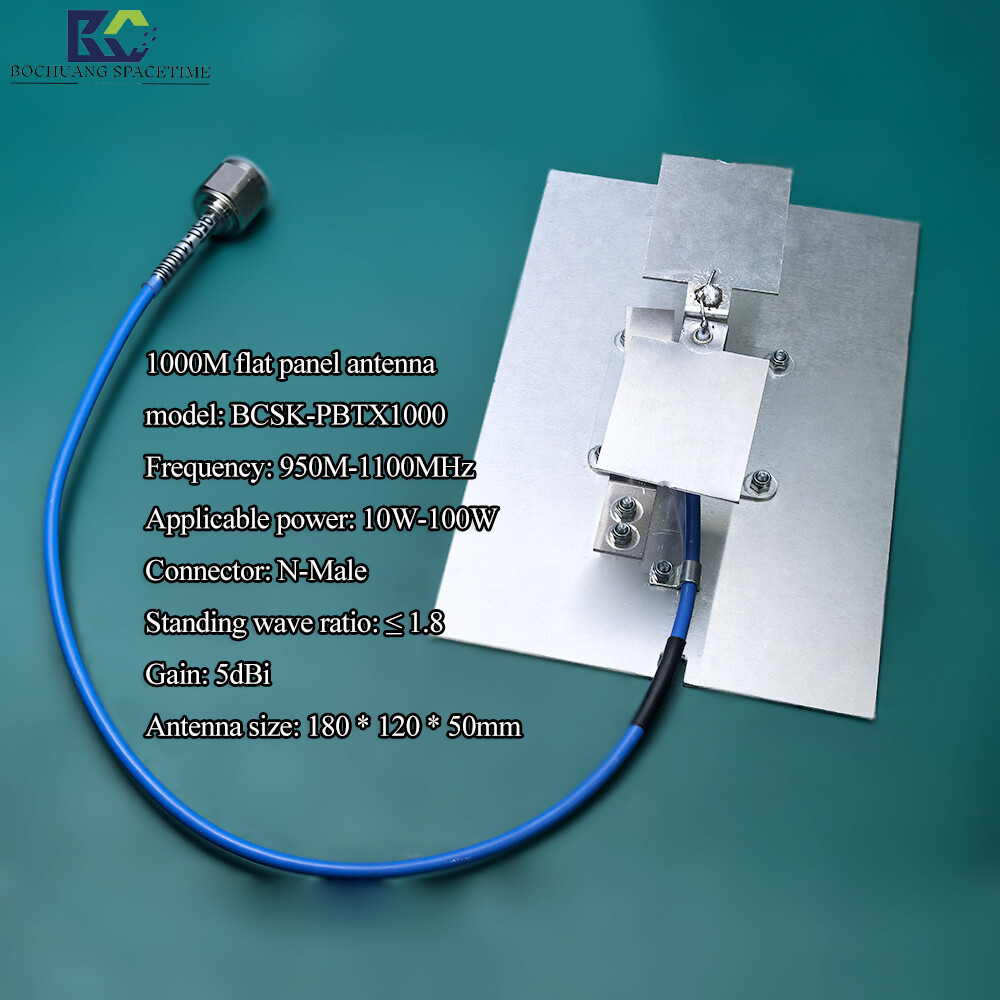

Parameter Table
Parameter Items | Specifications |
|---|---|
Model | BCSK-PBTX1000 |
Frequency Range | 950MHz–1100 MHz |
Applicable Power | 10W–100W |
Gain | 5 dBi |
VSWR | ≤1.8 |
Interface Type | N-Female Connector |
Antenna Size | 180×120×50mm |
Polarization Mode | Vertical (default) |
Operating Temperature | -40℃ ~ +70℃ |
Ingress Protection Rating | IP65 (Optional) |
Frequently Asked Questions (FAQ)
Q1: Does this panel directional antenna support horizontal polarization?
Default configuration is vertical polarization. For horizontal or dual-polarization variants, contact technical support for customization—ideal for multipath interference suppression scenarios.
Q2: Can the antenna be used directly for 5G NR bands?
This model supports 950-1100 MHz. It is compatible with some 5G low-band frequencies (e.g., n28/n71), but high-band frequencies require a different model. Please provide your specific frequency requirements for further assistance.
Match.
Q3: Does the N-Male connector support waterproof sealing?
A: StandardConnector InterfaceDesigned for industrial threaded connections; with waterproof tape or seals, achieves IP65 protection for outdoor exposure.
Q4: Are mounting brackets or wall-mount kits included?
Standard configuration does not include a mounting bracket. Compatible with third-party bracket solutions for wall, pole, or equipment rack installation.
Flat-panel directional antenna 950-1100 MHz, 5 dBi, for UAV countermeasure systems
Industrial-grade directional antenna with N-Male connector for IoT gateways
High-power flat panel antenna 10W–100W for long-range point-to-point links
compact directional RF antenna 180x120x50mm for FPV transmission modules
Weatherproof directional antenna 950M–1100MHz for outdoor wireless infrastructure
