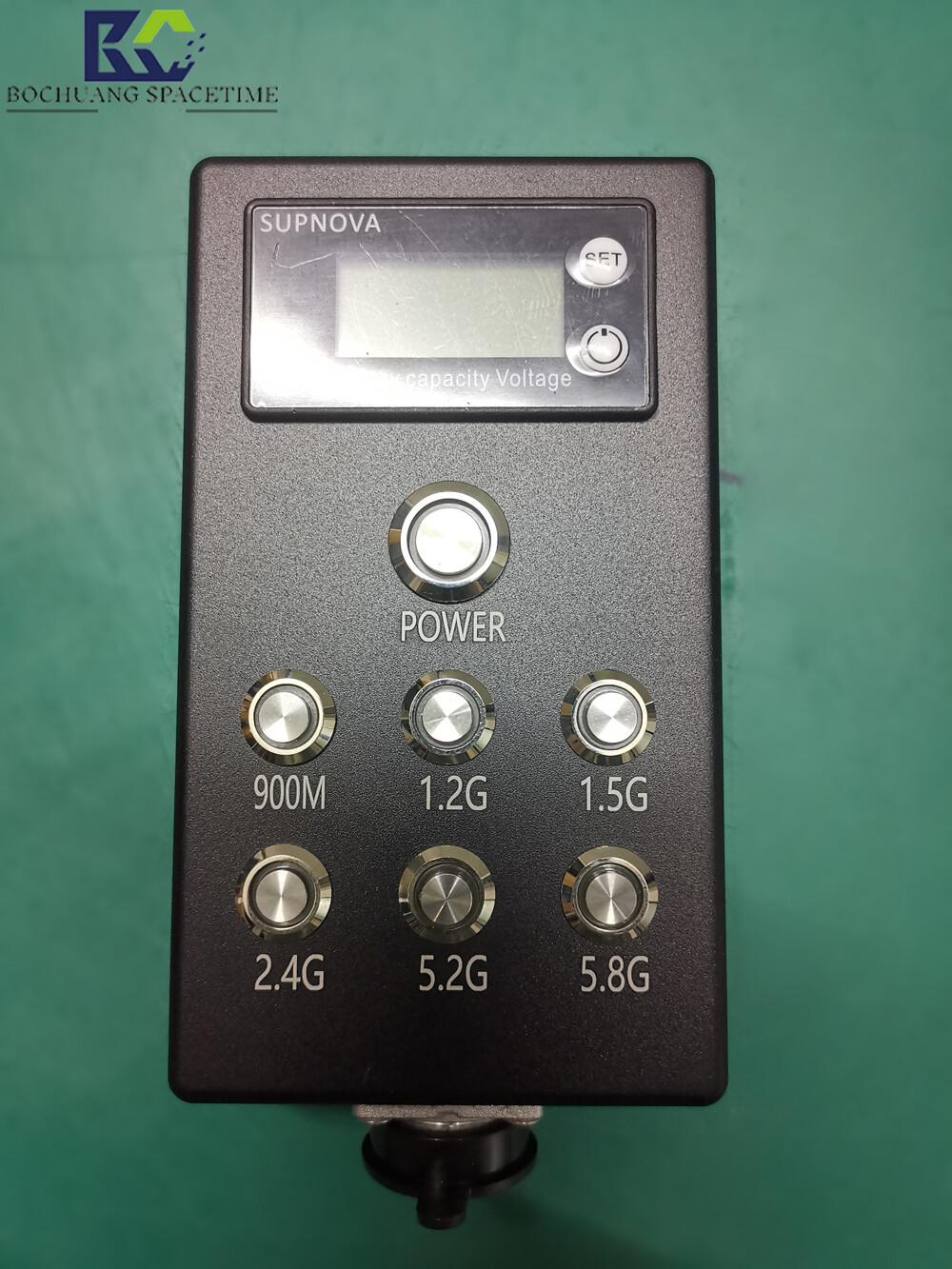

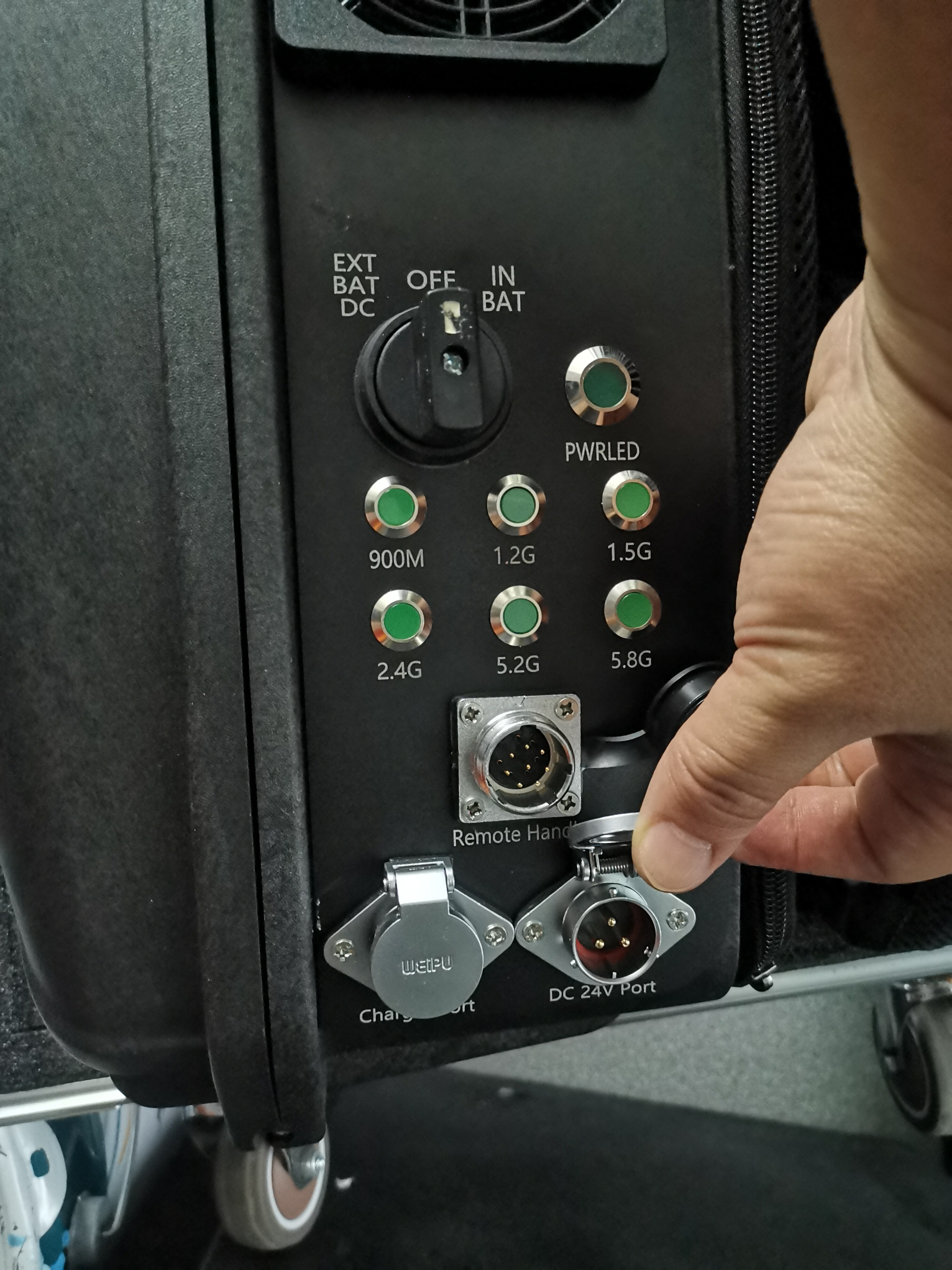

The Bochuang Shikong high-head metal push-button switch features a high-strength brass base with nickel plating for superior corrosion and wear resistance, ensuring reliability in harsh environments. Its internal contacts are made of thickened pure silver to guarantee stable connection, rapid response, and a service life far exceeding standard gold-plated or copper contacts. The switch has a raised dome design for clear tactile feedback and precise operation. An optional ring-style LED indicator is available in red, green, blue, yellow, and other colors. It supports 12V/24V power supply and is ideal for applications such as power-on initiation, equipment reset, access control, and drone remote control. With an IP65 rating, it effectively resists dust and water splashes, making it suitable for outdoor and industrial use. Available in both latching and momentary modes to meet diverse control logic requirements, this switch is the ideal choice for enhancing operational experience and safety.

Bochuang Spacetime High-EndMetal Push Button SwitchEngineered for Precision Control

5A Metal Push Button Switch with Light | Self-Locking/Reset, Brass Nickel-Plated, Silver Contacts, IP65 Waterproof for Industrial Control, Automotive, and Drone Jammers - Bochuang Space-Time

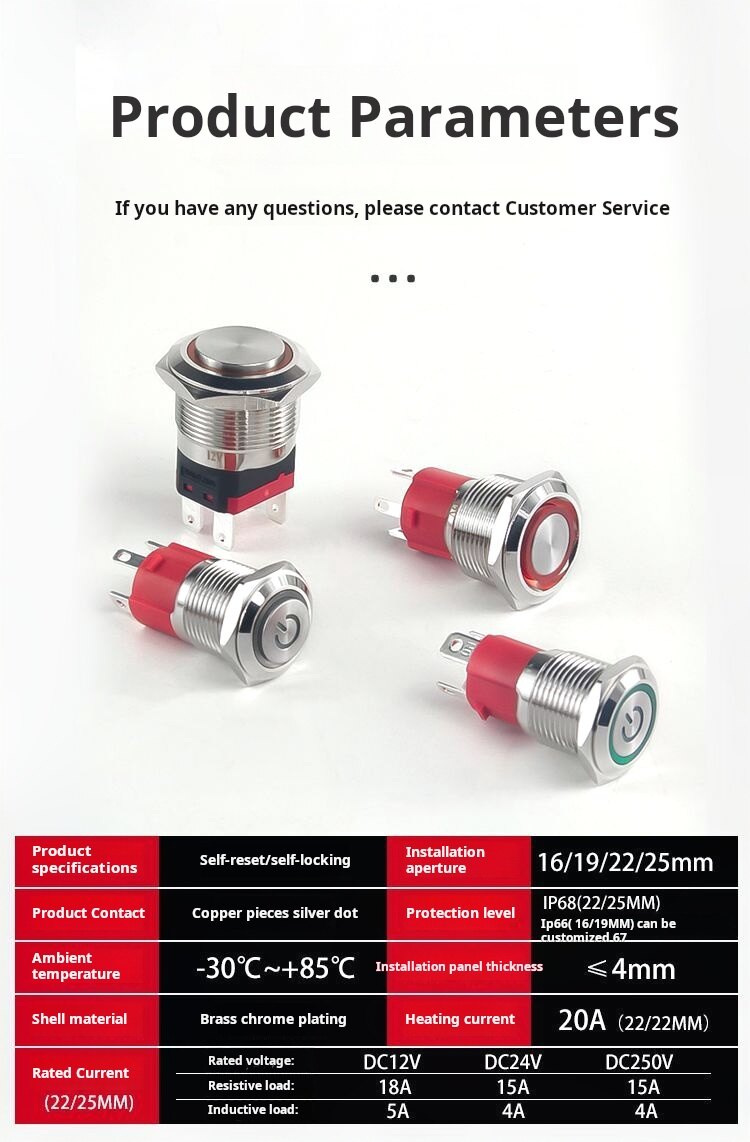

📊 1. Core Technical Specifications

Parameter Items	Detailed Specifications	Key Benefits
Product Type	High-end MetalButton switch(High Head Metal Push Button)	Raised design for clear tactile feedback and anti-mistouch protection
Casing Material	H59 Brass, Nickel-Plated	More corrosion-resistant and oxidation-resistant than stainless steel, with a premium texture.
Contact material	Full Silver Contacts	Extremely high conductivity, arc-resistant oxidation, and a lifespan 3 times longer than standard copper contacts.
Light Type	Ring LED Indicator	360° uniform illumination, available in red/green/blue/yellow/white, with adaptive voltage
Mechanical Life	≥ 500,000 presses	Industrial-grade durability for high-frequency operations

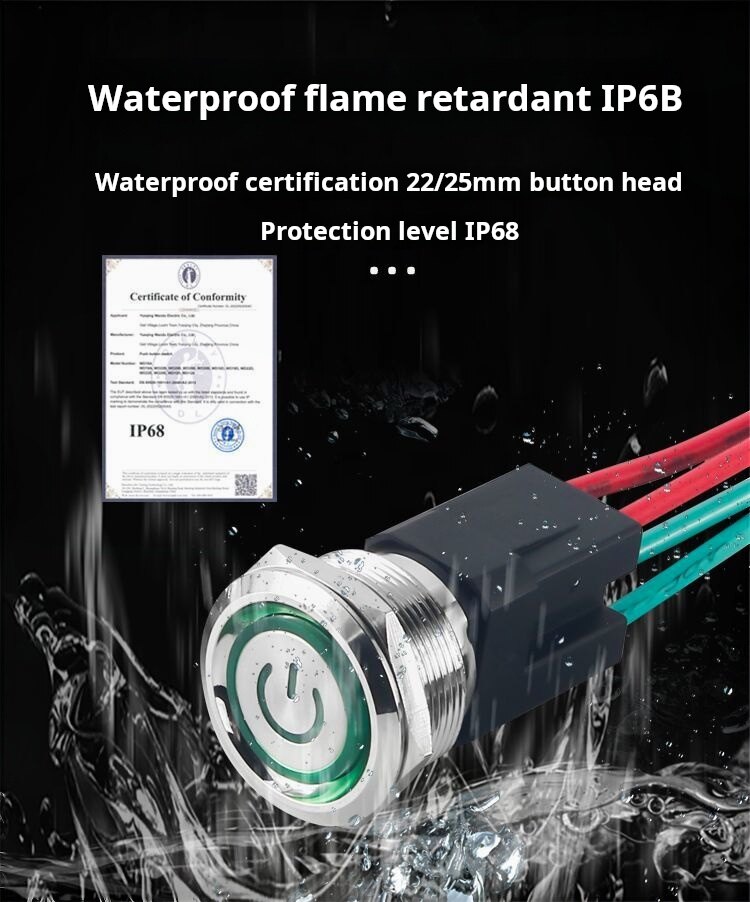

Ingress Protection Rating	IP65 Dustproof and Waterproof	Fully dustproof front panel; resists low-pressure water jets
Rated Voltage	DC 12V-24V-5A Current	Compatible with 3V/5V/12V/24V and other control circuits

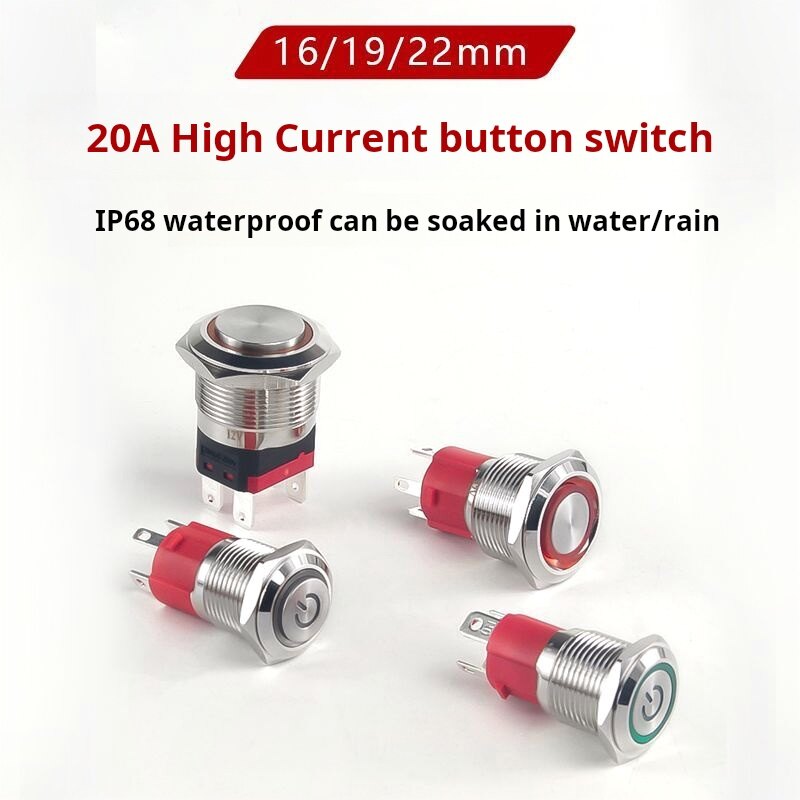

Mounting hole diameter	12mm / 16mm / 19mm / 22mm	Standard cutout size, compatible with most industrial control panels

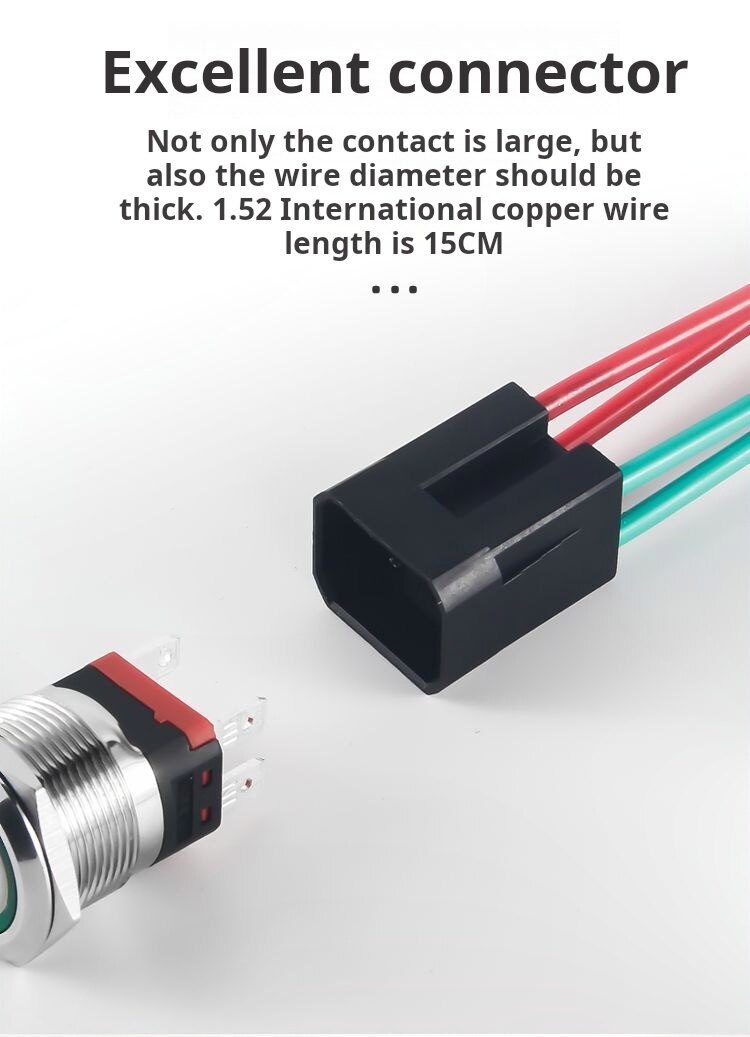

Wiring Method	Soldered/Tab	Blue insulating base for safe and secure wiring

📝 2. Product Description

This high-head metal button switch is designed for applications demanding superior tactile feel and reliability. Unlike standard plastic or low-cost alloy switches available on the market, we insist on

UseH59 Brass as the primary material, and has undergone multi-layer nickel plating. This not only gives the switch a mirror-like metallic finish but also enhances its durability in harsh conditions such as high humidity and salt fog.

Maintains excellent corrosion resistance and never rusts, even in harsh environments.

Core Highlights Breakdown:

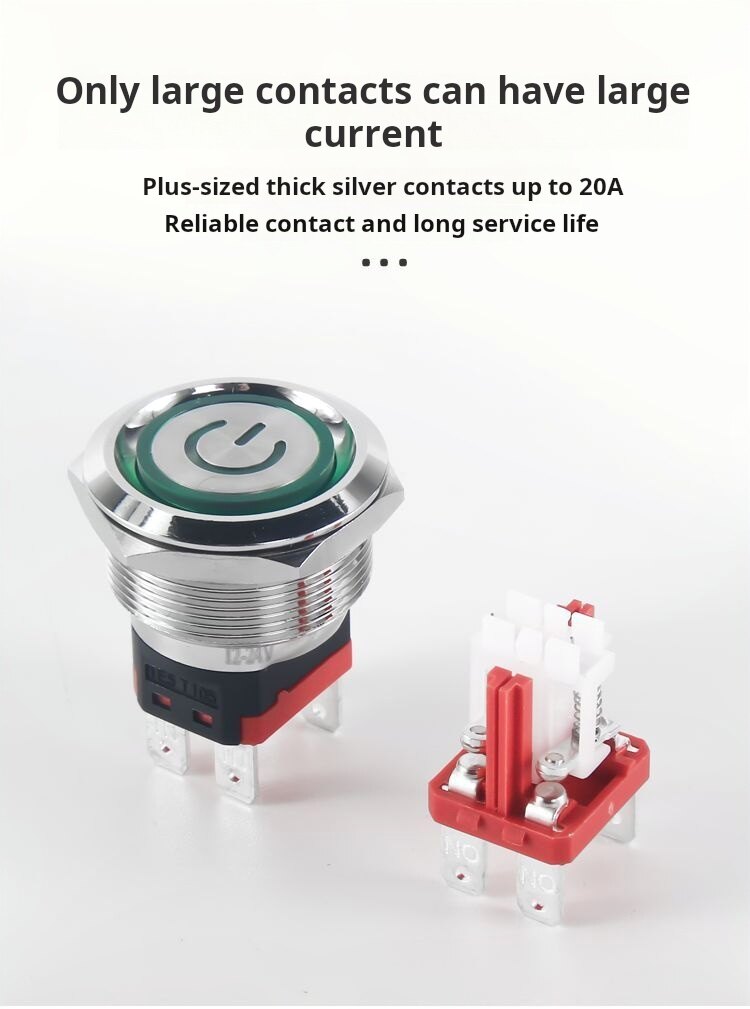

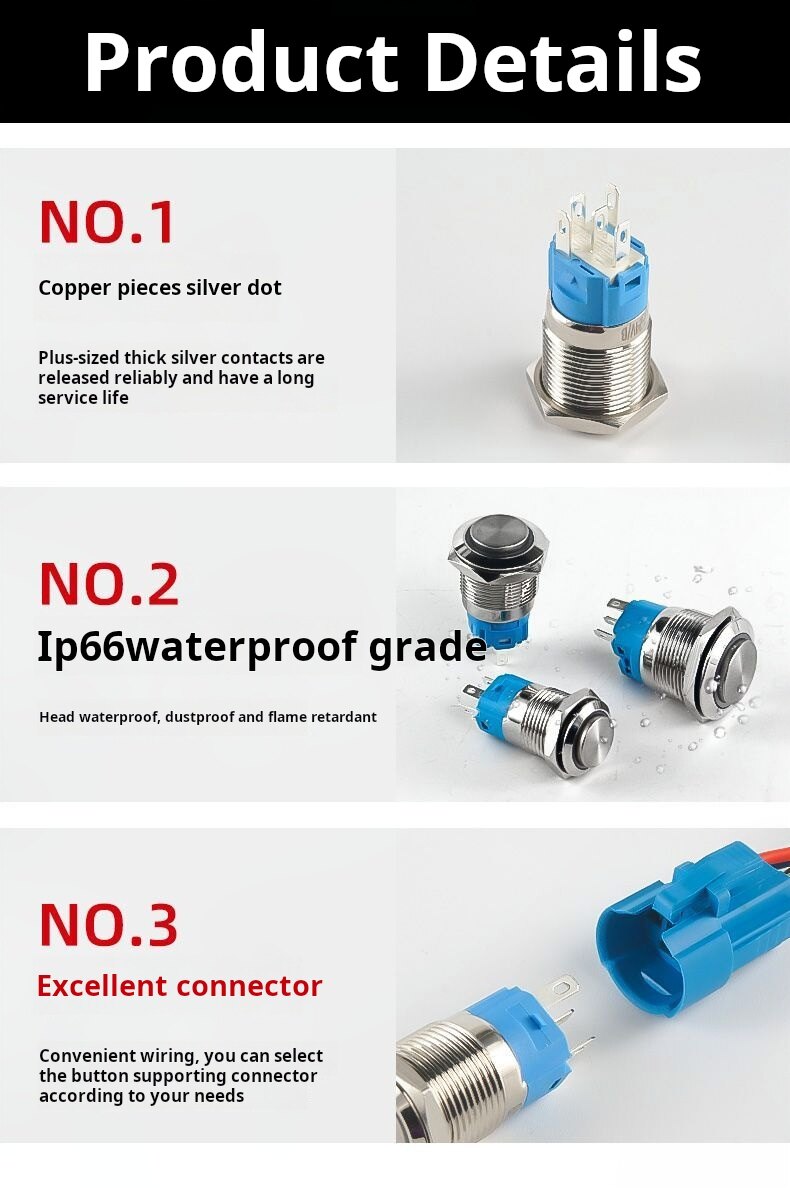

Silver Contact Technology:Internal contact points are crafted from thickened pure silver. Silver offers far superior conductivity compared to copper and gold plating, effectively reducing contact resistance and preventing overheating under high current.
Heat and adhesion ensure millisecond-level signal feedback with every press.
High-top rounded design:Unique raised button head design offers a more three-dimensional look and improved ergonomics. Even when wearing gloves, it remains easy to operate.
Effortless blind operation with crisp tactile feedback.
Vibrant Ring Backlight:Built-in high-quality LED chip creates a uniform 360° halo through the light guide ring. Ideal for power indication, status alerts, or ambient lighting.
Decorative elements that provide clear visual guidance even in dark environments.

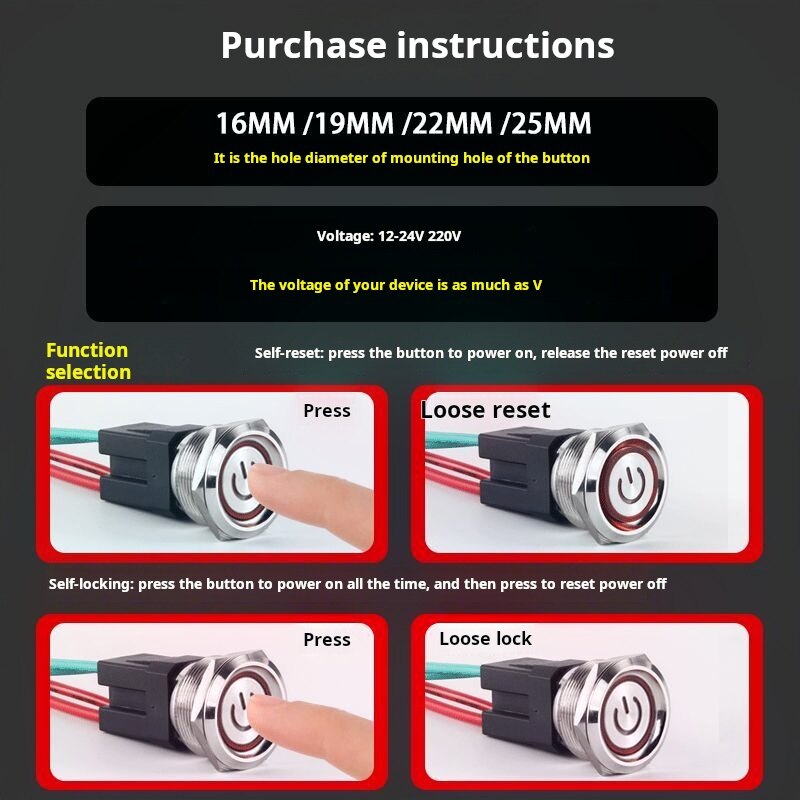

Broad Compatibility:Supports both self-locking (press to lock, press again to release) and self-resetting (press to conduct, release to disconnect) modes, perfectly compatible with automotive push-to-start systems.
Emergency stop for industrial control equipment, PC case reboot, and various DIY modification projects.

❓ 3. Frequently Asked Questions (FAQ)

Q1: Is this metal push button switch self-locking or momentary?

A:We offer two versions for you to choose from.Self-lockingSuitable forMaster Power SwitchPress and hold to keep on;self-resettingIdeal for doorbells, speakers, or instant notifications.

Trigger signal. Please note or select the corresponding option at checkout based on your needs.

Q2: What are the differences between brass and stainless steel?

A:Although they look similar,Nickel-plated BrassOffers superior machinability and corrosion resistance, with stronger plating adhesion and long-term color stability. Compared to

Below, some low-grade stainless steels may develop rust spots in acidic or alkaline environments. Our brass switches are better suited for outdoor and harsh industrial settings.

Q3: Does the LED ring require a separate power cable?

A:Yes. To enable independent control of the light and switch functions (e.g., keeping the LED on as a locator when the switch is off), the LED pin is typically separate. You can

Connect the LED anode and cathode directly across the load or to a separate indicator circuit. Refer to the manual included with the product packaging for the specific wiring diagram.

Q4: Can this switch directly control high-power motors?

A:Direct control of high-power inductive loads (such as large motors) is not recommended. The switch's rated current is typically 3A–5A for resistive loads. If controlling a motor, we recommend

Use as a signal switch with relays or contactors to protect contacts from arc damage and extend service life.

Q5: What is the cutout size?

A:This series of switches is available in multiple standard sizes, including 12mm, 16mm, 19mm, and 22mm. Please measure the cutout on your panel before placing your order, or

To recommend the best fit, please let us know your device model.
