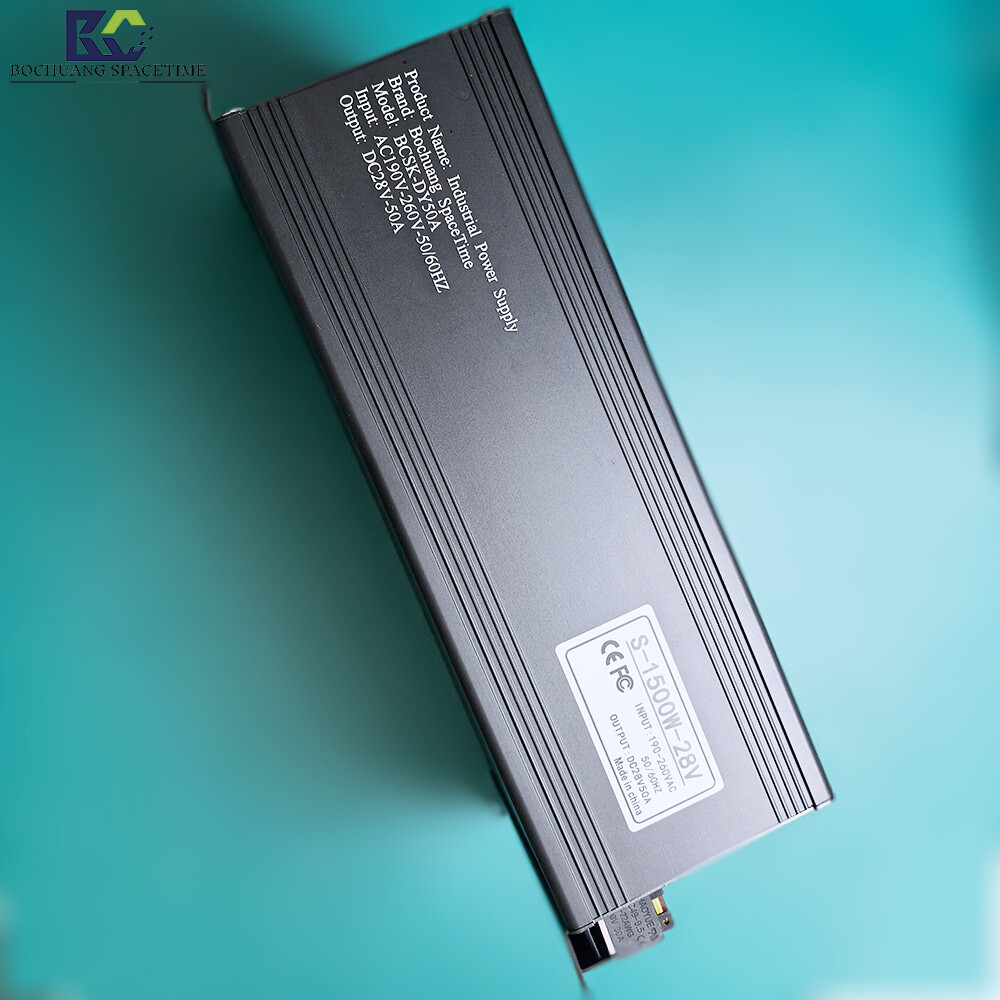

Bocreate Space-Time BCSK-DY50A 1500W Industrial Switching Power Supply | Power Module for UAV Countermeasure Systems and RF Power Amplifiers
Bochuang Spacetime BCSK-DY50A is a high-power 1500W switching power supply designed for high-load industrial environments. It delivers stable DC 28V / 50A continuous output (peak up to 70A) and supports wide-range AC input from 190V to 260V, making it compatible with global industrial power grids. As the ideal power solution for Anti-Drone Systems and high-power RF amplifiers, BCSK-DY50A features an all-aluminum heatsink enclosure with intelligent temperature-controlled cooling fans, ensuring low-temperature stability even during extended full-power operation. Built-in over-current, over-voltage, and short-circuit protection circuits effectively safeguard expensive downstream RF equipment. Whether deployed in fixed security base stations or mobile vehicle-mounted jamming platforms, this power supply provides clean, ripple-free DC power—the preferred choice for system integrators.
In Stock（500）
Chinese Product Name Title
Boruchong Space-Time BCSK-DY50A 1500W 28V/50AIndustrial Switching Power SupplyHigh-Power Power Supply Module for Drone Countermeasures and RF Power Amplifiers
Product Overview
Bochuang Spacetime BCSK-DY50ADesigned for high-load industrial environments1500WHigh-Power Switching Power SupplyProvides stable
DC 28V / 50AContinuous output (peak up to 70A), wide input range supportedAC 190V-260VPerfectly compatible with mainstream industrial power grids worldwide.
AsUAV Defense System(Anti-Drone System)andHigh-Power RF Amplifierideal companion power supply; BCSK-DY50A features a full aluminum alloy heat-dissipating enclosure
Designed with intelligent thermal control fans to maintain low temperatures and stability during extended full-power operation. Built-in over-current, over-voltage, and short-circuit protection circuits effectively prevent
Damage to expensive backend RF equipment. Whether used forUAV Defense SystemWhether it's a fixed security base station or a vehicle-mounted mobile interference platform, this power supply delivers pure
Clean, ripple-free DC power is the preferred solution for system integrators.
Key Features
High-Power Output:Rated output power up to1500W, continue output28V/50A, with a peak current of up to 7A to meet the needs of high-power devices.
Wide voltage input:SupportedAC 190V-260VWide voltage input for compatibility with global industrial power grids, ensuring high adaptability.
Industrial-grade protection:Built-in overcurrent, overvoltage, and short-circuit protection safeguards connected devices and extends system lifespan.

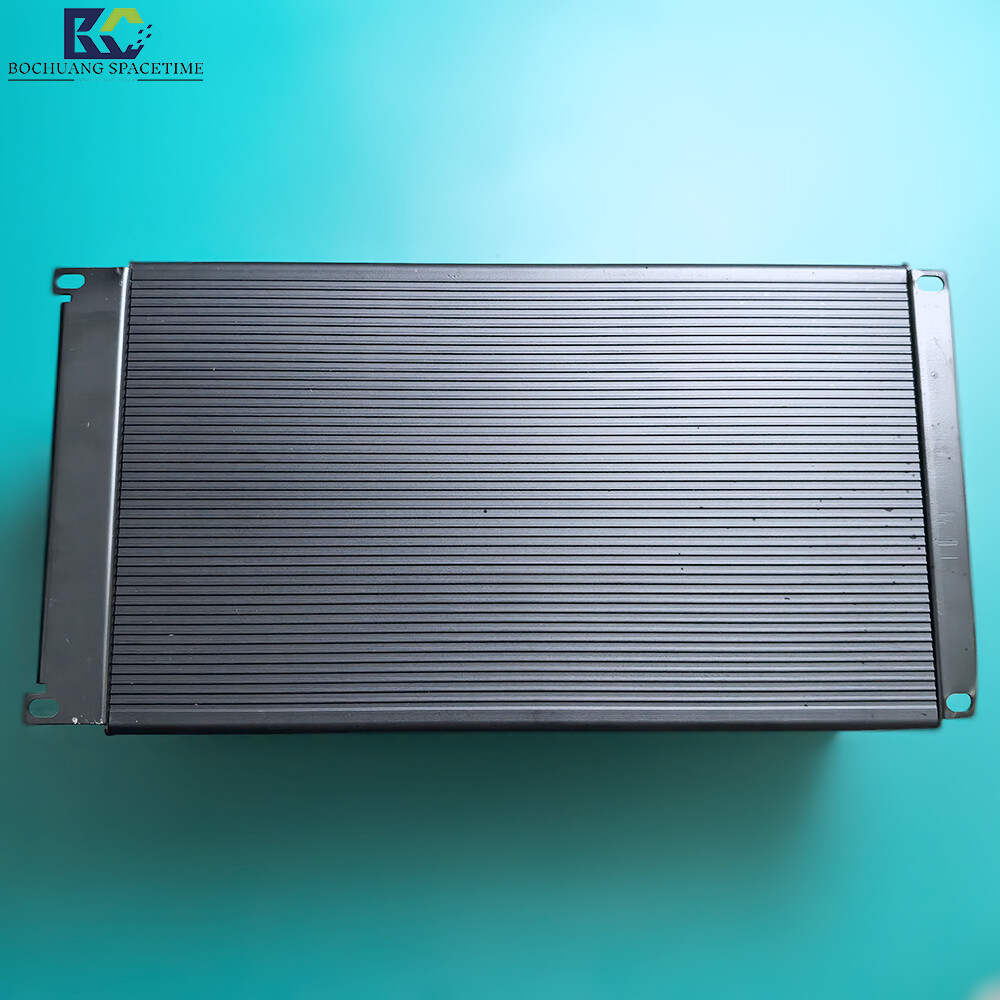

Efficient heat dissipation design:Reinforced aluminum alloy housing + smartTemperature-controlled fanEnsures temperature control and superior stability even under full load.

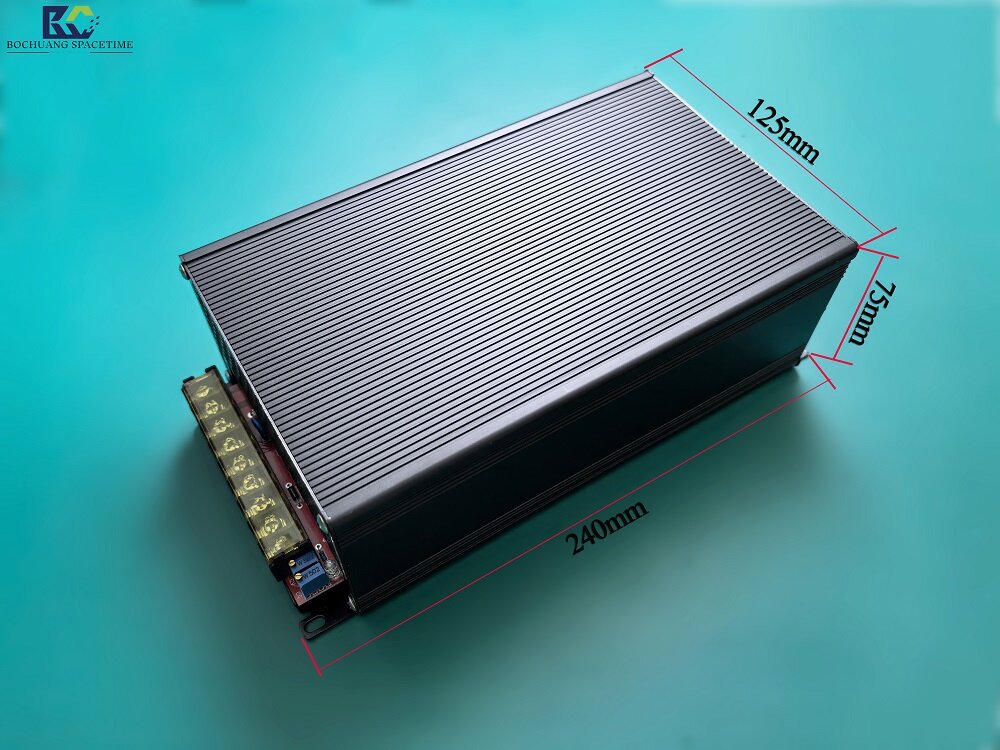

Compact design:Size is only240×125×75mmDesigned for easy integration into rack-mounted, vehicle-mounted, or handheld devices to save installation space.

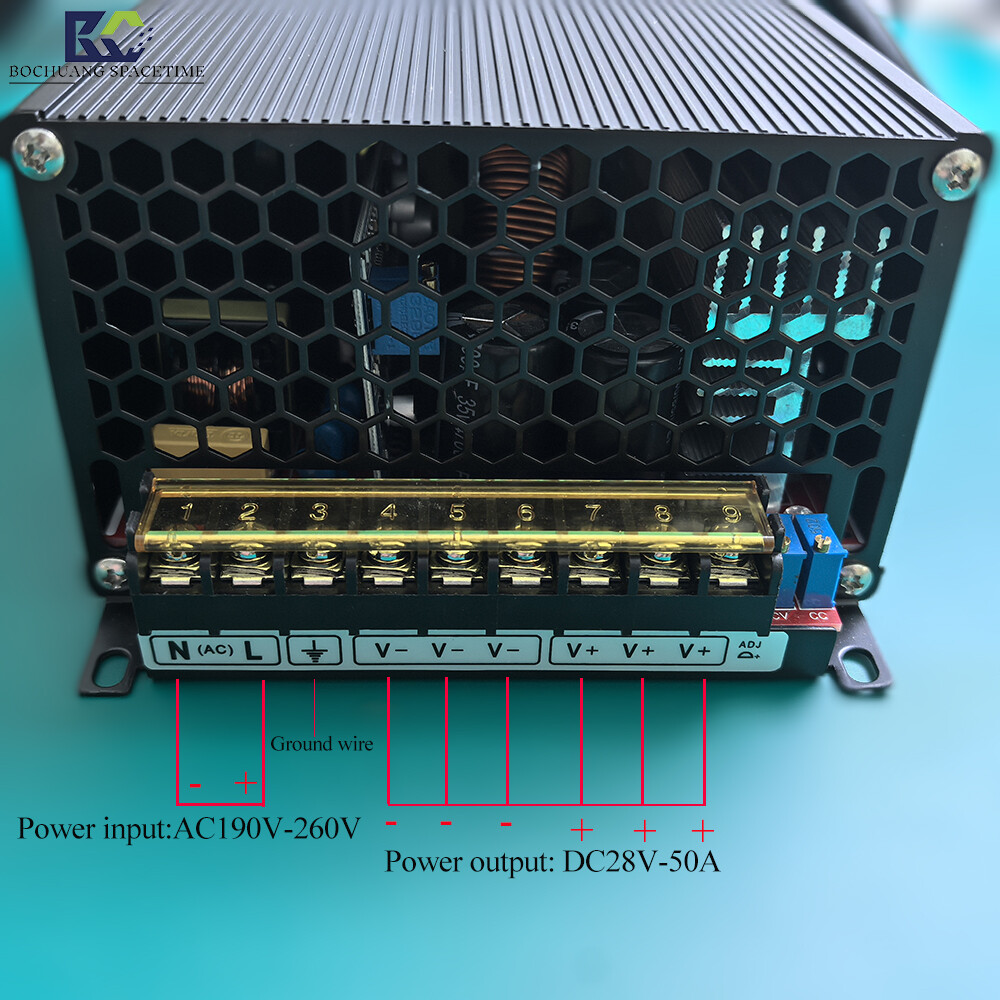

Multi-output terminals:Features multiple V+ and V- terminals for parallel expansion or split power distribution, flexibly adapting to complex system architectures.
Technical Specifications
Parameter Items | Specification Values | Notes |
|---|---|---|
Product Model | BCSK-DY50A | |
Rated Output Power | 1500W | Keep going |
Output Voltage | DC 28V | Adjustable range: ±5% |
Output Current | 50A (continuous) / 70A (peak) | Supports short-time overload |
Input Voltage | AC 110V-260V | 50/60Hz |
Input Current | ≤8.5A | at full load |
Efficiency | ≥88% | Typical Value |
Operating Temperature | -10℃ ~ +50℃ | Ensure proper ventilation |
Storage temperature | -20℃ ~ +70℃ | |
Protection Features | Overcurrent, Overvoltage, Short Circuit | Auto-restore or lock |
Dimensions | 240 × 125 × 75 mm | Length × Width × Height |
Weight | Approx. 3.2 kg | With packaging |
Frequently Asked Questions (FAQ)
Q1: Can this power supply drive the BCSK-W40 50W from Bochuang Shikong?RF Power Amplifier Module？
✅ Absolutely. BCSK-DY50A delivers a stable 28V/50A output, fully meeting the power requirements for BCSK-W50 (operating voltage 24-28V, 5A current).
Requirement: Supports 5 to 8 5ARF Power Amplifier ModuleOperate simultaneously with ample headroom to support multi-module parallel operation or future upgrades.
Q2: Does the power supply support parallel expansion? What is the maximum expandable power capacity?
✅ Supports parallel operation. Multiple V+/V- terminals enable current sharing for parallel configurations, theoretically scalable to over 3000W (with a current-sharing module), suitable for large-scale applications.Drone
CountermeasureArray or high-power radar system.
Q3: Can the power supply operate stably in high-temperature environments (e.g., outdoor summer conditions)?
✅ Yes. This power supply operates within a temperature range of -10°C to +50°C and features an intelligent thermal fan that automatically speeds up cooling when internal temperatures exceed the threshold, ensuring
Stable output even in high-temperature environments.
Q4: Does the power supply automatically protect itself when input voltage fluctuates significantly?
✅ Yes. Built-in over-voltage and under-voltage protection automatically cuts off output if input voltage exceeds 190V–260V, protecting internal components from damage until power is restored.
Manual or automatic restart is available once pressure returns to normal.
Q5: Do you offer customization services, such as adjusting output voltage or adding communication interfaces?
✅ Supports OEM/ODM customization. We can adjust output voltage per your requirements (e.g., 24V, 36V), add RS485/CAN communication interfaces, or customize casing colors and
Installation methods: Contact technical support for detailed solutions.
Selection and Compatibility Guide
Industrial-grade DC power supply for the RF power amplifier module and drone countermeasure device powered by 28V.
| Project | Description |
|---|---|
| Interface Matching | AC input, DC28V/50A output. Terminal wiring to be performed in accordance with the specification sheet. |
| Styling Tips | Forms the power supply system together with the 28V amplifier module and countermeasure device host. |
| Not applicable | 12V or 24V systems require the corresponding voltage model; direct replacement is not allowed. |
| Procurement Notice | When selecting equipment, account for peak current with a safety margin and verify the cabinet's cooling capacity. |
Related:Accessories & Cables · Technical Support · Request Datasheet & Sample Evaluation
FAQ
How do I configure the frequency band for BCSK-DY50A?
Band configuration depends on the paired system. Please provide the target bands and overall solution; we will verify the corresponding version and channel layout before production.
What is the output power of BCSK-DY50A?
Rated output power is 1500W. Actual coverage depends on antenna gain, feeder loss, and site conditions; test data for specific configurations are available upon request.
Does BCSK-DY50A support customization and bulk purchasing?
Supported. Customization available for frequency bands, interfaces, housing markings, and packaging. Samples can be used for evaluation and validation; test records are provided with bulk shipments.
