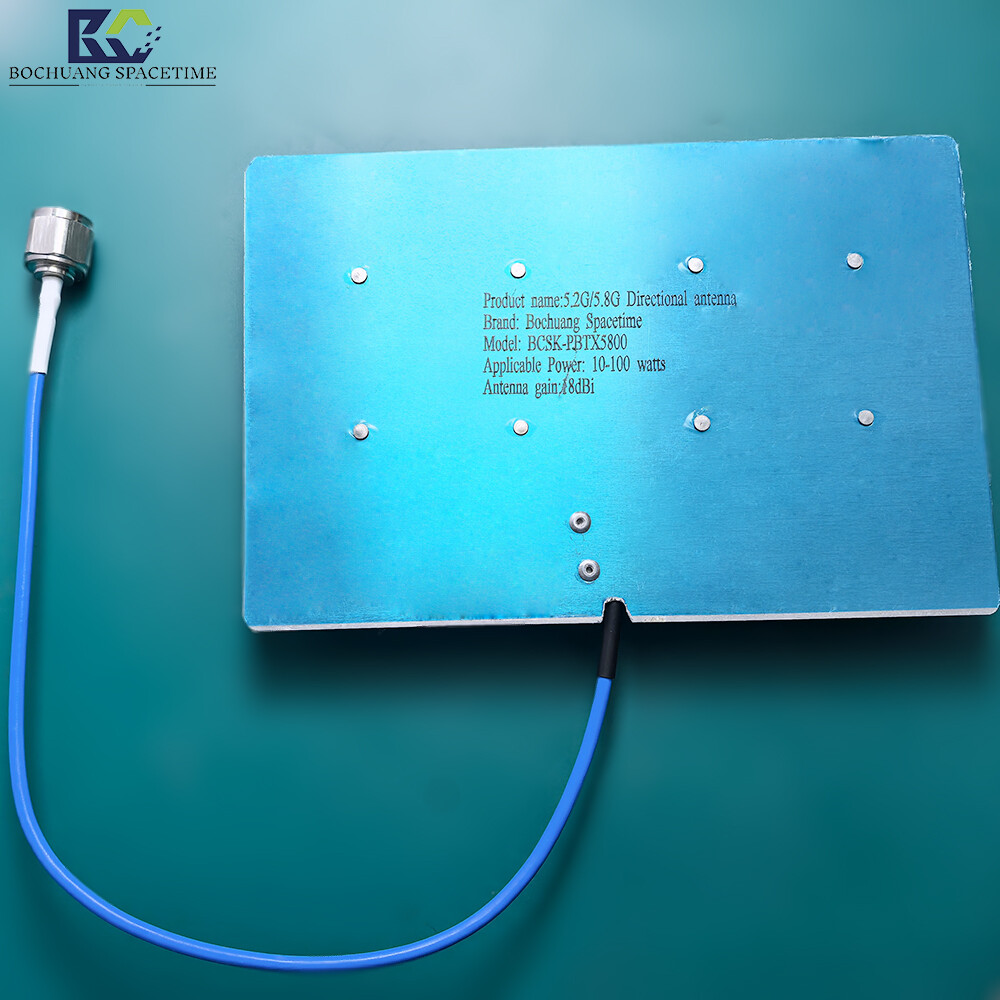

N-type Interface Panel Antenna 5.2G/5.8G Dual-Band 1 8dBi High-Gain Directional RF Module BCSK-PBTX5800 Anti-Drone Accessory
This N-female panel antenna (Model BCSK-PBTX5800), developed by Bochuang Shikong Communication Technology Co., Ltd., is designed for dual-band industrial communication systems operating on 5.2GHz and 5.8GHz. It covers the 5150-5350 MHz and 5725-5850 MHz frequency bands, offers a gain of up to 18 dBi, and supports power inputs from 1W to 100W. Ideal for drone countermeasures, wireless video backhaul, spectrum monitoring, and industrial IoT applications, it features a compact metal substrate with an integrated precision feed network to ensure signal directionality and stability. Equipped with a standard N-type female connector, it ensures compatibility with mainstream RF equipment and simplifies system integration. Customizable for specific frequency and power requirements, this antenna is the ideal choice for system integrators seeking to enhance high-frequency signal coverage efficiency.
In Stock（100）
Product Overview
This modelN-Mother Interfacepanel antenna(Model BCSK-PBTX5800) Designed for dual-band industrial communication systems operating on 5.2GHz and 5.8GHz, covering 5150-5350 MHz and
5725-5850 MHz band, gain up to 18 dBi, supports 1W-100 W power input, suitable forDrone CountermeasuresWireless monitoring backhaul, spectrum monitoring, and industrial IoT
Scenarios such as networks. It features a compact metal substrate structure with an integrated precision feeding network to ensure signal directionality and stability; equipped with standard interfaces.N-type female connectorInterface, both
Compatible with mainstream RF equipment to simplify system integration. Supports customized frequency and power requirements—ideal for integrators seeking to enhance high-frequency signal coverage efficiency.
Performance Features
Dual-band high-gain directional radiation: 5.2G/5.8G dual-band independent optimization, with 18dBi high gain and narrow beam angle design to achieve long-range precise signal focusing and effective interference suppression.
Suppress sidelobe interference.
High-power tolerance: Supports continuous power input from 10W to 100W, meeting industrial-grade high-power transmission requirements for stable communication links in high-interference environments.
Build.
Standardized N-mother Interface Design: Uses industrial-grade N-typeFemale ConnectorOffers excellent high-frequency transmission performance and mechanical stability, enabling direct connection to power amplifiers, filters, or
Receiver module, no adapter required.
Compact Metal Substrate Package: 210×140×20mm ultra-thin design for easy embedded installation. Aluminum alloy substrate ensures effective heat dissipation and electromagnetic shielding, suitable for outdoor or high-density applications.
Deployment environment.
Broadband Compatibility & Custom SupportCovers the mainstream industrial bands at 5.2 GHz and 5.8 GHz. Supports frequency tuning and interface customization to adapt to various system architectures, enhancing project flexibility.
Scalability and extensibility.
Parameter Table
Parameter Item | Specification Value |
|---|---|
Model | BCSK-PBTX5800 |
Operating Frequency Band | 5150-5350MHz / 5725-5850MHz |
Gain | 1 8dBi |
Polarization Mode | linear polarization |
Interface Type | N-type female connectorConnector |
Applicable Power | 1W-100W |

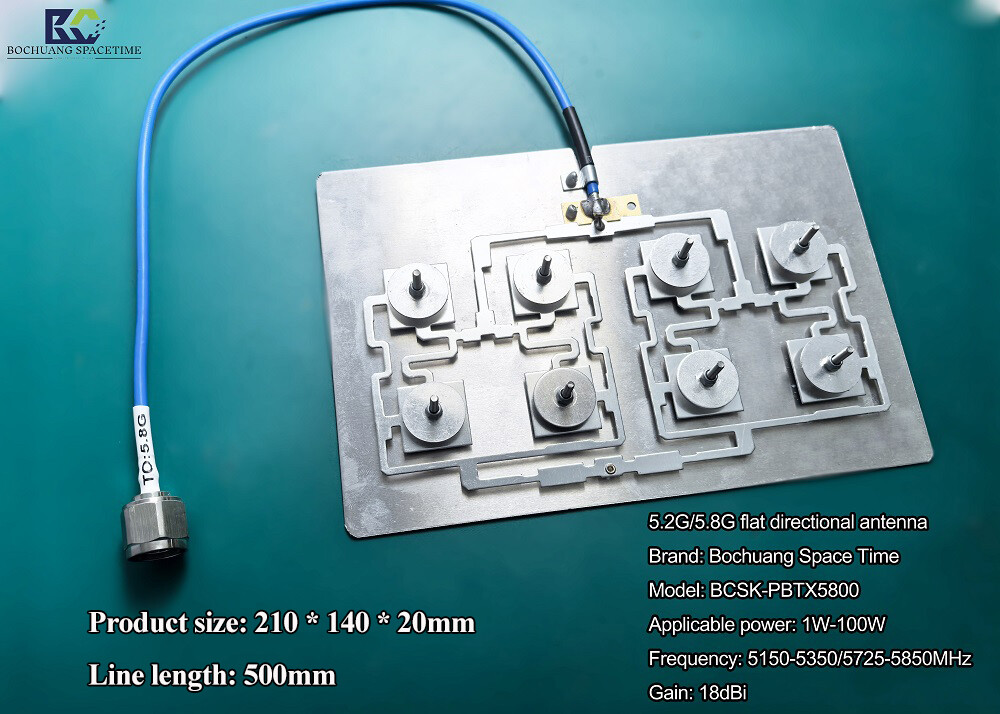

Dimensions | 210×140×20mm |

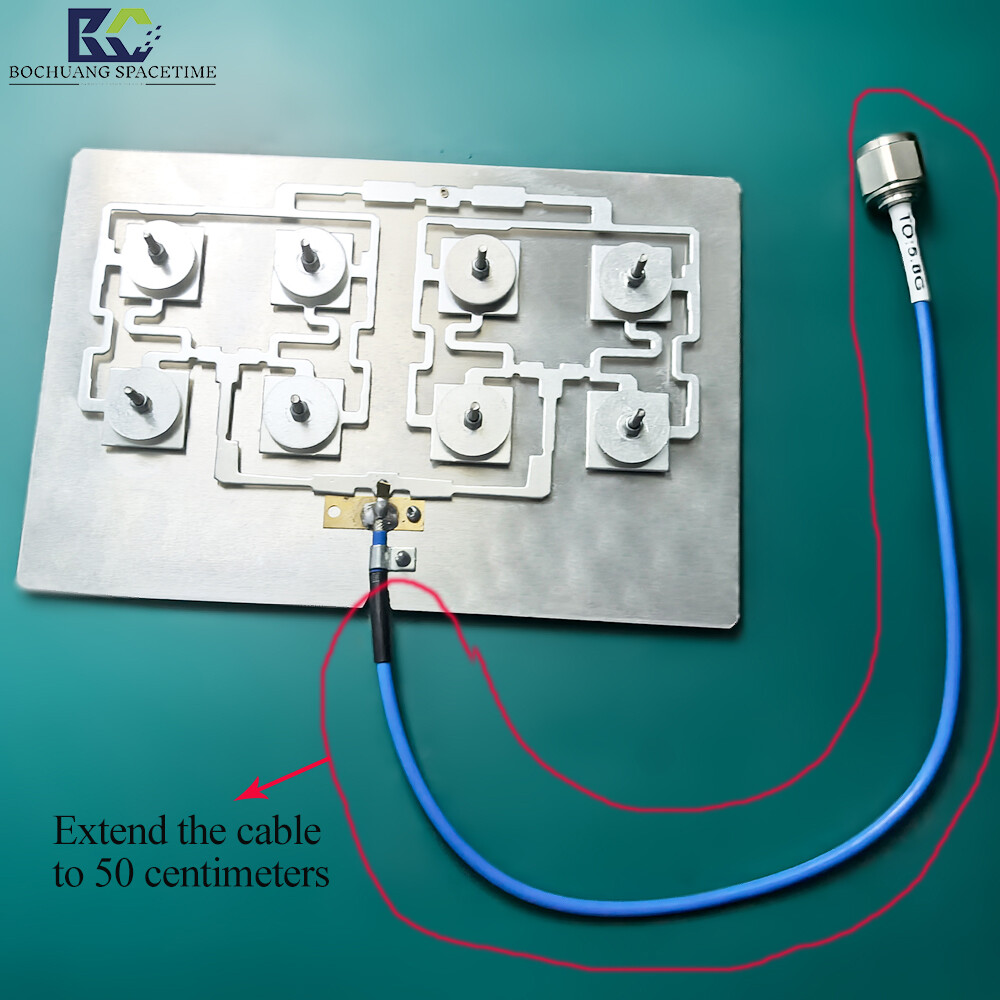

Cable Length | 500mm |
Frequently Asked Questions (FAQ）
Q: Is this antenna suitable for outdoor installation?
Yes, the metal substrate offers excellent weather resistance and heat dissipation. We recommend pairing it with waterproof connectors to ensure reliable performance in most outdoor industrial environments.
Q: Are N-type interfaces compatible with SMA or TNC devices?
Not directly compatible, but connection is possible via standard adapters. We recommend standardizing interface types during system design to minimize signal loss.
Q: Does 100W power require additional cooling measures?
When operating at full power continuously, ensure the installation area is well-ventilated to prevent performance degradation caused by heat buildup in enclosed spaces.
Q: Can you provide customized versions with different gain or frequency bands?
A: Gain, frequency band, or interface type can be adjusted to meet project requirements. Please provide specific parameters for technical coordination.
Q: Is this antenna suitable for FPV video transmission or remote control links?
A: FPV video transmission system designed for the 5.8 GHz band. Please confirm that the transmitter power andAntennaMatch to prevent device overload and damage.
N female flat panel antenna, 5.2G and 5.8G dual-band, 1 dBi gain
High-gain directional antenna for UAV countermeasure systems
compact 5.8GHz panel antenna for surveillance backhaul
Compare specs within the same series
Compare frequency bands, power, gain, and interfaces by model in a horizontal layout. Parameters are parsed from the model title; unlisted items display as dashes.
| Model | Frequency Band | Power | Gain | API |
|---|---|---|---|---|
BCSK-PBTX5800Current Model | 2 GHz, 5.2 GHz, 5.8 GHz | — | 18 dBi | N |
| 2 GHz, 3 GHz, 4 GHz | — | — | — | |
| — | — | — | — | |
| 420 MHz, 5.8 GHz | — | — | — | |
| 420 MHz, 5.8 GHz | — | — | — | |
| 2 GHz, 5 GHz | — | — | — |
FAQ
Which frequency bands does the BCSK-PBTX5800 cover?
Operating frequency bands: 5.2 GHz, 5.8 GHz. Please confirm the carrier frequency band or target link at your deployment location before ordering. If you need a customized frequency combination, please submit a customization request.
What use cases is BCSK-PBTX5800 suitable for?
This model is designed for communication transmission and receiving antenna projects. Please provide details on the site structure, target link, and operating environment so we can recommend a suitable configuration.
Does the BCSK-PBTX5800 support customization and bulk orders?
Supported. Customization available for frequency bands, interfaces, housing markings, and packaging. Samples can be used for evaluation and validation; test records are provided with bulk shipments.
What is the procurement process for BCSK-PBTX5800?
Step 1: Submit your target frequency band, power level, and quantity. We'll provide a quote and recommended configuration within 1 business days. Step 2: Confirm sample specifications and testing requirements. Upon successful sample approval, place the order and pay the deposit. Step 3: Manufacture according to the confirmed frequency band combination and conduct factory testing. Include test records and packing list with shipment. Step 4: Ship per agreed trade terms. Pay the balance and receive all documents before shipment.
Does BCSK-PBTX5800 support prototyping and small-batch procurement?
Support available. Prototype units can be configured at 2 GHz, 5.2 GHz, 5.8 GHz, and 8 GHz with specified nominal power for system integration and field testing. Minimum order quantities are confirmed based on model, frequency band combinations, and appearance customization requirements. Sample costs will be handled as agreed upon in the formal order.
How do we agree on the lead time and test data for BCSK-PBTX5800?
Production is scheduled by quantity and frequency band upon order confirmation. Lead time, test items, and acceptance criteria are included in the quote. Power, gain, and VSWR data for this model are available. Please specify if third-party testing is required before placing the order.
How do I handle export packaging and certification documents for BCSK-PBTX5800?
Modules are shipped in anti-static packaging with reinforced outer boxes. The complete unit includes additional cushioning and moisture protection based on its form factor. Copies of existing certification documents are available; certified model coverage is subject to the certificate terms. Target market compliance requirements must be confirmed prior to order placement.
