N to SMA RF Cable | DC-6GHz Semi-Rigid Coaxial Cable, 50Ω Low Loss for Base Stations/Radar/Spectrum Analyzers | BCSK-50-5-3

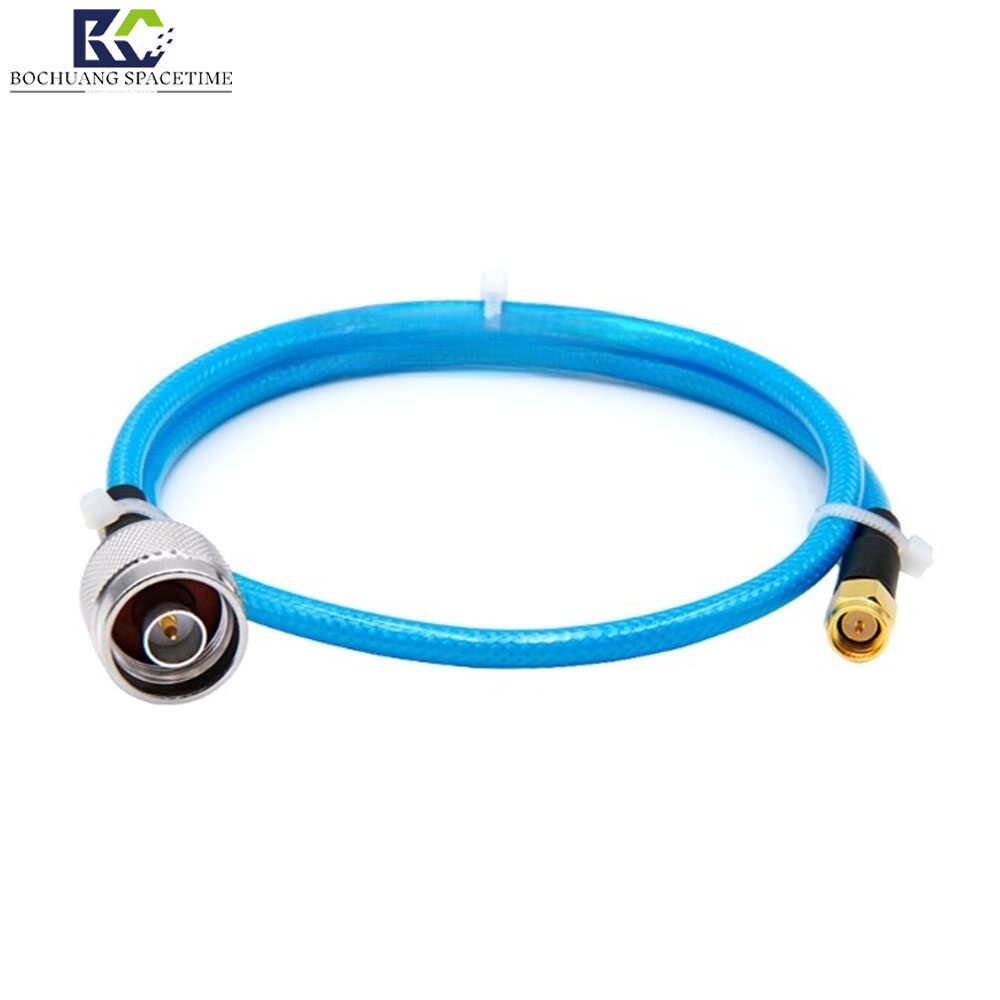

The N-to-SMA RF cable by Bochuang Space-Time (Model: BCSK-50-5-3) features a high-quality semi-flexible coaxial design, supporting an ultra-wide frequency range from DC to 6GHz. It ensures minimal insertion loss and stable impedance matching for high-frequency signal transmission. The cable has a durable blue outer jacket, while the internal conductor is precision silver-plated to enhance conductivity and oxidation resistance. It is ideal for signal feeding in high-power modules (recommended 10-40W). With its N-type male connector paired with an SMA male connector, this cable offers excellent compatibility and is widely used in 5G base station debugging, UAV communication links, vehicle-mounted radar systems, and laboratory testing environments. Its all-metal shielding effectively suppresses external electromagnetic interference, ensuring signal purity and transmission stability. Whether for fixed installation or mobile devices, this cable provides a reliable, long-lasting RF connection solution.
Out of Stock
N to SMARF cable| DC-6GHz Semi-Rigid Coaxial Cable 50Ω Low Loss for Drone Countermeasures/Base Stations/Radar/Spectrum Analyzers BOCCHRON BC SK-50-5-3
Product Overview
Produced by BOCU Space-TimeN to SMARF Cable(Model BCSK-50-5-3)Features a high-quality semi-flexible coaxial design, supporting an ultra-wide frequency range from DC to 6GHz.
Range, ensuring minimal insertion loss and stable impedance matching during high-frequency signal transmission. The cable features a durable blue outer jacket with precision silver-plated internal conductors.
Enhances conductivity and oxidation resistance, ideal for signal transmission in high-power modules (recommended range: 10-40W).
Its N-type male and SMA male combination design offers strong compatibility, making it widely used in 5G base station debugging, UAV communication links, vehicle radar systems, and laboratory test environments.
The all-metal shielding structure effectively suppresses external electromagnetic interference, ensuring signal purity and transmission stability. Whether for fixed installations or mobile devices, this cable delivers
Reliable, long-lasting RF connection solutions.
Technical Specifications:
Parameter Items | Specifications | Notes |
|---|---|---|
Product Model | BCSK-50-5-3 | Brand: Bochuang Shikong |

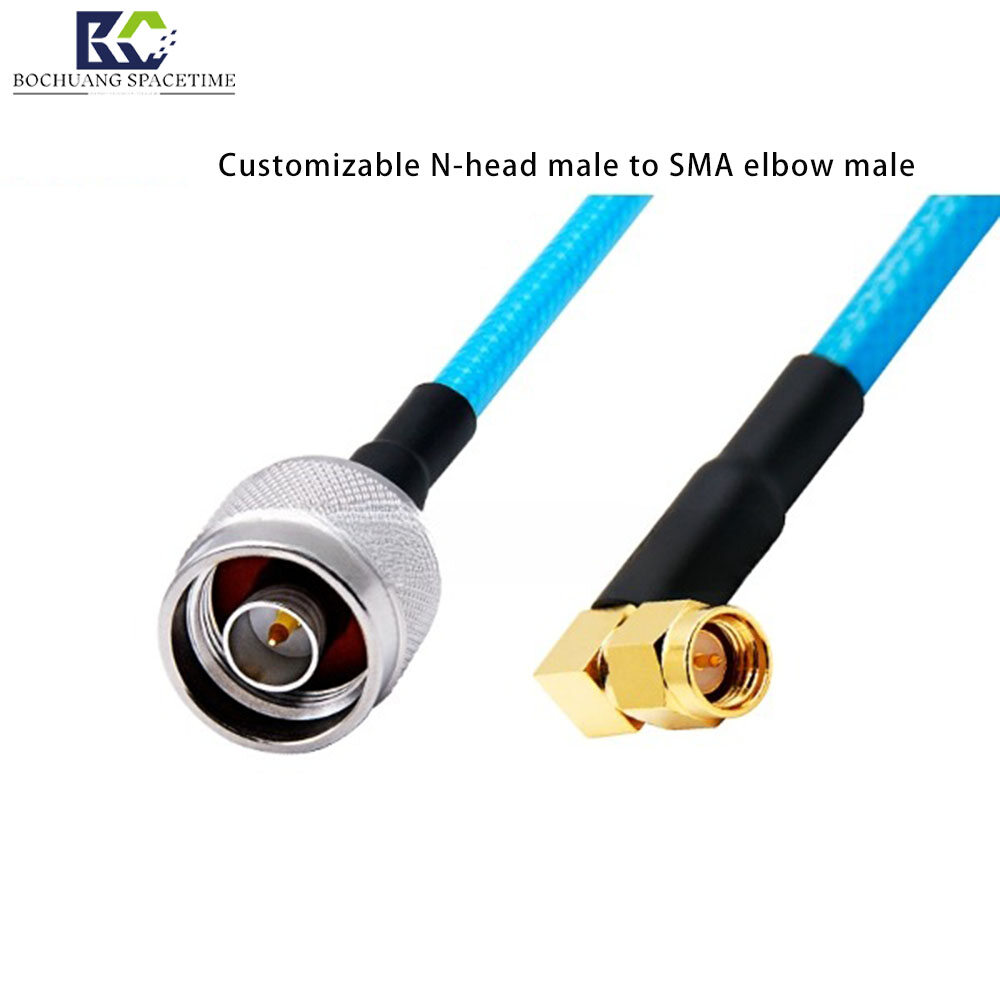

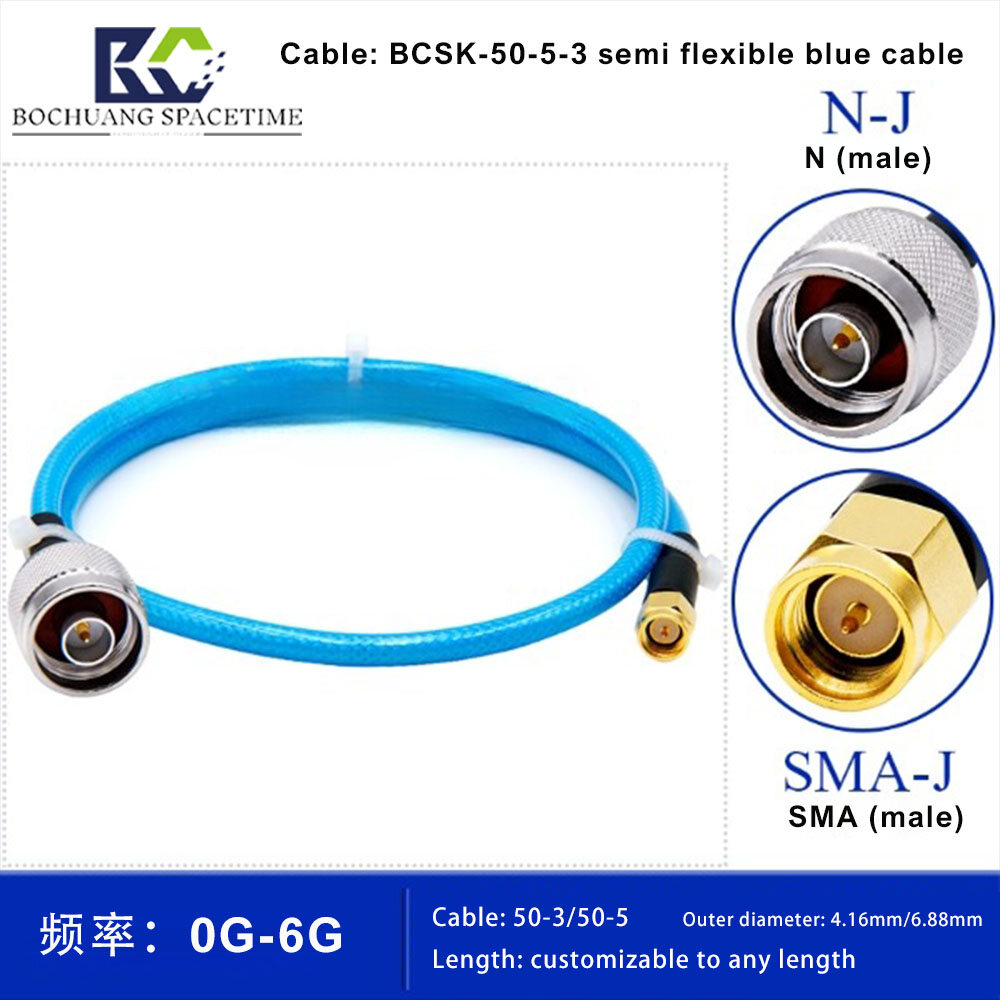

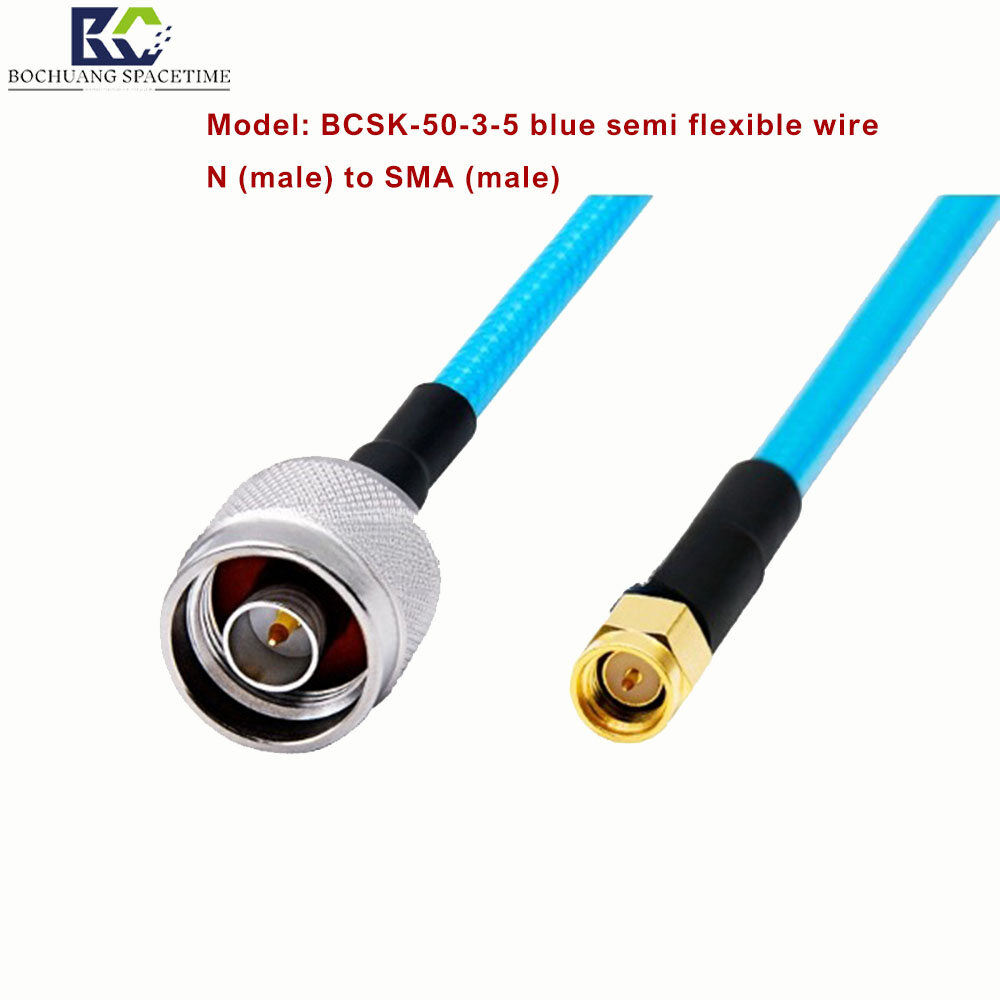

Connector Type | N-J (Male) to SMA-J (Male) | Male-to-male connectors for easy daisy-chaining |
Impedance | 50Ω | Complies with international RF standards |
Operating Frequency | DC - 6GHz | Covers L/S/C/X/Ku bands |
Cable Outer Diameter | 4.16mm / 6.88mm | Two specifications available to fit different modules |
Recommended Rated Power | 10W - 100W | Recommended for medium-power modules |
Casing Material | blue semi-flexible sheath | Durable and bend-resistant, ideal for complex cable routing |
Shielding structure | All-metal shielding | Suppress EMI interference and ensure signal purity |
Custom Length | Customizable to any length | Meets personalized installation requirements |
Use Cases | 5G base stations, radar systems, spectrum analyzersDrone Countermeasure Equipment | Industrial-grade reliability for harsh environments |
Frequently Asked Questions (FAQ):
Does this cable support SMA female or BNC connectors?
Current model is standard N male to SMA male. For other connector combinations (e.g., SMA female...Connector, BNC connectors, etc.). Contact customer service for custom options. Supports multiple connection types.
Adapter combination.
What is the difference between cable outer diameters 4.16mm and 6.88mm?

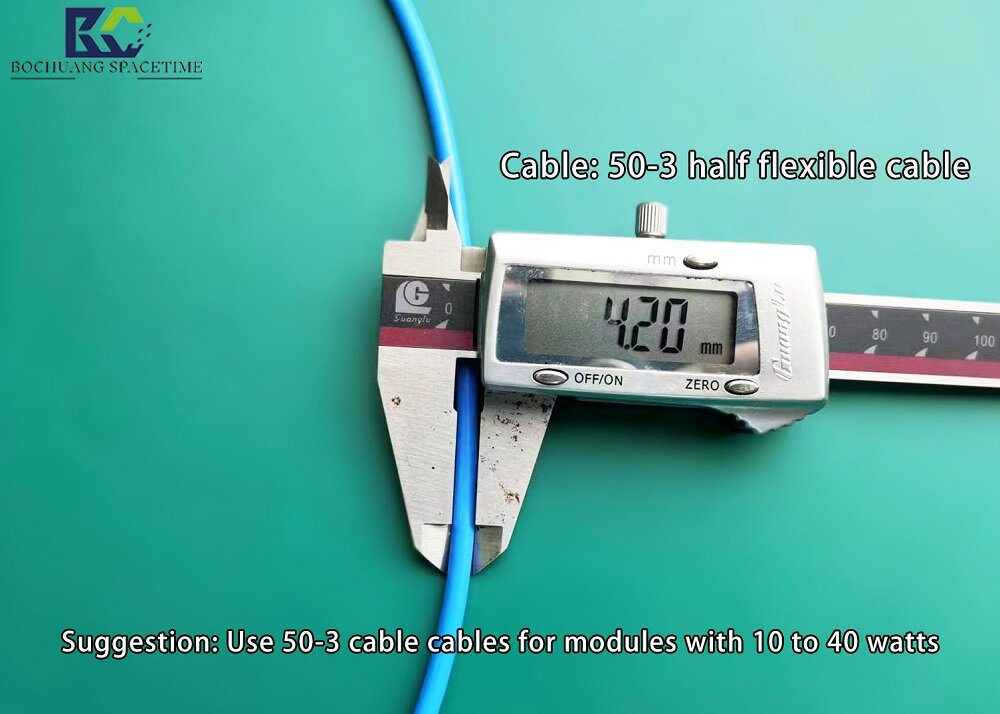

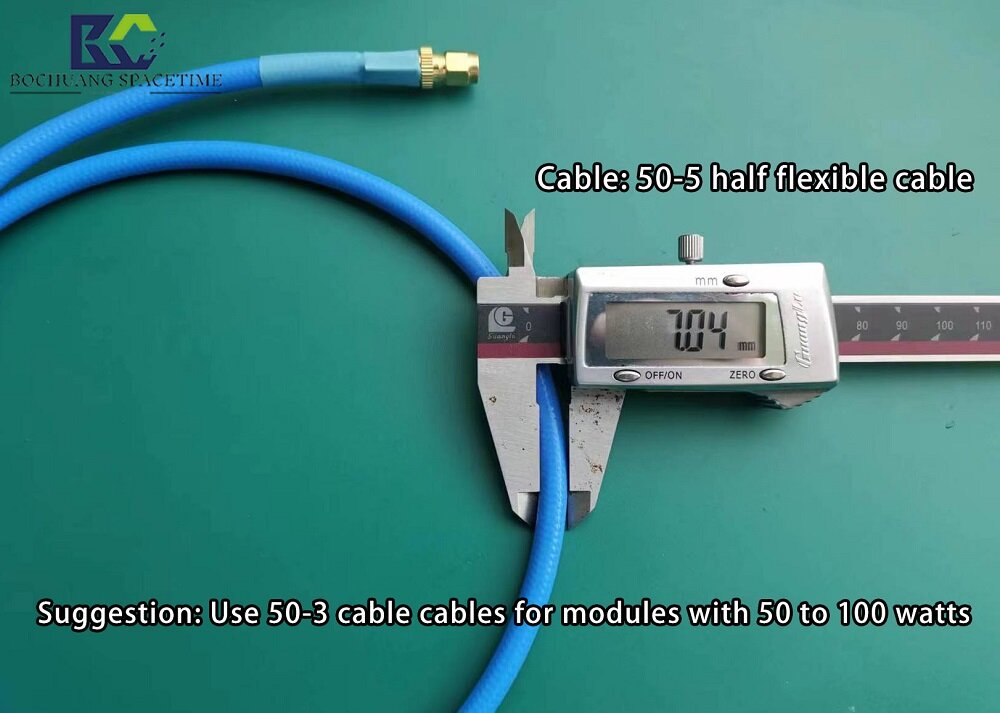

4.16mm is suitable for compact spaces with lower power requirements (10-50W).Module; 6.88mm is suitable for high-power applications (50-100 W) or those requiring greater mechanical strength.
Select the configuration based on your actual power requirements and available installation space.
Is it suitable for outdoor use or high-temperature environments?
The blue sheath offers moderate weather resistance, but a protective conduit is recommended for long-term outdoor use. Operating temperature range: -40°C to +85°C, suitable for most industrial and communication applications.
Device Requirements.
How to check if a cable is damaged or aging?
Insertion loss and return loss can be measured using a network analyzer. Significant deviations from nominal values (e.g., loss increase >1 dB or VSWR >1.5) indicate that the cable is defective.
May be damaged or aged; replacement is recommended.
