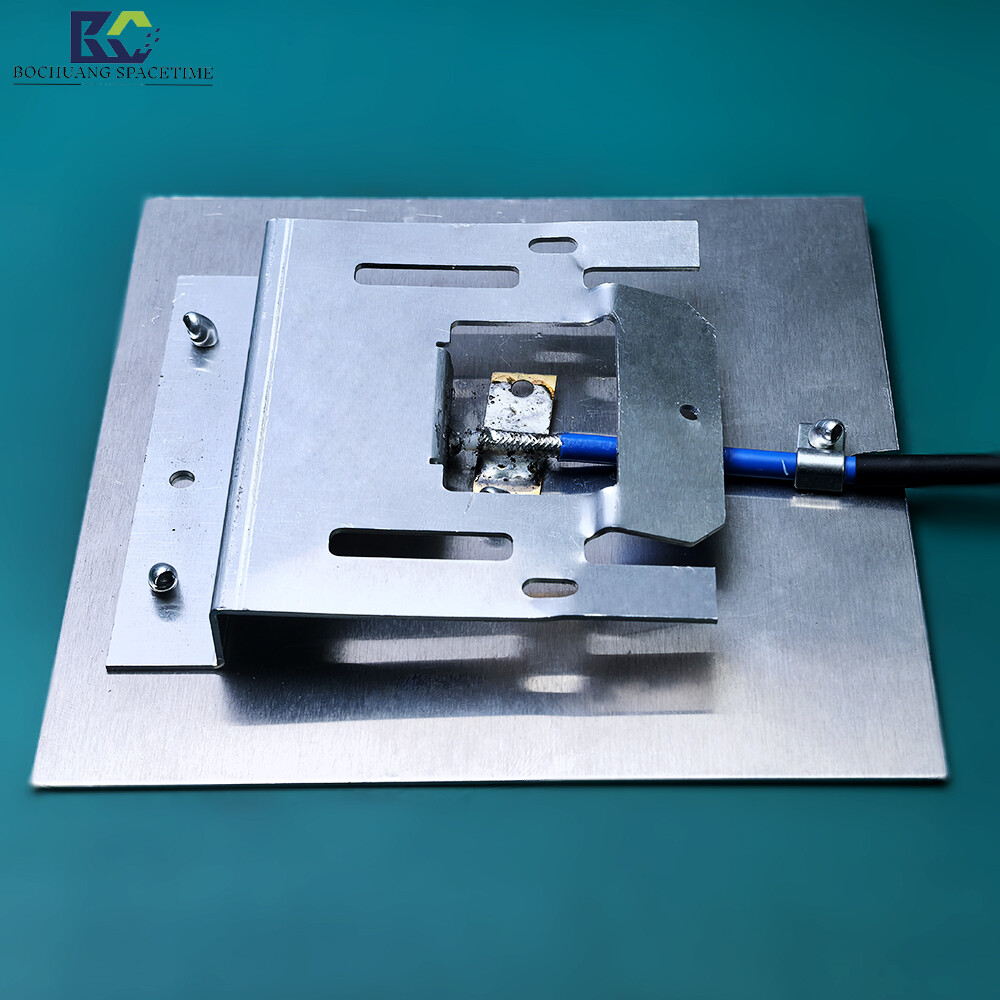

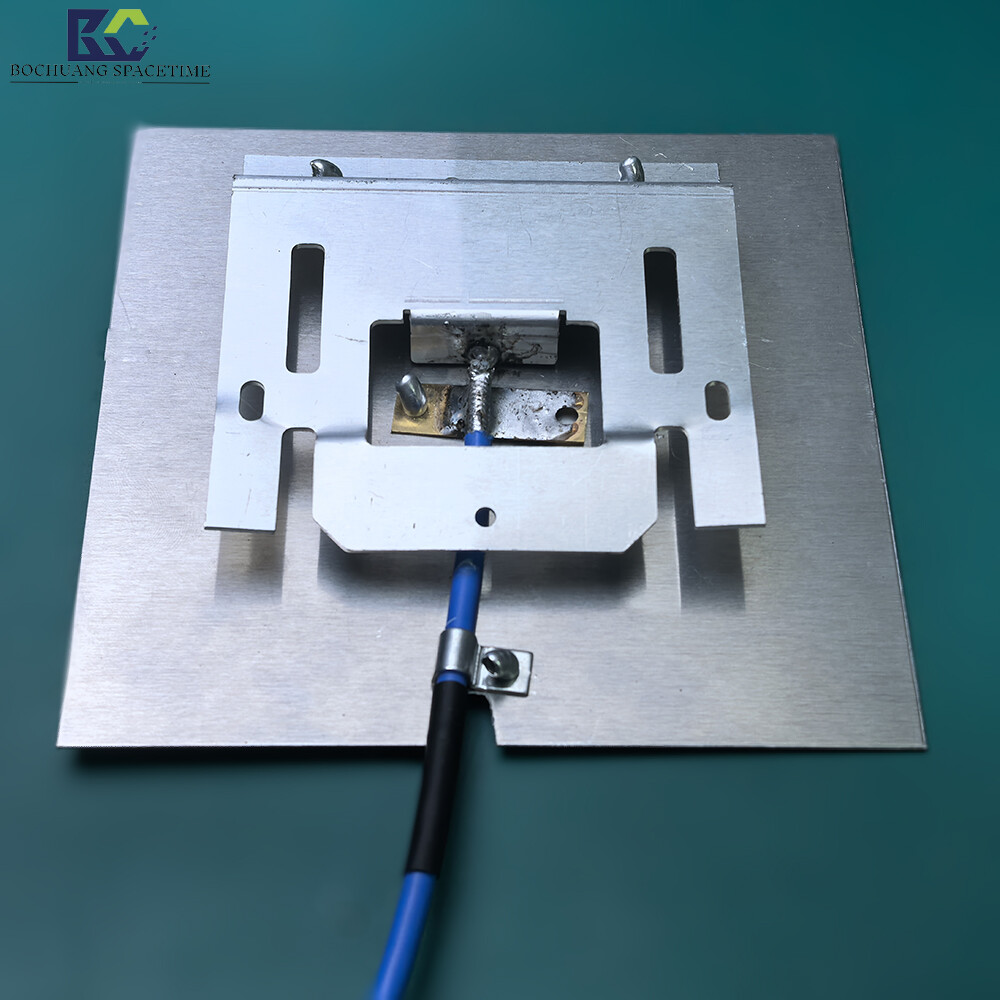

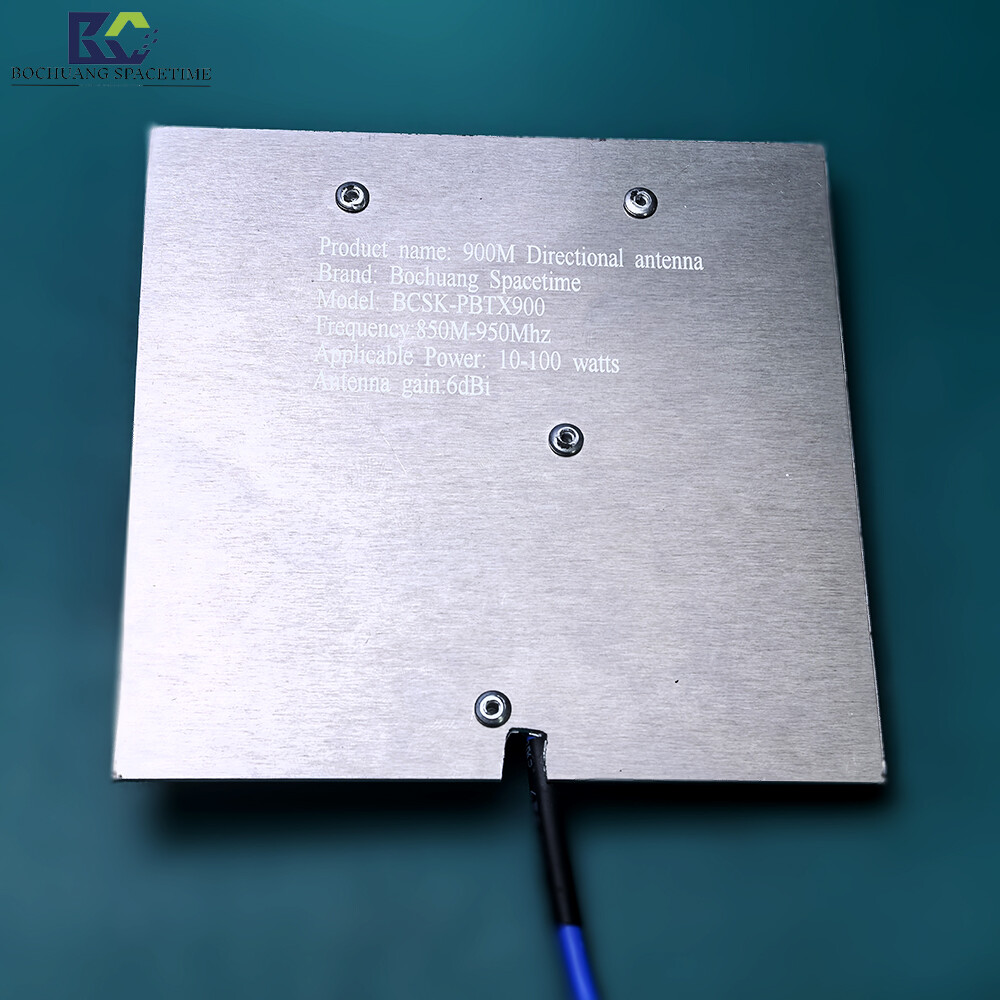

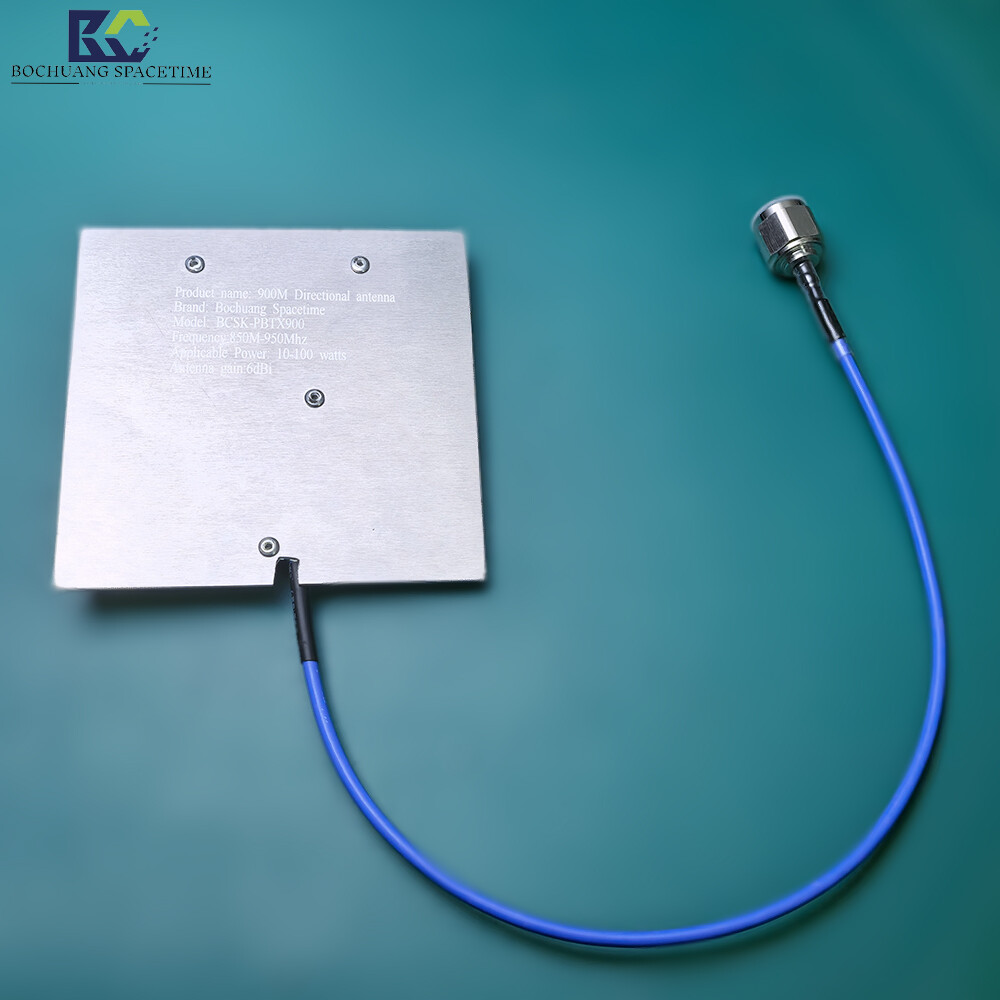

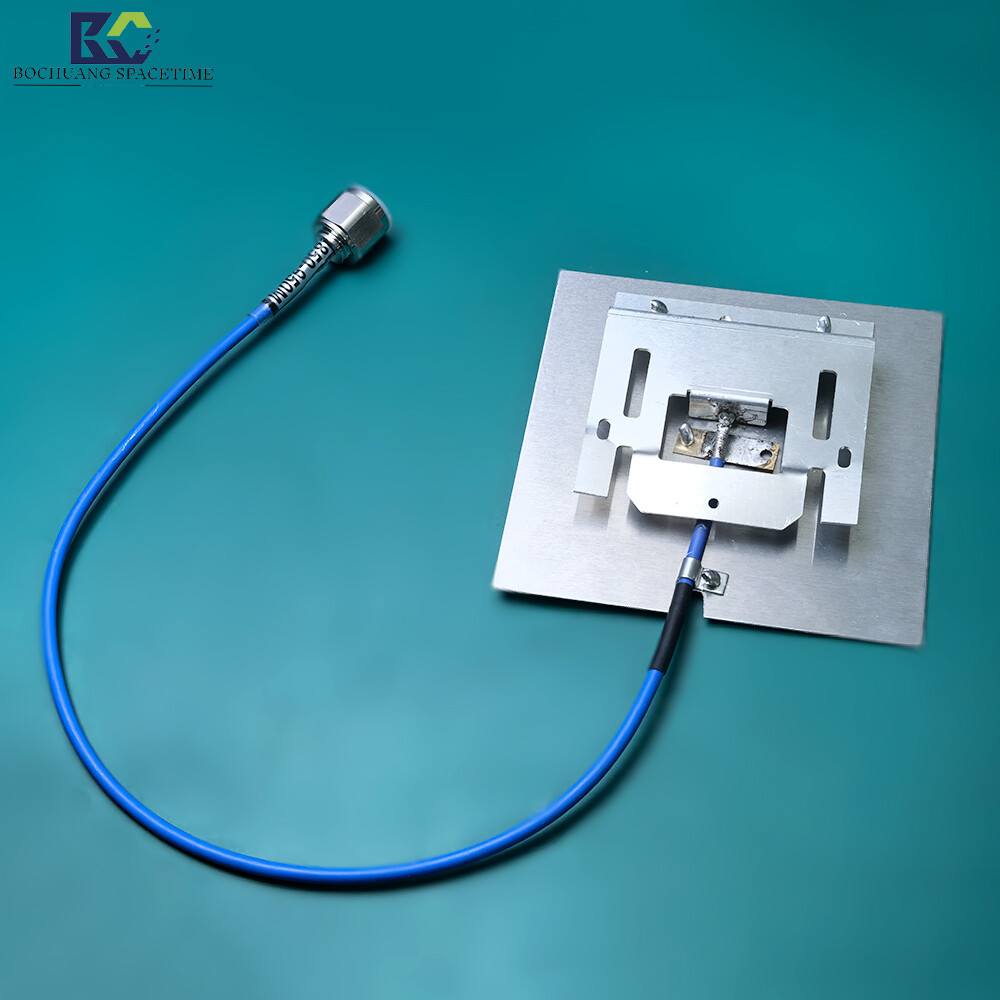

Outdoor Panel Directional Antenna 850M-950MHz High-Gain Directional Antenna for Drone Countermeasures, Industrial IoT, and Long-Range Point-to-Point Systems
This outdoor panel directional antenna is designed for high-frequency point-to-point communication scenarios. It operates from 850MHz to 950MHz, supports high-power inputs of 10W–100W, and delivers 6dBi gain with a VSWR ≤ 1.8 for stable transmission in complex electromagnetic environments. Constructed from lightweight aluminum alloy, its compact dimensions (120×120×20mm) and N-Male connector enable rapid deployment in drone countermeasures systems, industrial IoT gateways, long-range P2P relay links, and FPV video transmission systems. Its directional radiation pattern focuses signal energy to enhance coverage in target areas while suppressing interference, making it the ideal choice for building high-gain wireless communication front-ends. The weather-resistant housing ensures reliable outdoor operation over extended periods. Customizable frequency responses and mounting solutions are available to meet B2B customers' flexible integration needs for directional RF solutions.
In Stock (500units
Product Overview
This modelOutdoorTablet Directional AntennaDesigned for high-frequency industrial communication and long-distance signal coverage, operating precisely from 850MHz to 950MHz, supporting up to 10W.
10W high-power input with 6dBi gain and VSWR ≤ 1.8, ensuring stable, low-loss signal transmission even in complex electromagnetic environments. The antenna features a lightweight aluminum alloy design.
Gold-plated, compact size (120×120×20mm), with standard N-Male connectors for quick deployment.Drone countermeasure system, industrial IoT gateway, long-range
Point-to-point relay link and FPV video transmission system。
Its directional radiation effectively focuses signal energy, enhancing coverage strength in target areas while suppressing interference from sources, making it ideal for buildingHigh-Directivity Wireless Communication Front-End
Choose. The enclosure is dustproof and moisture-resistant, designed for long-term outdoor operation. It supports customized frequency response and mounting bracket solutions to meet B2B customer needs.Directed RF solution
Solutionflexible integration requirements.
Performance Features
Broadband compatibility: Covers 850MHz to 950MHz, supports major communication standards such as GSM/4G/5G, and is trulyMultimodalCommunication AntennaSolutions。
High Power Tolerance Design: Internal structure designed to stably handle input power from 10W to 100W, preventing signal distortion or component damage under high-power conditions. Suitable forHigh-Power Wireless Transmitter
Shooting System。
Precise targeted reach: 6dBi gain with VSWR ≤ 1.8 ensures concentrated signal energy projection, enhancingEfficiency of long-range directional communication。
Compact, lightweight design: 120×120×20 mm, designed for compact installations in space-constrained devices such as UAV payloads, vehicle terminals, or wall-mounted gateways.
Industrial-grade protectionThe aluminum alloy housing is dust-proof, moisture-resistant, and UV-protected, making it ideal for long-term outdoor operation.Outdoor Wireless Communication Antennaa reliable choice.
Customizable frequency support: Adjust resonant frequency to meet customer project requirements, enabling targeted band enhancement or narrowband applications for improved performance.Dedicated RF System Integration Efficiency。
Parameter Table
Parameter Items | Specifications |
|---|---|
Model | BCSK-PBTX900 |
Frequency Range | 850MHz–950 MHz |
Applicable Power | 10W–100W |
Connector Type | Male |
VSWR | ≤1.8 |
Gain | 6 dBi |
Antenna Size | 120×120×20mm |
Material | Aluminum Alloy |
Ingress Protection Rating | Dust and moisture resistant (IP65 rated) |
Use Cases | Drone CountermeasuresIndustrial IoT, point-to-point relay, FPV video transmission |
Frequently Asked Questions (FAQ)
Q1: Is this antenna rated for long-term outdoor exposure?
Yes, the enclosure is made of aluminum alloy with a surface treatment, offering IP65 dust and moisture protection for reliable outdoor operation.
Q2: Can other frequency bands or gains be customized?
Supports adjusting resonant frequency or optimizing gain based on project requirements. Please provide specific parameters for a custom evaluation.
Q3: Is the N-Male connector compatible with mainstream RF devices?
A: Yes, N-Male is the industrial standard.Connector InterfaceBroadly compatible with variousRF moduleAmplifiers and test equipment.
Q4: Is this antenna suitable for drone countermeasure systems?
Fully applicable. Its directional radiation effectively focuses interference energy, enhancing suppression efficiency against target drones.
Q5: Are additional mounting brackets required during installation?
The antenna has four corner mounting holes and can be secured to walls or poles using standard brackets or custom fixtures for quick installation.Device casing。
