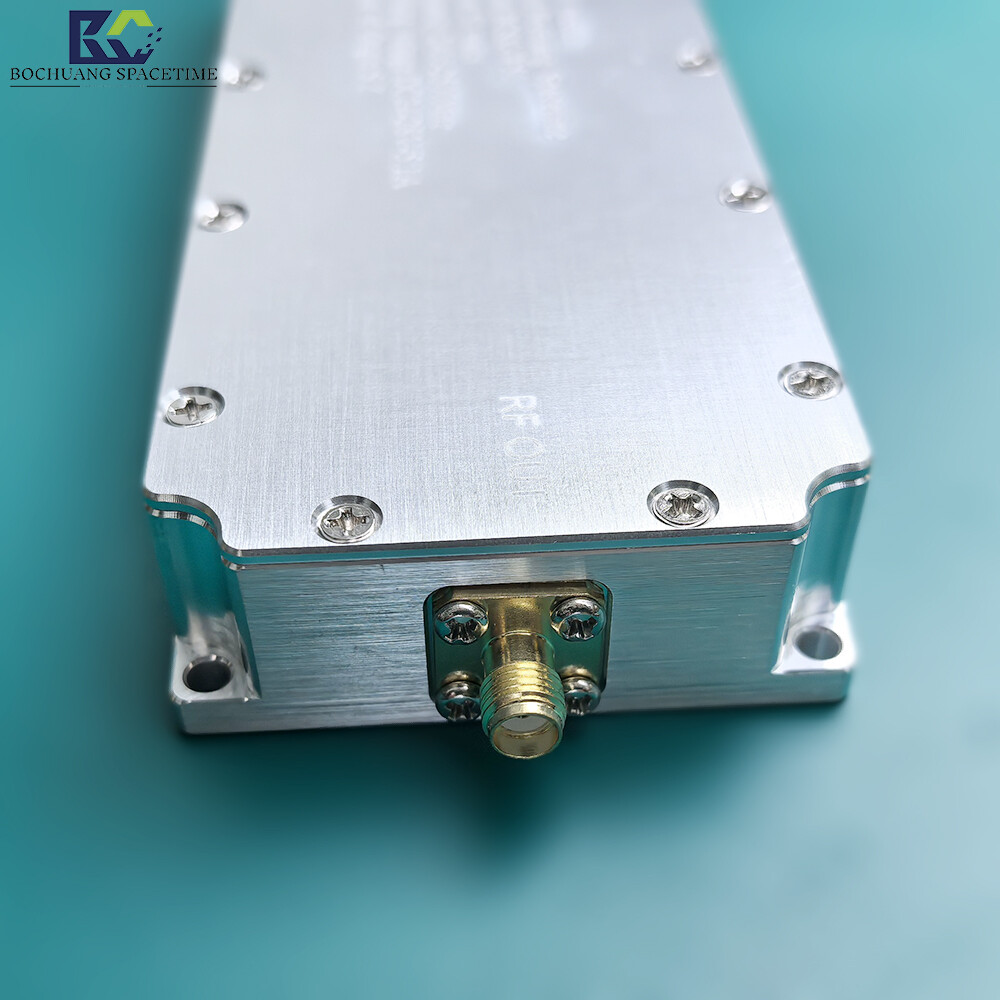

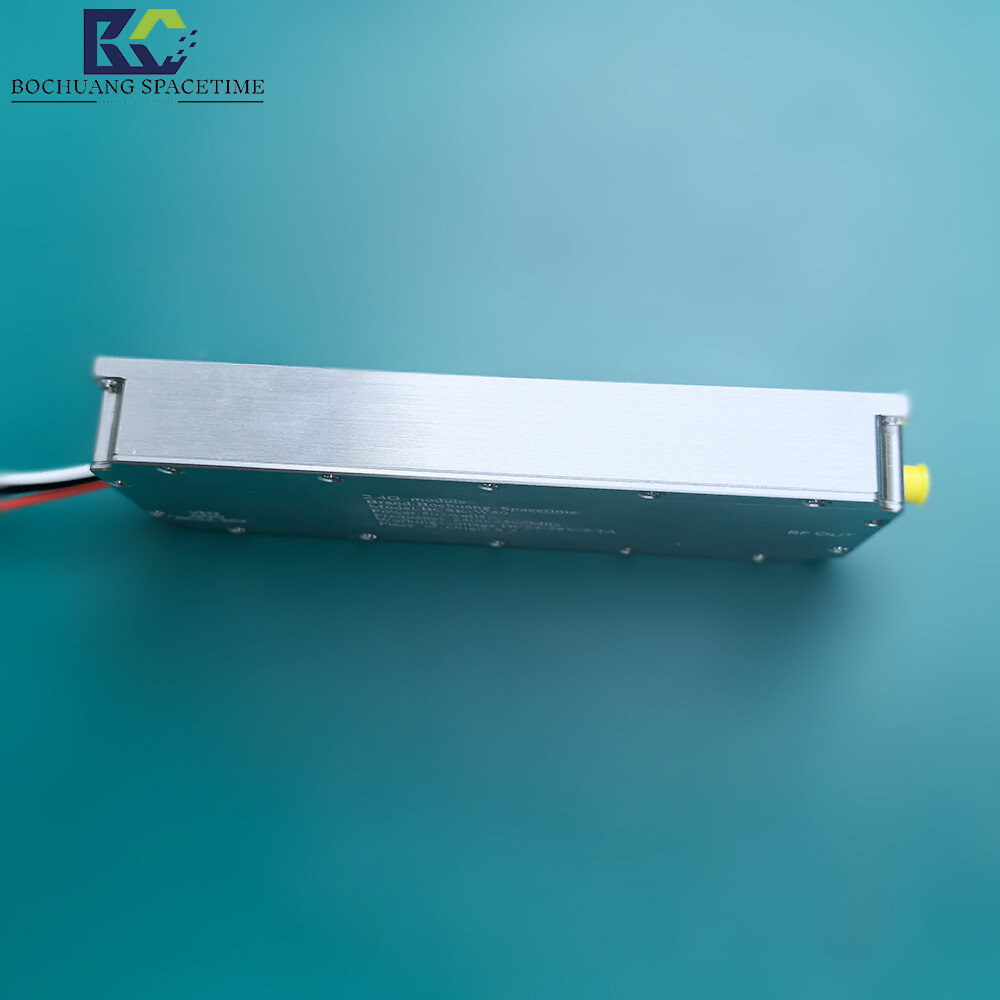

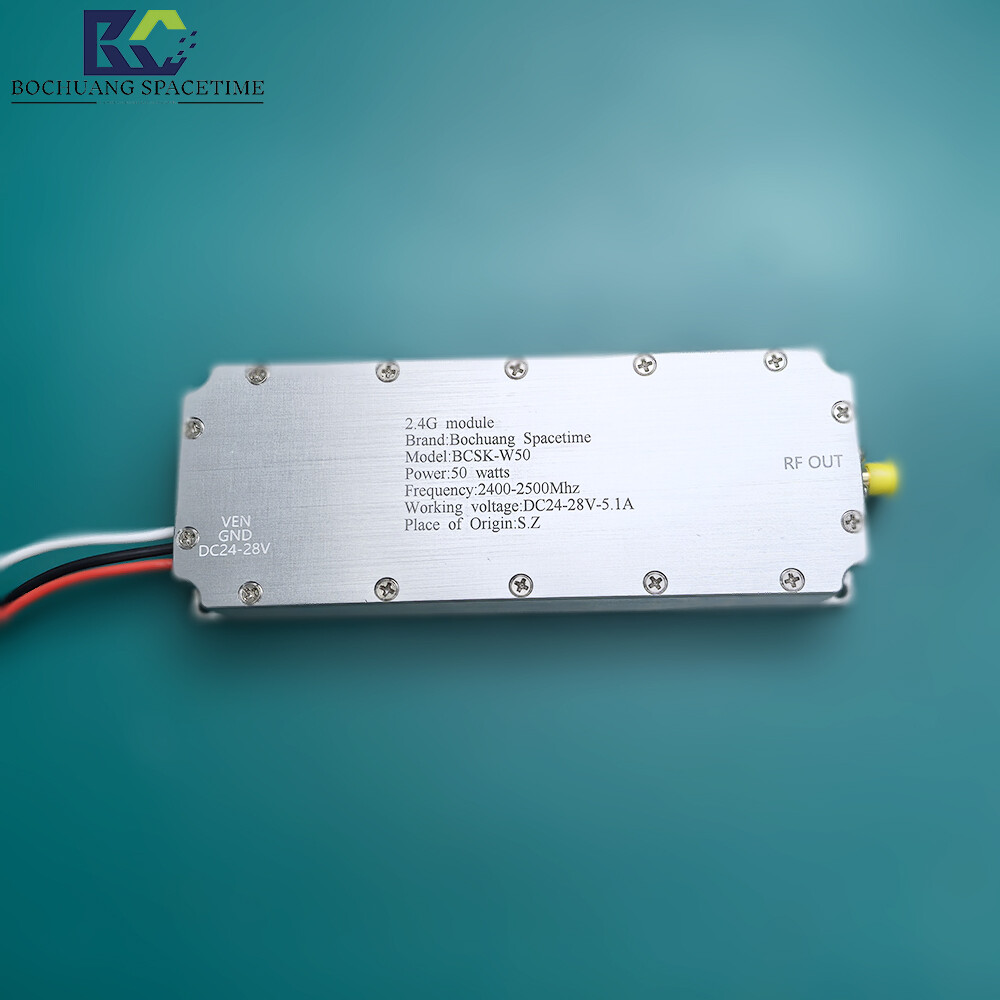

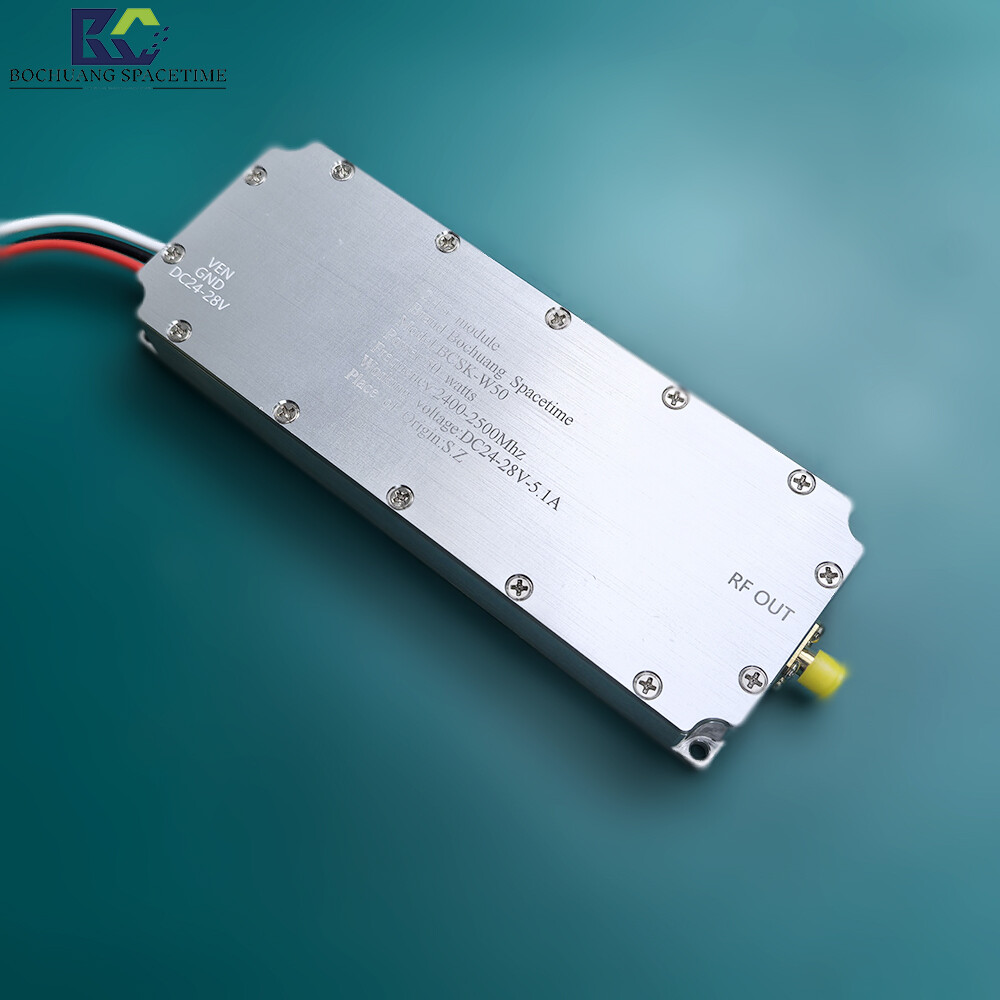

BCSK-W50 Model 50W RF Power Amplifier by BCSK: High-Performance Amplification Solution for the 2.4GHz Band

In drone video transmission, long-range wireless communication, and signal range extension applications, the stability of the RF front-end determines the success or failure of the entire system.Bochuang Shikong BCSK-W50 Type Radiation

RF Power AmplifierEngineered for the 2400MHz–2500MHz ISM bands with up to 50W peak output power. Delivers exceptional linearity and military-grade reliability.

It is the ideal choice for engineers tackling signal attenuation and interference challenges in the 2.4GHz frequency band.

Core Technical Specifications

• Operating Frequency Band: 2400MHz - 2500MHz (Perfectly covers WiFi, drone remote control, and video transmission bands)

• Rated Output Power: 50W (CW/peak), meeting strong link budget requirements

• Power Gain: Typical value ≥ 30 dB

• Input Drive Power:13dBm - 16dBm (compatible with mainstream RF front-end chips)

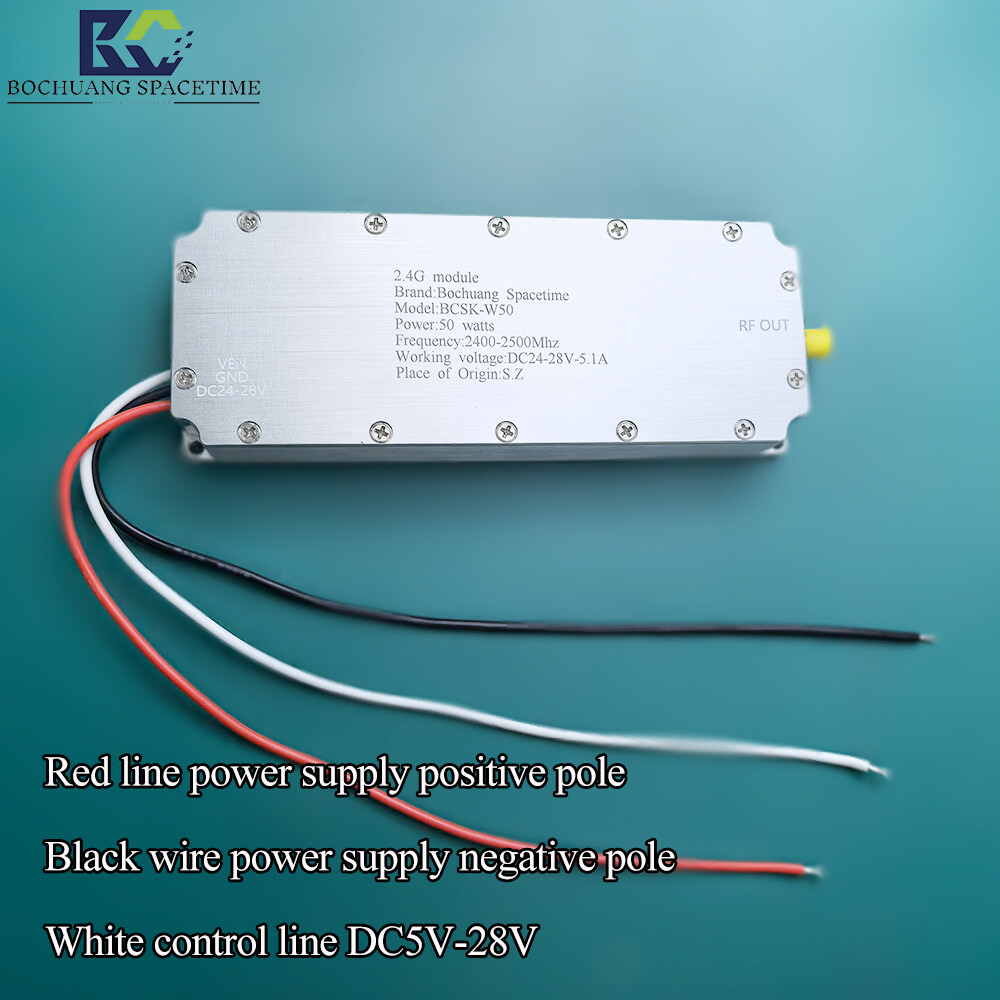

• Operating Voltage: DC 24V - 28V (wide-voltage design for vehicle and industrial power supplies)

• Interface Type: SMA/N Type (customizable)

Why do engineers choose BCSK-W50 from Bochuan Shikong?

• Superior linearity and low distortion: Employs an optimized input/output matching network design to maintain extremely low harmonic content and intermodulation distortion even at 50W high-power output, ensuring clear HD video transmission and reliable communication quality.

• High-Performance GaN/LDMOS ProcessAchieve high power-added efficiency (PAE) while maintaining high power output, significantly reducing overall system power consumption to alleviate thermal management pressure on UAV payloads or portable devices.

• Military-grade multi-layer security protection: Features built-in smart protection against over-temperature, over-voltage, over-current, and high VSWR. If temperature exceeds limits or abnormal signal reflection occurs at the antenna port, the amplifier automatically reduces power or shuts down to maximize device lifespan.

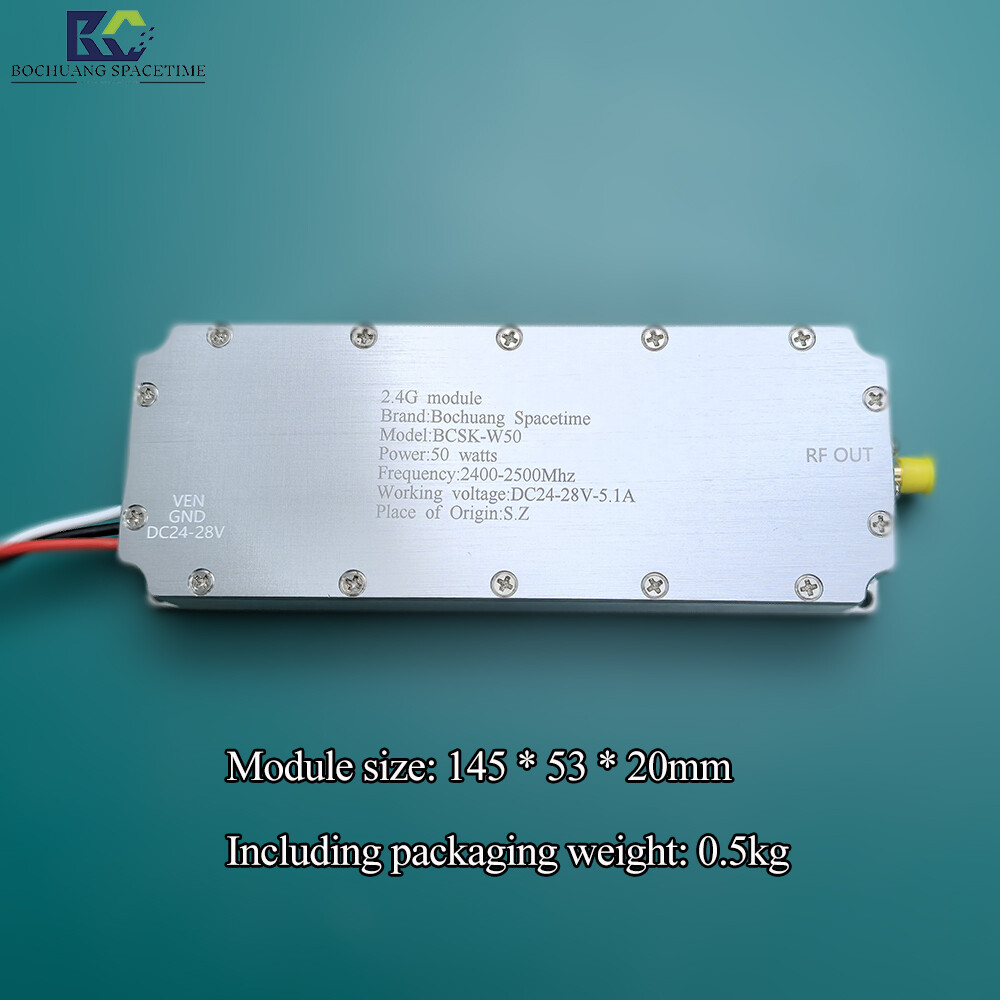

• Compact design, easy to integrateHighly integrated modular packaging with a compact size and moderate weight, enabling fast integration into various UAV payloads, portable video transmission devices, and base station systems.

Typical Use Cases

• UAV Defense SystemDrone remote control link range extension, HD FPV video transmission signal amplification, and drone countermeasure/interference device transmitters.

• Wireless Communication Network: 2.4GHz WiFi signal booster, point-to-point (P2P) long-range microwave transmission, and wireless bridge relay.

• Testing and ResearchLaboratory RF signal source power extension, electromagnetic compatibility (EMC) test driver stage.
