"Aluminum Alloy Flat Panel AntennaSearch results for "Aluminum Alloy Flat Panel Antenna"(3results)

BCSK-PBTX08 Handheld 8-Band Aluminum Alloy Panel Directional Antenna | 420M-5.8G Full Coverage for Drone Countermeasures, Electronic Jamming, and Multi-Frequency Communication Systems

The BCSK-PBTX08 is an eight-band aluminum alloy panel directional antenna designed for industrial applications. It integrates eight critical RF channels: 420M–450MHz, 850M–930MHz, 1160M–1280MHz, 1380M–1450MHz, 1560M–1620MHz, 2400M–2500MHz, 5150M–5350MHz, and 5720M–5850MHz, delivering full-spectrum signal coverage. Featuring a high-precision microstrip array and a rugged aluminum base, it maintains stable gain under high-power operation, effectively boosting signal strength in targeted directions while suppressing interference. With a compact structure and superior heat dissipation, this antenna is compatible with both handheld and fixed anti-drone systems. It is widely used for FPV video transmission jamming, remote control link suppression, navigation spoofing, and multi-band wireless communication scenarios. Equipped with standard RF connectors for easy installation, it serves as a reliable core component for professional security, emergency communications, and electronic warfare systems.

View Details

Bocchuang Space-Time BSK-PBTX5200 5.8GHz Aluminum Alloy Panel Directional Antenna | 18dBi High Gain, 10W-100W High Power, SMA Connector. Ideal for Drone Jamming, Wireless Bridges, and FPV Signal Enhancement

The BCSK-PBTX5200 is a high-performance 5.8GHz single-frequency aluminum alloy panel directional antenna. Operating within the 5100-5300 MHz frequency range, it delivers 18 dBi gain and supports continuous power input from 10W to 100W, with a VSWR ≤ 1.5, ensuring high energy conversion efficiency and system stability. Built with a rugged aluminum alloy substrate and precision microstrip array structure, it offers excellent heat dissipation and wind resistance, making it ideal for outdoor or industrial deployments. Featuring an SMA male connector, it integrates easily into handheld jammers, vehicle-mounted systems, fixed base stations, or FPV receivers. Widely used in drone countermeasures, long-range wireless bridges, HD video transmission, and security surveillance, this high-power directional antenna is the preferred solution for RF engineers and system integrators.

View Details

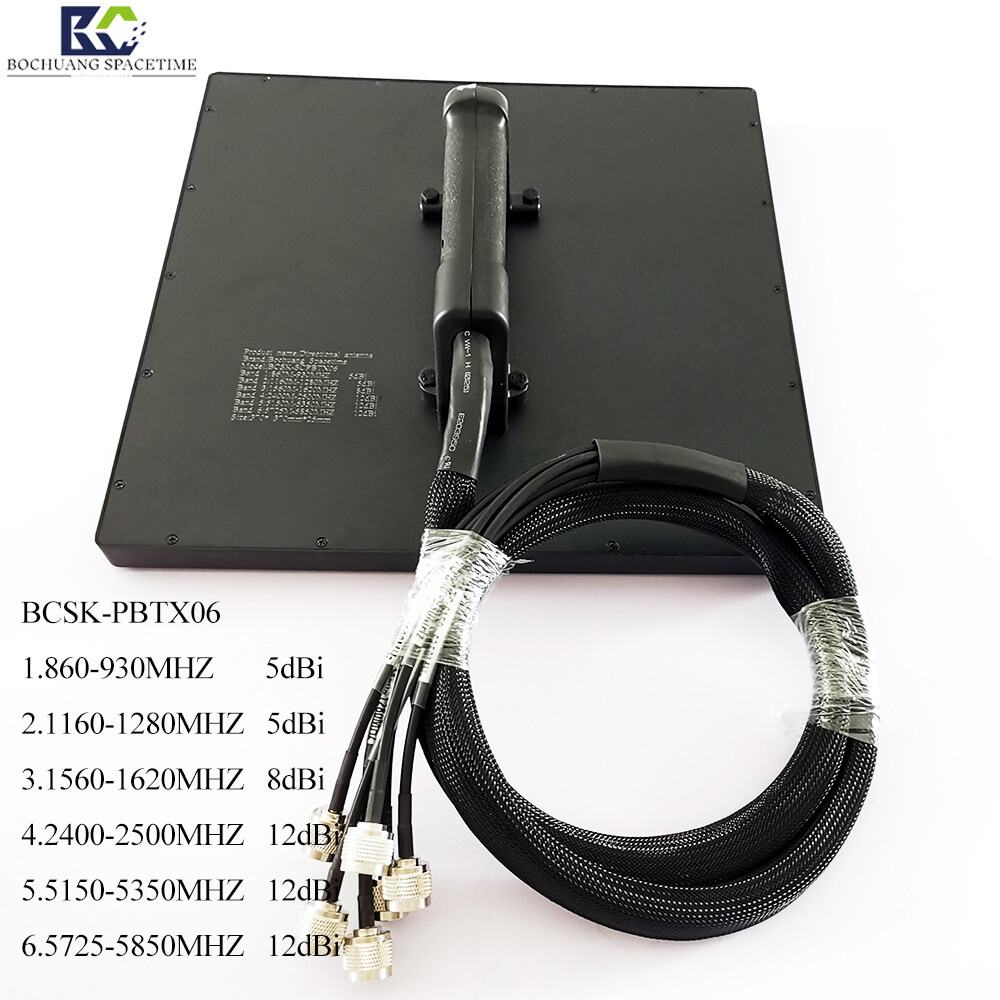

BCSK-PBTX06 Handheld 6-Band Aluminum Alloy Panel Directional Antenna | 1.8G/2.1G/3.1G/4.2G/5.5G/6.5G Full Coverage, 5-1 dBi High Gain. Ideal for Drone Countermeasures, Electronic Jamming, and Multi-Band Communication Systems.

The BSK-PBTX06 is a handheld, six-band aluminum alloy panel directional antenna designed for industrial applications. It integrates six key RF channels covering 1.860-930MHz, 2.1160-1280MHz, 3.1560-1620MHz, 4.2400-2500MHz, 5.5150-5350MHz, and 6.5725-5850MHz to ensure full-spectrum signal coverage. Built with high-precision microstrip array technology and a rugged aluminum substrate, it maintains a stable gain of 5-12dBi even under high-power operation, effectively boosting signal strength in targeted directions while suppressing interference. Compact and highly efficient at heat dissipation, this antenna is optimized for both handheld and fixed drone countermeasure systems. It is widely used for FPV video transmission jamming, remote control link suppression, navigation spoofing, and multi-band wireless communication scenarios. Featuring standard RF connectors for easy installation, the BSK-PBTX06 serves as a reliable core component for professional security, emergency communications, and electronic warfare systems.

View Details
