  • BCSK-SJG100型100瓦840-965MHZ射频功率放大器模块
    ❤ 收藏
  • BCSK-SJG100型100瓦840-965MHZ射频功率放大器模块

    BCSK-SJG100型射频功率放大器模块可对840-965MHZ带宽频率进行放大,适用于各种射频功率放大使用

    • ¥2700.00
      ¥3500.00
      ¥2673.00
      ¥2646.00
    • 满意度:

      销量: 0

      评论: 0 次

    重量:1.00KG
商品参数
    商品描述

    BCSK-SJG100型射频功率放大器模块可对840-965MHZ带宽频率进行放大,适用于各种射频功率放大使用


    Product Name

    900M module

    Brand Name

    Bochuang Spacetime

    PRODUCT MODEL

    BCSK-SJG100

    Supplier Type

    OEM/ODM

    Application

    RF power amplification

    Frequency Range

    840MHZ-965MHz

    output power

    10W/20W/30W/40W/50W/100Wselectable

    RF In/Out Connector

    N-Female

    Impedance

    50 Ohm

    Working current

    8.5A(Different power, different current)

    Voltage

    DC28V

    MODULE SIZE

    175*90*24mm

    Module weight

    Approximately 0.8kg

    Working Temperature

    -35~+65 degree

    Storage Temperature

    -40 to +85 degree

    Operating Humidity

    0 to 90%, relative

    Module usage precautions

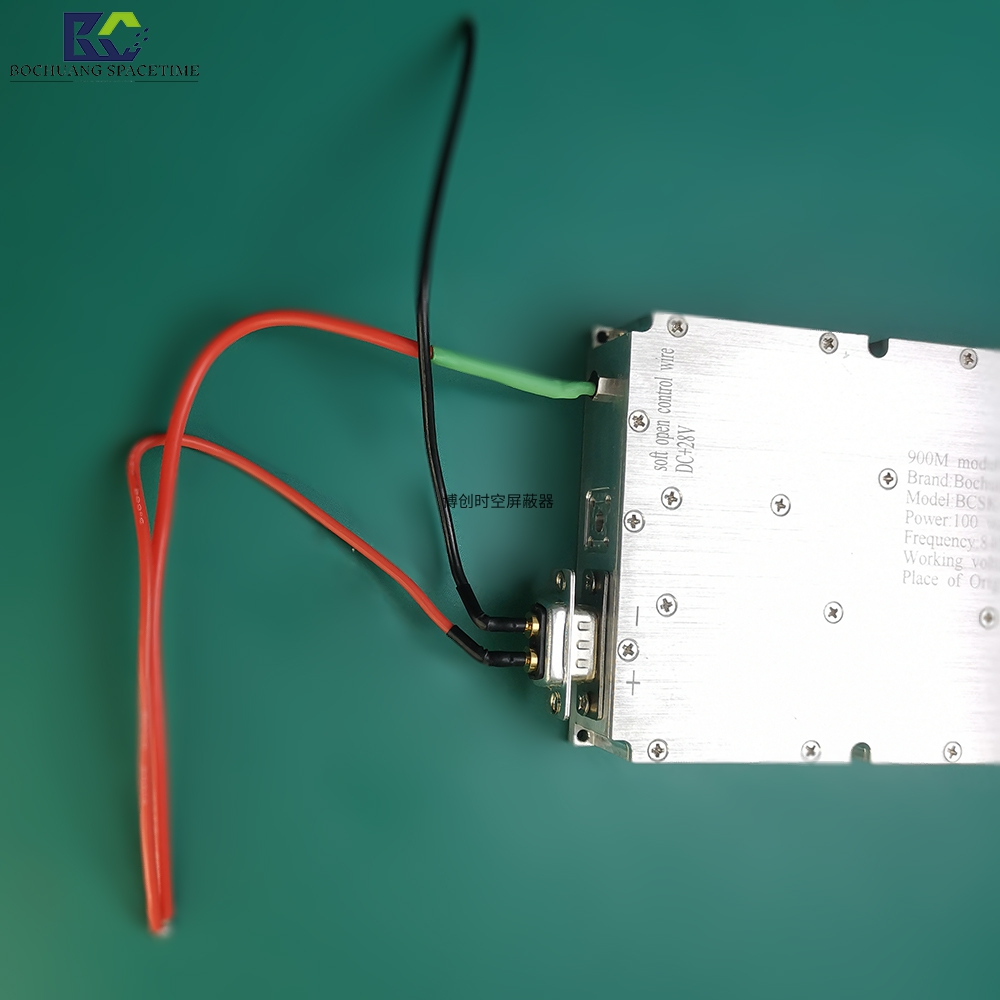

    1. The red line represents the positive pole of the power supply, the black line represents the negative pole of the power supply, and the yellow line represents the control line (only available in some modules). Do not connect it in the opposite direction, otherwise it will burn out the module.

    2. Before powering on the Bochuang Spacetime module, please confirm whether the module connector is connected to the antenna or load, as no-load powering will burn the module.

    3. In order to ensure stable module performance, please add heat sinks and fans for forced cooling in the module to ensure long-term stable operation.
