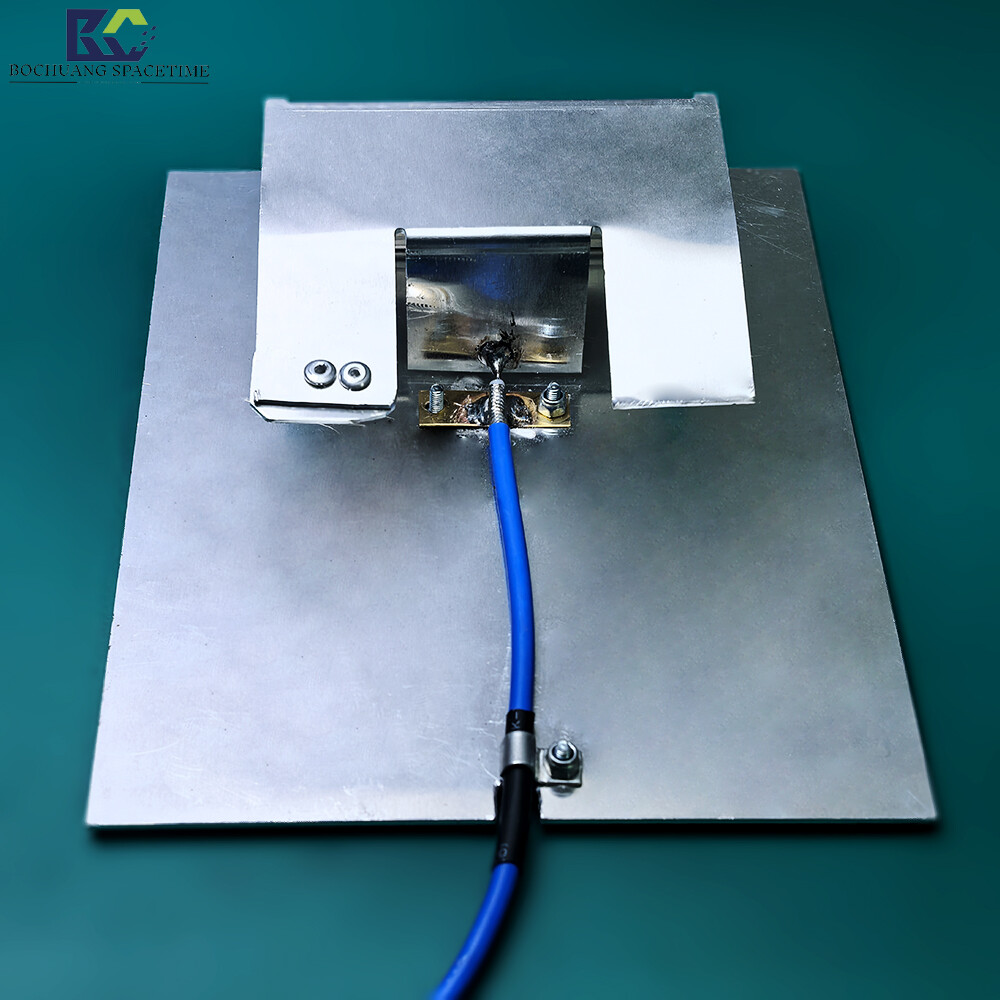

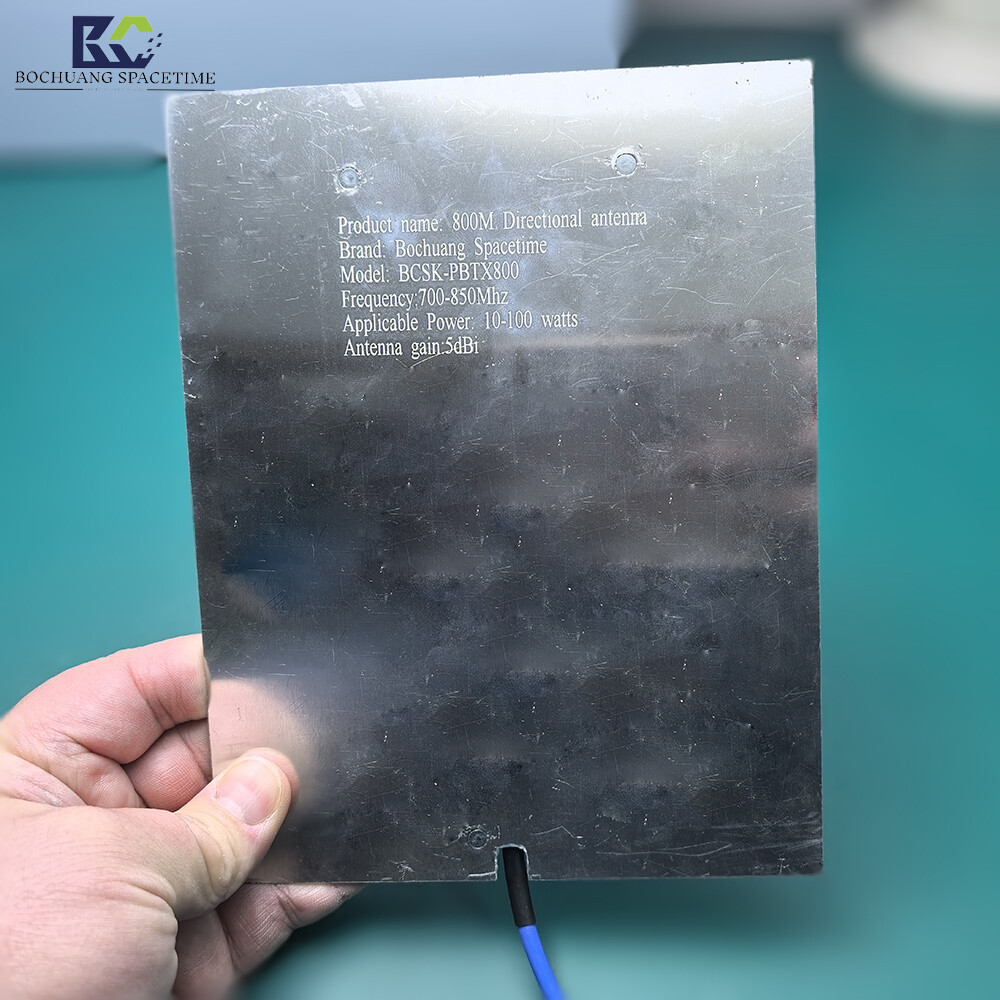

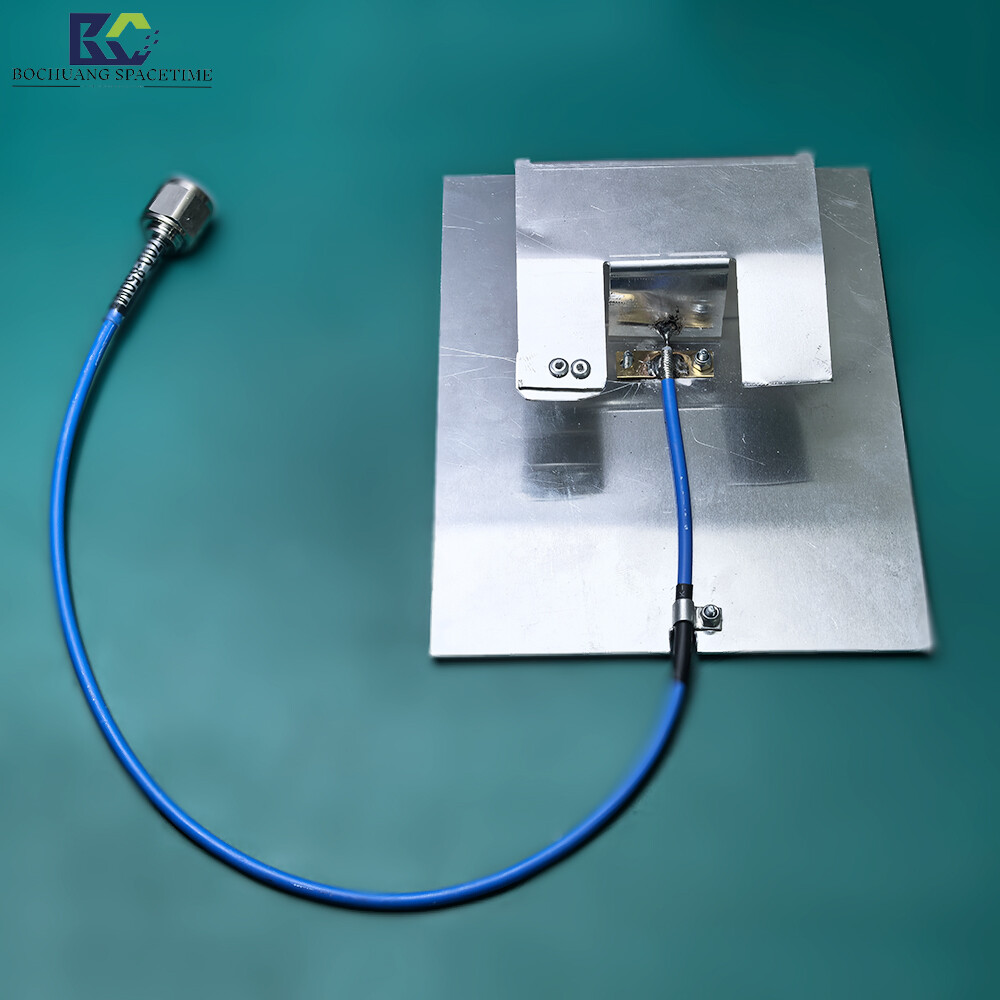

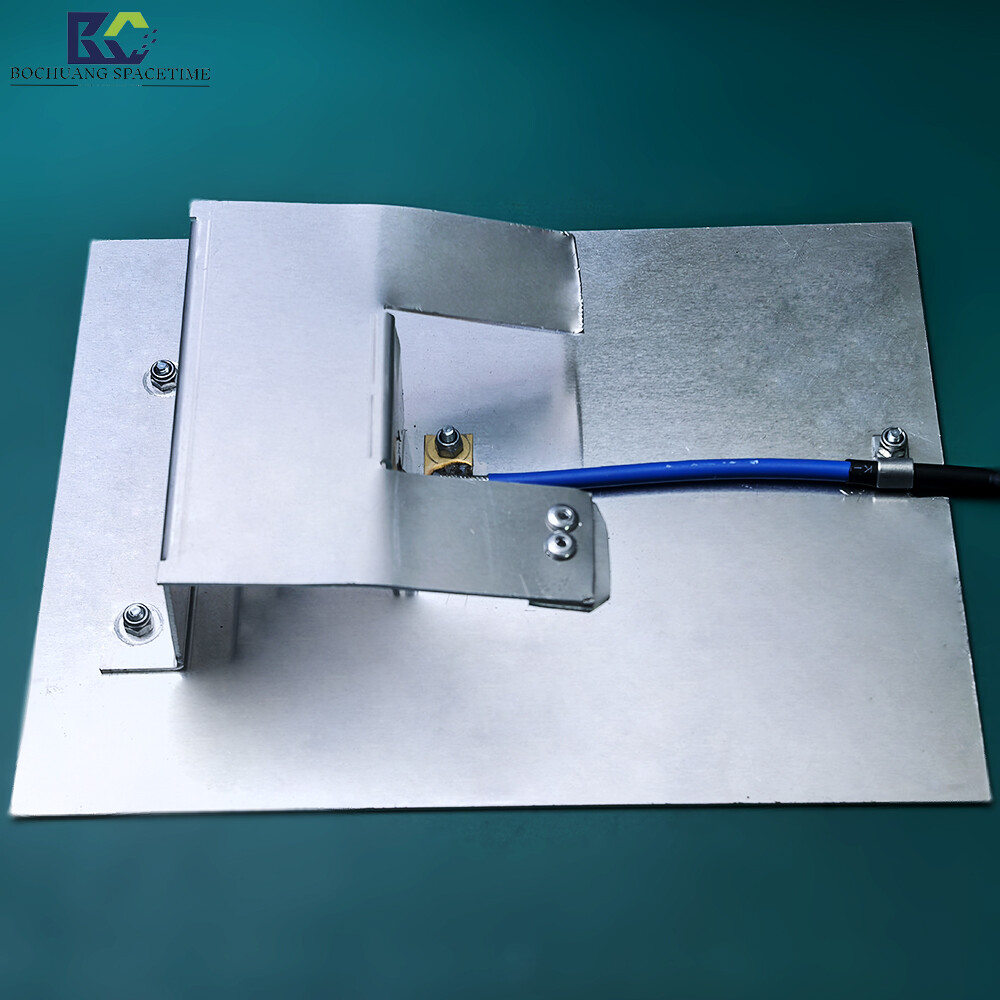

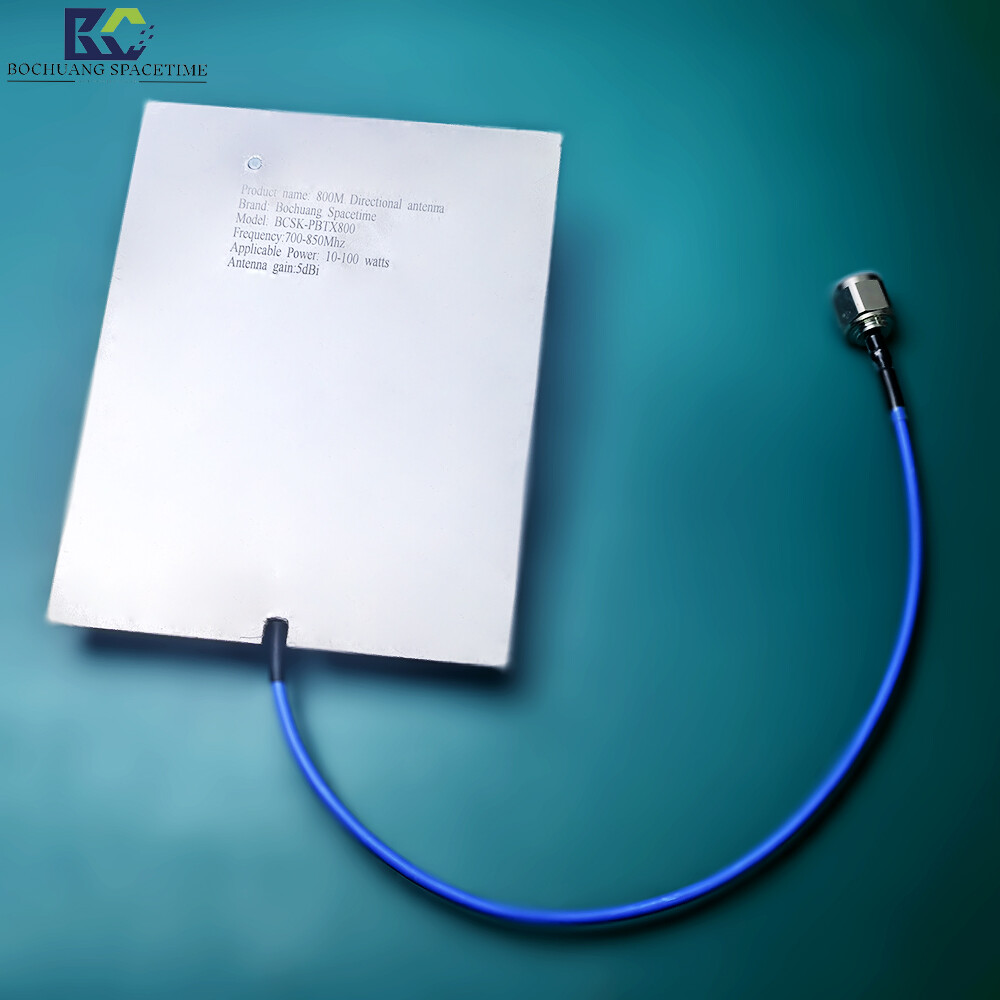

700-850MHz Aluminum Alloy Flat Panel Directional Antenna | 5dBi N-Type Male Connector for UAV Countermeasures, IoT Base Stations, and Long-Range Wireless Communication

Bochuang Spacetime (BOCHUANG SPACETIME) BCSK-PBTX800 — Industrial-grade module designed for low-frequency, long-range communicationpanel antenna

In the field of wireless communications, the 700MHz-850MHz band is the preferred choice for building wide-coverage networks and long-distance links due to its superior diffraction and penetration capabilities. Bocom.

Time-Space BCSK-PBTX800Tablet Directional AntennaEngineered specifically for this golden frequency band, it leverages precision microstrip array technology to deliver high performance within a compact thickness of just 40mm.

Stable 5dBi gain. Its unique aluminum alloy integrated design not only solves high-frequency signal heat dissipation challenges but also delivers superior weather resistance, making it a professional-grade wireless...

Core component of human-machine countermeasures, IoT base stations, and emergency communication systems.

Key Benefits & Selling Points:

• 700-850 MHz full coverage of the premium frequency band:Precisely covers mainstream low-frequency bands such as LTE Band 28/20/5/8, ensuring perfect compatibility with various private network communications and drone remote control links.

  Roads and IoT devices to ensure stable and reliable signal transmission.

• 5dBi stable gain with directional radiation:Compared to omnidirectional antennas, the BCSK-PBTX800Tablet Directional AntennaConcentrates RF energy in a specific direction to effectively enhance the target.

  The area's signal strength and anti-interference capability are key solutions to "last-mile" signal attenuation.

• 10W-100W High Power Capacity:Built with high-grade aluminum alloy substrate and low-loss feed lines, supporting peak power input up to 100W for industrial-grade transmission.

  High power demand ensures stable, long-term operation without overheating.

• N-type male connectorIP65 Protection:Equipped with standard N-Male connectors for compatibility with various professional RF devices; aluminum alloy housing with anodized finish, offering IP65 protection.

  IP68-rated dust and water resistance, built to withstand outdoor sun, rain, and extreme temperature fluctuations.

• Ultra-slim, lightweight design:Measuring just 180×140×40mm, this lightweight device is easy to mount on control towers, vehicle brackets, or indoor walls—saving space and maintaining an unobtrusive profile.

  Overall aesthetic.

Typical Use Cases:

• Drone Countermeasure System：As the core transmitting antenna for handheld or fixed drone jamming devices, it precisely locks onto and suppresses the 700M/800M remote control and video transmission signals of illegal drones.

  Signal to ensure airspace safety in key areas.

• IoT Base Station and Remote Monitoring:Sensor data collection and video transmission for mines, ports, and large industrial parks. Replaces traditional cabling to enable multi-kilometer connectivity.

  stable peer-to-peer communication.

• Emergency Communication and Private Network Coverage:Rapidly deploy reliable voice and data communication links at disaster sites or temporary events to ensure uninterrupted command and control.

  Blocked.

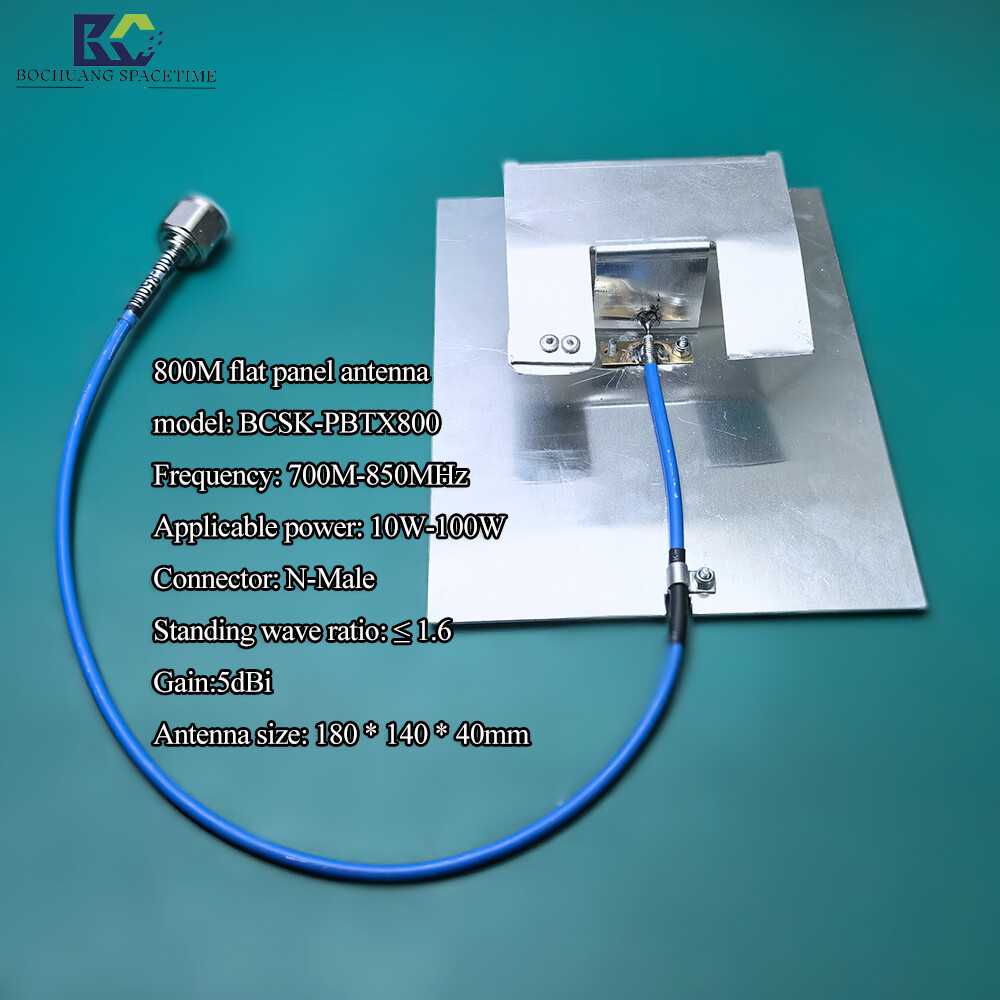

Technical Specifications

Frequently Asked Questions (FAQ)

Q1: Can this antenna be used with standard home Wi-Fi routers?

A: No. This antenna operates in the 700-850 MHz frequency band, while home Wi-Fi typically uses 2.4GHz or 5.8GHz. Please check your device's frequency

Select the corresponding product for this section; otherwise, the device may malfunction or sustain damage.

Q2: What is the difference between N-type and SMA connectors? Will my device work with it?

A: N-type connectors are larger and more robust than F-type, typically used for industrial or high-power devices. If your device has an F-type connector, you'll need to purchase an "N-to-F adapter."Transfer

Headto use. Please verify your device's interface type before purchasing.

Q3: Is 5dBi gain considered high? What is the effective range?

A: 5 dBi represents moderate gain, but its directional nature enables significantly longer effective range in the targeted direction compared to an omnidirectional antenna with the same gain. In open, unobstructed environments, paired with

10W transmit power enables stable communication over several kilometers. Actual range varies based on terrain, obstacles, and the receiver's sensitivity.

Q4: This antenna is compatible withDrone Countermeasure EquipmentGo?

A: Absolutely. The BCSK-PBTX800 is a core component designed specifically for drone countermeasure systems, with its 700-850MHz frequency band perfectly covering many consumer-grade and professional

The remote control and video transmission frequencies for industrial drones, with 100W power, also meet interference requirements.

Q5: What should I keep in mind during installation?

A: Ensure the antenna faces the target area and is not blocked by metal objects. Secure the mounting bracket to prevent wind-induced movement that could affect signal quality. Avoid excessive bending of the feed cable.

To avoid additional loss.
