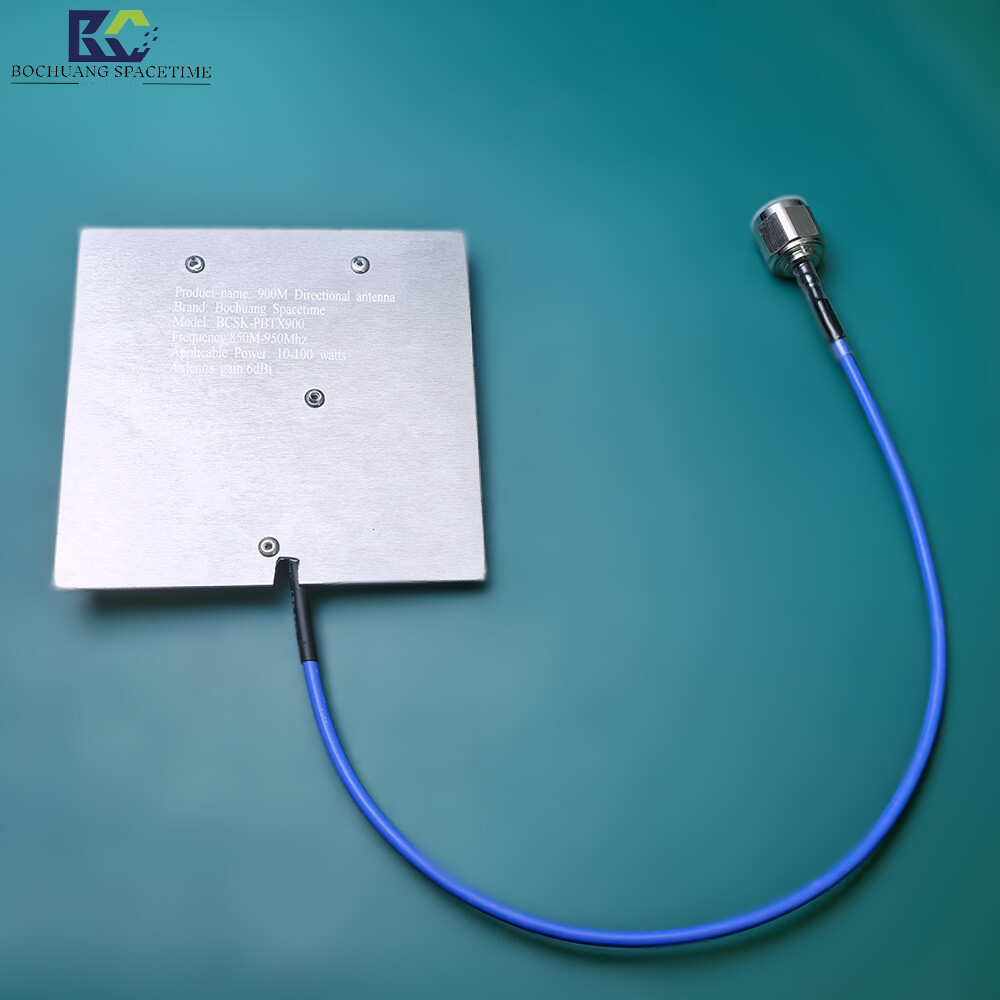

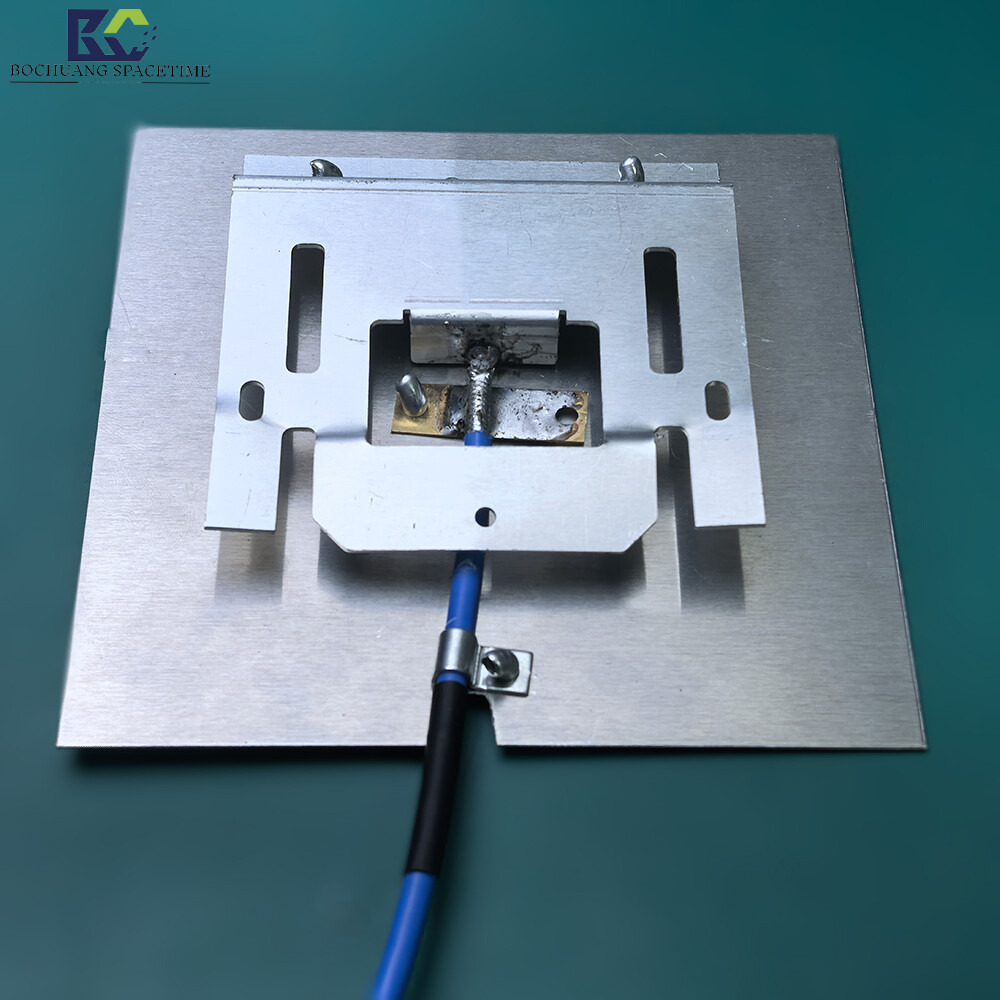

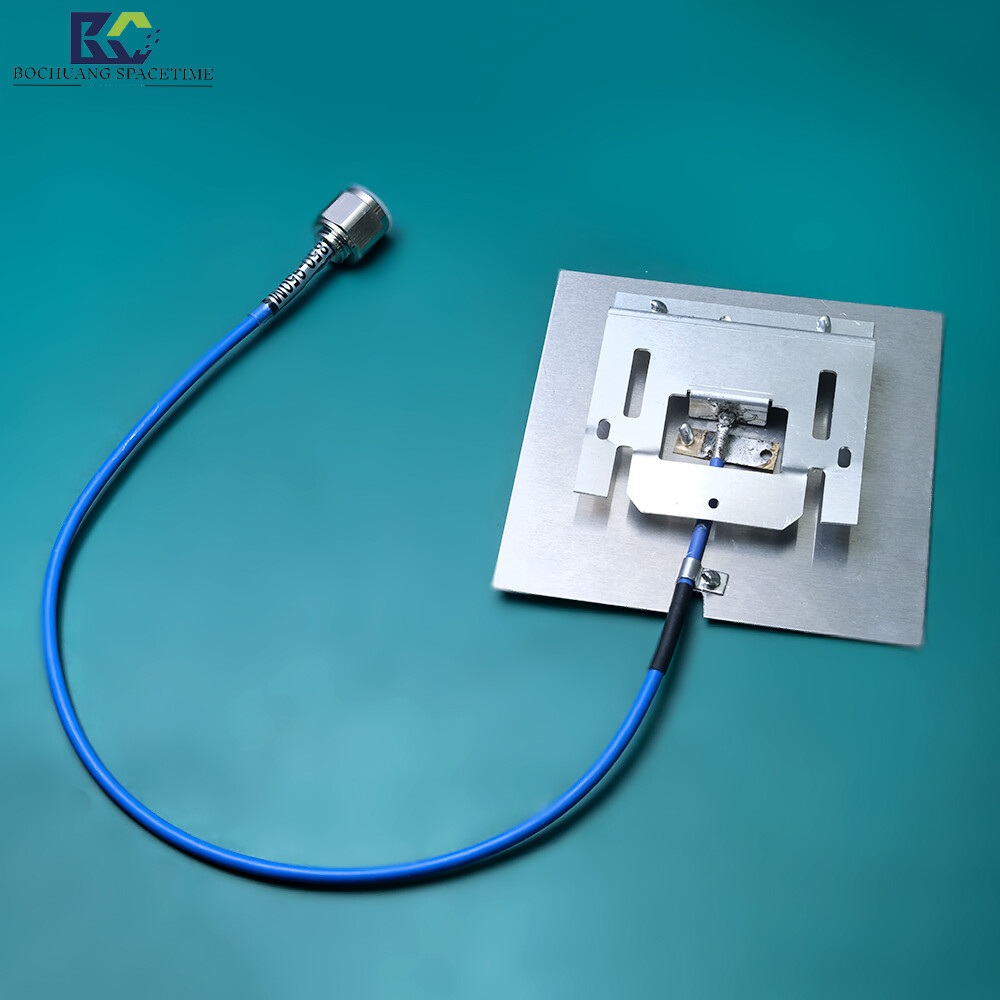

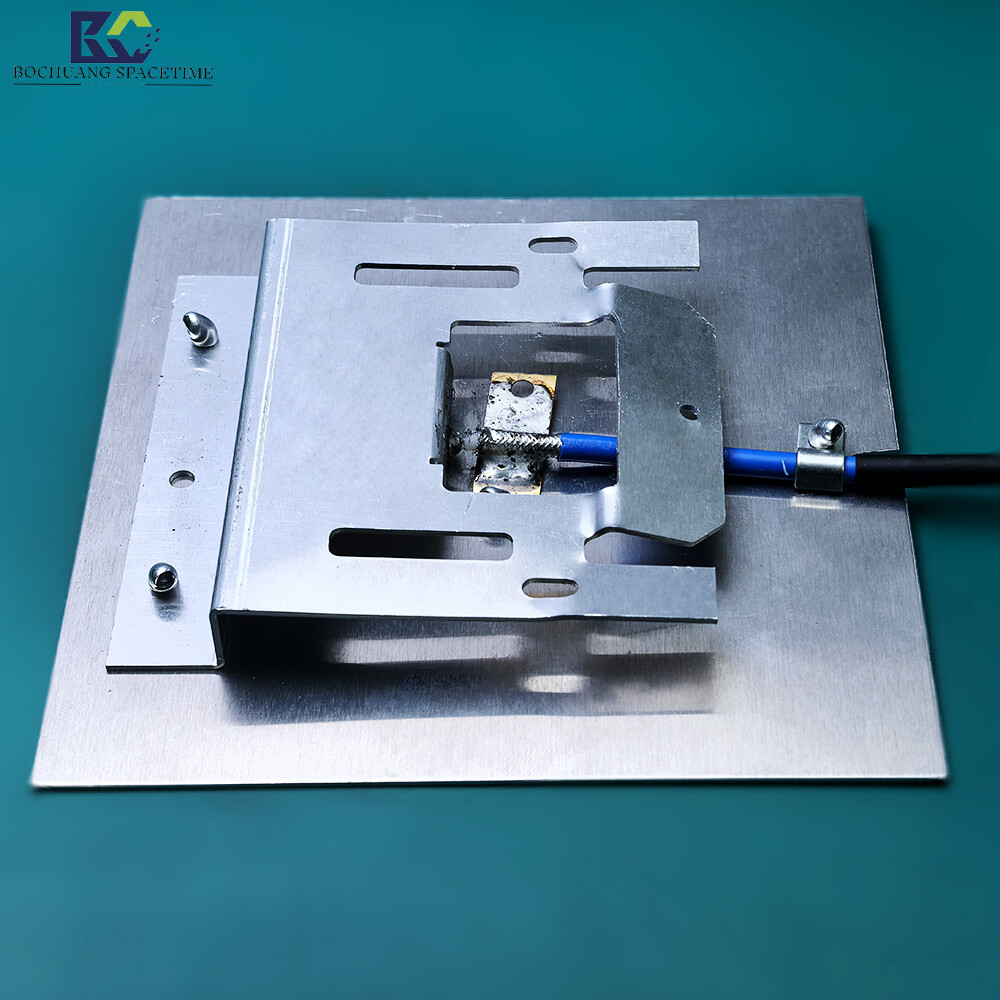

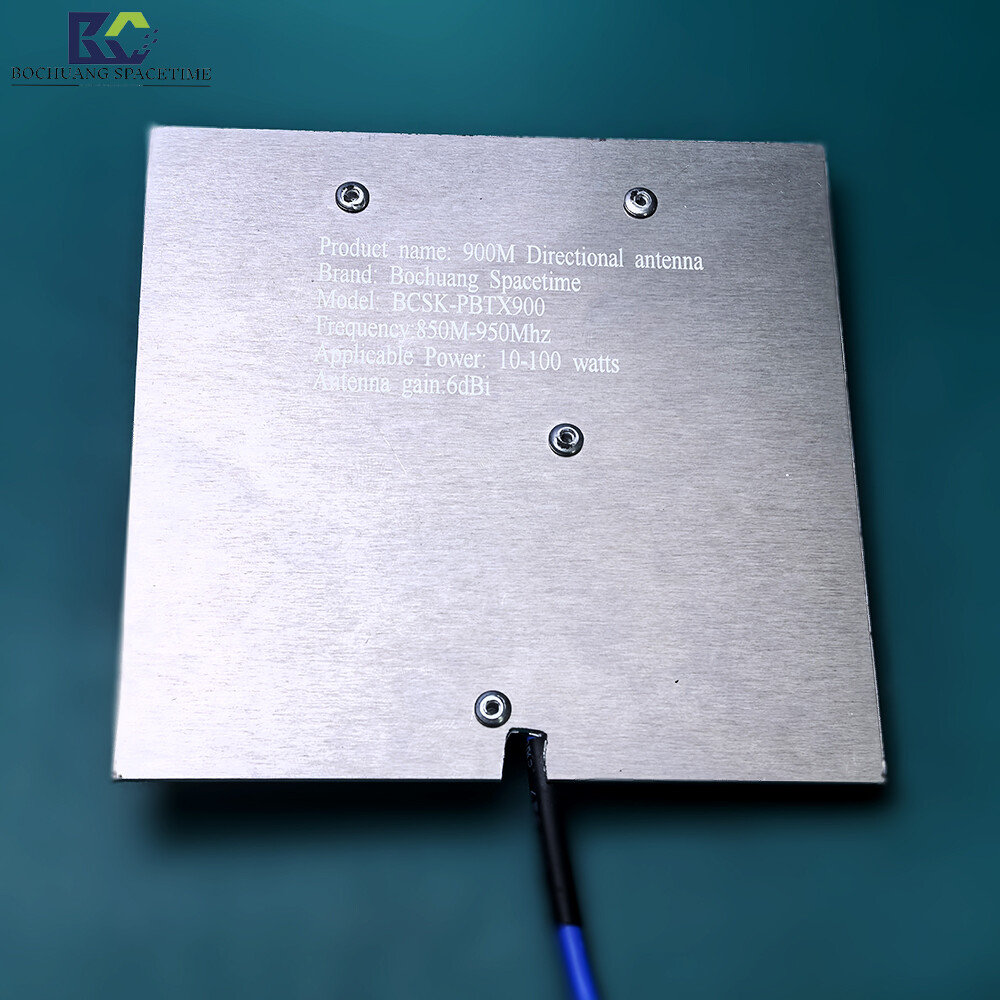

850-96 5MHz Aluminum Alloy Flat Panel Directional Antenna | 6dBi N-Type Male Connector for UAV Countermeasures, IoT Base Stations, and Long-Range Wireless Communication

Bochuang Spacetime (BOCHUANG SPACETIME) BCSK-PBTX900Tablet Directional Antenna—— Compact 900M Band Industrial GradeDirectional Antenna

In the field of IoT and long-range wireless communication, the 850MHz–950MHz frequency band is the preferred choice for building wide-coverage networks due to its superior diffraction and penetration capabilities.

Bocreate Time & Space BCSK-PBTX900Tablet Directional AntennaEngineered specifically for this premium frequency band, it utilizes precision microstrip array technology to achieve a remarkably slim profile of just 20mm.

Achieved a stable 6dBi gain. Its unique integrated aluminum alloy design not only solves high-frequency signal heat dissipation challenges but also delivers exceptional weather resistance, making it ideal for professional

LevelDrone CountermeasuresCore component of IoT base stations and emergency communication systems.

Key Benefits & Selling Points:

• 850-950MHz: Full coverage of the golden frequency bandPrecisely covers mainstream low-frequency bands including GSM900 and LTE Band 8/5/26, fully compatible with various private networks and drones.

  Remote control links and IoT devices to ensure stable, reliable signal transmission.

• 6dBi Stable Gain and Directional Radiation:Compared toOmnidirectional Antenna, BCSK-PBTX900 focuses RF energy in a specific direction to significantly enhance signal strength in the target area.

  The degree of interference resistance is a powerful tool for solving signal attenuation in the "last mile."

• 10W-100W High Power Capacity:Built with high-grade aluminum alloy substrate and low-loss feed lines, supporting peak power input up to 100W for industrial-grade transmission.

  High power demand ensures stable, long-term operation without overheating.

• N-type male connector with IP5 protection:Equipped with standard N-Male connectors for compatibility with various professional RF devices; aluminum alloy housing with anodized finish, offering IP65 protection.

  IP68-rated dust and water resistance, built to withstand outdoor sun, rain, and extreme temperature fluctuations.

• Ultra-slim, lightweight design:Measuring just 120×120×20mm, this lightweight device is easy to mount on control towers, vehicle brackets, or indoor walls—saving space and maintaining an unobtrusive profile.

  Overall aesthetic.

Typical Use Cases:

• Drone Countermeasure System：As the core antenna for handheld or fixed jammers, precisely suppresses drone video transmission and control signals in the 900M frequency band.

• IoT Base Station Enhancement:Directional coverage for low-power wide-area network base stations such as LoRa and NB-IoT to extend signal transmission range.

• Industrial Wireless Monitoring:Remote video monitoring transmission for complex environments such as mining sites and oil fields, overcoming terrain obstructions.

• Emergency Communication Support:Rapidly deploy temporary communication links during emergencies like natural disasters to ensure uninterrupted rescue command operations.

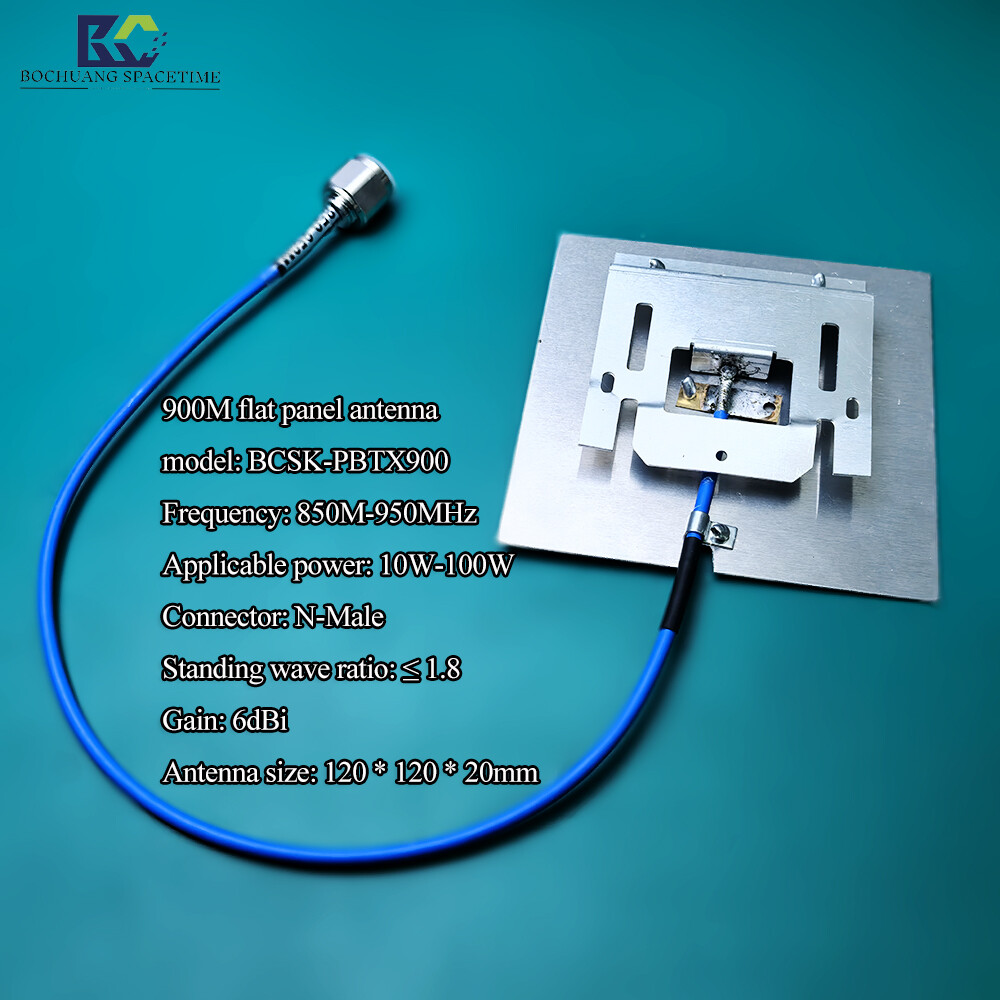

Technical Specifications:

Frequently Asked Questions (FAQ):

Q1: Can this antenna be used with a standard Wi-Fi router?

A: No. Wi-Fi typically operates at2.4GHz Band Antennaor5.8GHz band antennaHowever, this antenna is designed for the 850-965 MHz band only; frequency mismatch.

May cause device malfunction or permanent damage.

Q2: What is the difference between N-type and SMA connectors? Will my device work with this?

A: The N-type connector is larger than the F-type and is typically used for high-power, low-frequency professional equipment. If your device has an F-type connector, you will need to purchase an "N-to-F adapter."Adaptercan only

may introduce additional signal loss.

Q3: Does 100W refer to continuous power or peak power?

A: 100W typically refers to the antenna's peak power handling capacity. For continuous long-term operation, it is recommended to operate around 50W–80W to ensure optimal stability and longevity.

For details, please refer to your launch device manual.

Q4: What is the approximate beamwidth of this antenna?

A: As a 6dBiTablet Directional AntennaIts horizontal beamwidth typically ranges from 60° to 90°, with a wider vertical beamwidth. This characteristic is ideal for medium-range applications.

provides targeted coverage with a degree of directionality, yet avoids the alignment difficulties associated with high-gain antennas.
