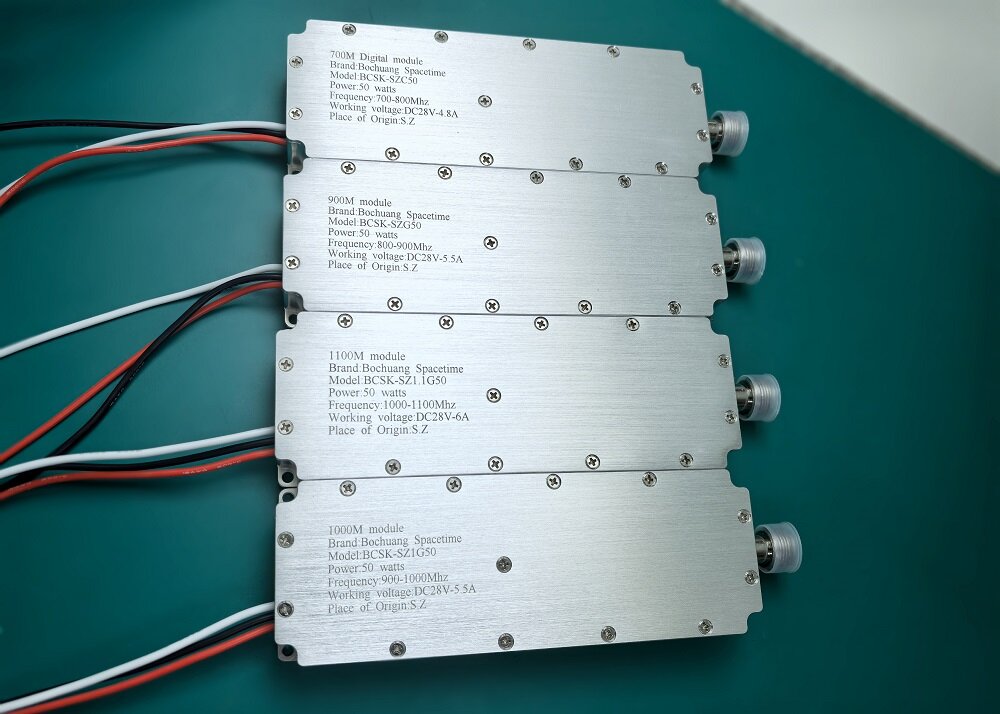

BCSK-SZG50 Anti-Drone GAN Digital Module 800-900MHz 50W with Isolator High-Power RF Power Amplifier Unit
The BCSK-SZG50 is a high-performance anti-drone GAN digital module developed by Bochuang Spacetime, designed for 800-900MHz frequency bands. Built with advanced GaN technology, it delivers a stable 50W continuous wave output at 28V DC, with a typical operating current of 5.5A. Its compact aluminum alloy shielded enclosure effectively suppresses electromagnetic interference and offers superior thermal performance, ensuring stability during extended high-load operation. This RF power amplifier module is widely used in spectrum monitoring, wireless communication relays, industrial test and measurement equipment, and low-altitude defense systems. Featuring comprehensive protection circuits and standardized interfaces, it integrates easily into various embedded RF systems, making it the ideal choice for building high-efficiency signal transmission chains.
In Stock（50）
Product Overview
BCSK-SZG50A solution designed for low-altitude security and spectrum management.Anti-UAV GAN Digital Module, operating frequency range covers800-900 MHz, inDC 28VProvide
Stable output on electric power50W continuous wave powerTypical operating current is 5.5A. This module utilizes high-power-density Gallium Nitride (GaN) semiconductor technology, offering excellent
Power-added efficiency and thermal stability, suitable forDrone Countermeasure Systemspectrum monitoring equipment, industrial RF test platforms, and wireless communication relay stations. Its compact aluminum alloy
The enclosure not only provides superior electromagnetic shielding but also ensures reliability during prolonged high-load operation through optimized thermal management. As the core power unit, thisAnti-Drone
GAN Digital ModuleBuilt-in multi-layer protection prevents device damage from load mismatch or transient faults, significantly enhancing overall system stability and maintenance efficiency.
Performance Features
High-Power-Density GaN Process: Adopt advancedGallium NitrideTechnology delivers over 60% efficiency at 5W output, significantly reducing heat loss and extending equipment lifespan. Ideal for high-power applications.
Density deployment scenario.
Smart Protection Mechanism: Built-in protection against overcurrent, overtemperature, and high VSWR with automatic power reduction to prevent device damage from load mismatch or transient faults, ensuring system reliability.
Safe operation.
Wideband stable outputGain flatness within the 800-900 MHz band is better than ±1 dB, ensuring signal purity in multi-carrier systems and reducing intermodulation interference risks.
Industrial-grade environmental adaptabilitySupports operating temperatures from -20°C to +70°C, meeting demanding industrial requirements for outdoor or vehicle-mounted deployments.
Standardized Interface Design: Equipped with N motherConnectorCompatible with mainstream RF test equipment, enabling quick integration into embedded or rack-mounted systems and reducing deployment complexity.
Degrees.
Technical Specifications
Parameter Item | Specifications |
|---|---|
Product Model | BCSK-SZG50 |
Operating Frequency Band | 800–900 MHz |
Output Power | 50W (Continuous Wave CW) |
Supply Voltage | DC 28V |
Operating Current | 5.5A (typical) |
RF interface | N Female Connector |
Protection Mechanism | Automatic foldback for overcurrent, overtemperature, and VSWR |
Casing Material | Aluminum alloy shielded enclosure |
Operating Temperature | -20°C to +70°C |
Origin | Shenzhen |
Customer FAQ
Q1: Does this module support pulse operation mode?
A: This module is designed for continuous wave (CW) operation with sufficient bandwidth and power amplification.
Q2: Does the module require additional cooling measures?
A: Although the module comes with an aluminum alloy heatsink enclosure, we recommend adding additional cooling in enclosed spaces or during extended use.Cooling FanorSerrated Heat Sinkto maintain optimal performance.
Q3: Can it be used for non-drone countermeasure scenarios?
Yes. This module is also suitable for scenarios requiring high-power output in the 800-90 MHz band, such as spectrum monitoring, wireless communication relaying, and industrial testing.
Q4: Do you offer OEM/ODM customization services?
Yes. We can adjust frequency bands, power levels, interfaces, or protection logic to meet your specific requirements. Contact our sales team for a customized solution.
Q5: What is the MTBF (Mean Time Between Failures) of the module?
Under rated conditions, MTBF exceeds 50,000 hours, meeting industrial-grade equipment reliability standards.
800-900 MHz digital power amplifier with short-circuit protection
Industrial-grade RF PA module for drone defense applications
High-Efficiency GaN Amplifier for Spectrum Monitoring Equipment
Compact N-female connector RF module for embedded UAV countermeasure systems
