Backpack-mounted 8-channel 50W UAV Countermeasure System BCSK-BB08-5 with 360° Omnidirectional Coverage and 500-2000m Effective Range | Single-Soldier High-Power Low-Altitude Defense and Strike System
This backpack-mounted UAV countermeasure device features an 8-channel 50W industrial-grade metal enclosure with 8 independent 50W interference channels. It covers critical bands including 400-470MHz, 840-930MHz, 1160-1280MHz, 1550-1620MHz, 2380-2500MHz, 5150-5300MHz, and 5720-5850MHz, delivering powerful suppression against consumer and commercial drones. Equipped with a 360° omnidirectional fiberglass antenna for circular signal radiation, it requires no manual orientation adjustment—ideal for open areas or mobile patrols. The compact design measures 480x360x140mm and weighs 18.5kg. Powered by DC28V/20000mAh batteries, it offers extended runtime and is the ideal solution for building a mobile, high-power low-altitude defense system.
In Stock（500）
Backpack-styleDrone Countermeasure Equipment8-channel 50W BCSK-BB08-5 Model 360° Omnidirectional Coverage, Effective Range 500-2000m, Single-Operator High-Power Low-Altitude Defense System
Product Overview
This portable high-power device is designed to counter complex low-altitude threats.Drone Countermeasure SystemIts core advantage lies in the eight independent 50W amplifier modules and 360°All
To AntennaCombined, it enables comprehensive suppression of drones within a 2-km radius without relying on an external power source. The metal enclosure enhances heat dissipation efficiency and
durability, making it suitable for deployment in high-risk areas such as border zones, secure facilities, and large-scale events.
Key Features

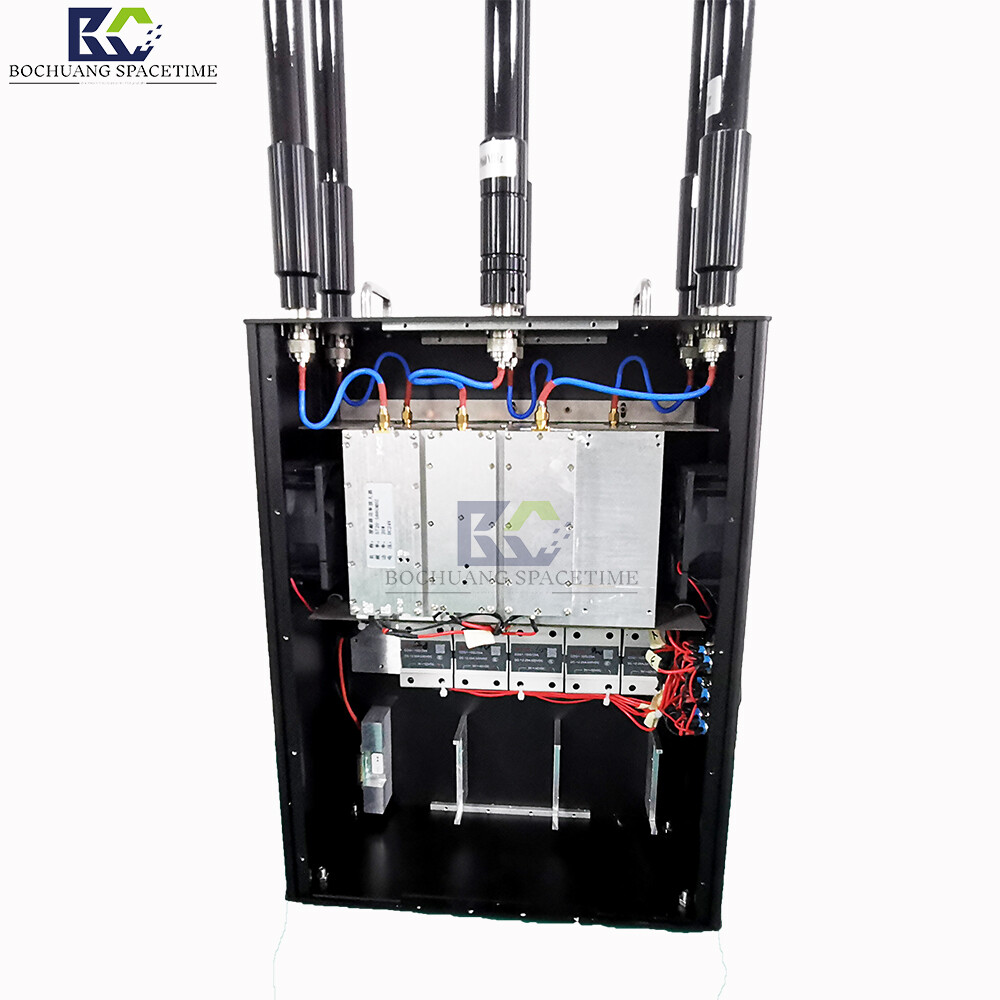

8-channel 50W high-power outputEach independent amplifier module delivers a stable 50W output, with a total power of 400W, effectively suppressing drones operating at long distances or equipped with high anti-interference capabilities.

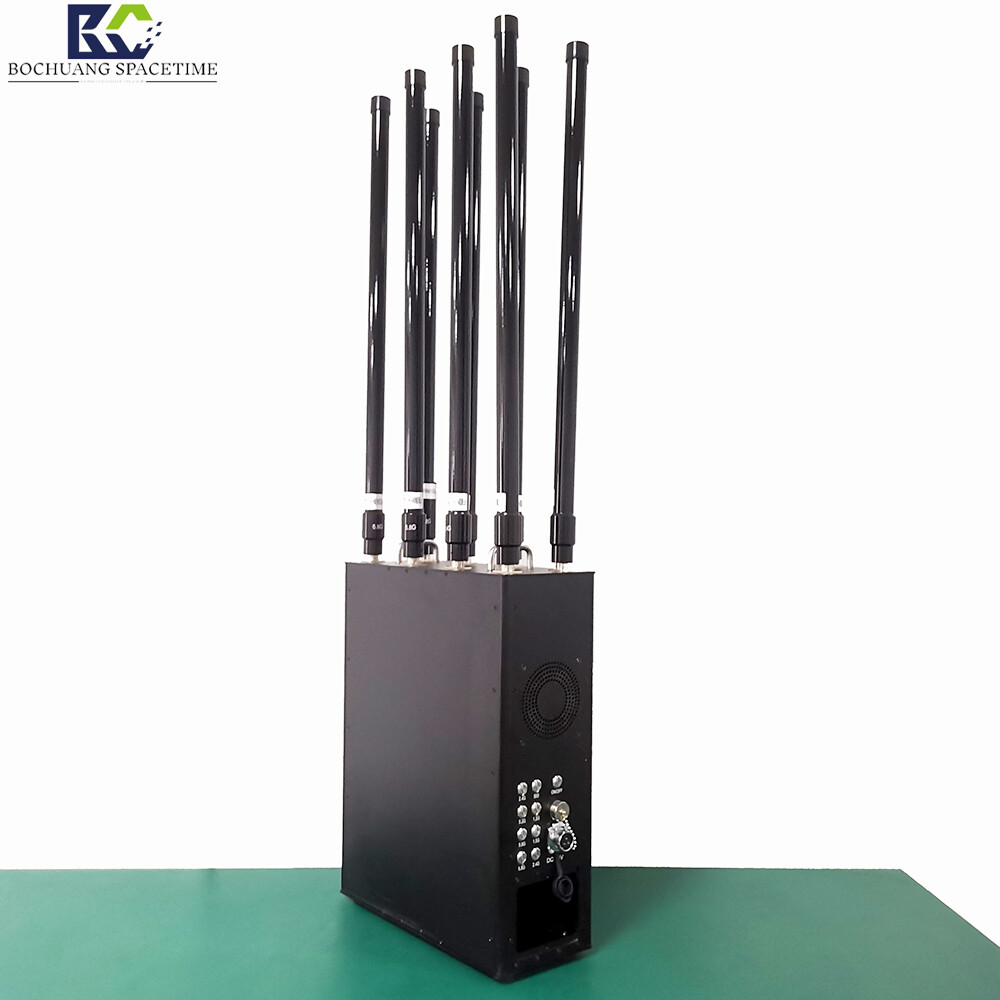

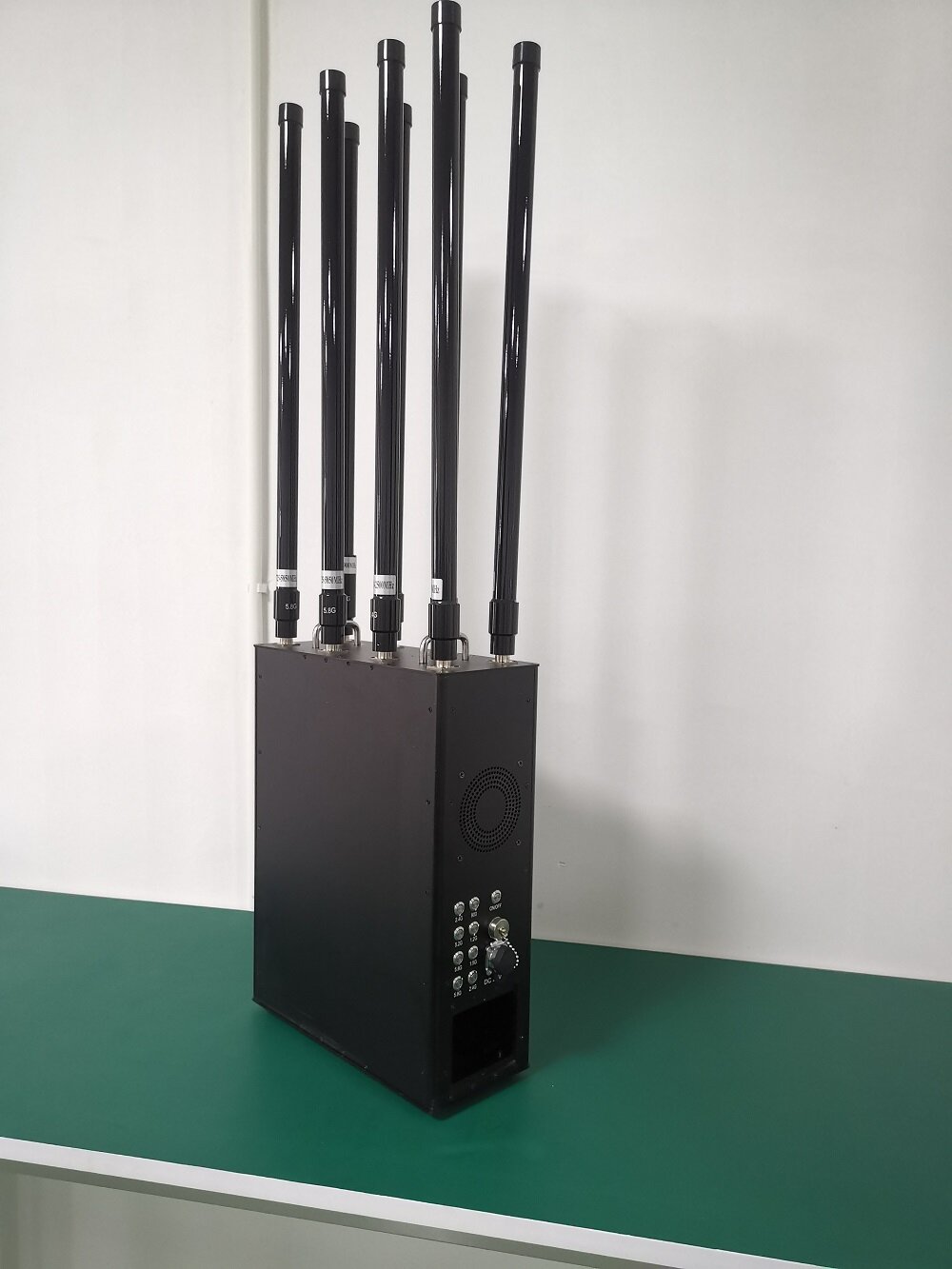

360° omnidirectional coverageEquipped with a high-gain fiberglass antenna for omnidirectional signal coverage. No manual alignment required, enhancing response speed and operational efficiency.
Wideband coverage: Covers 8 critical frequency bands from 400MHz to 5.8GHz, including remote control links, video transmission, and GPS navigation, ensuring full coverage for mainstream drone models.
Face press.
Long-range battery system: Built-in 20000mAh large capacityLithium-ion batterySupports DC28V input for continuous operation over several hours, meeting high-intensity task requirements.
Compact and portable designDimensions: 480x60x40mm, Weight: 18.5kg. Easily stowed in tactical backpacks or vehicle gear for rapid deployment and retrieval.
Parameter Table
Parameter Item | Specification Values |
|---|---|
Countermeasure frequency band | 400-470MHz, 840-930MHz, 1160-1280MHz, 1550-1620MHz, 2380-2500MHz, 5150-5300MHz, 5720-5850MHz |
Single-channel power | 50W |
Counter distance | 500-2000m |
Antenna Type | 360° fiberglassOmnidirectional Antenna |
Power port | DC28V/20000mAh |
Size | 480 × 360 × 140 mm |
Weight | 18.5kg |
Q&A
Q: Does this device support jamming multiple drones simultaneously?

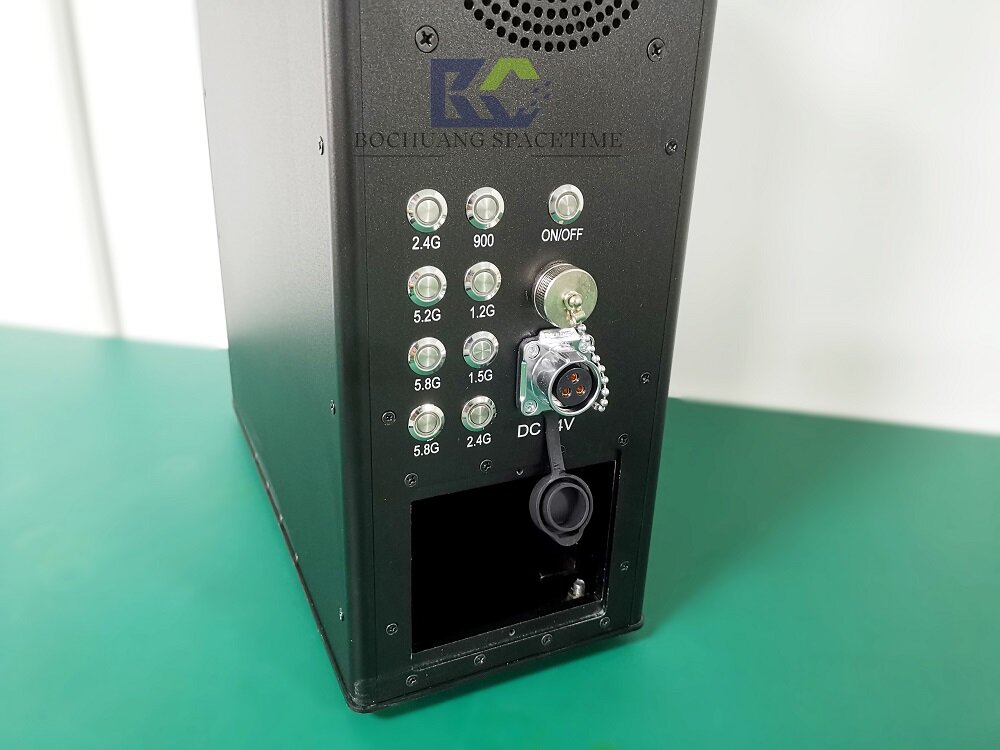

Yes. The device features 8 independent jamming channels, each with individual on/off control. It can simultaneously suppress multiple drone targets across different frequency bands, making it ideal for emergency
For multi-aircraft cooperative attacks or swarm flight scenarios.
Q: Will the 50W power output cause interference to nearby legally compliant communication devices?
A: The device employs directional frequency jamming to target specific drone communication bands, minimizing impact on non-target frequencies. However, in dense urban areas,
Coordinate precise operations with spectrum monitoring equipment.
Q: How long does the battery last?
On a full charge, the device operates continuously for approximately 1-3 hours (depending on ambient temperature and usage duration). It also supports an external DC28V power source to extend runtime.
Q: Is it suitable for in-vehicle deployment?
Yes. The device is compact and lightweight, mountable in the rear seat or trunk. It supports continuous power via a vehicle adapter, making it ideal for mobile patrols and emergency response.
Deploy urgently.
