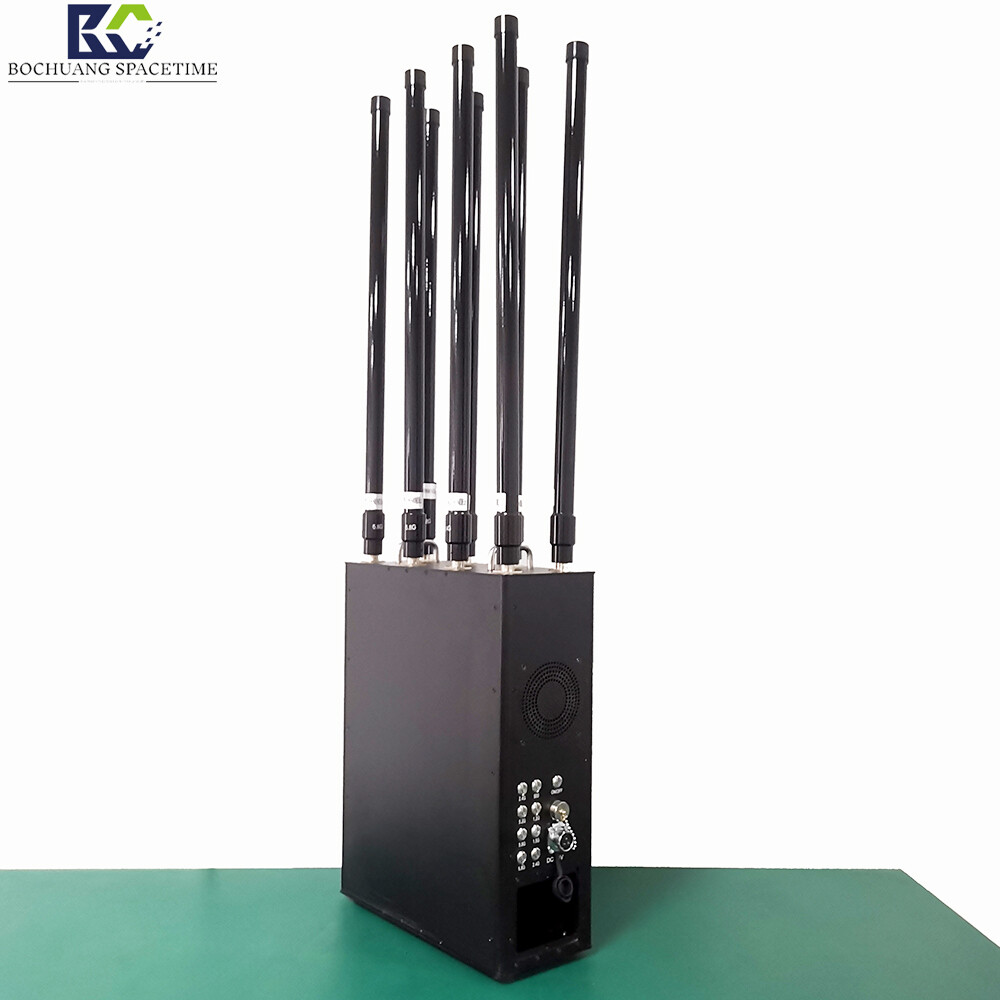

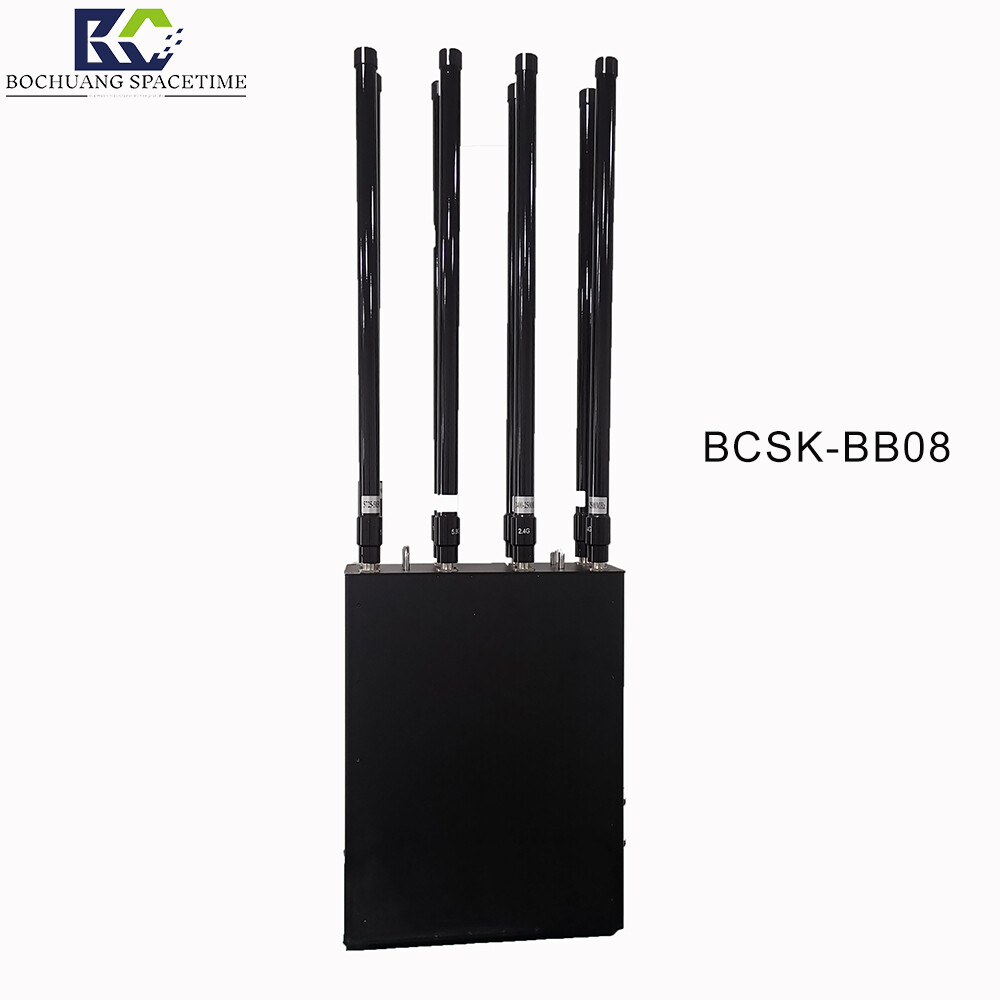

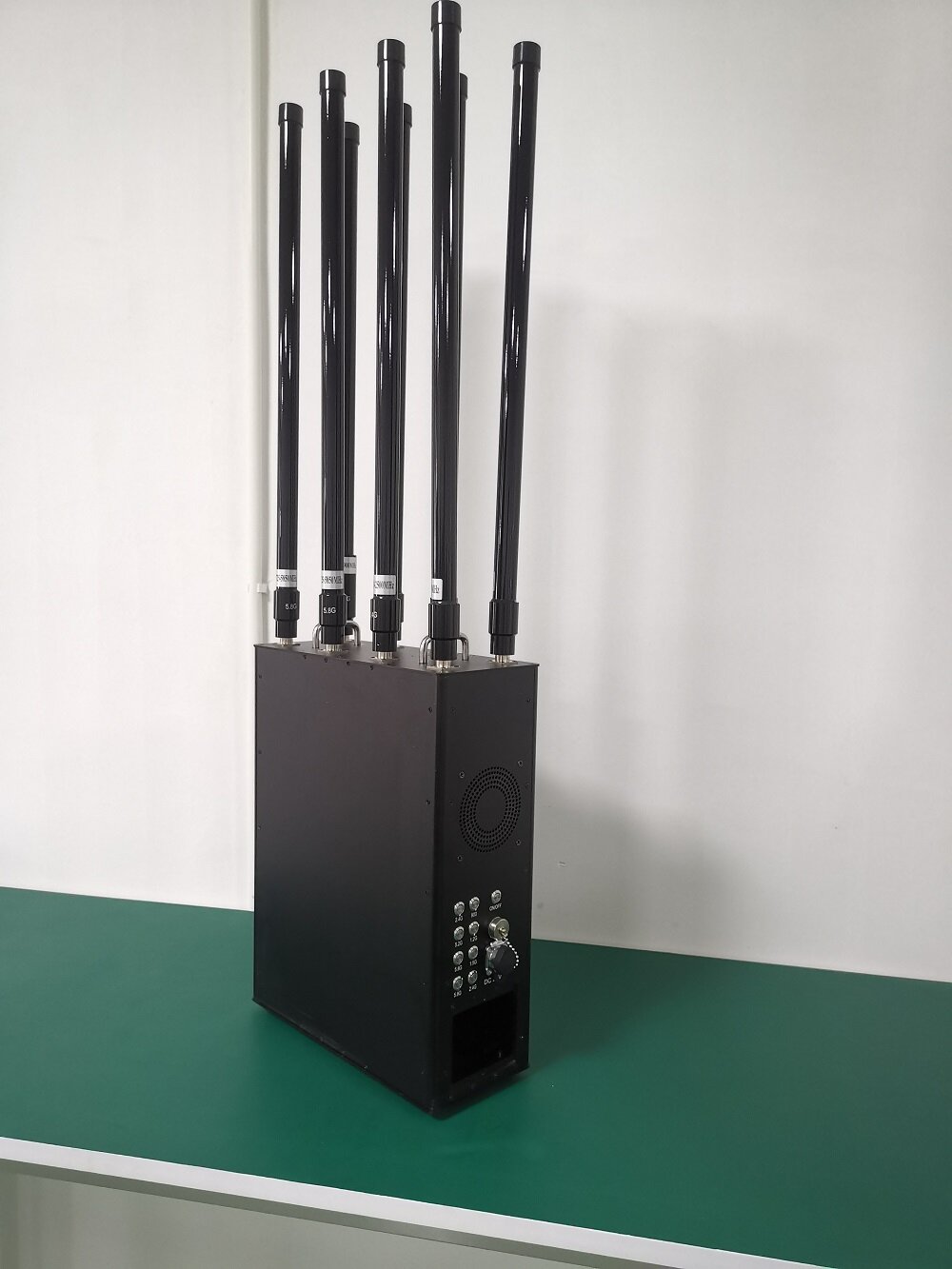

Bochuang Space-Time BSK-BB08 8 Band Drone Defense and Strike System 50W High-Power Portable Single-Soldier Anti-Drone Jammer, Effective Range 1000-2000 Meters
This 8 band UAV defense and strike system features a rugged metal enclosure and four high-gain fiberglass omnidirectional antennas. It covers mainstream UAV communication bands: 400-470 MHz, 840-930 MHz, 1160-1280 MHz, 1550-1620 MHz, 2380-2500 MHz, 5150-5300 MHz, and 5720-5850 MHz. Each band delivers up to 50W of output power, with an effective range of 500 to 2000 meters. Equipped with an integrated DC28V/20000mAh high-capacity battery, it supports extended field operations. The unit measures 480×360×140 mm and weighs 18.5kg, enabling easy single-person carry or vehicle deployment. By precisely jamming critical links such as remote control, video transmission, and navigation, the system achieves non-kinetic interception—making it a reliable choice for low-altitude security.
In Stock（200）
This device isBosun Space BSKS-BB8 BackpackDrone Countermeasure SystemDesigned for single-soldier mobility and rapid deployment, suitable for airports, prisons, and large-scale live events.
Security scenarios for venues requiring temporary or permanent no-fly zones. Its core advantages lie in multi-band coverage and high-power output, effectively addressing current mainstream consumer-grade and...
Some industrial-grade drones use directional or omnidirectional jamming signals to force unauthorized drones to land, return home, or lose control, ensuring airspace safety.
Key Features
Seamless full-band coverage: Precisely covers 8 key frequency bands within the 400-5880 MHz range, including common 433MHz, 900MHz, 1.2GHz, and 1.5GHz.
2.4GHz and 5.8GHz, effectively handling consumer and industrial drones.
High-power precision suppression: Each frequency band is equipped with an independent 5W power amplification module, ensuring rapid drone neutralization within an effective range of 500-2000 meters.
Control signal and video transmission link.
High-Gain Omnidirectional Antenna: Top configuration with four sets of 360°Fiberglass Omni-directional AntennaDelivers seamless, 360-degree signal coverage without frequent device reorientation, significantly reducing the burden on individual operators.
Difficulty.
High-mobility design: Compact overall dimensions (480×360×140 mm) and weight of only 18.5kg, balancing high power output with single-operator portability for rapid deployment.
For military deployment and mobile patrol control.
Independent battery powerBuilt-in 20000mAh high-capacity battery eliminates reliance on external power, ensuring operation in remote areas, on vehicle roofs, or at temporary checkpoints where no power is available.
Continue executing countermeasures.
Technical Specifications Table
Parameter Item | Specification Value |
|---|---|
Model | BCSK-BB08 |
Countermeasure frequency band | 400-470MHz, 840-930MHz, 1160-1280MHz, 1550-1620MHz, 2380-2500MHz, 5150-5300MHz, 5720-5850MHz |
Output Power | 50W / Band |
Effective Countermeasure Range | 500 - 2000 meters |
Antenna Type | 360° FiberglassOmnidirectional Antenna |
Power Supply | DC28V / 20000mAh Built-in Battery |
Overall Dimensions | 480 × 360 × 140 mm |
Total Weight | 18.5 kg |
Frequently Asked Questions (FAQ)
Q: Can the BCSK-BB08 interfere with drones operating on multiple frequency bands simultaneously?
Yes. The device features 8 independent channels, enabling simultaneous jamming across all frequency bands to effectively counter complex scenarios involving multiple drones of different types intruding at once.
scenery.
Q: Will the device's 50W power output interfere with nearby civilian communications?
A: The device uses directional orOmnidirectional AntennaDesigned with controlled interference range. Under standard operating procedures, it primarily targets the communication link of the target drone, with minimal impact on ground base stations.
Small, but recommended for use within authorized areas and in compliance with local radio regulations.
Q: How long does the battery last?
Built-in 20000mAh battery supports approximately 2-3 hours of continuous operation at full power; runtime extends to 4 in intermittent mode.
Hours of operation, meeting the requirements for most tactical missions.
Q: Does it support external power or vehicle power?
A: Supported. The device comes with built-inBatteryAdditionally, it can be connected to a vehicle power supply or an external regulated power supply via the DC28V interface for continuous long-term deployment.
Q: Is this device suitable for indoor use?
A: Not recommended.Omnidirectional AntennaSignal reflection and standing waves may occur in enclosed spaces, potentially affecting interference performance and increasing power consumption. Recommended for open outdoor or semi-open environments.
Open area.
Q: Is professional training required to operate?
A: Simple and intuitive to operate; it starts working automatically upon power-on. However, for safe and compliant use, we recommend that operators receive training in basic radio knowledge and countermeasure strategies.
Avoid accidental damage to legal aircraft or violations of regulations.
