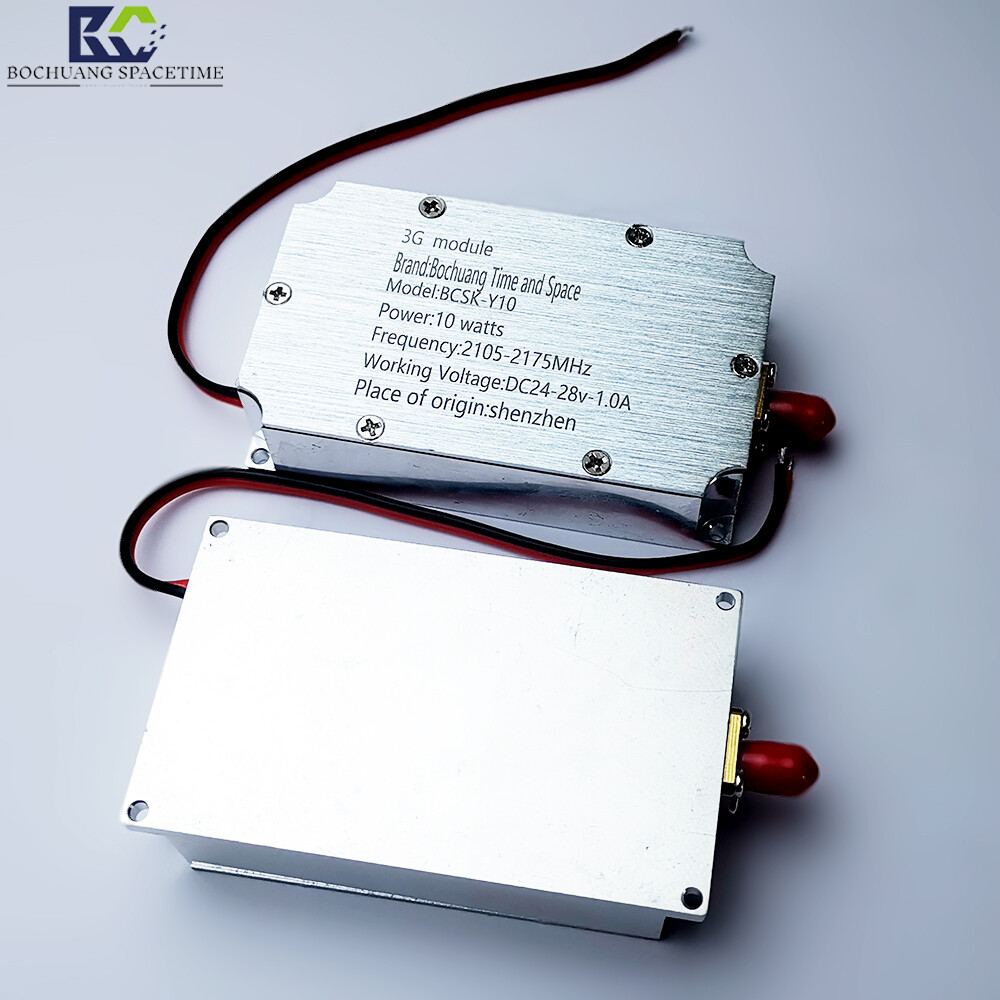

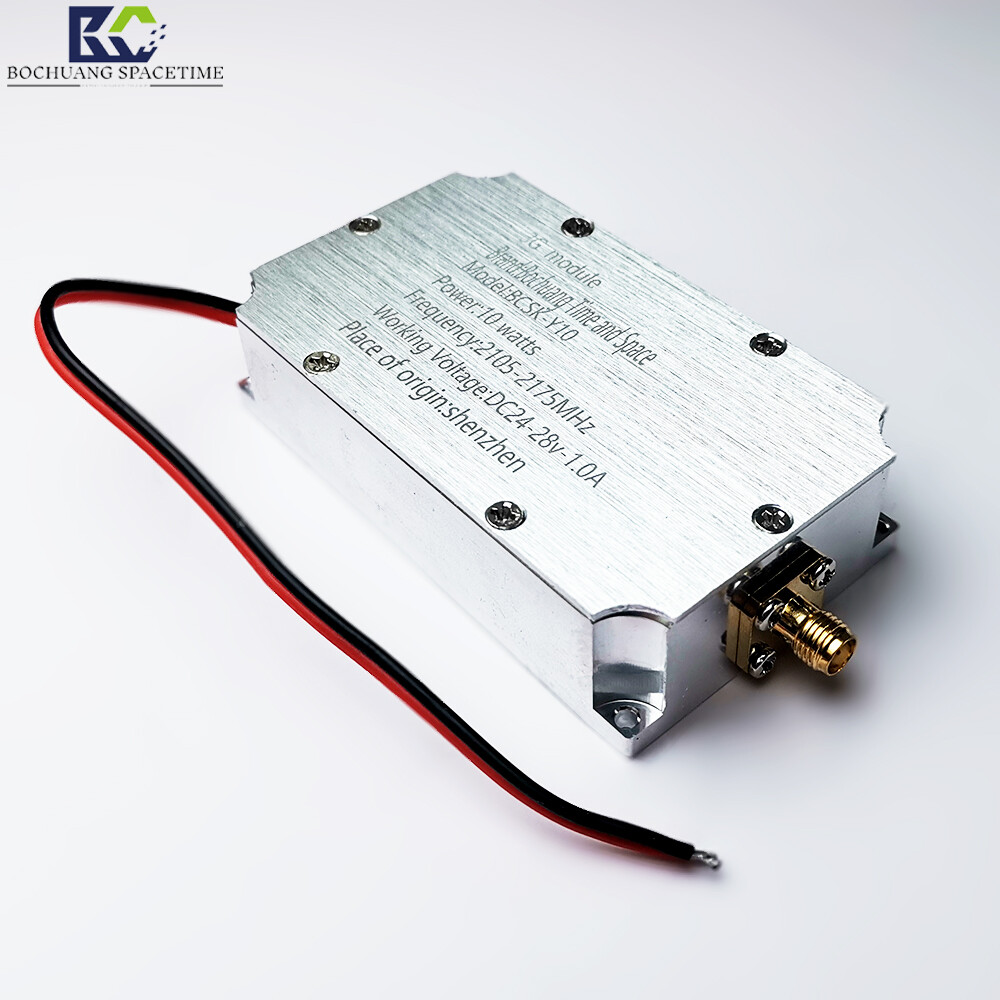

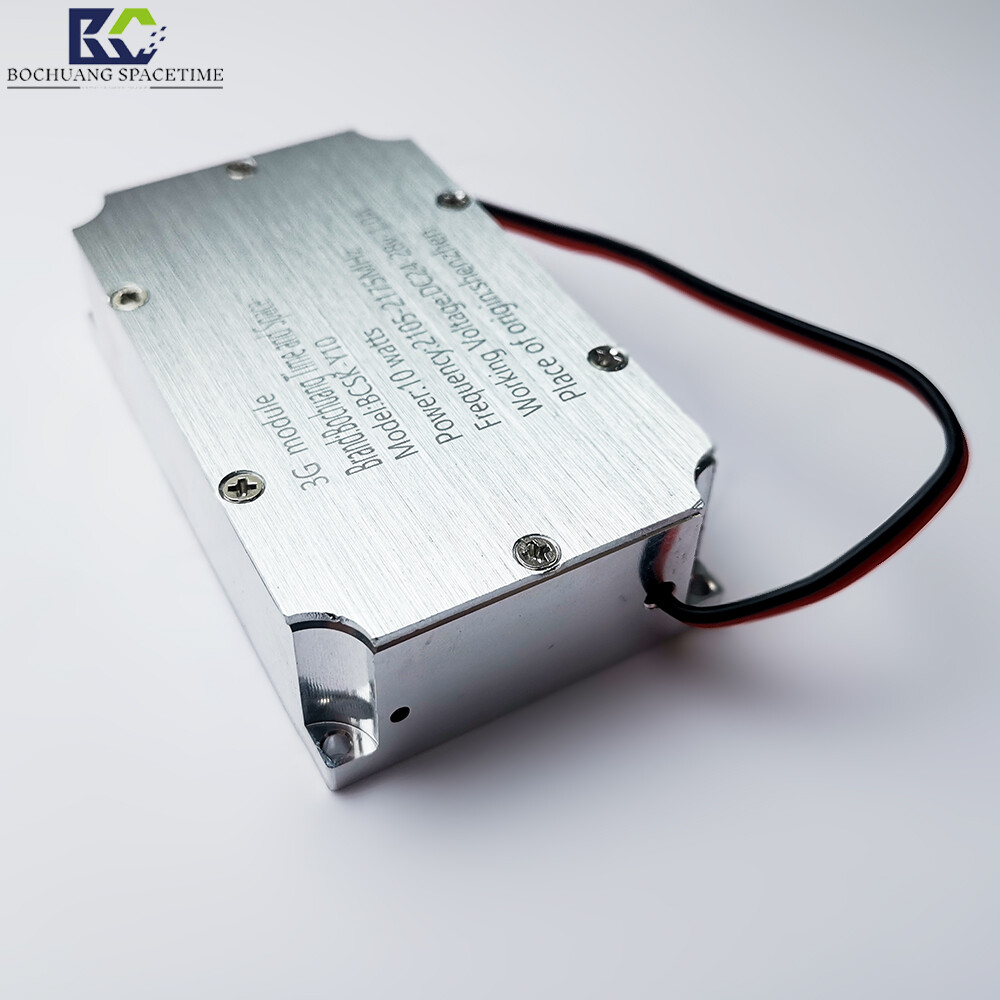

BCSK-3G10 3GHz Power Amplifier Module 10W RF Amplifier for Mobile Jamming
The BCSK-3G10 3GHz Power Amplifier Module features a high-stability RF circuit design, precisely covering 2.5GHz, 2.6GHz, 3G, and 4G bands. It delivers up to 10 watts of output power to effectively amplify or jam wireless signals within these frequencies. The module supports wide-voltage DC input from 4V to 28V, ensuring compatibility with various power systems. Built-in overcurrent and overheating protection guarantees long-term stable operation. Its compact metal enclosure enables easy embedded installation, making it ideal for UAV jamming devices, wireless communication repeaters, and spectrum monitoring systems—a key component for extending system range and signal strength.
In Stock（500）
Product Overview
TheBCSK-SJ3G10 Model3G Power Amplifier ModuleFeatures a high-stability RF circuit design, precisely covering the 2110-2175 MHz band with up to 10 watts of output power.
Effectively amplifies or suppresses radio signals within this frequency band. The module supports a wide input voltage range of DC 24-28V, compatible with various power systems, and includes over-current and over-temperature protection mechanisms to ensure
Ensures long-term stable operation. Its compact metal housing facilitates embedded installation, making it widely used in drone jamming systems, wireless communication repeaters, and spectrum monitoring systems.
Scenarios are key components for enhancing system range and signal strength.
Key Features
Precise Frequency CoverageOptimized for the 2110-2175 MHz band to ensure maximum power transfer and minimum VSWR within this range.
1 0W High-Power Output: Features robust power drive capability to effectively minimize signal non-linear distortion, ensuring high purity of jamming or communication signals.
Industrial-grade wide-voltage power supplySupports wide-range DC input from 24V to 28V. Built-in voltage regulation and filtering circuits ensure reliable operation in harsh power environments with significant voltage fluctuations, such as those found in vehicles and ships.
High-reliability protection design: Integrates overvoltage, overcurrent, and overtemperature protection. Automatically reduces power or shuts down when load mismatch or excessive temperature occurs to prevent module damage.
Compact, easy-to-integrate package: Standardized dimensions 80×47×20 mm with SMA/N-typeRF interfaceFits bottom mounting holes for easy installation in various chassis or PCB systems.
Parameter Table
Parameter Item | Specification Values |
|---|---|
Product Model | BCSK-SJ3G10 |
Operating Frequency Band | 2110-2175 MHz |
Saturation Output Power | ≥ 10W (40 dBm) |
Supply Voltage | DC 24V - 28VIndustrial Power Supply |
Operating Current | ≤ 1A |
RF interface | SMA connector /N-type connector（AdapterOptional |
Input/Output Impedance | 50Ω |
Operating Temperature | -40℃ ~ +85℃ |
Casing Material | Aluminum Alloy (Surface Oxidized / Nickel Plated) |
Size | 80 × 47 × 20 mm |
Q&A
Q: Can this 2.1G power amplifier module be used for the 5G n78 band?
Answer: The BCSK-SJ3G10 is optimized for the 2110-2175 MHz band and is not suitable for the 5G n78 (3.5GHz) band. To cover 3.5GHz, we recommend selecting a solution specifically designed for that band.
Dedicated to the frequency band5G Module。
Does the module require additional cooling during continuous operation?
A: The module uses an aluminum alloy enclosure as a heat sink and operates stably under normal short-duration test conditions. If used in enclosed spaces or high-temperature environments, additional cooling is recommended.
Serrated Heat SinkAssisted cooling with a fan.
Does this module support pulse modulation signals?
Yes, supported.ModuleSupports continuous wave (CW) and common pulse-modulated signals for complex waveform scenarios such as radar and electronic warfare.
