BCSK-CZTXFDQ Vehicle Antenna Electric Folding System | Remote-Controlled Foldable Lift Bracket 12V/24V Universal Fit for Off-Road RVs, Communication Vehicles, and Height-Limited Protection
Bochuang Shikong's BCSK-CZTXFDQ Vehicle Antenna Tilt System is an intelligent antenna management device that combines electric control with waterproof and shockproof protection. Designed to solve common challenges like antenna breakage during travel and clearance restrictions when entering garages, this unit features a high-strength motor drive system paired with a wireless remote, allowing easy raise/lower operation from the driver's seat. Its core advantage lies in exceptional adaptability: it supports DC 8V-14V wide-voltage input, perfectly compatible with cigarette lighter ports or battery power in sedans, trucks, and RVs. The 4.5-meter extended cable eliminates installation constraints near the antenna base. An IP65 waterproof and dustproof housing withstands heavy rain and off-road vibrations. Whether you need to clear a 2.2-meter underground garage height restriction or protect expensive shortwave/satellite antennas from wind damage at high speeds, this tilt system offers the most cost-effective solution. It works seamlessly with whip antennas, fiberglass antennas, and various vehicle radio antenna systems.
In Stock (200units
Bochuang Spacetime (BOCHUANG SPACETIME) BSKS-CZTXFDQ — Intelligent Vehicle-Mounted Antenna Electric Tilt Actuator: The "Invisible Shield" for Off-Road and Communication Vehicles
Product Details
For users driving off-road vehicles, RVs, or specialized communication trucks, tall vehicle antennas ensure long-range connectivity but become a nightmare for daily navigation. Can't
underground garages, high aerodynamic drag on highways, and elevated risk of branch scratches...BCSK-CZTXFDQ Vehicle-Mounted AntennaElectric Pitch ControllerBuilt to solve these pain points.
It's more than a mount—it's the intelligent antenna management system for your vehicle.

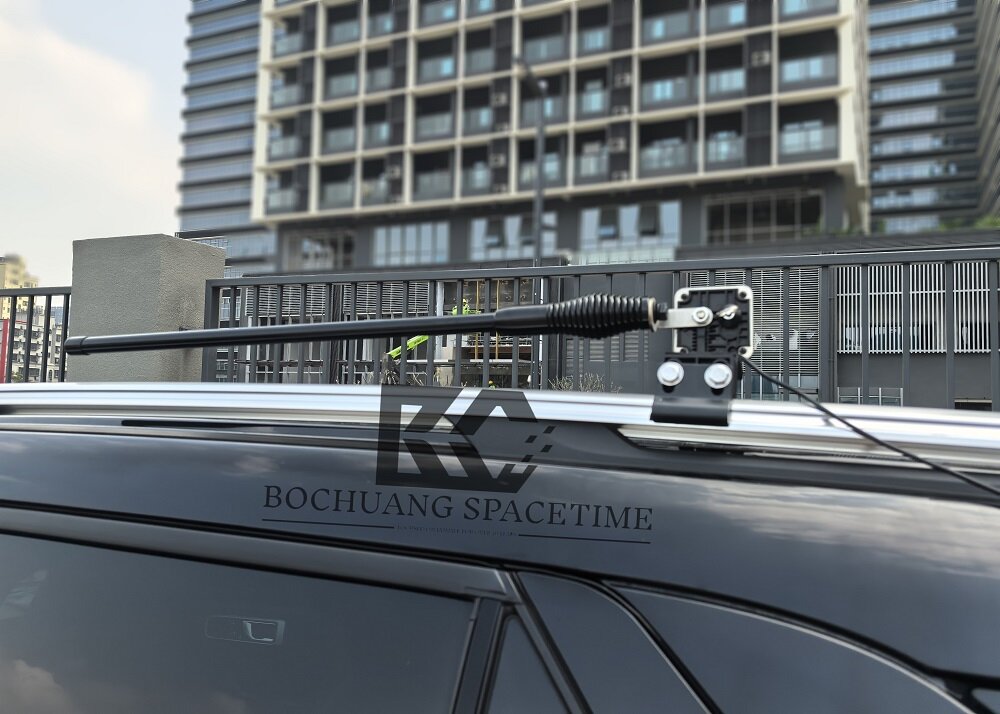

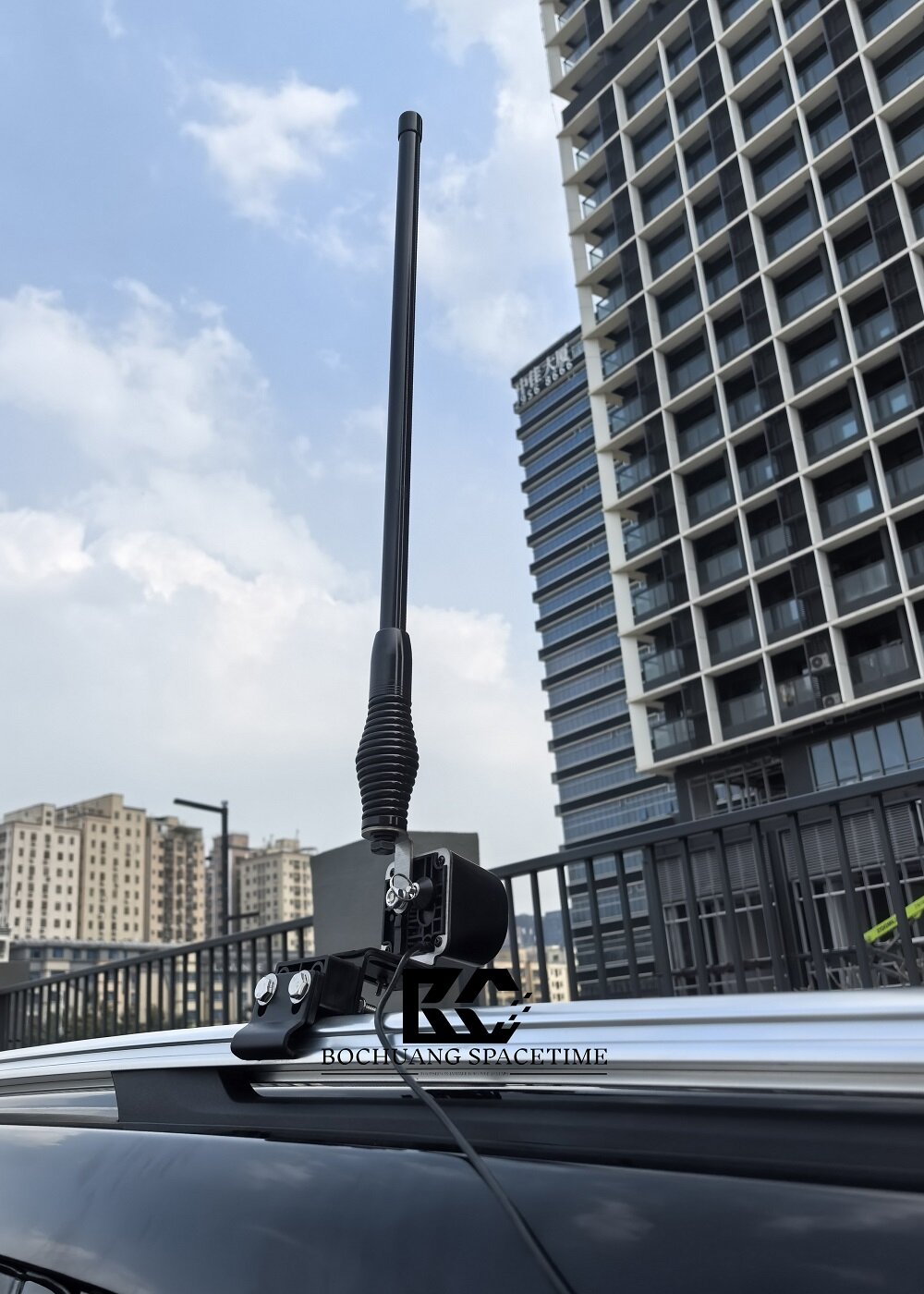

With the included wireless remote, operate from the driver's seat with a single button press to smoothly transition the antenna from "combat mode" (vertical 90°) to "stowed mode" in seconds.
(Horizontal 0°). No need to exit the vehicle for manual disassembly—elegant and safe. Its robust mechanical locking system ensures the antenna remains rock-solid during high-speed driving or rugged off-road conditions.
Never wobbles.
Core Advantages & Technical Highlights:
Wireless remote control for effortless command:
Say goodbye to tedious manual assembly. Equipped with a high-sensitivity digital remote control for effective operation at distances over 20 meters—whether you're relaxing inside the vehicle or directing from outside.
One-touch automatic antenna deployment and retraction. Ideal for single-operator scenarios, significantly enhancing usability.
Powerful Motor and Secure Locking:
Powered by a high-quality DC motor for high torque, smooth operation, and quiet performance. Its unique self-locking mechanism ensures the antenna remains securely in position once it reaches the target angle.
Securely locks in place once angled. Even when driving on rough, unpaved roads or encountering strong crosswinds, the antenna remains stable with no displacement or vibration, ensuring consistent communication signal quality.
Stable pointing.
Wide Voltage Compatibility & Extra-Long Cable
Strong Voltage Compatibility:SupportedDC12V-24VWide voltage input: perfectly compatible with standard 12V car/SUV cigarette lighter sockets and also supports certain 24V trucks.
Vehicle system voltage fluctuation range (recommended to use with a voltage regulator module, or connect directly to a 12V battery).
Flexible installation:Standard4.5 metersExtended power and control cables allow you to mount the host unit on your roof rack, trunk lid, or even near the bumper.
Compact design allows the controller to be placed anywhere within easy reach of the driver, eliminating wiring constraints.
Industrial-grade protection, built to withstand harsh environments:
The rugged shell combines high-strength ABS engineering plastic with internal metal components, rigorously tested for water and shock resistance. Whether in heavy rain, mud splashes, or extreme conditions...
Works reliably in extreme heat and cold. The most trusted partner for long-distance journeys, desert expeditions, and field operations.
Specifications:
Parameter Item | Detailed Metrics |
|---|---|
Product Model | BCSK-CZTXFDQ |
Product Name | Electric Car Antenna Folding/Tilting Mechanism |
Operating Voltage | DC 8V - 14V (Standard 12V System) |
Remote Control Distance | ≤ 20 m (open area) |
Cable Length | 4.5 meters (power and control cables) |
Material & Craftsmanship | High-strength engineering plastic + metal drive components |
Ingress Protection Rating | IP65 (Water and Dust Resistant) |
Compatible Antennas | Various vehicle whip antennas, fiberglass antennas, and shortwave/UHF antennas |
Installation Method | Universal Base Mount (Requires Antenna Base) |
Why Choose BCSK-CZTXFDQ?
Protect assets:Avoid expensiveCommunication AntennaSnapped while passing under low-clearance barriers, entering garages, or driving through wooded areas.
Reduce wind noise:Retract the antenna during long-distance highway driving to significantly reduce wind resistance and noise, improving fuel efficiency.
Extend Lifespan:Reduce the risk of fatigue fracture at the antenna root caused by long-term wind loading.
Clean and tidy:Retract the antenna when parking, resting, or entering urban areas for a sleeker, more discreet look.

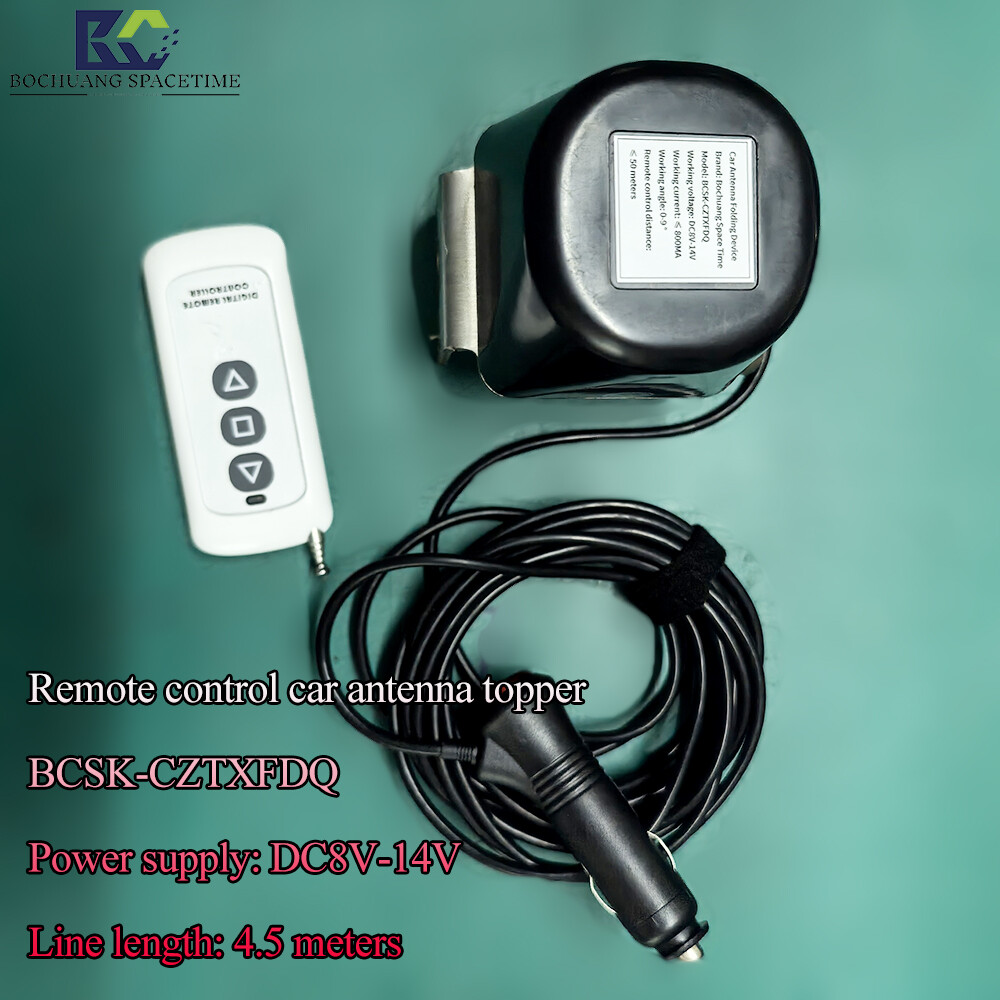

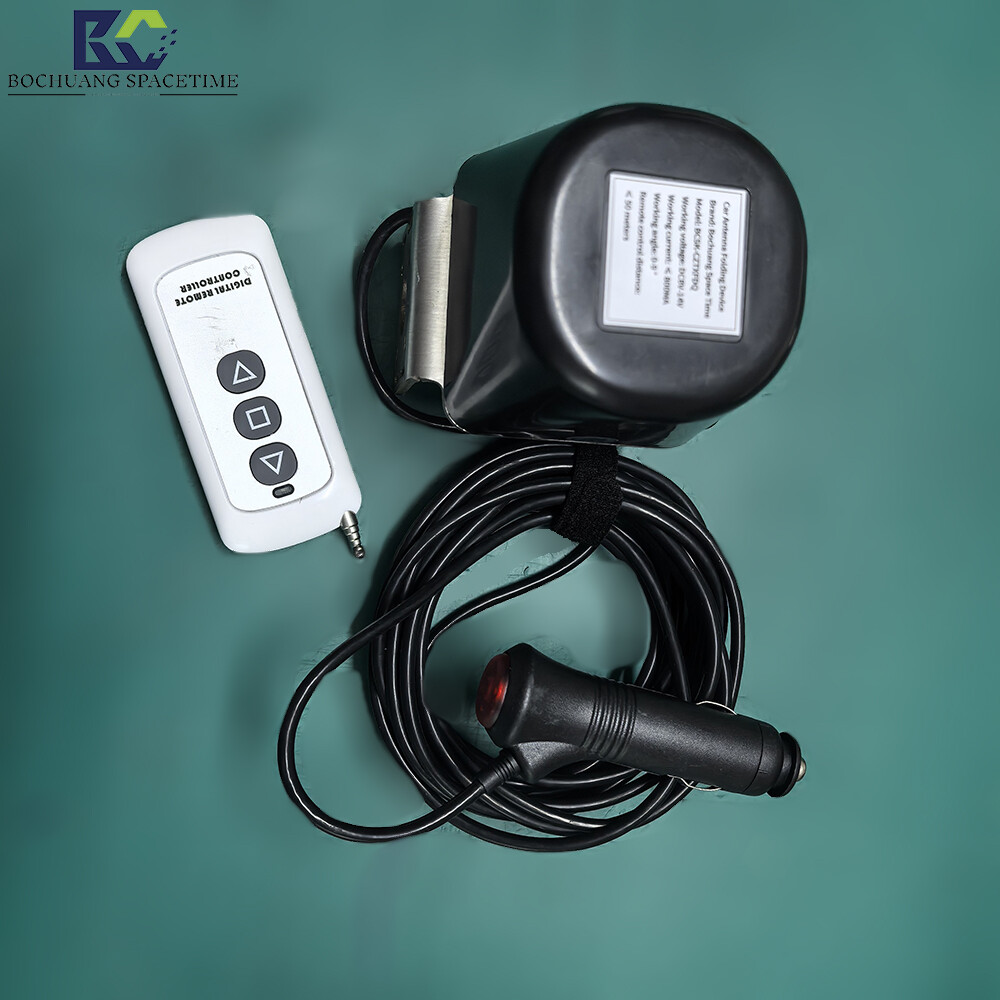

Package Contents:
1x Electric Tilt Head Unit
1x Wireless Digital Remote
1x Car Cigarette Lighter Power Cable (4.5m)
1x Installation Accessory Kit (Screws, etc.)
1x 70CM decorative antenna
