Bochuang Spacetime (BOCHUANG SPACETIME) BCSK-PBTX06 — Tactical 6-Band Handheldpanel antennaCore Components for Full-Spectrum UAV Countermeasures and Electronic Warfare

Product Details

In the field of portable electronic warfare and low-altitude defense, it is often difficult to balance device weight, thermal performance, and frequency coverage. Bochuang Space-Time'sBCSK-PBTX06

Handheld 6-BandAluminum Alloy Flat Panel AntennaDesigned to solve this pain point. It features a rugged industrial-grade aluminum alloy backplate that serves not only as the antenna's radiating ground

Layer, and also an efficient heat sink perfectly matched for high-power handheld jamming devices.

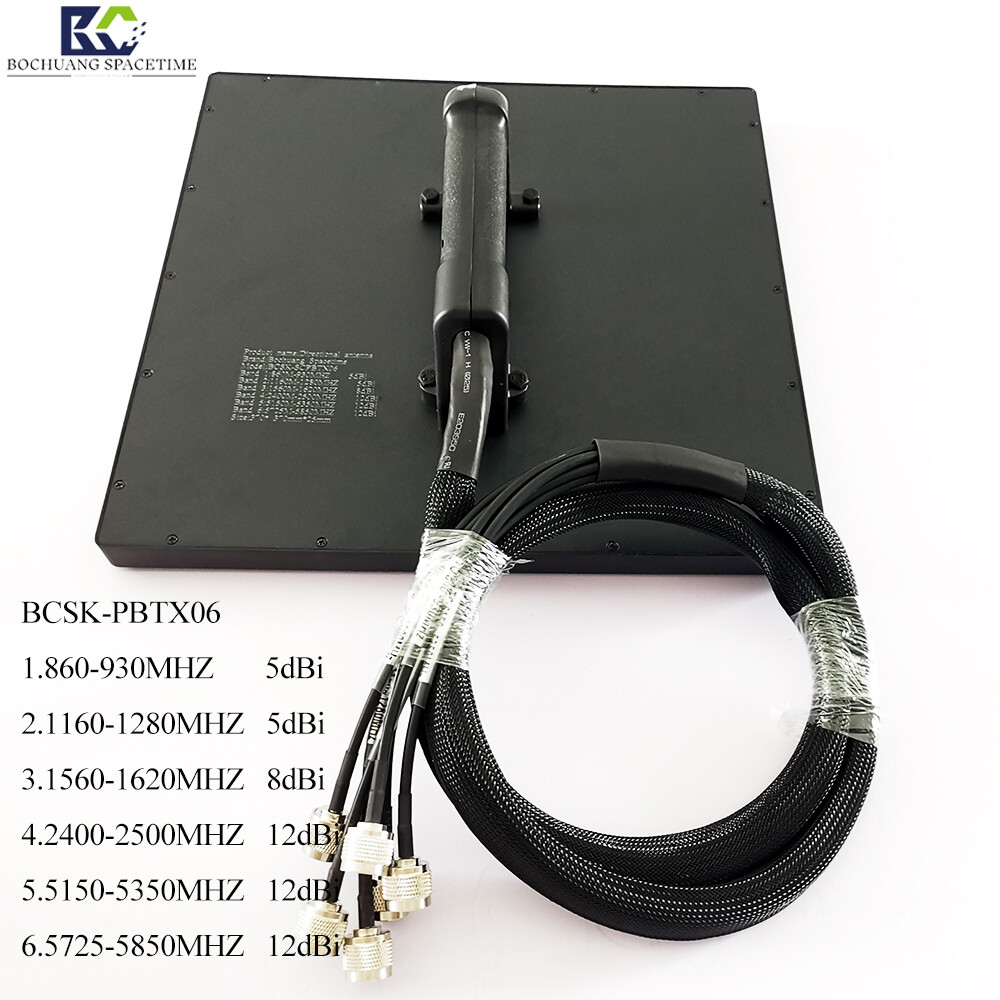

This antenna integrates860-930 MHz (Sub-1G)、1160-1280 MHz (L-Band)、1560-1620MHz (GNSS)、2400-2500 MHz (2.4G ISM)、

5150-5350 MHz (5.2 GHz WiFi)and5725-5850MHz (5.8G FPV)Six critical RF channels. This "full-band" configuration enables simultaneous suppression of civilian

The drone's remote control link, satellite navigation signal, and high-definition video transmission are ideal for security personnel, SWAT teams, and anti-drone system integration.

Core Advantages & Technical Highlights:

• Ergonomic handheld design for flexible tactical deployment:

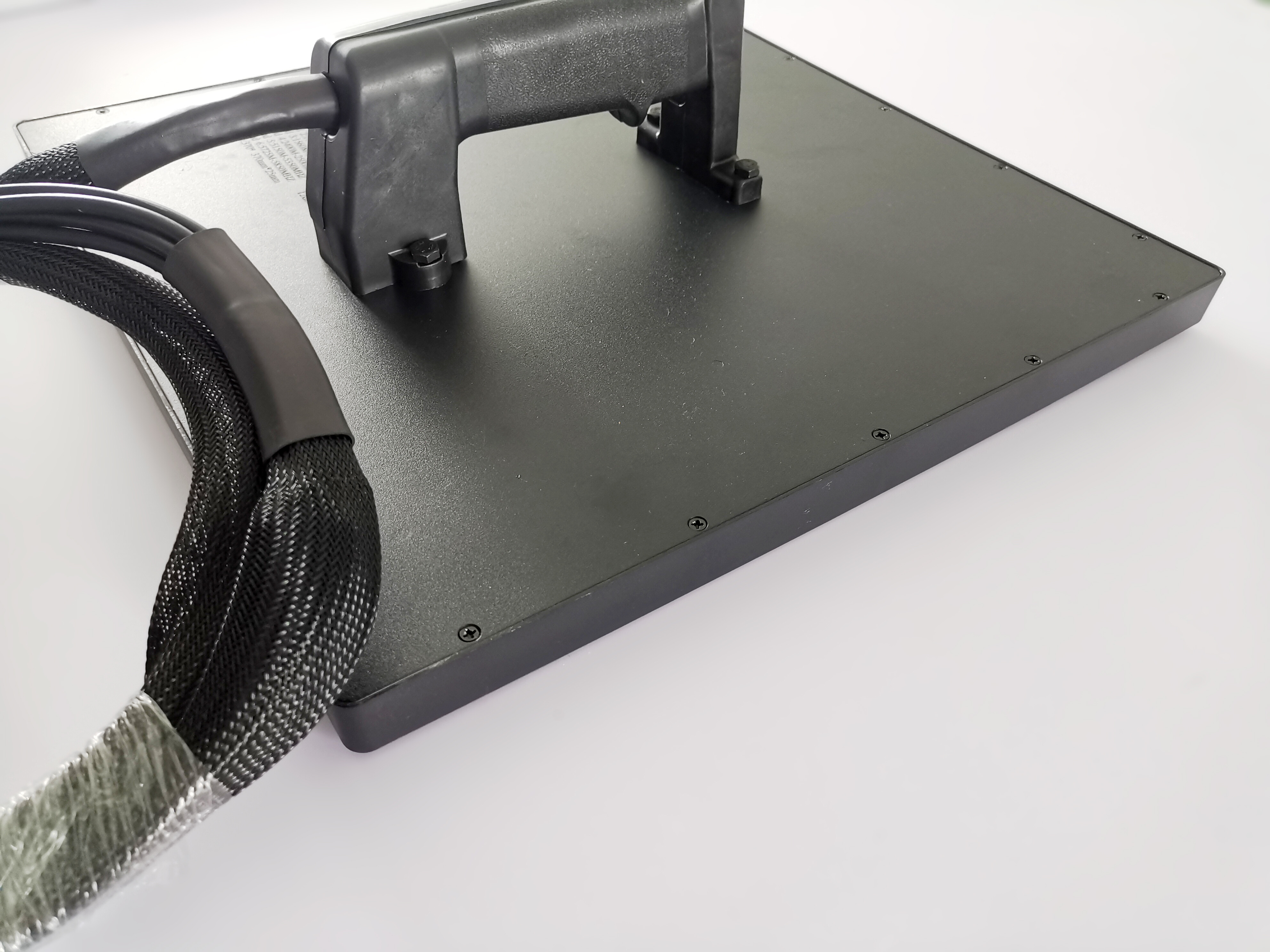

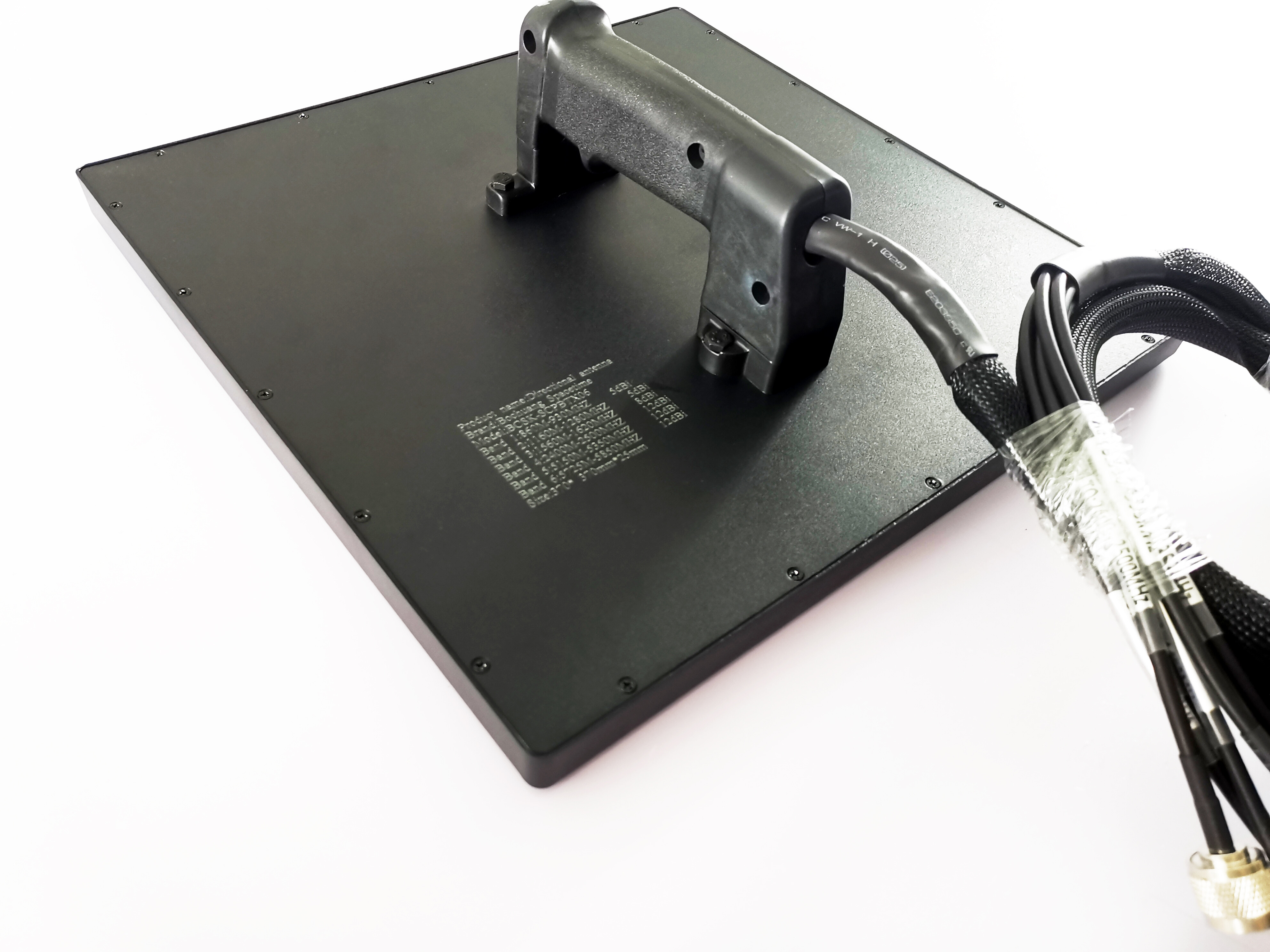

  Equipped with a high-strength engineering plastic handle on the back, designed for an ergonomic grip that reduces fatigue during extended use. This design allows operators to hold it like a "shield."

  Adjust the antenna direction flexibly to precisely target specific directions while blocking rear interference. Ideal for mobile patrols and temporary deployments.

• Six-band full coverage, zero blind-spot suppression:


  Deeply optimized for mainstream and modified drone frequencies currently on the market:

  • 860-930MHz & 1160-1280MHz:Covers long-range industrial drone control links and select military/police communication bands.

  • 1560-1620MHz:Precisely block GPS, GLONASS, Galileo, and other global navigation satellite systems to force drones to hover or return home.

  • 2.4G / 5.2G / 5.8G:Completely block the WiFi control link and high-definition FPV video transmission, instantly blinding the operator.

• Step-up high-gain matching for maximum efficiency:
  Based on the physical principles that higher frequency corresponds to shorter wavelength and higher gain per unit area, this product features a precision microstrip array design:

  • Low Band (900M-1.2G/L-Band) Keep8dBieffective gain for wide-area coverage.

  • High-band (2.4G/5G) achieves up to1 4dBiStrong directional gain with highly concentrated energy significantly boosts the interference power density against distant, small targets.

• Industrial-grade aluminum alloy substrate: superior heat dissipation and protection.


  Compared to traditionalPCB AntennaThe all-aluminum alloy housing offers excellent heat dissipation. When used with high-power jamming modules for continuous operation, it quickly disperses heat into the air.

  , preventing performance degradation or damage to the antenna due to overheating. Additionally, the metal enclosure provides excellent electromagnetic shielding to reduce multipath interference.

• Low-loss feeder with standard interface:

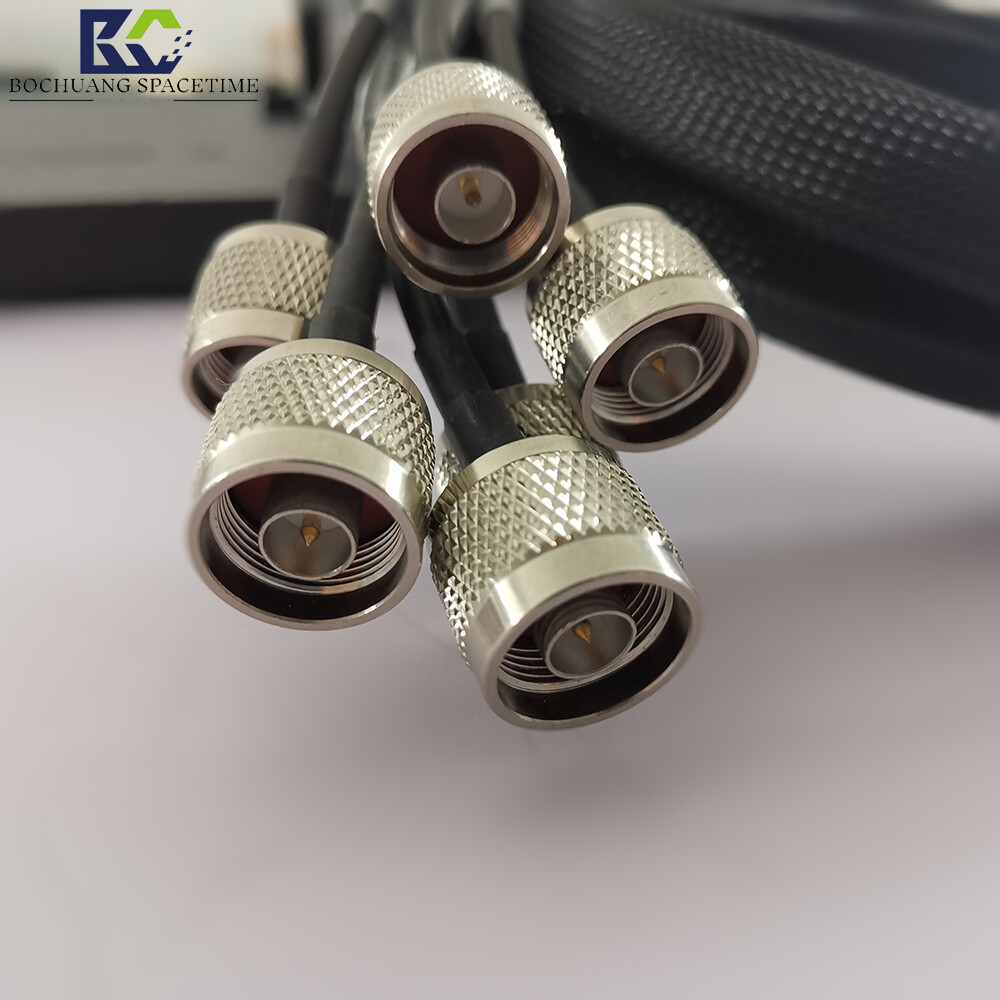

  Equipped with low-loss, thickened RF cables (illustrated as braided shielding) to effectively minimize signal attenuation during transmission. The end features a standard SMA/K connector.

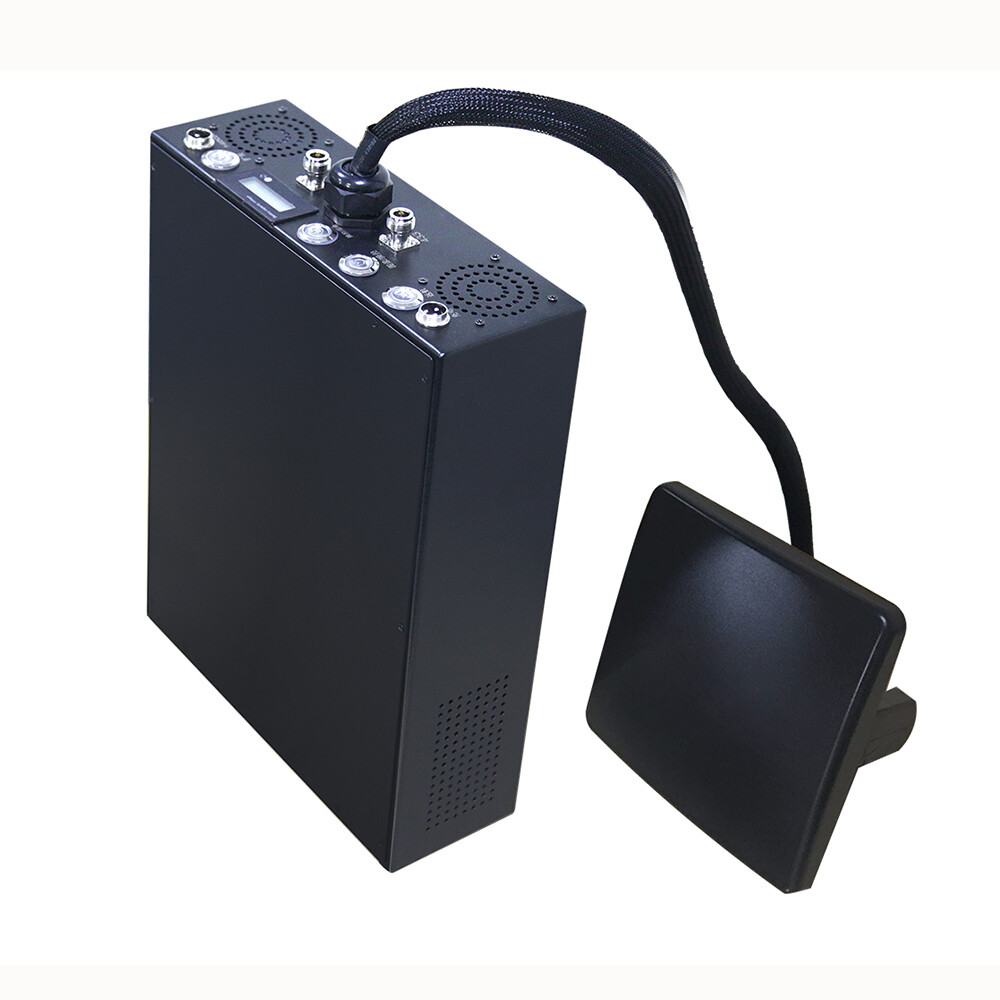

  (Customizable N-Head), compatible with the vast majority of models on the marketBackpack-mounted drone jammerandFixed Interference Source Equipment。

Technical Specifications:

Application Areas:

1. Perimeter Security andAnti-drone System：Low-altitude defense for government agencies, airports, nuclear power plants, prisons, and other critical areas; detects and repels unauthorized reconnaissance or attack drones.

   Drone.

2. Large Event Security:Prevent unauthorized drone photography or the introduction of hazardous items at crowded venues such as sporting events, concerts, and political rallies.

3. Military and Law Enforcement Operations:Special forces use their portability during missions to disrupt enemy drone reconnaissance links or cut off remote control signals for improvised explosive devices (IEDs).

   No.

4. Privacy Protection:Prevent commercial secret leaks and block unauthorized aerial surveillance.

5. Radio Monitoring and Direction Finding:Pair with a spectrum analyzer to quickly locate illegal radio signal sources using its directional characteristics.

Frequently Asked Questions (FAQ):

Q: Can this antenna connect directly to a standard Wi-Fi router to boost signal?

A: No. This is a high-power, wideband unit.Directional Jamming/Defense AntennasAlthough impedance and connectors may match, they were originally designed to handle high power.

Transmits and covers multiple non-communication bands (e.g., GPS). Using it with standard routers is ineffective due to mismatched frequency ranges and high directionality, and may violate wireless regulations.

Electricity Management Regulations.

Q: Is the controller detachable? I want to mount it on the wall.

A: Yes, the controller is typically secured to the aluminum backplate with screws. You can detach the controller and mount it on a tripod or wall bracket using the four corner mounting holes on the backplate.

up, used as a fixed defensive antenna.

Q: Are the interfaces for the six bands separate or combined?

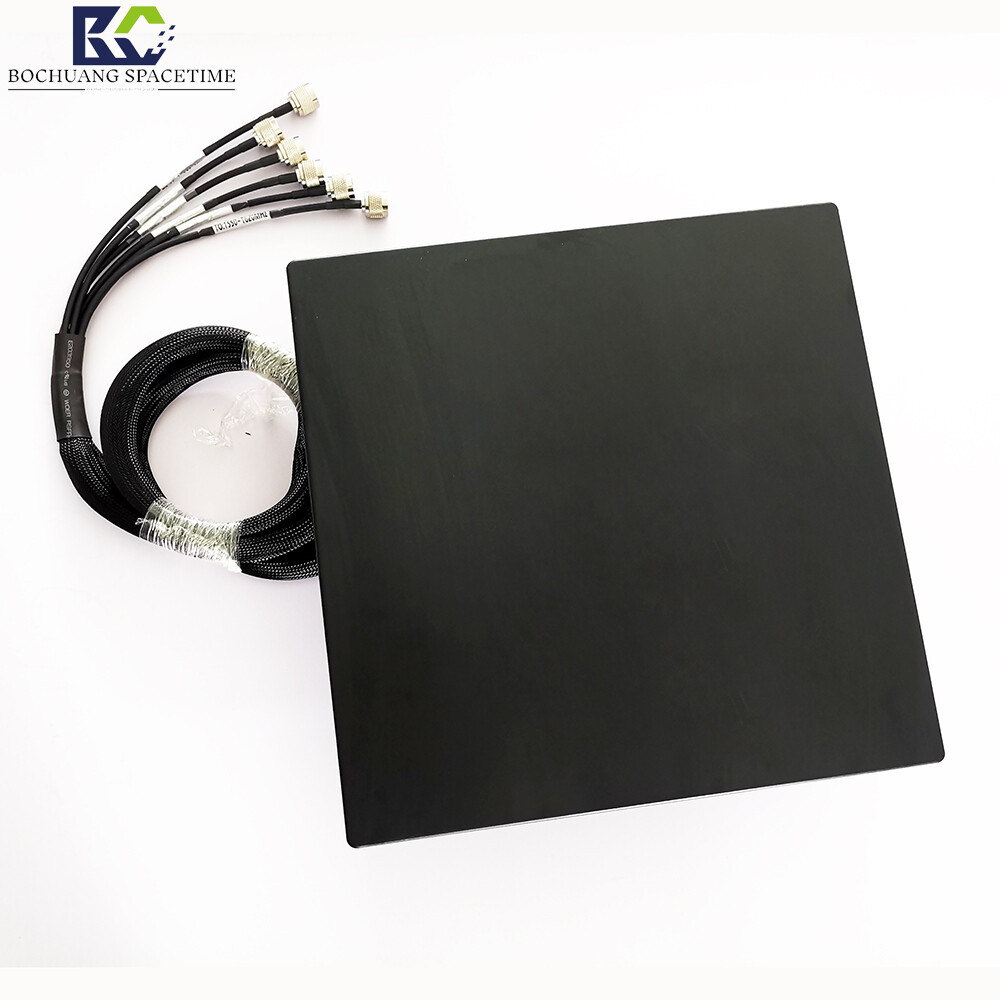

A: To ensure high isolation between frequency bands and prevent intermodulation interference, these six bands typically use independent feedlines for output (as shown in the figure, with 6 connectors at the end). This

means your backend device (such asJammer) also requires 6 corresponding channel interfaces. For single-port input, an additional multiplexer is required.

However, this will increase insertion loss.

Q: What is the lead time for custom orders?

A: For standard products, we typically have them in stock or with very short lead times. If you need to adjust the frequency range (e.g., add 433MHz or 4G bands) or change the interface type

Type, with a typical customization lead time of 7-15 business days, depending on process complexity.

Note: This product is intended solely for authorized institutions to use in lawful radio management, security protection, and scientific research testing. Please comply with local laws and regulations when using it.
