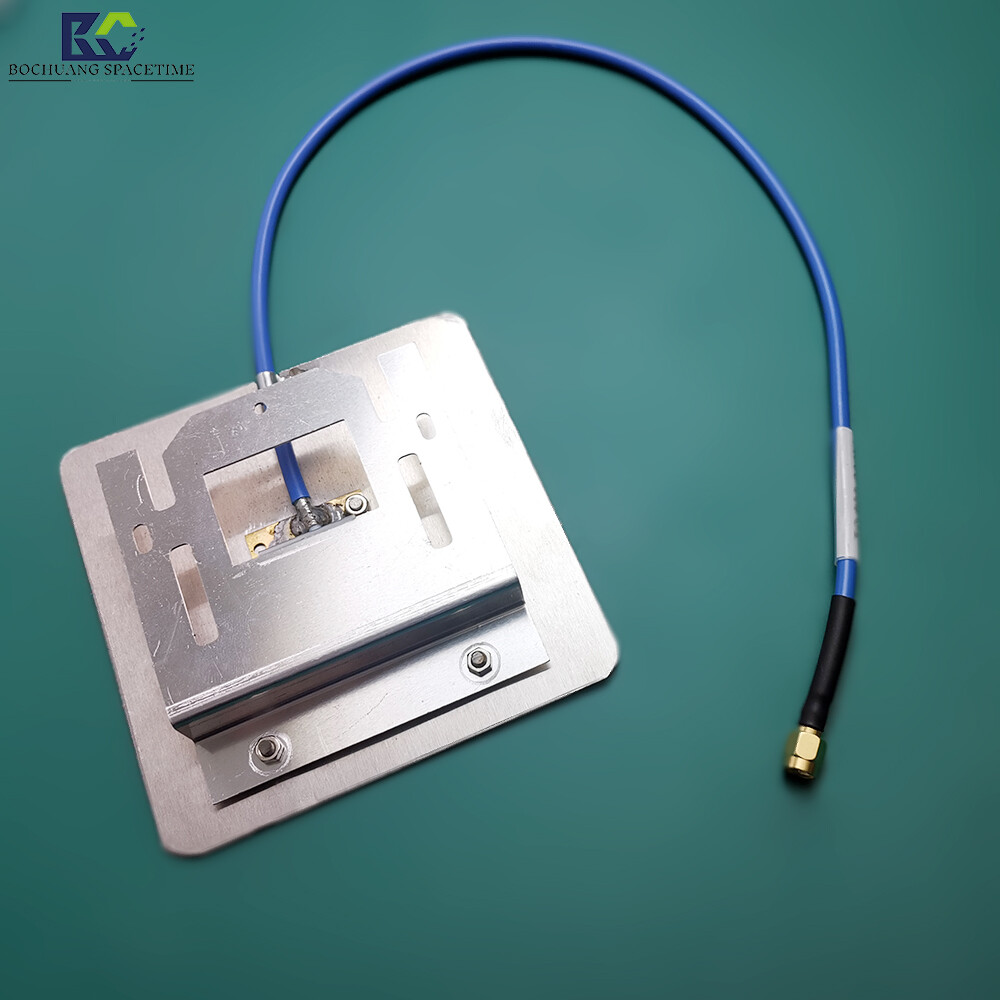

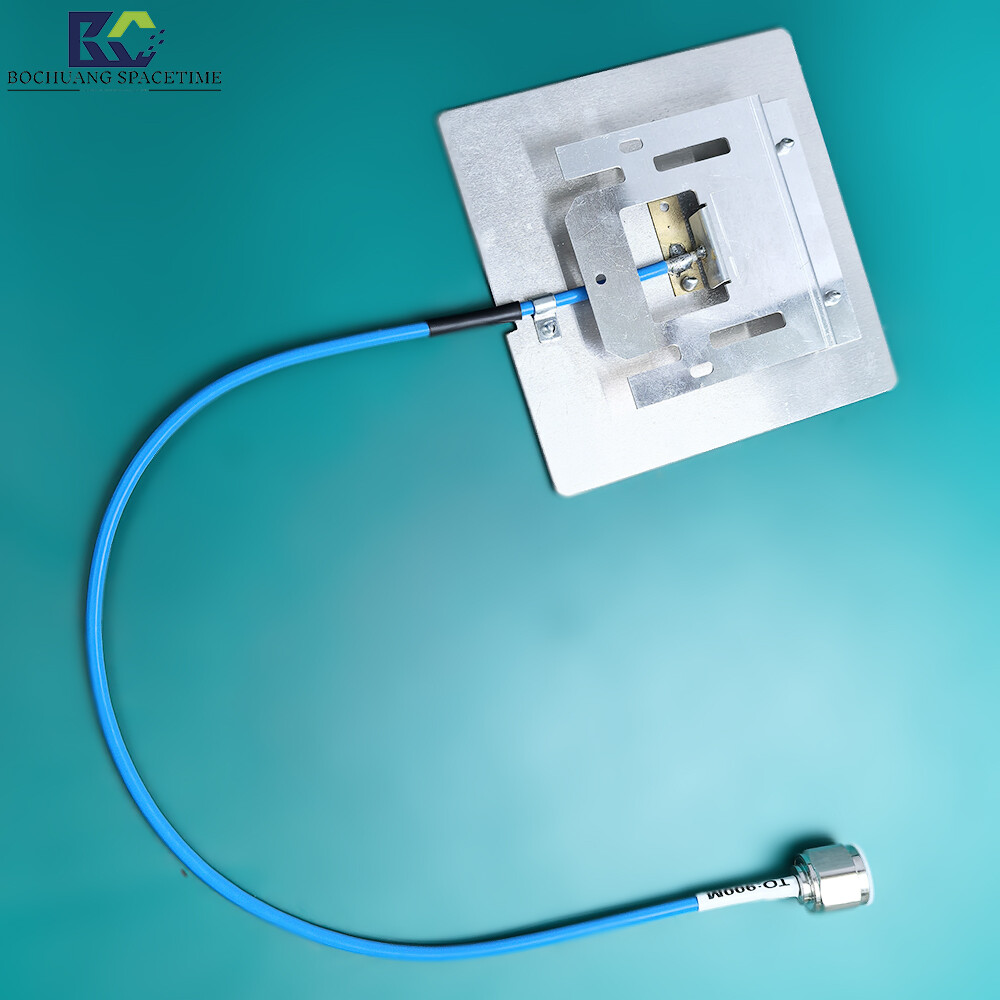

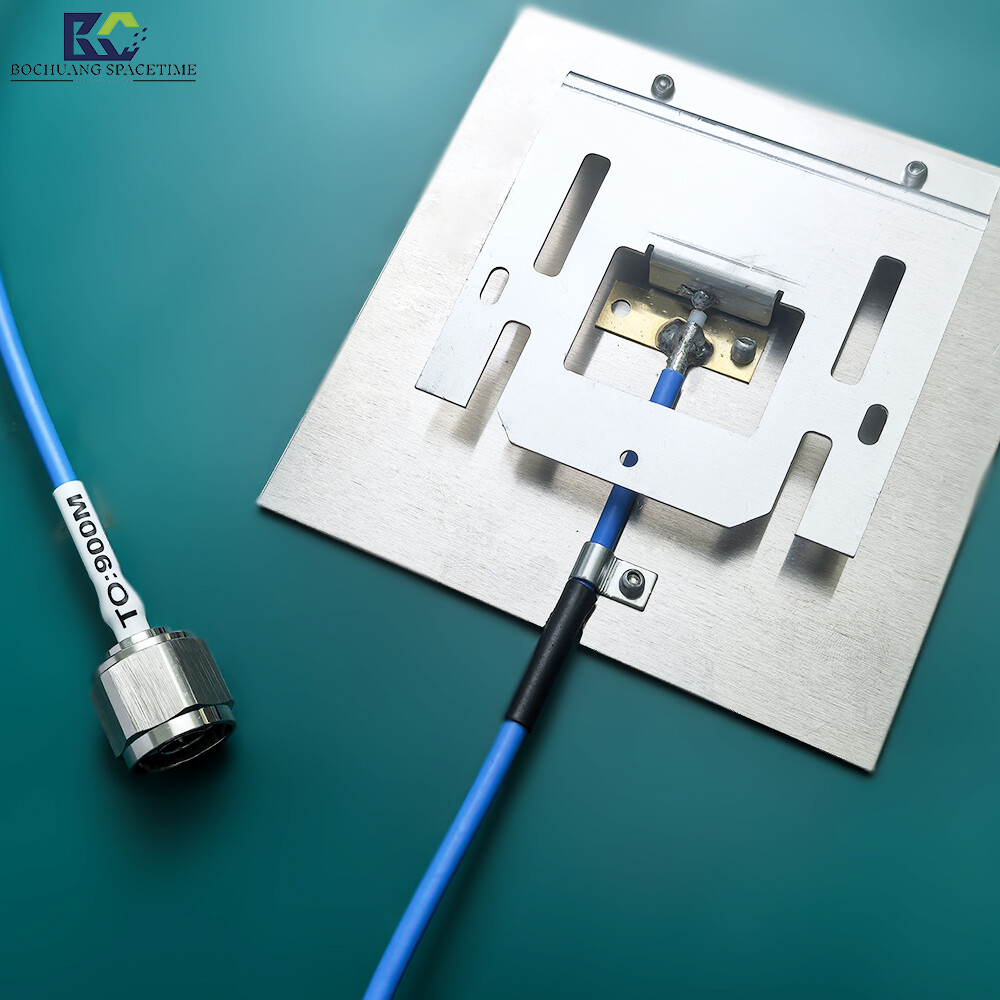

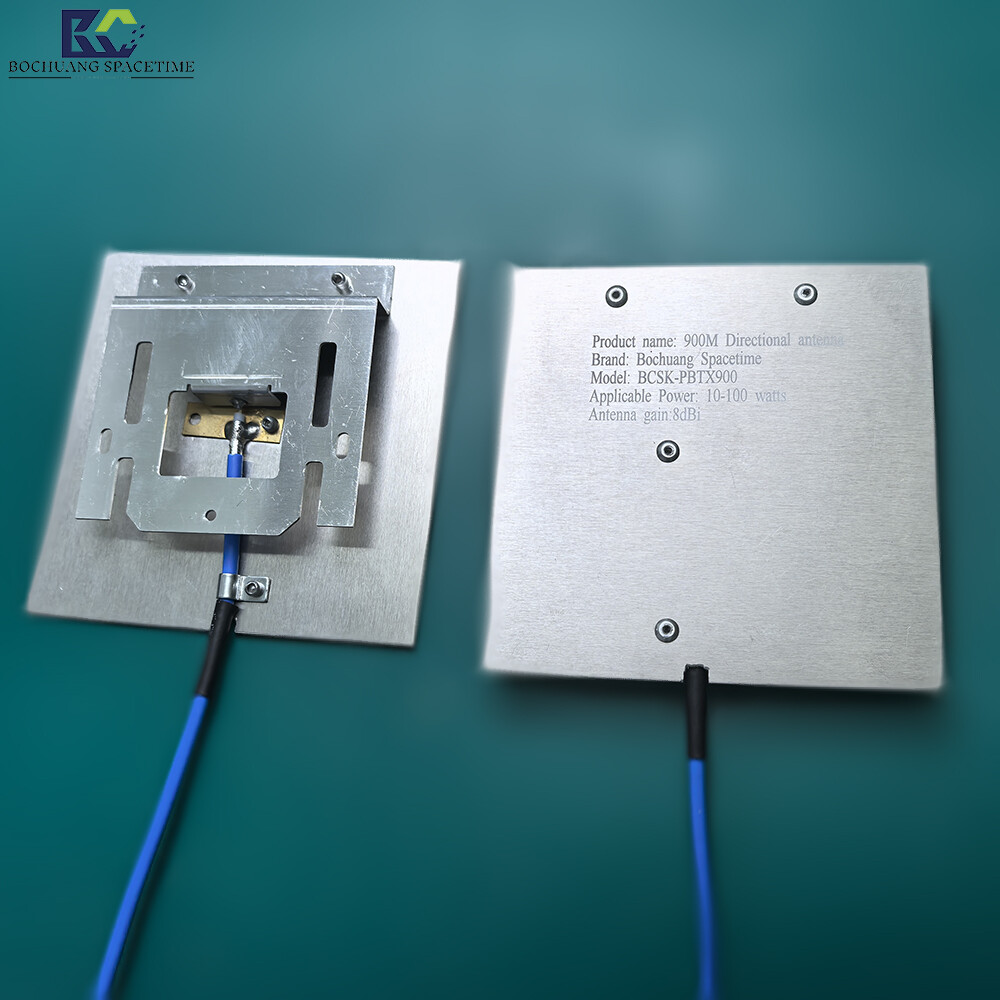

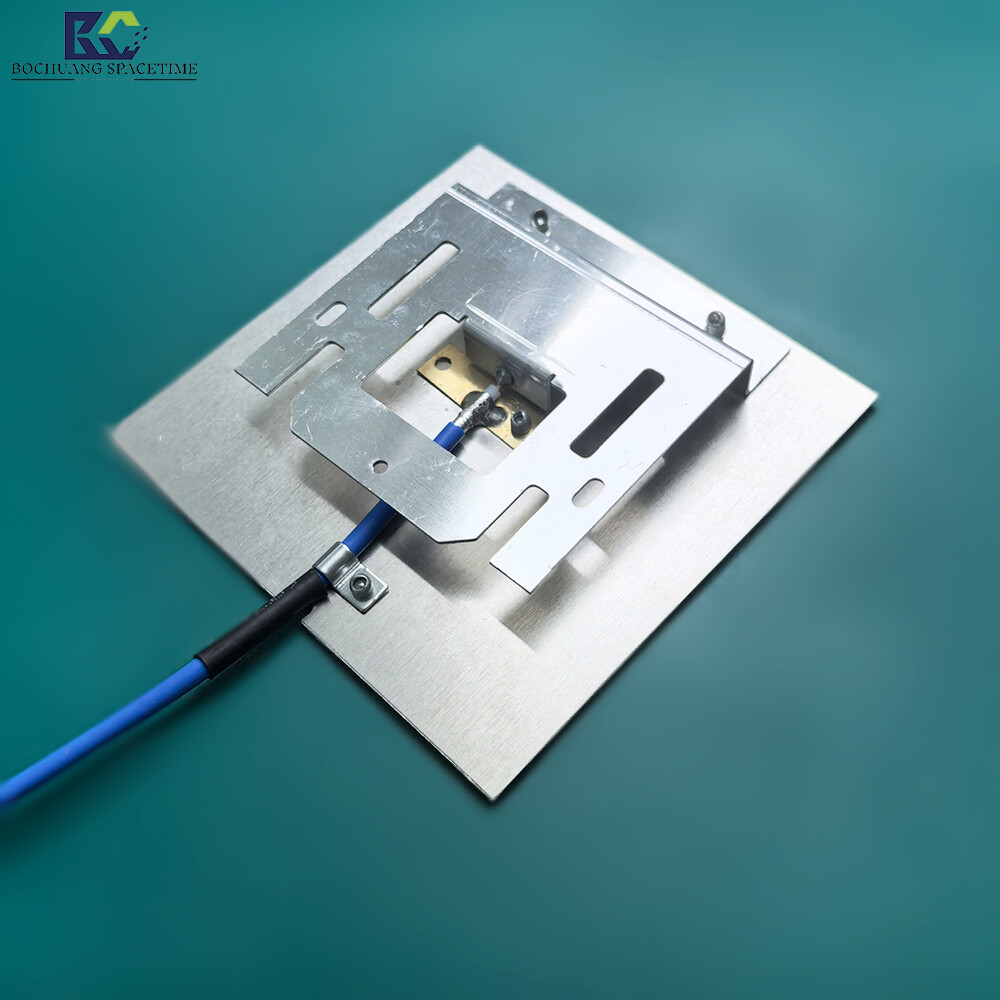

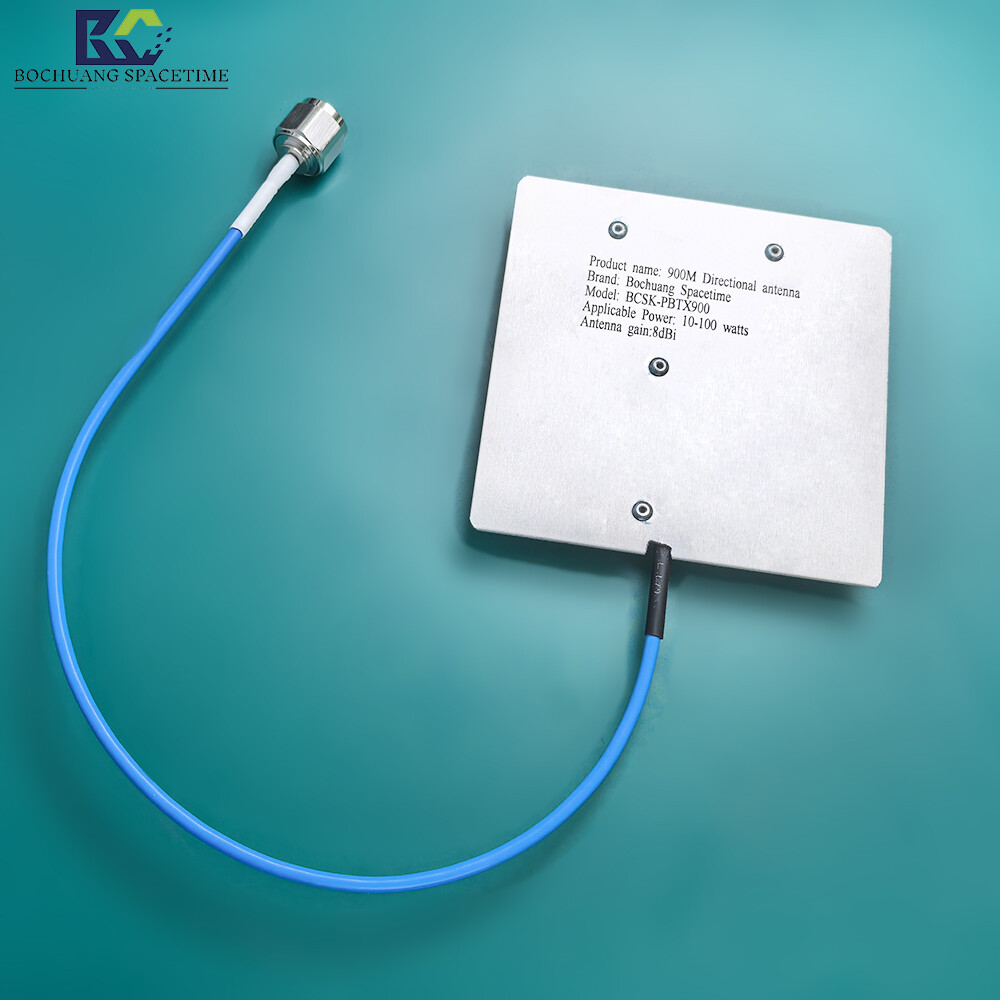

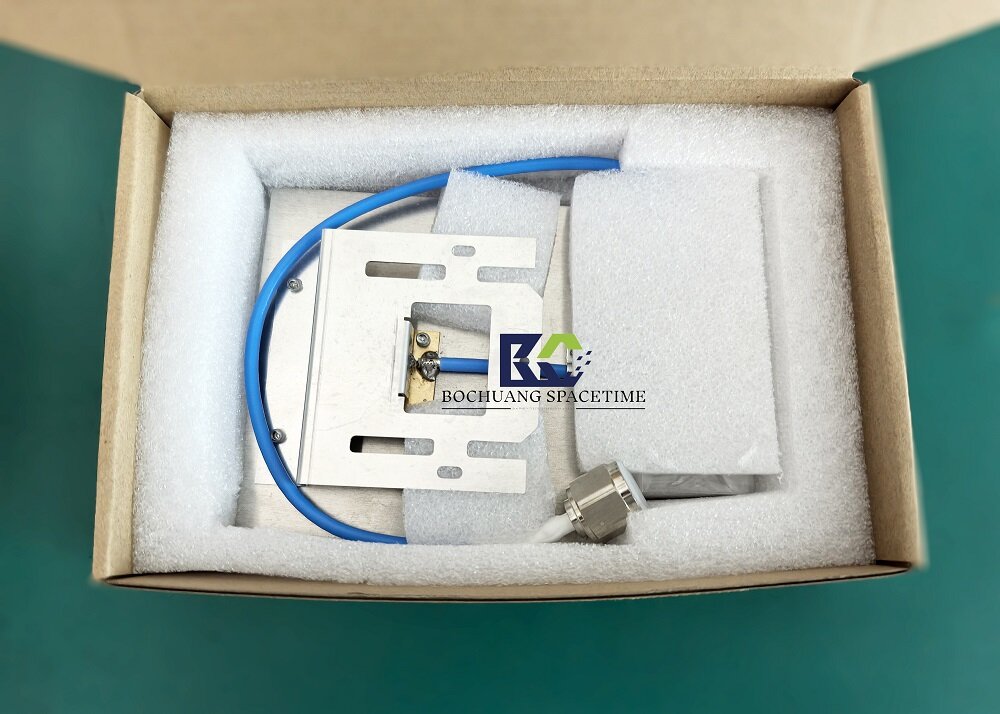

High-Gain Flat Panel Directional Antenna 850-965MHz 8dBi Industrial-Grade Directional RF Module for Drone Countermeasures, Industrial IoT, and Long-Range Point-to-Point Communication Systems
This high-gain flat panel directional antenna is engineered for high-frequency point-to-point communication and long-range signal coverage. It operates precisely across the 850MHz to 965MHz band, delivering 8dBi gain with support for 10W–100W input power. With a VSWR ≤ 1.8, it ensures stable, low-loss transmission even in complex electromagnetic environments. Constructed from lightweight aluminum alloy, its compact footprint (120×120×20mm) and N-Male connector enable rapid deployment in drone countermeasures systems, industrial IoT gateways, long-distance point-to-point links, and FPV video transmission setups. Its directional radiation pattern concentrates signal energy to boost coverage strength in target areas while suppressing interference, making it the ideal choice for high-directionality wireless front-ends. The rugged, dust- and moisture-resistant housing supports reliable outdoor operation. Customizable frequency response and mounting bracket options allow B2B clients to seamlessly integrate flexible RF solutions.
In Stock（200）
Product Overview
This Bochuang Space-TimeHigh GainTablet Directional AntennaDesigned specifically for industrial-grade directional communication and long-range signal coverage scenarios, with a working frequency band precisely covering 850MHz to
965MHz, with up to 8dBi gain, supports 10W–100W high-power input and VSWR ≤ 1.8, ensuring stable, low-loss signal transmission in complex electromagnetic environments.
Output.panel antennaBuilt with a lightweight aluminum alloy frame in a compact form factor (120×120×20 mm). Features standard N-Male connectors for rapid deployment.Drone Countermeasures
SystemIndustrial IoT Gateway, Long-Range Point-to-Point Relay Link, and FPV Video Transmission System。
Its directional radiation effectively focuses signal energy, enhancing coverage strength in target areas while suppressing interference from sources, making it ideal for buildingHigh-Directivity Wireless Communication Front-End
Choose. The enclosure is dustproof and moisture-resistant, designed for long-term outdoor operation. It supports customized frequency response and mounting bracket solutions to meet B2B customer needs.Directed RF solution
Solutionflexible integration requirements.
Performance Features
High-gain directional radiation: 8dBi gain with VSWR ≤ 1.8 ensures focused signal energy projection for enhanced performanceEfficiency of long-range directional communication。
Broadband compatibility: Covers 850MHz to 965MHz, supports major communication standards such as GSM/4G/5G, and is trulyMultimodalCommunication AntennaSolutions。
High Power Tolerance Design: Internal structure designed to stably handle input power from 10W to 100W, preventing signal distortion or component damage under high-power conditions. Suitable forHigh-Power Wireless Transmitter System。
Compact, lightweight design: 120×120×20 mm, designed for compact installations in space-constrained devices such as UAV payloads, vehicle terminals, or wall-mounted gateways.
Industrial-grade protectionThe aluminum alloy housing is dust-proof, moisture-resistant, and UV-protected, making it ideal for long-term outdoor operation.OutdoorWireless Communication Antennaa reliable choice.
Customizable frequency support: Adjust resonant frequency to meet customer project requirements, enabling targeted band enhancement or narrowband applications for improved performance.Dedicated RF System Integration Efficiency。
Parameter Table
Parameter Items | Specifications |
|---|---|
Model | BCSK-PBTX900 |
Frequency Range | 850MHz–965 MHz |
Applicable Power | 10W–100W |
Connector | Male |
VSWR | ≤1.8 |
Gain | 8dBi |
Antenna Size | 120×120×20mm |
Frequently Asked Questions (FAQ)
Q1: Is this antenna designed for long-term outdoor use?
A: Yes, the antenna usesAluminum alloy housingFeatures dustproof, moisture-proof, and UV-resistant design for long-term outdoor deployment.
Q2: Can it be used in drone countermeasure systems?
Yes. Its 8 dBi high gain and directional radiation pattern make it ideal forDrone Countermeasure SystemSignal focusing and interference emission in.
Q3: Do you support custom frequencies or interfaces?
A: Yes. We can adjust the resonant frequency or replace components based on customer project requirements.ConnectorType: Providing customized RF solutions.
Q4: What should I keep in mind during installation?
A: Use the included bracket for mounting. Ensure the antenna is pointed toward the target direction and keep metal objects or strong electromagnetic interference sources away.
Q5: Which industrial scenarios is it suitable for?
A: Widely used in industrial IoT gateways, long-range point-to-point relays, FPV video transmission, intelligent traffic monitoring, and dedicated wireless communication systems.
8 dBi directional antenna for UAV countermeasure system
Compact outdoor directional antenna 120x120 mm
