博创时空 BCSK-BD10型 1.2GHz 10W射频功放模块 | 适用于无人机反制与FPV信号压制系统
博创时空 BCSK-BD10 是一款高稳定性、宽频带的1.2GHz射频功率放大模块，工作频段覆盖1160-1280MHz，输出功率达10W，支持DC24V-28V/1A稳定供电，适用于无人机遥控链路压制、FPV图传干扰及特定频段信号增强场景。该模块采用紧凑型金属封装，具备优异的散热性能与电磁兼容性，可无缝集成于便携式无人机反制设备、考场屏蔽系统及工业无线通信增强方案中。其频谱纯净、带外抑制良好，确保在复杂电磁环境中稳定运行，是构建定向干扰或信号覆盖解决方案的理想核心组件。
In Stock (500 units)
BCSK-BD10 Industrial 1.2GHz 10WWideband RF Power Amplifier ModuleDrone Defense and Strike System Solution
1. Product Overview
Bochuang SpaceTime (Bochuang SpaceTime) BCSK-BD10is a dedicatedDrone Countermeasuresof wireless communication enhancement design1.2GHz RFPower Amplifier Module。
This module covers the core operating frequency bands.1160-1280 MHz, providing up to10Wsustained stable power output is essential for building portable drone defense systems and FPV
图传干扰器以及特定频段信号增强设备的核心动力源。

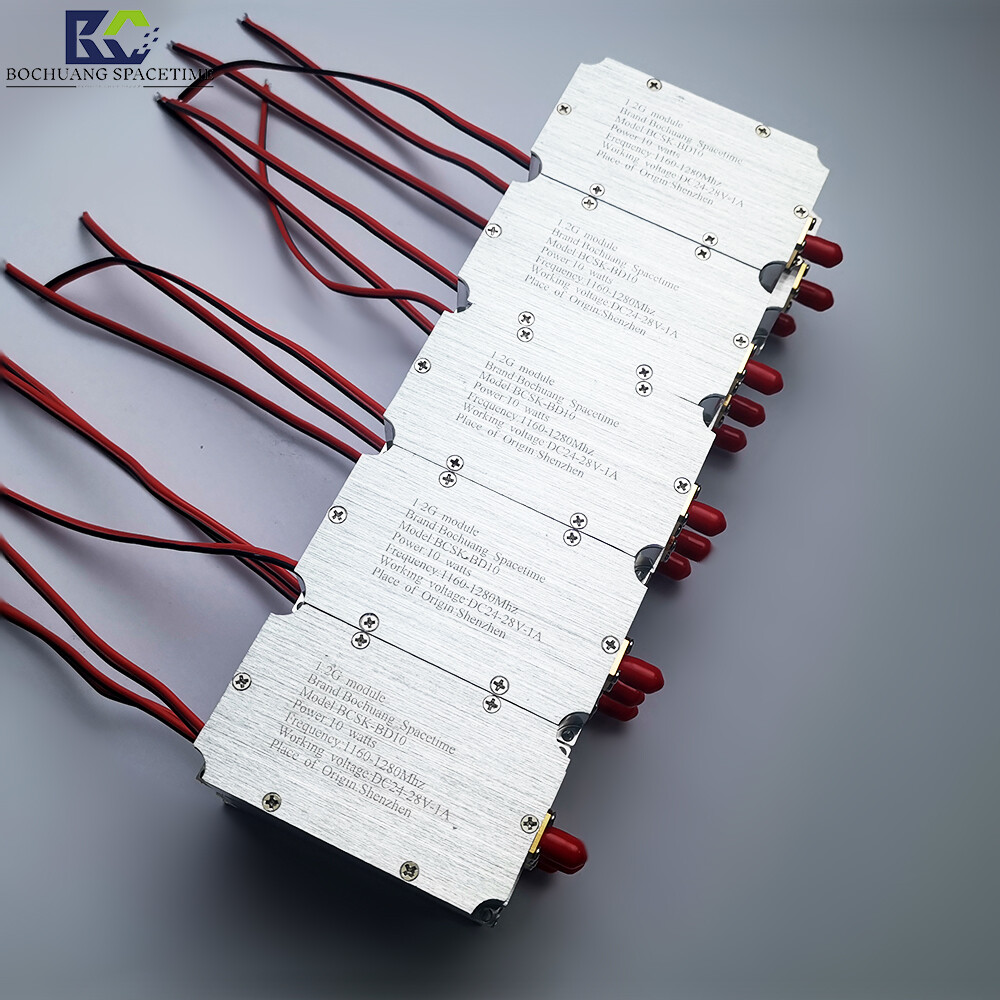

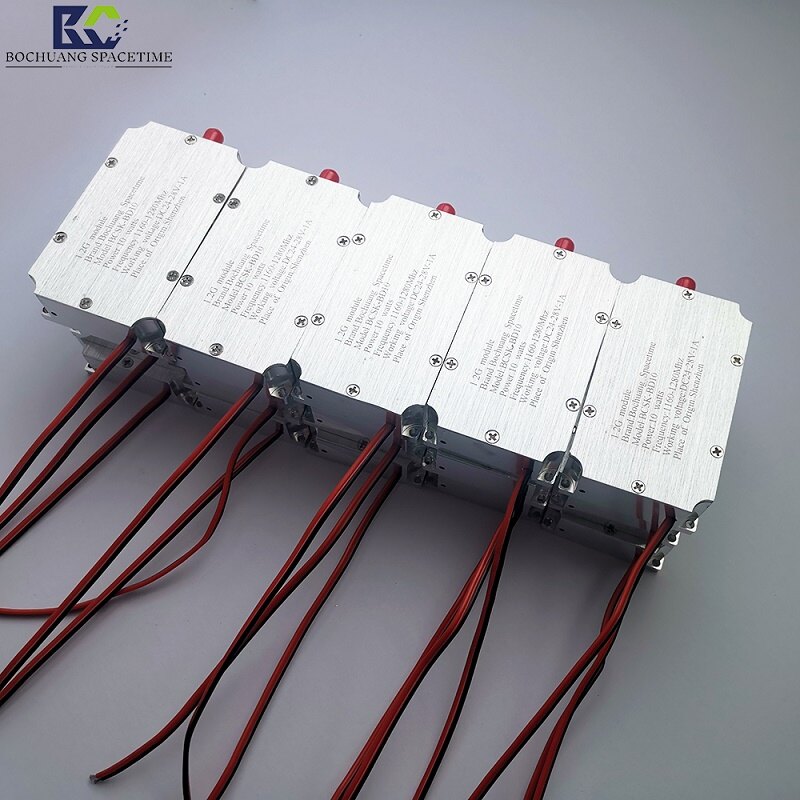

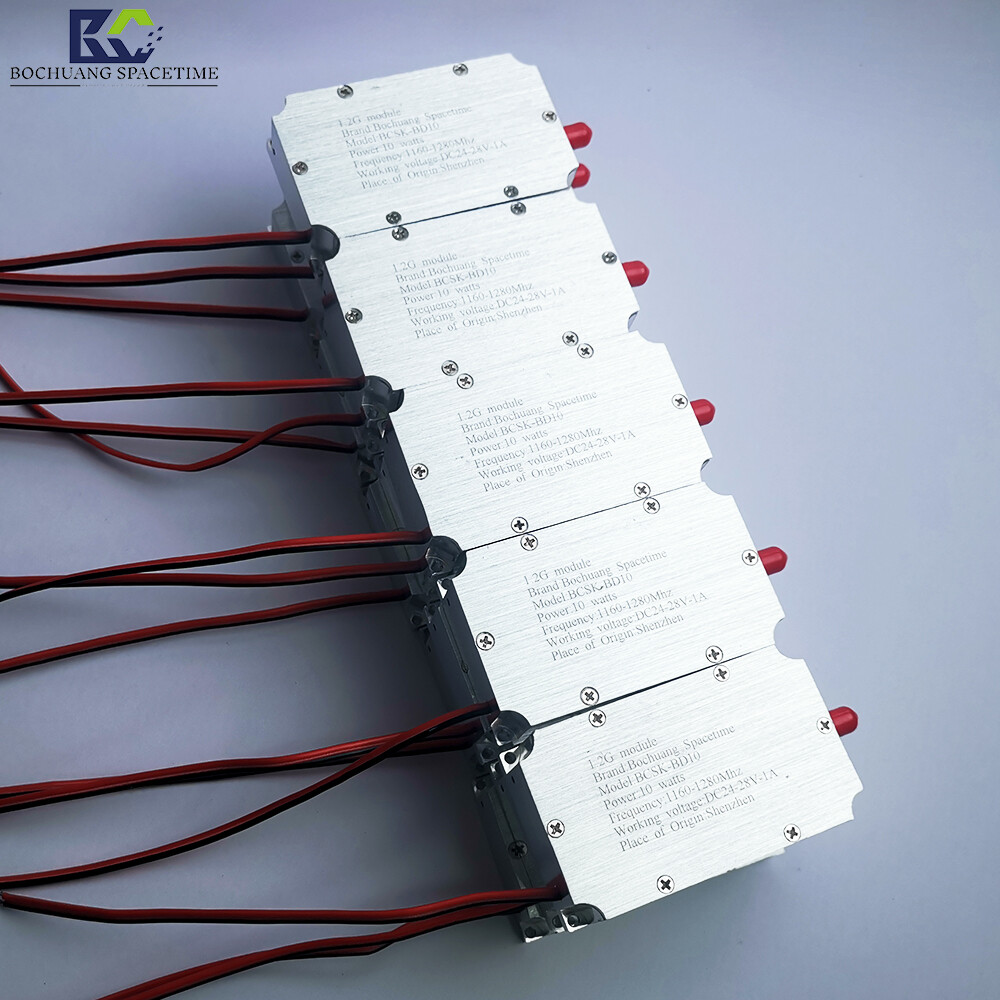

BCSK-BD10 features a rugged metalAluminum alloy housing封装，不仅提供了卓越的电磁屏蔽效果，还有效解决了高功率运行下的散热难题。
其宽电压输入设计（DC24V-28V）使其能够轻松适配各类车载或电池供电的移动设备。无论是针对民用无人机遥控链路的
压制，还是实验室环境下的信号源放大，这款Module都能以其出色的线性度和频谱纯度，满足专业级工程集成的严苛要求。
2. Key Product Features
Precise 1 2G band coverage
Frequency range locked to1160MHz - 1280MHz. This golden frequency band perfectly covers mainstream drone remote control links and FPV first-person view video transmission systems, as
and certain satellite communication frequency bands are key components for implementing precise electronic warfare.
10W high-efficiency power output
Rated output power reaches10 WattsPaired with directional antennas, it creates effective signal jamming or boosting zones within hundreds of meters while maintaining excellent power efficiency.
(About 1A current), ideal for integration into handheld devicesUAV or counter-drone gunandBackpack Countermeasure DeviceIn.
Excellent out-of-band rejection and spectral purity

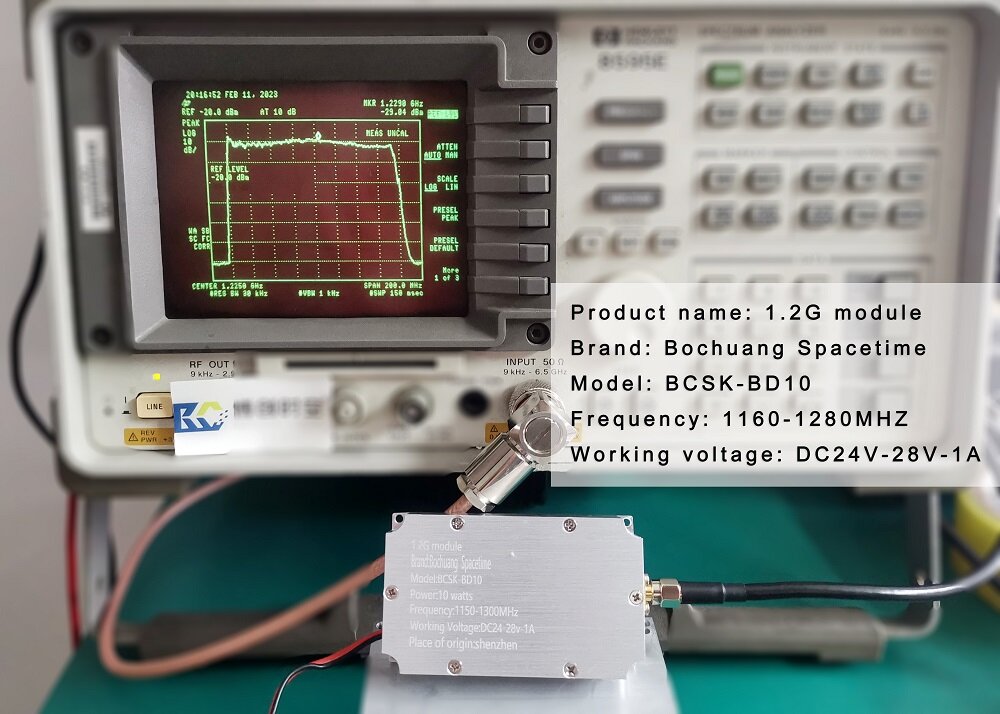

As shown in the test spectrum, this module exhibits excellent filtering characteristics with high out-of-band spurious suppression. This means it amplifies target signals without generating excessive
Harmonic interference ensures zero collateral impact on surrounding communication devices.
Rugged industrial-grade packaging

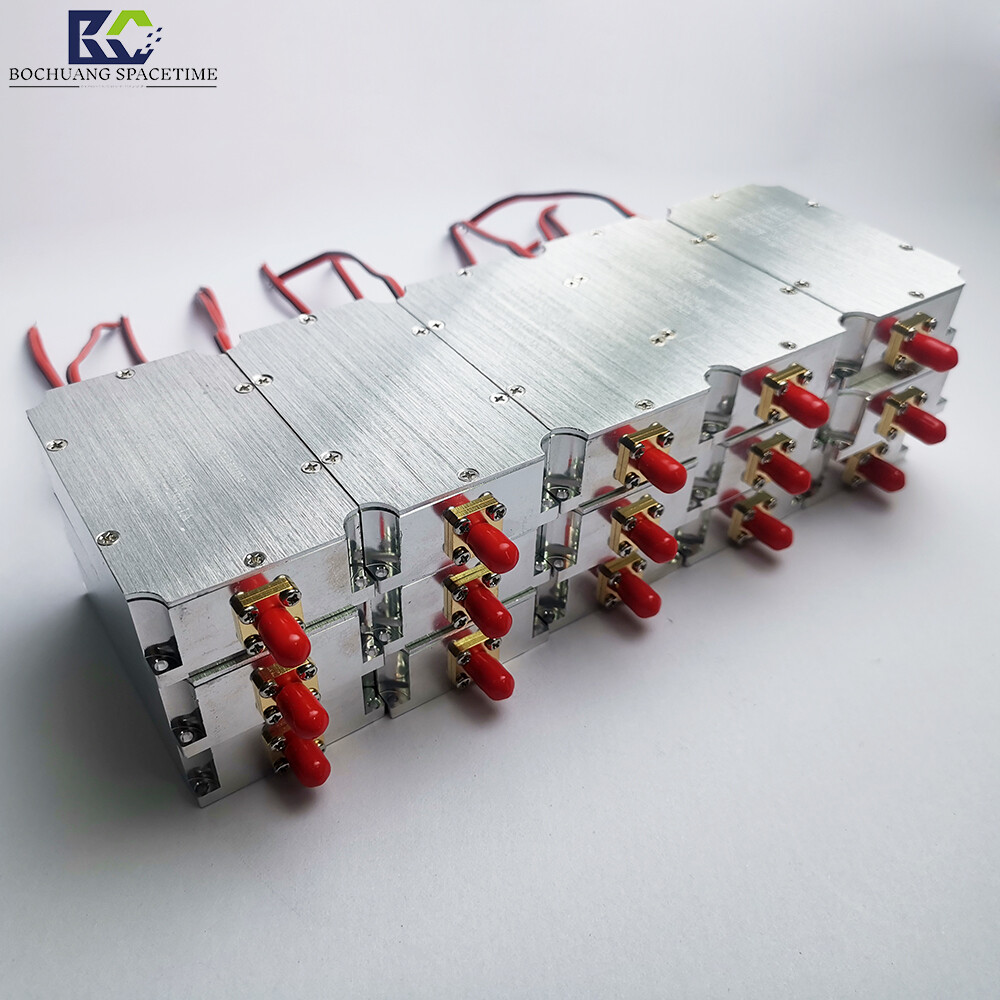

Fully metal shielded enclosure effectively blocks external electromagnetic interference (EMI) while serving as a heatsink. Interfaces feature standard SMA/N-type connectors (depending on
compact design, easy to install, high seismic resistance, and built to withstand harsh outdoor operating conditions.
3. Technical Specifications
Parameter Items | Specifications | Notes |
|---|---|---|
Product Model | BCSK-BD10 | Bochuang Space-Time Series |
Center Frequency | 1220 MHz | Typical Value |
Working Bandwidth | 1160 - 1280 MHz | Covers mainstream 1 2G bands |
Output Power | 10 Watts (40 dBm) | saturated power |
Gain | ≥ 35 dB | Typical value (varies by input) |
Supply Voltage | DC 24V - 28V | Wide voltage design |
Operating Current | ≤ 1.5 A | @ 28V P1dB |
Interface Type | SMA-F / N-F | Optional |
Operating Temperature | -40°C to +85°C | Industrial-grade standard |
Size/Weight | Compact Miniaturization | Ready for integration |
Use Cases | Drone Countermeasures、FPV JammingSignal Relay | / |
4. Frequently Asked Questions (FAQ)
Q1: 这款 BCSK-BD10 模块可以用于Drone Jammer?
A: 是的，非常适合。它的 1160-1280MHz 频段正好覆盖了大多数消费级和行业级无人机的遥控与图传频段。10W 的功率配
CombineDirectional Panel Antenna，可以形成有效的干扰波束，且体积小巧，易于集成到手持设备中。
Q2: 这个模块的供电要求是什么？可以用电池驱动吗？
A: 模块支持 DC24V-28V 宽电压输入，工作电流约为 1A-1.5A。您可以使用 6S 或 7S 的锂电池组（需配合稳压模块）或者车
载电源直接供电，非常适合移动场景。
Q3: 它可以用来增强 WiFi 信号吗？
A: 不可以。WiFi 通常工作在 2.4GHz (2400MHz) 或 5.8GHz 频段。这款模块专门针对 1.2GHz 频段设计，用于 WiFi 将无法
正常工作。如果您需要 2.4G 放大器模块，请查看我们的其他型号。
Q4: 使用时需要注意散热吗？
A: 虽然模块自带金属外壳辅助散热，但在 10W 满功率连续工作时，建议将其安装在接地的金属底板上，或加装小型散热
片/风扇，以确保长期工作的稳定性。
