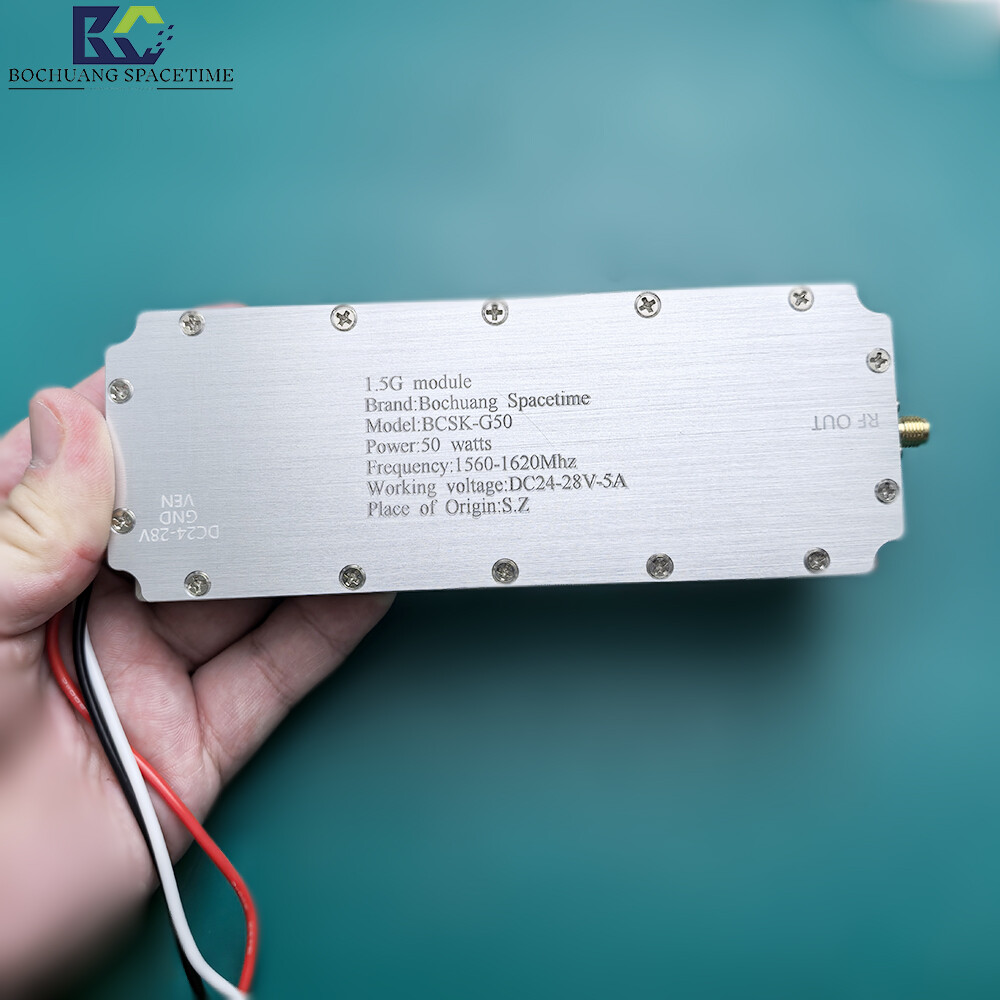

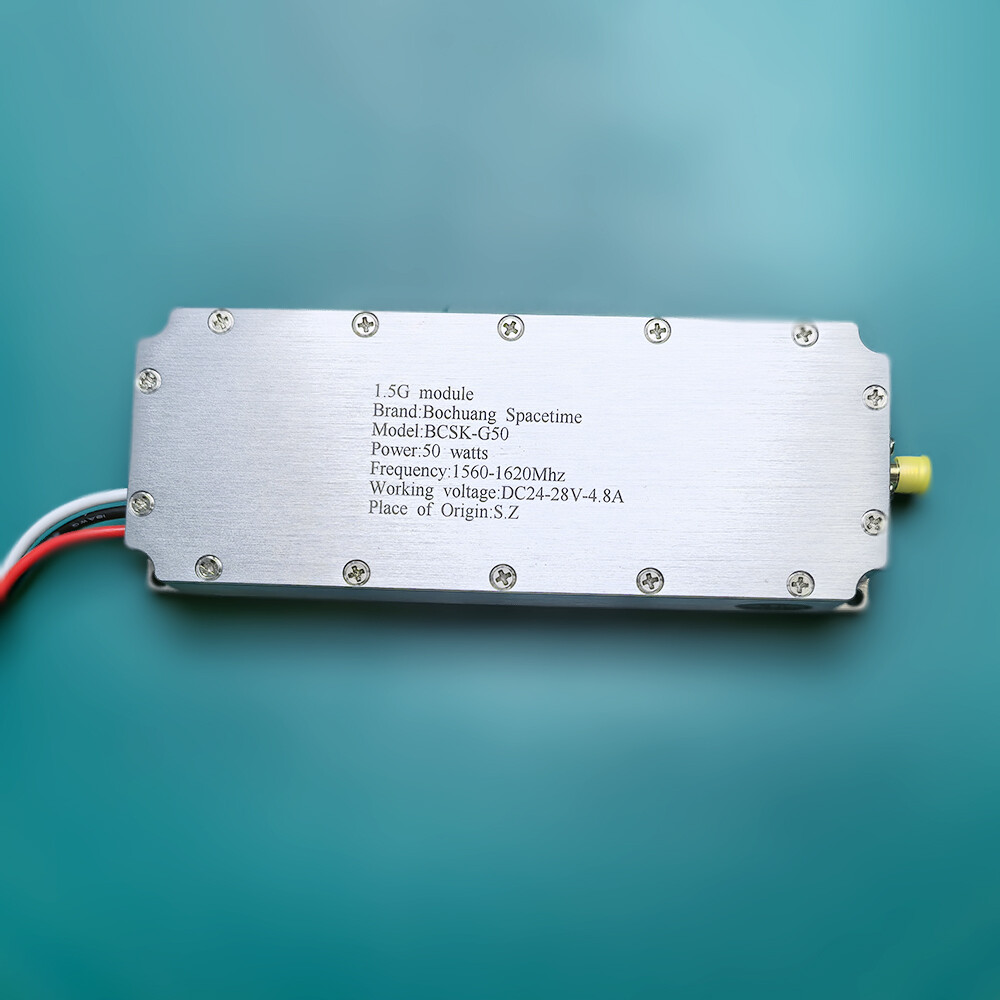

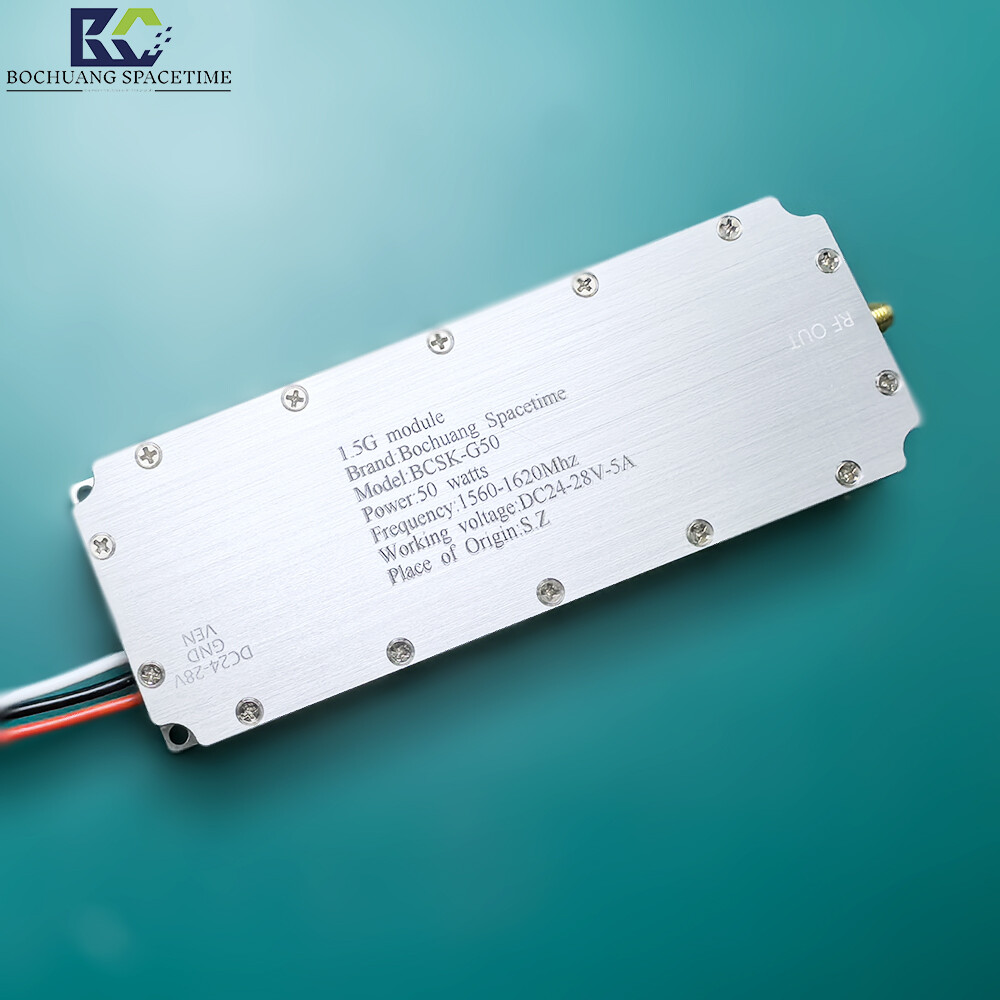

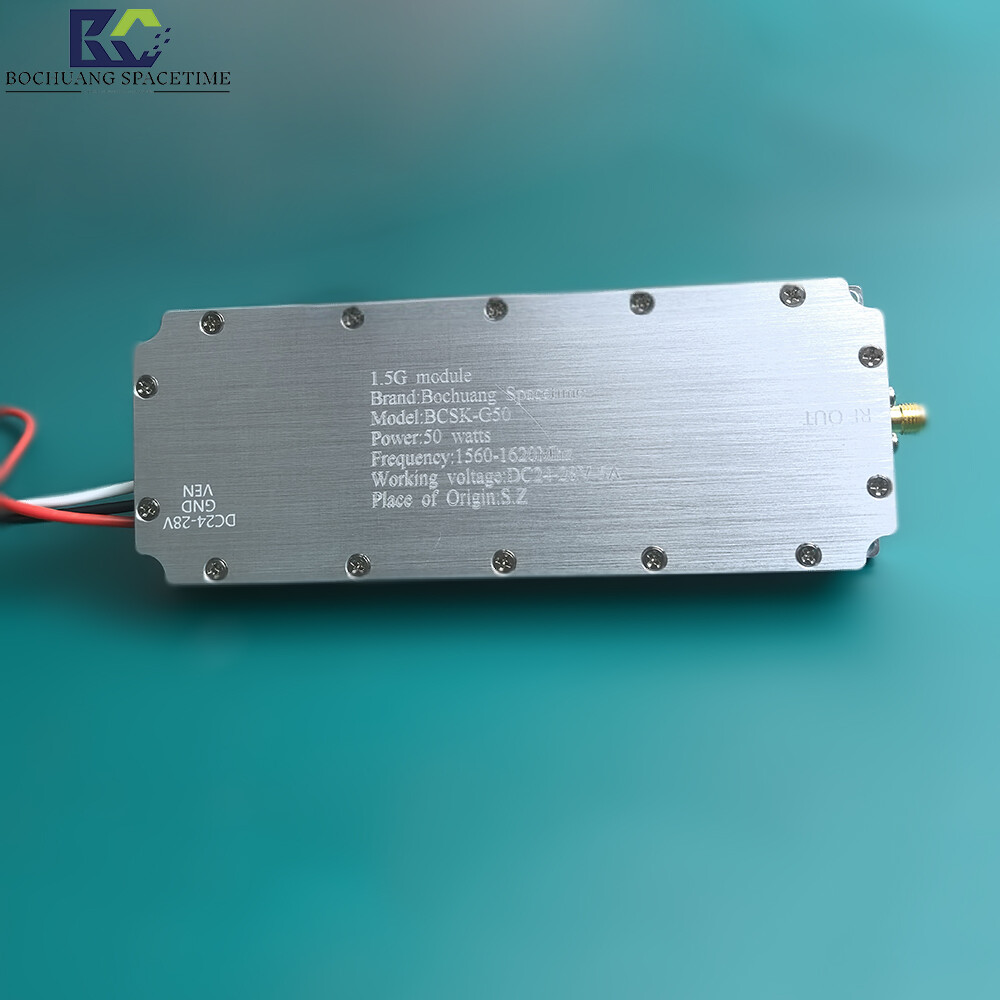

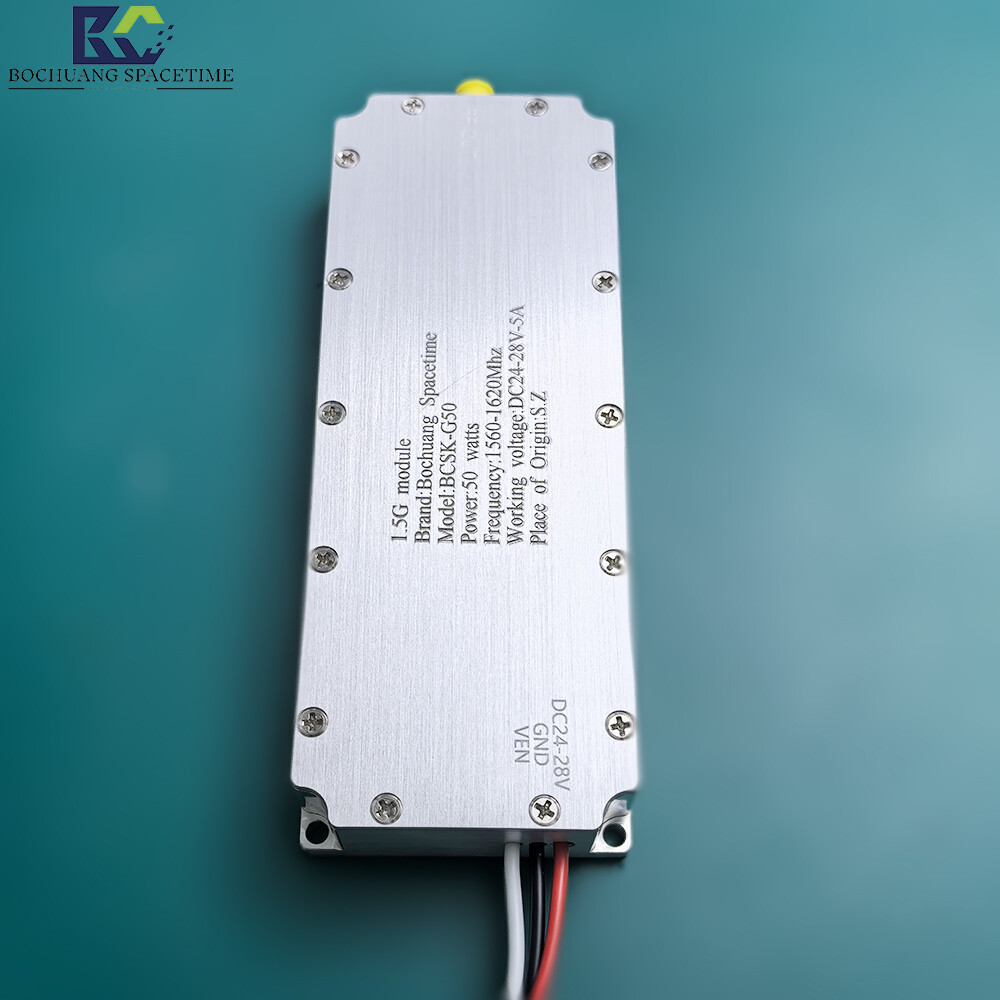

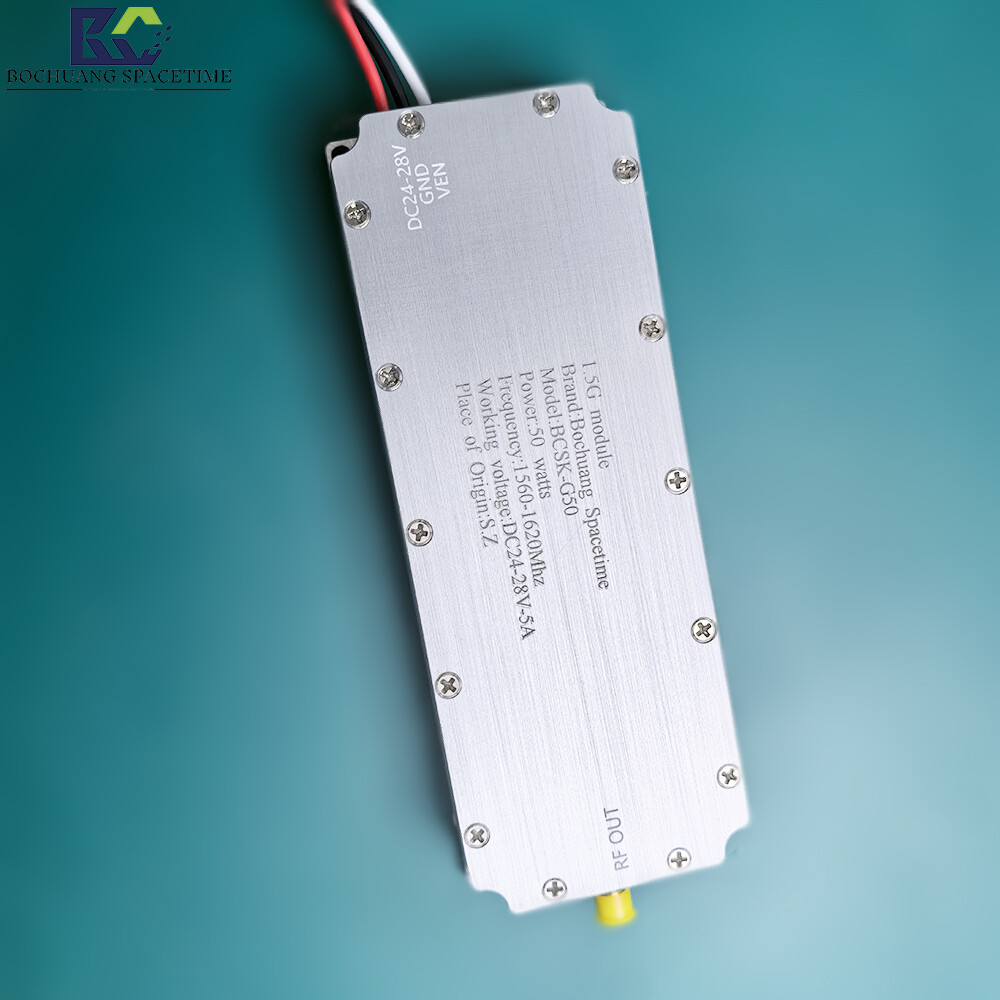

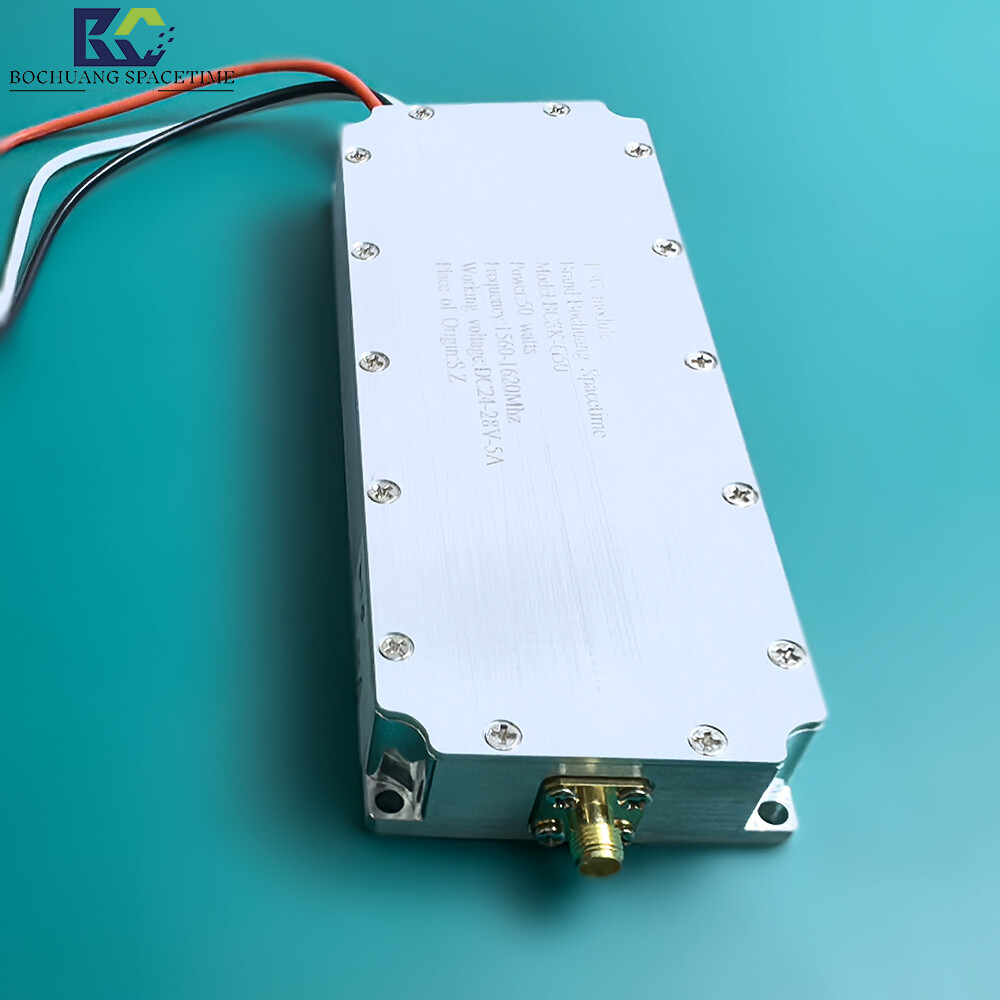

Bochuang Space-Time BCSK-G50 Model 1.5GHz 50W RF Power Amplifier Module | Core Component for GPS L1 Band UAV Countermeasure Equipment

BCSK-G50 — Industrial-Grade 1.5GHz (GPS L1 Band) 50W High PowerRF Power Amplifier Module

Product Overview

Bochuang SpaceTime (BCSK-G50)Designed specifically for high-intensity electronic warfare and signal suppression applications.1.5GHz BroadbandRF Power Amplifier

Device. This module precisely covers1560MHz to 1620MHzKey frequency bands, which primarily includeGPS L1 (1575.42 MHz)andBeiDou B1IWait for global mainstream satellite

Star navigation signal. With up to50WWith its robust power output and wide voltage input range (DC 24V–28V/5A), the BCSK-G50 is ideal for building remoteDrone Countermeasures

SystemAn ideal core component for vehicle-mounted jamming guns and regional radio silence equipment.

Unlike standard low-power modules, the BSK-G50 features a thickened aluminum alloy enclosure that delivers superior electromagnetic shielding and optimized thermal management to ensure

Ensures thermal stability under high-current operation. Its high gain and low noise characteristics maintain signal purity and suppression effectiveness even in complex electromagnetic environments.

A key choice for system integrators to extend device range.

Key Features

• Powerful 50W output


  Rated output power reaches50 Watts. Unlike the common 10W or20W Module, with significantly improved energy density that greatly extends the effective range of interference equipment.

  Path, enabling easy handling of distant or highly interference-resistant target drones.

• Precise GPS/BeiDou frequency coverage (1560-1620 MHz)


  Perfect frequency coverage1560-1620 MHzThis is the core frequency band for global satellite navigation systems. Whether for consumer-grade drones or certain industrial-grade models

  Drones can precisely cut off navigation links.

• Industrial-Grade Thermal & Packaging Design


  The enclosure is crafted from high-grade aluminum alloy with a brushed anodized finish. This design not only looks great but also serves as a large heatsink to effectively dissipate heat.

  Dissipates heat from the power amplifier transistors to ensure stable operation during extended continuous use.

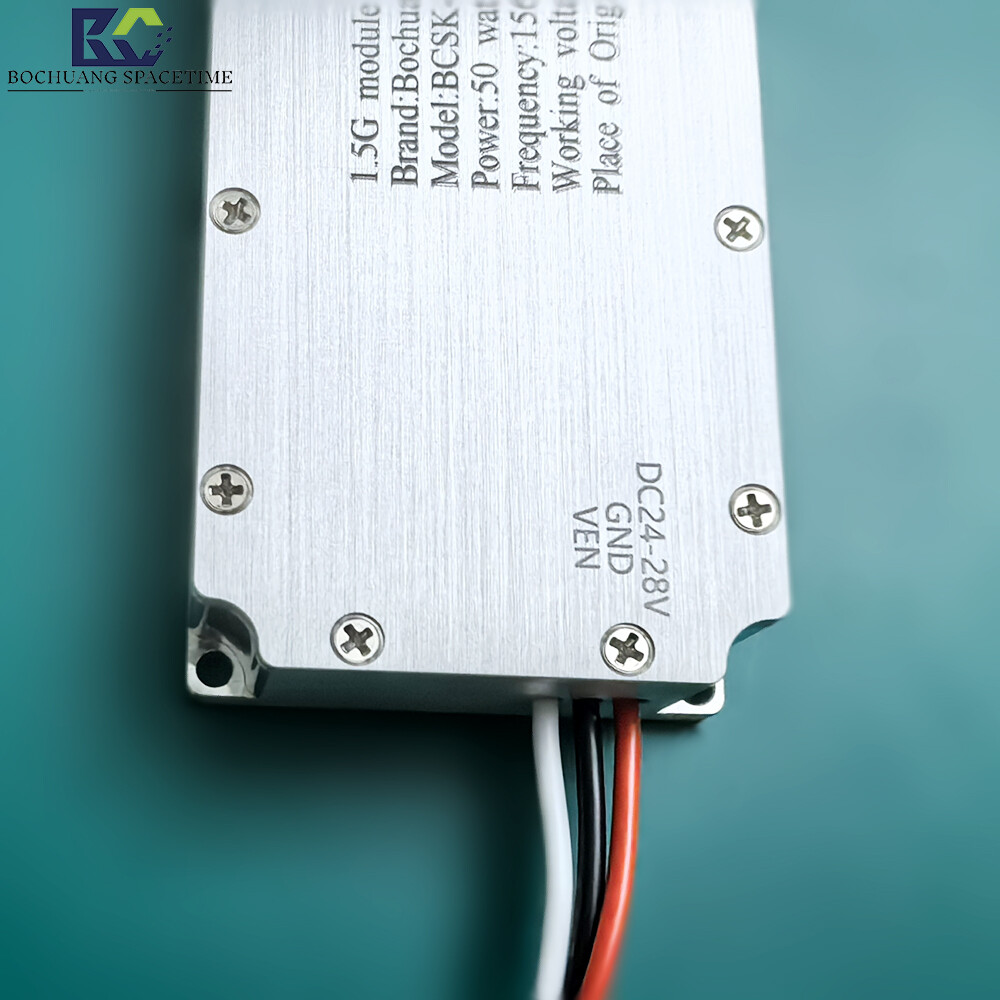

• Wide voltage DC power supply (DC 24V-28V)


  SupportedDC 24V-28Vwide voltage input, current requirement is approximately5A. This voltage rating is ideal for automotive power systems or portable lithium battery packs, integrating

  High maturity, strong adaptability.

• High Integration and Easy Installation


  Compact module with standardized interfaces (SMA/N-type RF connectors, terminal block power ports) for seamless integration into existing PCBs or complete systems.

  In the system, shorten the R&D cycle.

Technical Specifications

Frequently Asked Questions (FAQ)

Q1: What are the primary use cases for the BCSK-G50 module?

A: This module is primarily used forSignal enhancement or suppression on the 1.5GHz bandThe most common application is integration intoDrone Jammer(Drone Jammer)or fixed anti-

In the Yu system, used to block GPS/Beidou navigation signals of drones, forcing them to return home or land. Additionally, it can be used for radio security testing in specific environments.

Q2: Does the 5W power rating refer to input or output power?

A: Here50W refers to RF output power.This means it can deliver powerful signal energy to the antenna. Note that to drive

For this module, your power supply must provide at least24V * 5A = 120WDC power reserve to ensure stable operation.

Q3: Can this module be connected directly to a battery?

A: Yes, but voltage and current requirements must be met. We recommendHigh-voltage lithium battery pack with 6 series or 7 series(nominal 24V or 28V), and the battery pack's continuous discharge current

Must be greater than5A(Recommend a power supply of 10A or higher to prevent voltage drops.) For in-vehicle use, simply connect directly to the vehicle's 24V system.

Q4: Do I need to worry about heat dissipation during use?

A: Absolutely necessary.The 50W RF module generates significant heat during operation. Ensure the module's metal enclosure has good contact with your device chassis, or

Install a cooling fan. Do not run the module at full power for extended periods without cooling measures, as this may trigger overheating protection or cause damage.

Q5: Will this frequency band affect mobile signal?

A: The operating frequency band of this module is1560-1620 MHz, primarily targeting satellite navigation signals. In contrast, standard 4G/5G mobile communication bands typically operate within 700MHz-.

Other frequency bands of 3500MHz (although some are close, the main energy is concentrated in navigation bands). Therefore, it primarily affects positioning functionality and has little impact on voice calls.

has minimal impact, depending on the filter's out-of-band rejection capability.

⚠️ Legal Disclaimer:

This product is intended solely for R&D and security defense by qualified research institutions, security agencies, and authorized enterprises. Any individual or organization is strictly prohibited from using it for

Prohibits activities that disrupt public communications, aviation navigation, or invade others' privacy. Users assume full legal responsibility.
