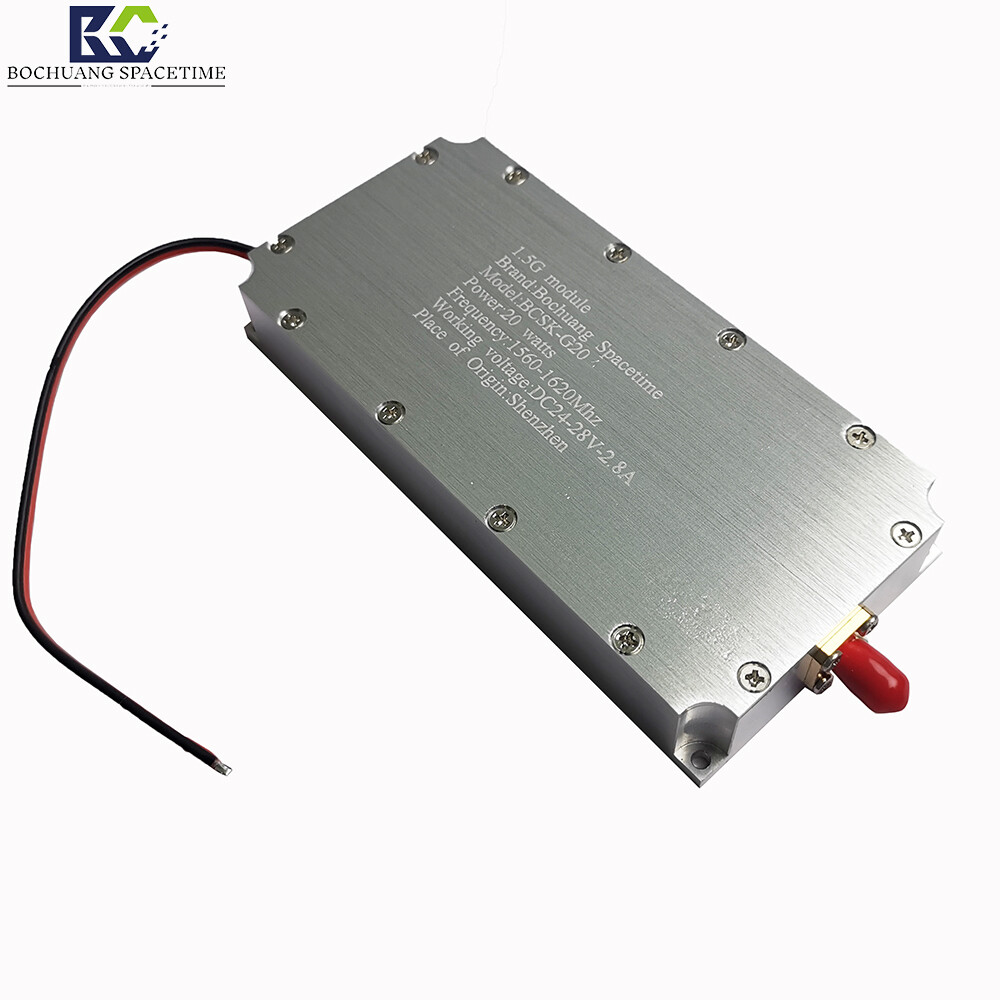

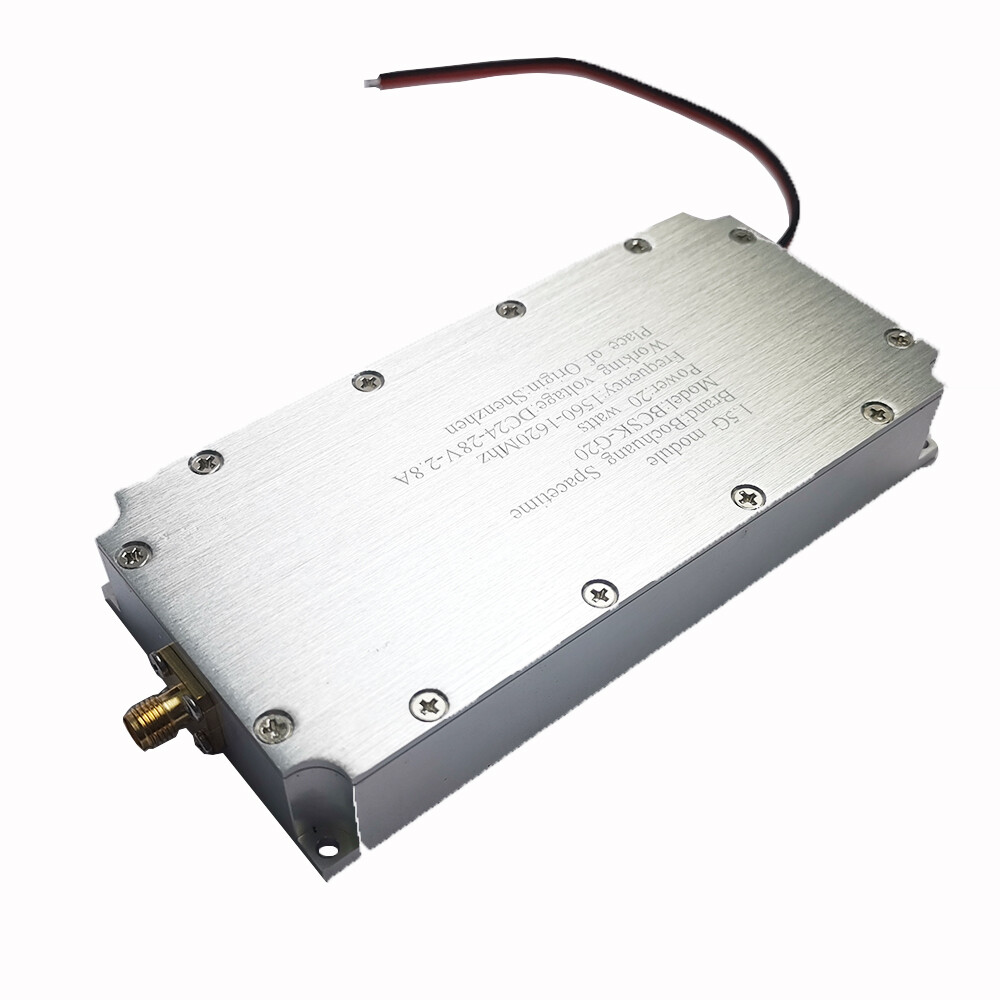

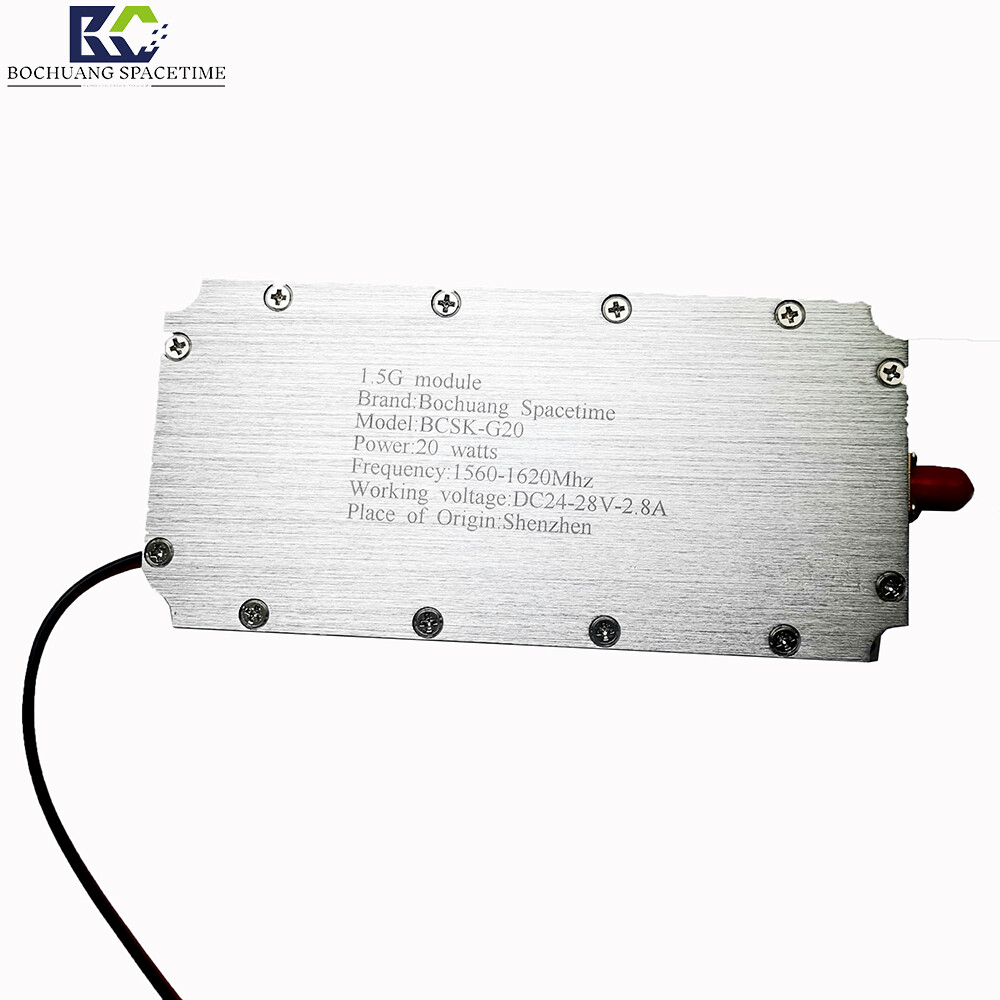

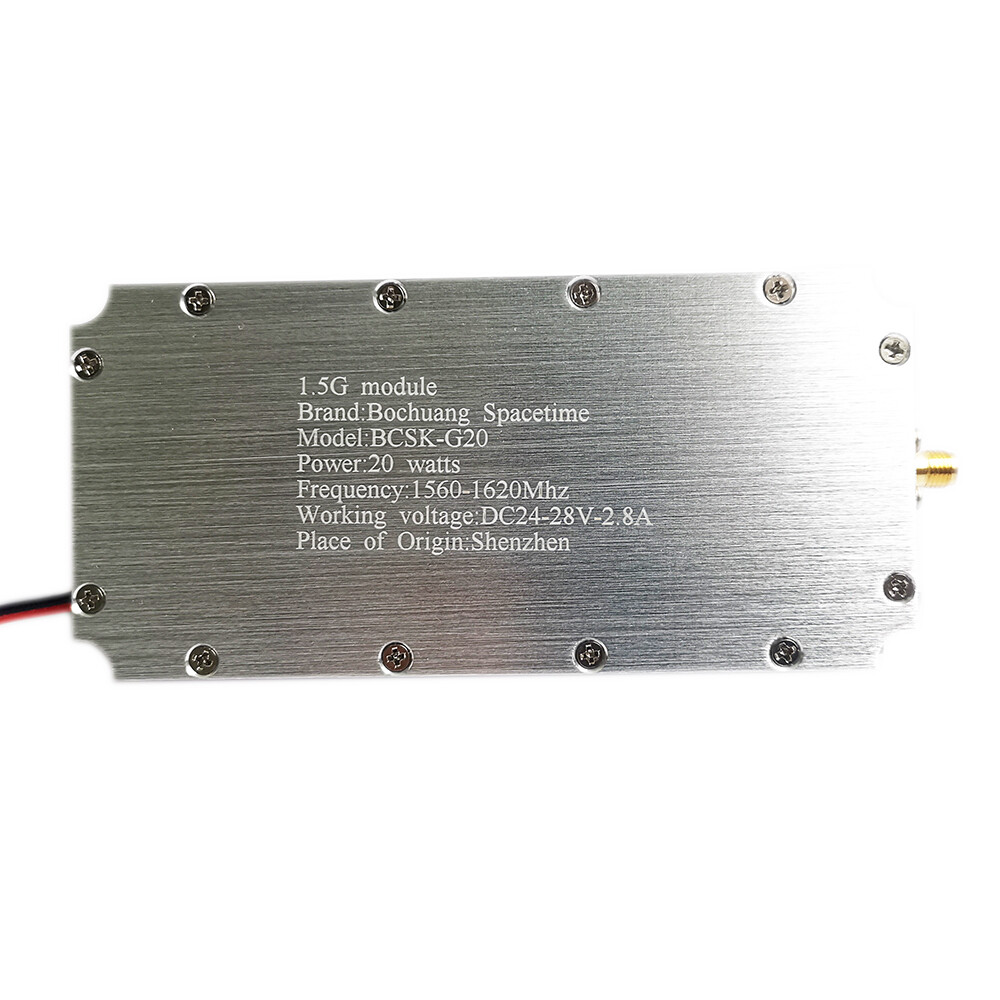

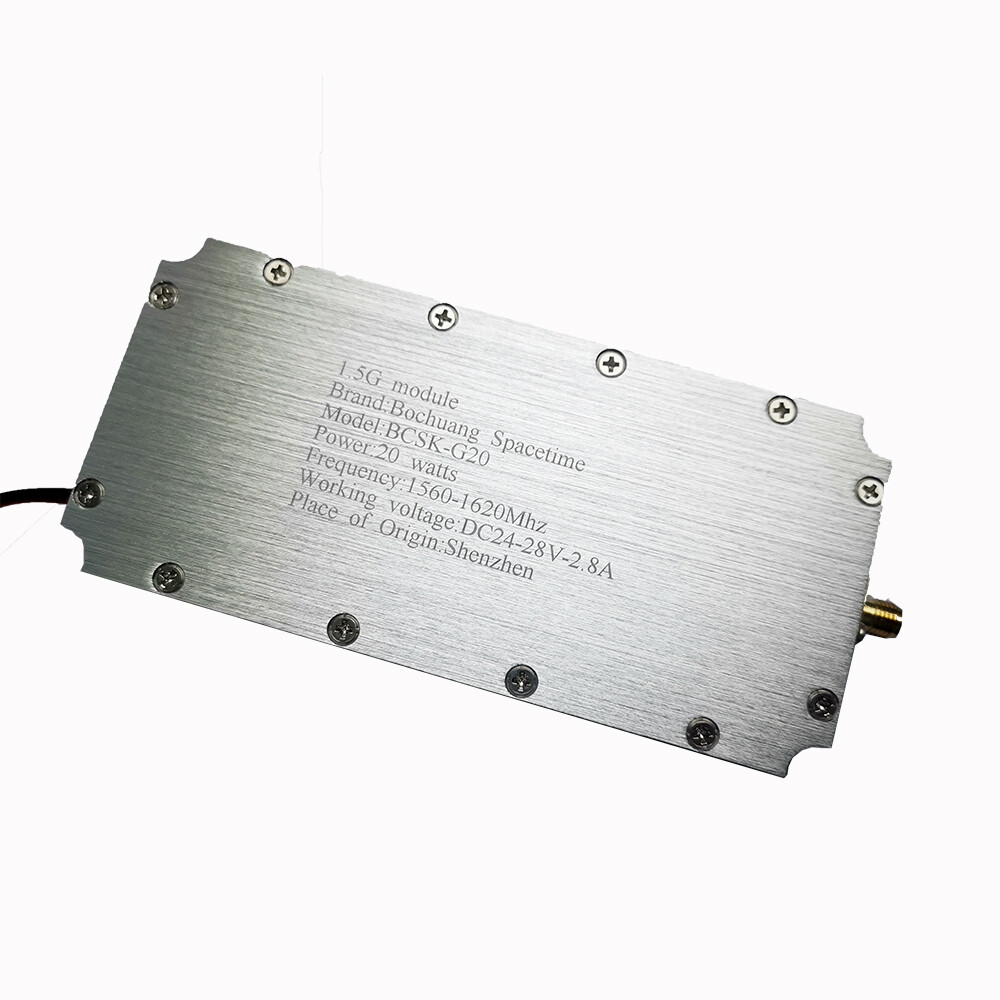

BCSK-G20 1.5GHz 2W RF Power Amplifier Module for Drone Countermeasures and GPS Jamming Systems

BCSK-G20 Industrial-Grade 1.5GHz (1560-1620MHz) 20WHigh-Power RF Power Amplifier ModuleUAV/FPV Electronic Warfare Countermeasure Solutions

1. Product Overview

Bochuang SpaceTime (BCSK-G20)Designed specifically for high-intensity electronic warfare and signal suppression applications.1.5GHz BroadbandRF Power Amplifier

Device. This module precisely covers1560MHz to 1620MHzKey frequency bands, which primarily includeGPS L1 (1575.42 MHz)andBeiDou B1IWait for global mainstream satellite

Star navigation signal. With up to20WIts powerful output and wide input voltage range (DC24V-28V/2.8A) make the BCSK-G20 ideal for building remoteDrone Countermeasures

System (UAS Countermeasure),Mobile UAV JammerIdeal core component for system-wide and regional radio silence equipment.

Unlike standard low-power modules, the BSK-G20 features a thickened aluminum alloy enclosure that delivers superior electromagnetic interference (EMI) shielding and optimized thermal dissipation.

The design ensures thermal stability during high-current operation (2.8A). Its high gain and low noise characteristics maintain signal purity even in complex electromagnetic environments.

Clarity and suppression performance are key factors for system integrators to extend device range.

2. Key Product Features

• Robust 20W Power Output


  Rated output power reaches20 Watts. Compared to common10W Module, with doubled energy density to significantly extend the effective range of jamming devices and easily handle

  For drones with long-range capabilities or strong anti-interference features.

• Precise GPS/BeiDou frequency coverage (1560-1620 MHz)


  Perfect frequency coverageGPS L1andBeiDou B1Frequency band. This is the most critical band for triggering drone modes such as "emergency landing," "return to home," or "hover," and is also the key band for...

  The lifeline of the navigation positioning system.

• Wide Voltage & High Current Drive (DC24V-28V / 2.8A)


  SupportedDC24V-28VWide voltage input, maximum operating current2.8AThis high-voltage, high-current design is typically used in vehicles or large portable devices to effectively reduce

  Minimizes transmission line losses to ensure stable power output.

• Industrial-grade thermal and shielding design


  Full metal aluminum alloy casing with multiple fixed screws for a tight fit, serving asEfficientRadiator(Heat Sink)Export chip heat, then use asElectromagnetic Shielding CanPrevent

  Prevents signal leakage from interfering with its own circuitry, ensuring reliable continuous operation.

• Made in Shenzhen


  Originating from Shenzhen, China's electronics manufacturing hub, it leverages mature RF technology and supply chain advantages to deliver high-value industrial-grade solutions.

3. Technical Specifications

4. Frequently Asked Questions (FAQ)

Q1: Which drone frequencies does the BCSK-G20 module primarily jam?

A:The operating frequency of this module is1560-1620 MHz, primarily covering globally adopted standardsGPS L1 (1575.42 MHz)and ChinaBeiDou B1I (1561.098 MHz)Frequency

It is the core component that disrupts a drone's satellite positioning system, forcing it into return-to-home or landing mode.

Q2: What is the difference between this 20W module and a standard 10W module?

A:The power of BCSK-G20 is10W Moduletwice as much. This means that with the same antenna gain, itsExtended effective interference range, or at the same distance

Enhanced penetration and interference margin. Operating current reaches 2.8A, requiring higher power reserve in the power supply (Bochuan Shikong recommended).

60W or more 24VIndustrial Power Supply）。

Q3: Does this module require an additional cooling fan?

A:The BCSK-G20 features a thickened aluminum alloy housing for passive heat dissipation. Natural cooling is sufficient for intermittent operation or in well-ventilated environments. If

If operating continuously at full power (CW mode), it is recommended to install it in aSerrated Heat SinkUse the metal chassis or auxiliary air cooling to maintain optimal performance.

Q4: Can I use this module for a signal booster?

A:Although it is a power amplifier, it was primarily designed forElectronic Warfareand signal jamming. If you are using it for lawful communication relaying or enhancement,

Ensure compliance with local radio management regulations; illegal use of public spectrum is strictly prohibited.

Q5: What type of input interface does the product have?

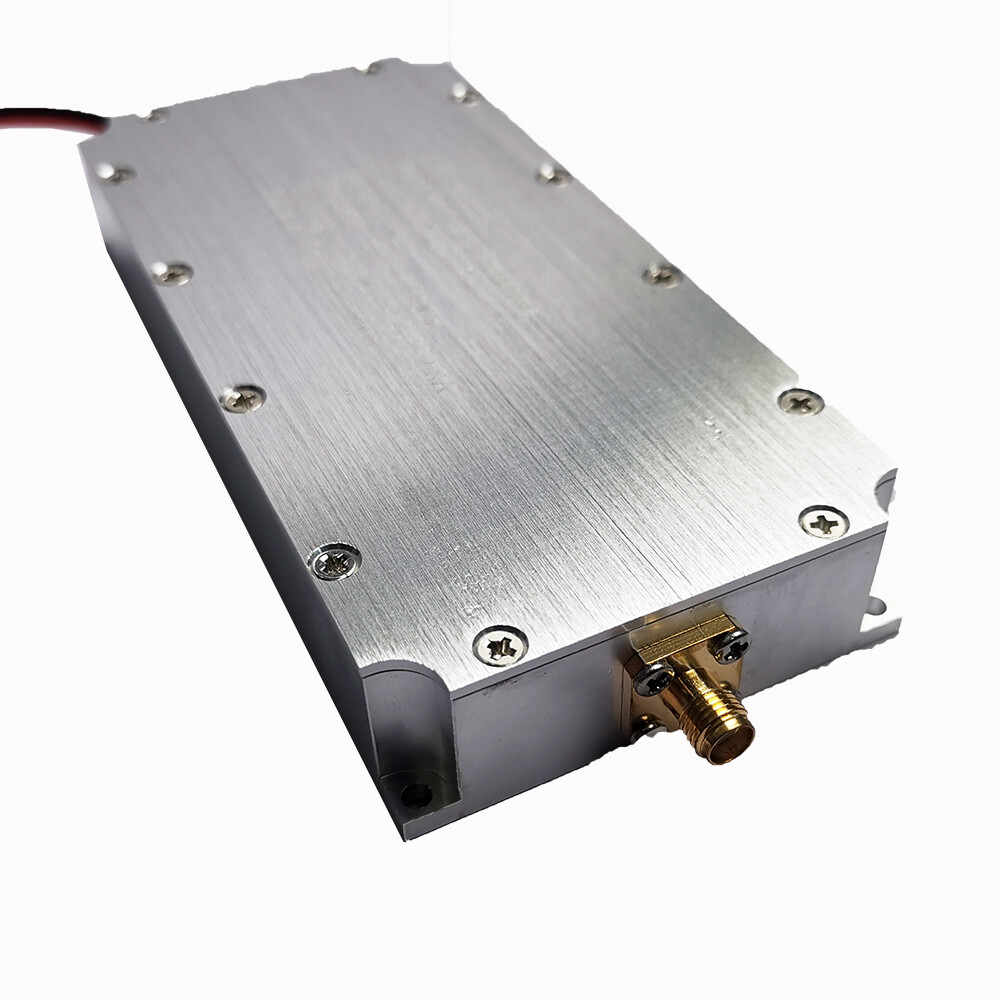

A:According to the standard configuration, RF input and output are typicallySMA-K ConnectororN-Jfemale connectorConnector(please consult customer service for specifics), power input is red-black twisted pair

Wire. This interfaceWidely used in RF engineering, it integrates easily into various systems.
