Bochuang Space-Time BCSK-F10 Model 1.4GHz 10W RF Power Amplifier Module | For Drone Countermeasures and FPV Signal Jamming Systems
The BCSK-F10 is a high-stability, wide-bandwidth 1.4GHz RF power amplifier module operating from 1380 to 1450 MHz with an output power of up to 10 W. It supports stable DC 24V–28V/1A power supply and is ideal for drone remote link jamming, FPV video transmission interference, and signal enhancement in specific frequency bands. Featuring a compact metal enclosure, the module offers excellent heat dissipation and electromagnetic compatibility, enabling seamless integration into portable drone countermeasures systems, exam venue shielding setups, and industrial wireless communication enhancement solutions. With clean spectrum performance and strong out-of-band suppression, it ensures reliable operation in complex electromagnetic environments—making it the ideal core component for directional jamming or targeted signal coverage applications.
In Stock (500units
BCSK-F10 — Industrial-Grade 1.4GHz 10W BroadbandRF Power Amplifier Module | UAV Defense and Interdiction System Solution
1. Product Overview
Bochuang SpaceTime (BCSK-F10)Designed specifically for drone countermeasures and wireless communication enhancement.1.4GHz RFPower Amplifier Module。
This module covers the core operating frequency bands.1380-1450 MHz, providing up to10Wsustained stable power output is essential for building portable drone defense systems and FPV
The core power source for image transmission jammers and specific frequency signal enhancement devices.
The BCSK-F10 features a rugged aluminum alloy enclosure that delivers superior electromagnetic shielding and effectively addresses heat dissipation challenges during high-power operation. Its
Wide voltage input design (DC 24V-28V) allows it to easily adapt to various vehicle-mounted or battery-powered mobile devices. Whether forConsumer dronesRemote link pressure
Whether in standard operation or signal source amplification within a lab environment, this module meets the rigorous demands of professional-grade engineering integration with its exceptional linearity and spectral purity.
2. Key Product Features
Precise 1.4G band coverage
Frequency range locked to1380MHz - 1450MHz. This golden frequency band perfectly covers mainstream drone remote control links and FPV first-person view video transmission systems, as
and some satellite communication frequency bands, are used to implement precisionElectronic Warfarekey components.
10W high-efficiency power output
Rated output power reaches10 Watts. In collaboration with Bochuang ShikongDirectional Antennasufficient to create an effective signal suppression or enhancement zone within hundreds of meters, while maintaining low power consumption.
Superior performance (approximately 1A current), ideal for integration intoHandheldCountermeasure GunorBackpack-mounted anti-drone systemIn.
Excellent out-of-band rejection and spectral purity

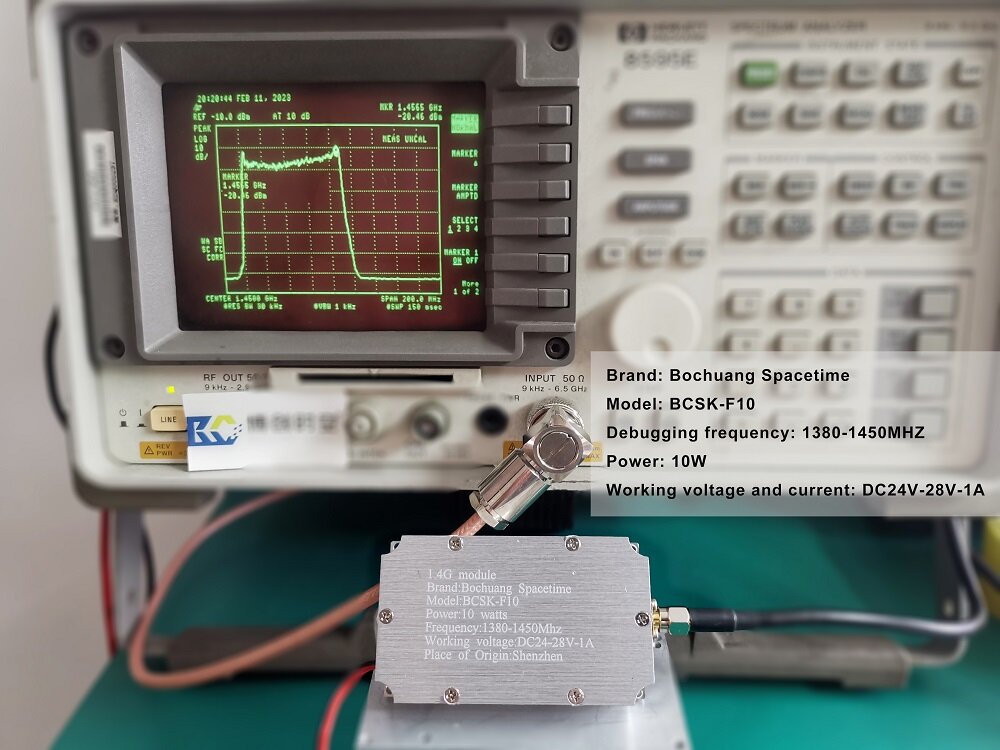

As shown in the test spectrum, this module exhibits excellent filtering characteristics with high out-of-band spurious suppression. This means it can maximize target signal amplification while minimizing unwanted interference.
Interference with nearby communication devices (such as Wi-Fi and Bluetooth) complies with eco-friendly electromagnetic interference standards.
Industrial-grade cooling and protection
All-metal CNC-machined enclosure for efficientRadiatorEnsures temperature remains controllable during prolonged full-load operation. Compact design enables easy integration into tight spaces.
inside electronic devices.
3. Technical Specifications
Parameter Items | Specifications | Notes |
|---|---|---|
Product Model | BCSK-F10 | Authentic product by Bochuang Space-Time |
Operating Frequency | 1380 - 1450 MHz | Covers mainstream drone/FPV frequency bands |
Output Power | 10 Watts (40 dBm) | Typical value, varies by input |
Supply Voltage | DC 24V - 28V | Wide voltage design for enhanced adaptability |
Operating Current | ≤ 1A | Low power, high efficiency |
Interface Type | SMA / N-Type (Customizable) | StandardRF ConnectorAPI |
Dimensions | Compact metal enclosure | Easy to integrate |
Use Cases | Drone Countermeasures, Signal Jamming, Signal Boost (Passive Power Amplifier Module） | Industrial/Security-Grade Applications |
4. Frequently Asked Questions (FAQ)
Q1: What is the primary use case for this 1.4G power amplifier module?
A: The BCSK-F10 is primarily used forSignal processing for the 1380-1450 MHz band. The most common use cases includeUAV Defense SystemSuppress drone remote control and video transmission signals
room), exam room, or confidential meeting roomSignal Jamming Device, as well as enhanced wireless video transmission signals within this frequency band.
Q2: What are its power requirements? Can it run on battery power?
A: The standard operating voltage for this module isDC 24V-28V, the current requirement is approximately 1A. Due to the high voltage, ordinary lithium batteries (3.7V/7.4V) cannot be used directly.
Move, or consider using a boost module or a standard...24V Industrial Power SupplyPowered by battery pack.
Q3: How is the cooling performance of this module? Do I need to add extra fans?
A: The module enclosure is made of aluminum alloy and serves as a large-areaRadiatorAt full power output of 10W, noticeable heating of the casing is normal.
Extra fans are typically unnecessary in well-ventilated, heat-dissipating enclosures. If installed in a confined space, apply thermal paste to the bottom of the module casing and press it against the chassis for better heat dissipation.
Q4: Can it be used to amplify WiFi signals?
A: Not allowed. WiFi signals typically operate in2.4GHzor5.8GHzfrequency band, while the operating frequency of this module is strictly limited to1.38GHz - 1.45GHzbetween. Use
Do not operate on WiFi frequencies, as this may result in no output or damage to the module. Please verify that your target frequency matches before purchasing.
