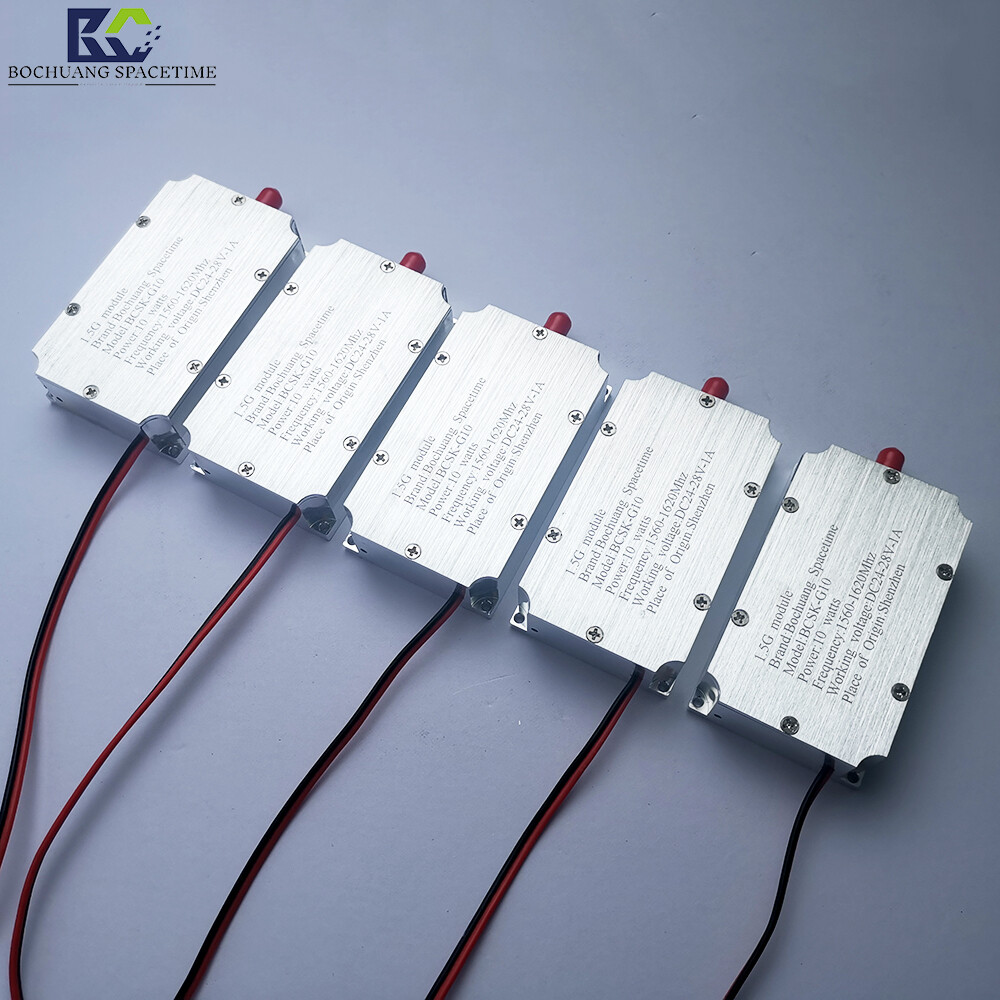

BCSK-G10 1.5GHz 1W RF Power Amplifier Module by Bochuang Times | Designed for Drone Countermeasures and FPV Signal Jamming Systems

BCSK-G10 Professional 1.5GHz (1560-1620MHz) 10W RF Power Amplifier ModuleAnti-drone SystemSolutions

1. Product Overview

Bochuang SpaceTime (BCSK-G10)is a dedicatedElectronic WarfareDesigned for the field of signal jamming1.5GHz BroadbandRF Power Amplifier. This

Precise module coverage1560MHz to 1620MHzFrequency Band: This critical frequency band is primarily used forGPS L1 Navigation Signaland satellite positioning links for mainstream civil UAVs.

With Gundam10Wstable output power and excellent linearity, the BSK-G10 is ideal for building UAV countermeasure systems (UAS Countermeasure) and exam hall shielding

Ideal core component for devices and radio silence equipment in designated areas.

This module is encased in an industrial-grade aluminum alloy housing, delivering superior electromagnetic interference (EMI) shielding and ensuring reliable operation under sustained high loads through efficient heat dissipation.

Operational stability. Its wide voltage input range (DC24V-28V) allows it to easily adapt to various mobile portable devices or vehicle-integrated systems. For those seeking high performance

For engineers and system integrators seeking high-reliability RF front-end solutions, the BSK-G10 is a key choice for enhancing system interference performance.

2. Key Product Features

• Precise GPS/BeiDou frequency coverage (1560-1620 MHz)


  Perfect frequency coverageGPS L1 (1575.42 MHz)andBeiDou B1I (1561.098 MHz)Supports major global satellite navigation bands. This enables drone "emergency landing."

  or the critical frequency band triggered by "Return to Home" mode, which is alsoAnti-drone Systemprimary strike target.

• 10W High Power Density Output


  Rated output power reaches10 Watts. In coordination withOmnidirectional AntennaorDirectional AntennaWhen in use, it effectively blocks satellite positioning signals within a radius of several hundred meters to ensure the target

  Drone lost position reference.

• Industrial-grade thermal and shielding design

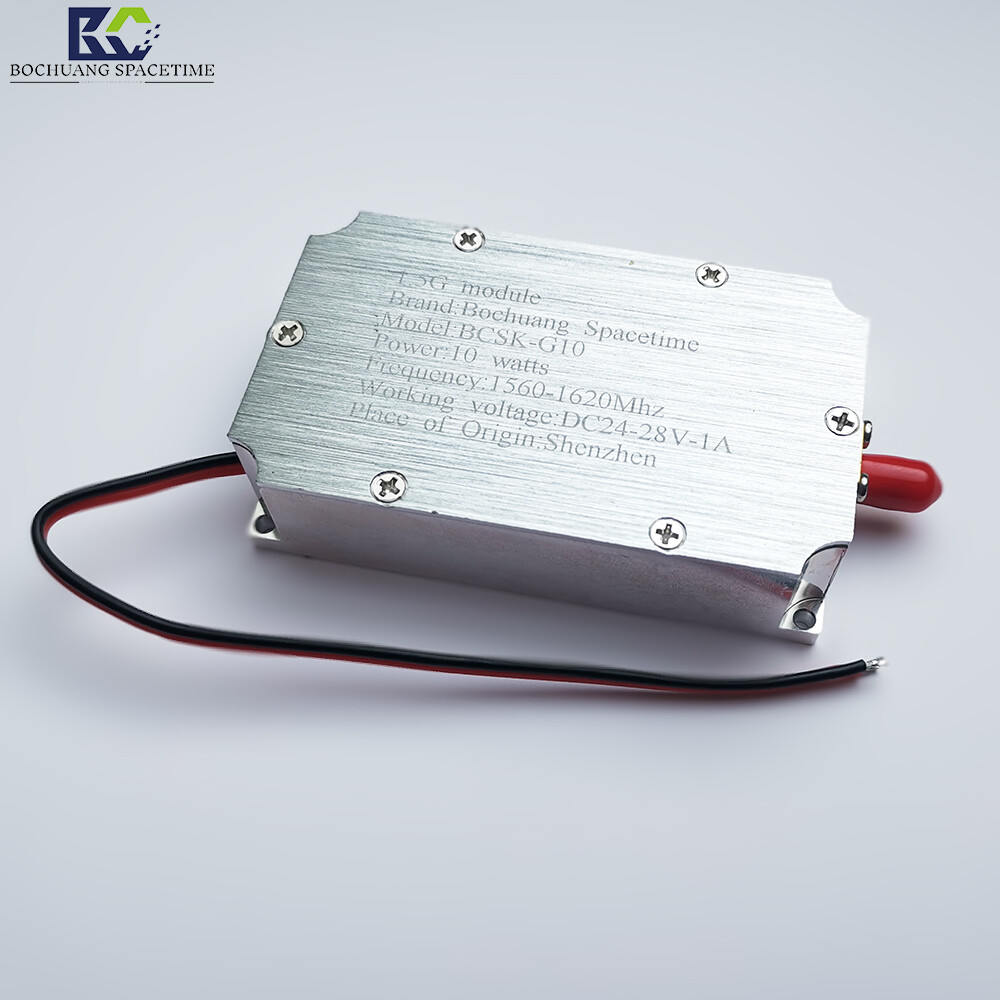

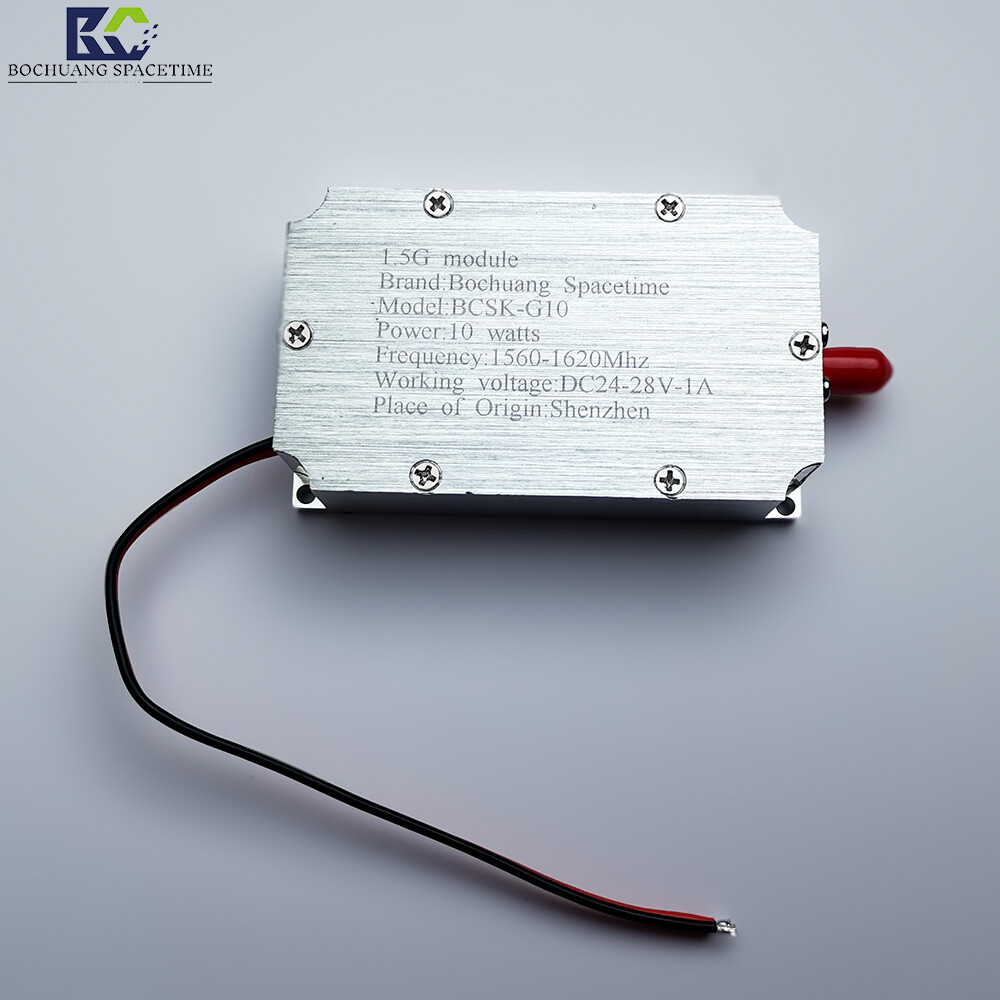

  As shown, the module features a CNC-machined aluminum enclosure with anodized finish. This design not only serves as an efficientRadiator(Heat Sink)Take-away power

  The heat generated by the pass also serves asElectromagnetic Shielding CanPrevent high-frequency signal leakage from interfering with other circuits within the module.

• Wide voltage DC power supply (DC 24V-28V)


  SupportedDC24V-28V / 1Awide voltage input with low current requirements, ideal for battery-powered portable handheld devices or integration into standard 24V industrial power supplies

  No complex voltage conversion circuit is needed in the system.

• High Gain and Low Noise


  Optimized internal circuitry with high gain effectively amplifies weak signals from upstream DDS or VCO stages while maintaining low phase noise, ensuring

  Preserve the spectral purity of interference signals.

3. Technical Specifications

4. Frequently Asked Questions (FAQ)

Q1: What frequency band does the BCSK-G10 module primarily target for jamming?

A:The operating frequency of BCSK-G10 is1560-1620 MHz. This frequency band primarily coversGPS L1 (1575.42 MHz)andBeiDou Satellite Navigation Systemof

Signal. Therefore, it is primarily used to disable a drone's GPS functionality, preventing it from hovering or following its pre-programmed flight path. Commonly used for...UAV Defense System。

Q2: Can this 10W module be connected directly to a signal source?

A:No, this module already includes a built-in VCO signal source. Please note,RF Power AmplifierLoad must be connected (e.g.Antennaordummy load) to power on and test

TryDo not run the device without a load.Otherwise, the internal components of the module are highly susceptible to burnout.Power amplifier tube。

Q3: Does the module generate significant heat during operation? Is a fan required?

A:A 10W RF output typically results in some heat dissipation. While the aluminum alloy housing provides inherent heat dissipation, during prolonged continuous operation (duty cycle >

In the case of 50%, it is recommended to apply thermal paste at the bottom of the module and install it on a largerSerrated heatsinkOn a metal baseplate, or install a small cooling fan to extend usage.

Lifespan.

Q4: Can this module boost mobile signal strength?

A:Not allowed. This module operates in the 1560-1620 MHz frequency range, while mobile communication bands (such as 4G/5G) typically occupy specific ranges like 700MHz-3500MHz.

Segment and protocol differ. This module is designed exclusively for frequency jamming navigation; do not use it for illegal signal boosting.

Q5: Do you offer customization services, such as adjusting frequency or power?

A:Yes, Bochuang SpaceTime supports OEM/ODM customization. If you require other frequency bands (e.g., 2.4G, 5.8G) or higher power levels (e.g.,

20W Module,50W Module，100W ModuleFor accessories, please contact our sales team for a technical solution.
