BCSK-G30 1.5GHz 3W RF Power Amplifier Module for UAV Countermeasures and GPS Jamming | Core Component

BCSK-G30 Industrial-Grade 1.5GHz (1560-1620MHz) 30WHigh-Power RF Power Amplifier ModuleDrone Electronic Warfare System Solution

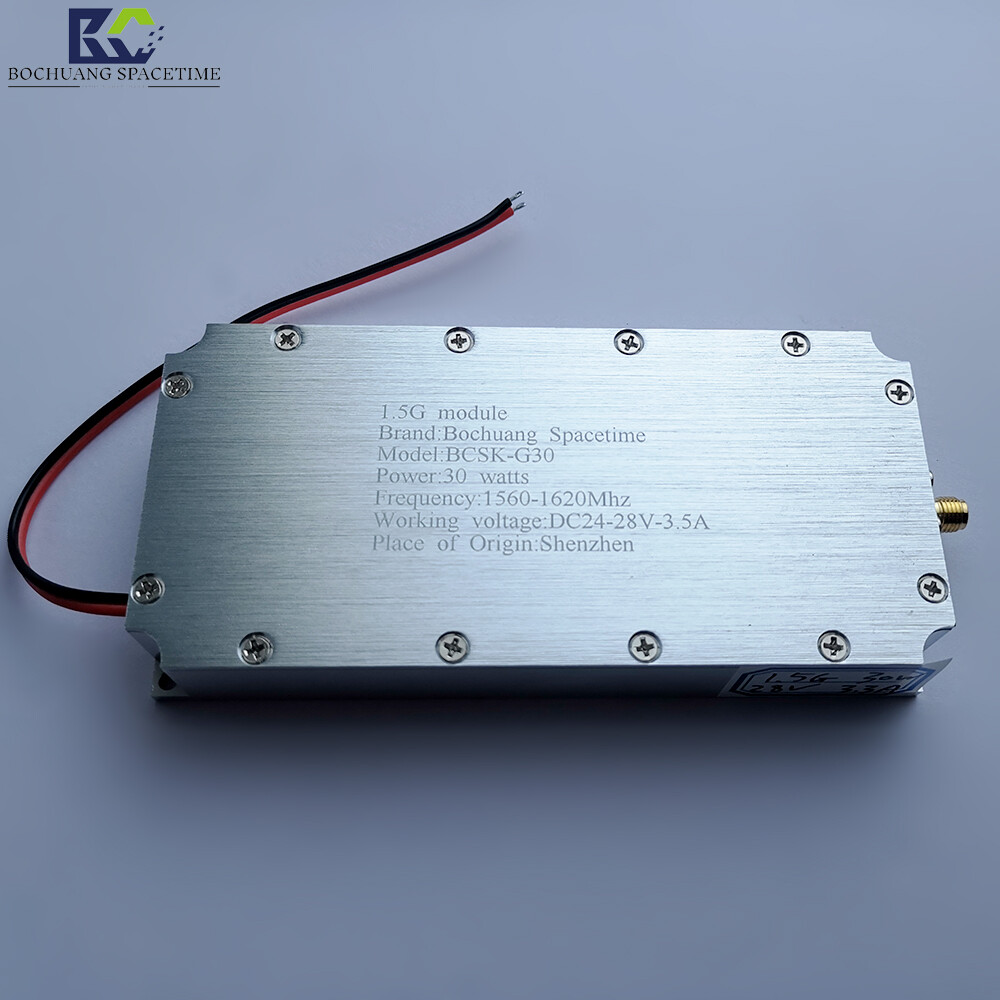

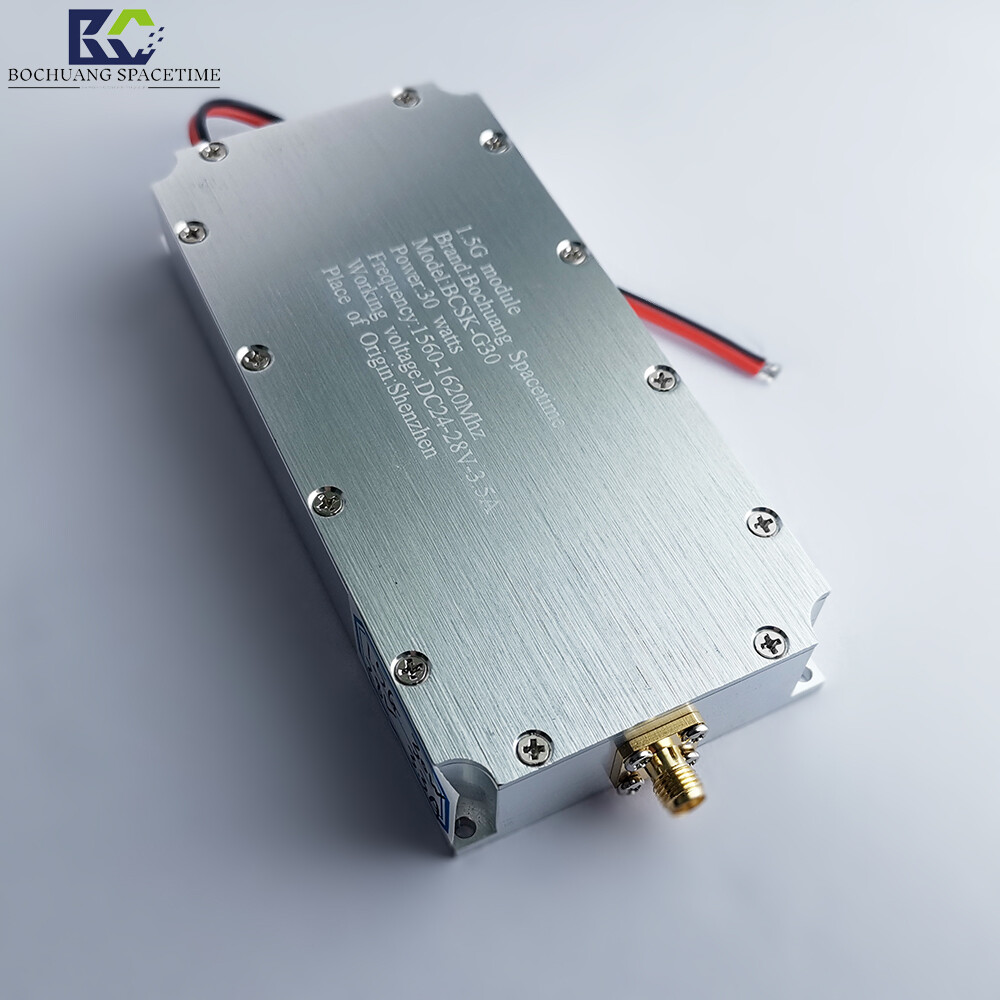

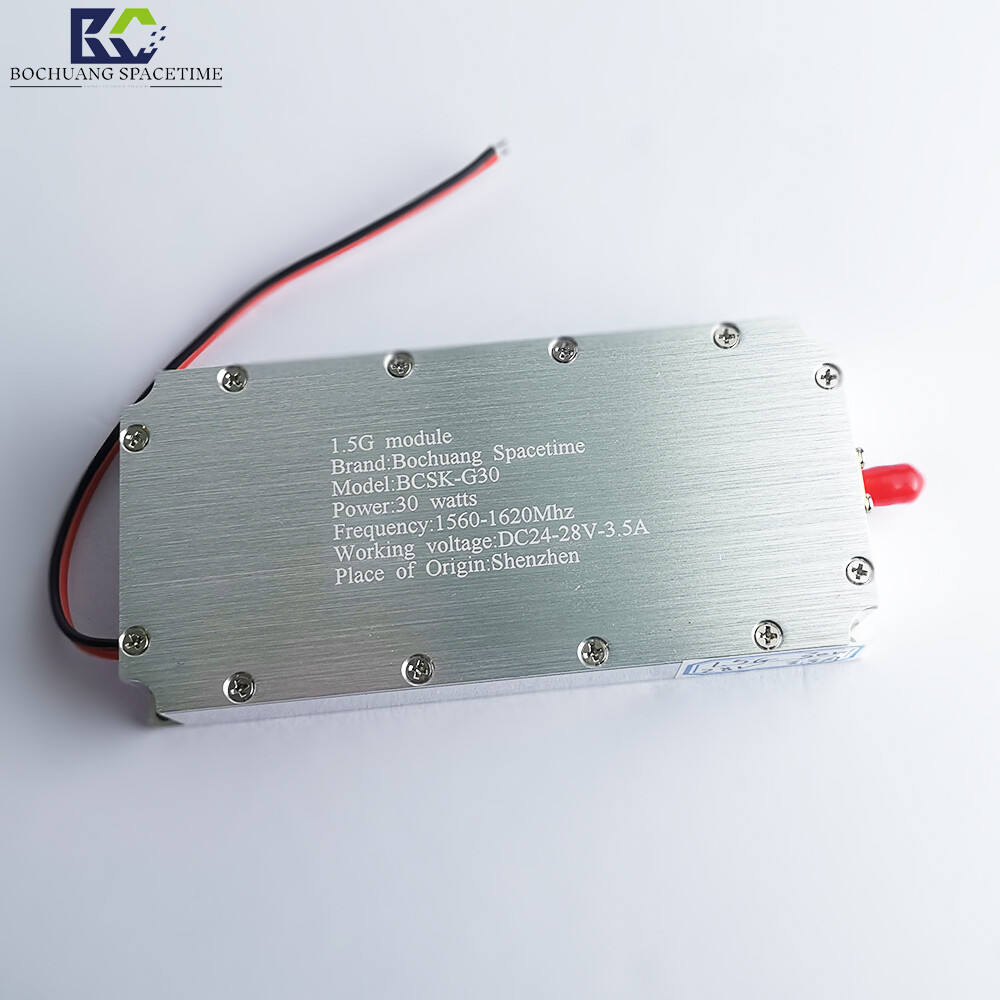

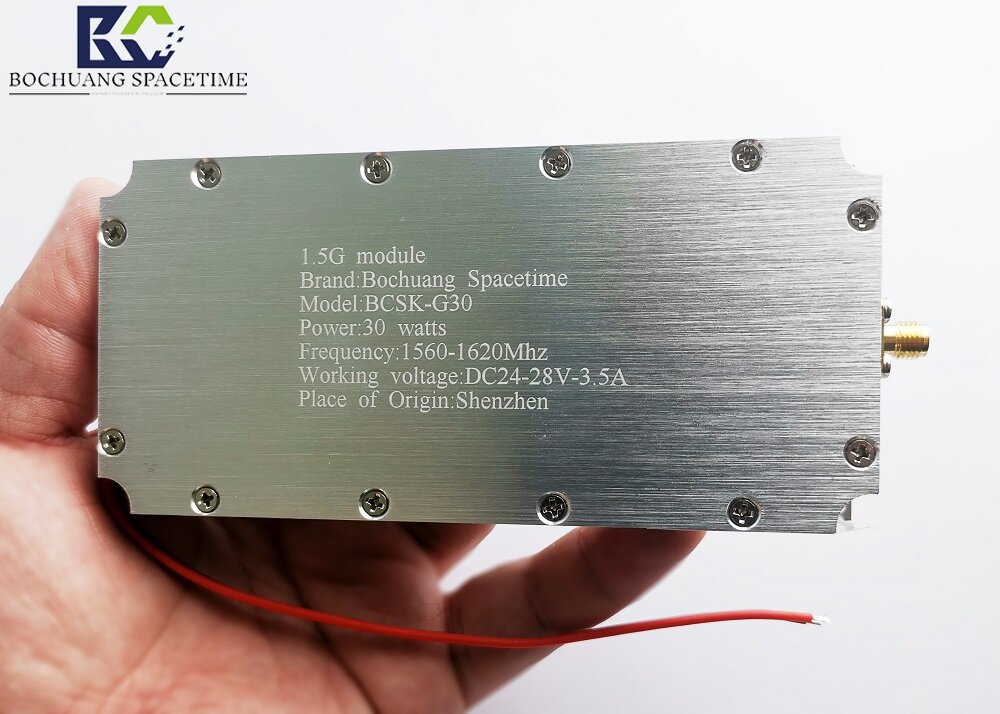

1. Product Overview

Bochuang SpaceTime BCSK-G30Designed specifically for high-intensity electronic warfare and signal suppression applications.1.5GHz BroadbandRF Power Amplifier

Device. This module precisely covers1560MHz to 1620MHzKey frequency bands, which primarily includeGPS L1 (1575.42 MHz)andBeiDou B1IWait for global mainstream satellite

Star navigation signal. With up to30WWith its robust power output and wide voltage input range (DC24V–28V/3.5A), the BCSK-G30 is ideal for building remote drone countermeasure systems.

System (UAS Countermeasure), HandheldDrone Jammeran ideal core component for regional radio silence equipment.

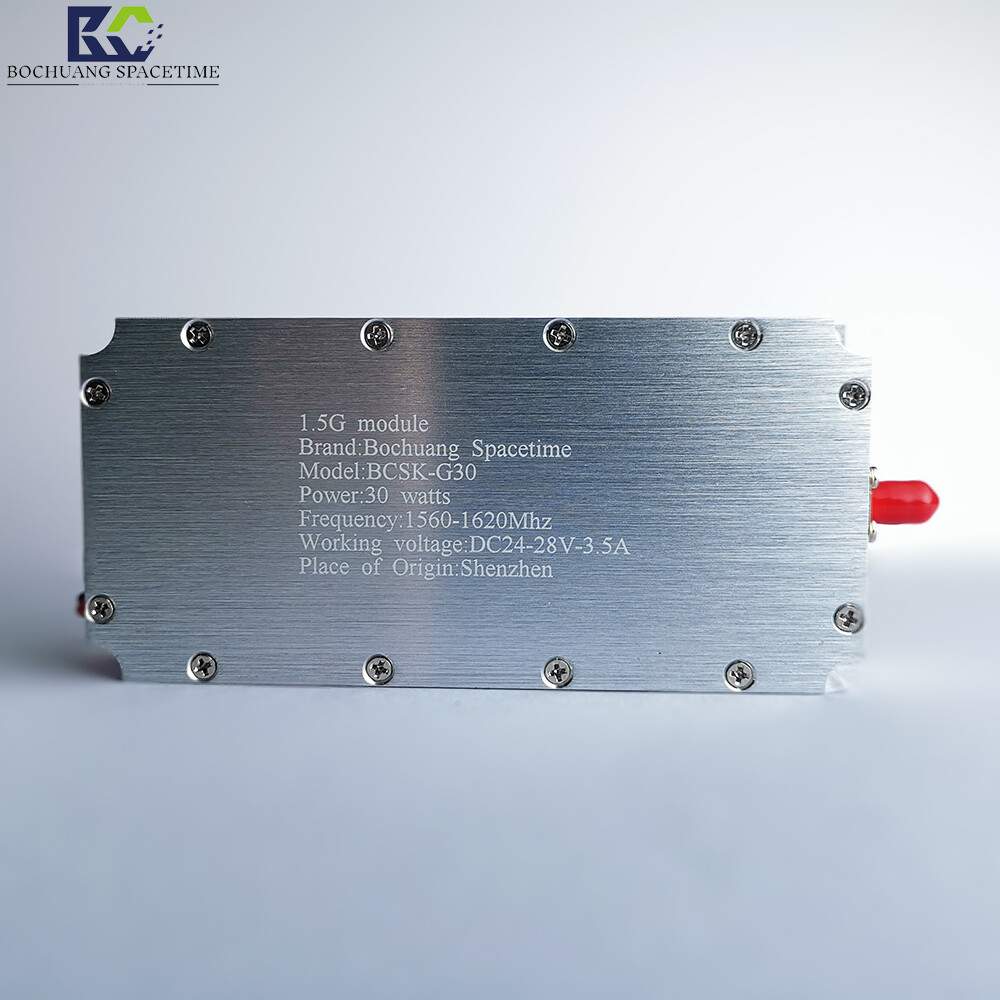

Compared to standard low-power modules, the BSK-G30 features a thickened aluminum alloy enclosure that delivers superior electromagnetic interference (EMI) shielding and optimized thermal dissipation.

The design ensures thermal stability under high current operation (3.5A). Its high gain and low noise characteristics maintain signal purity even in complex electromagnetic environments.

Clarity and suppression performance are key factors for system integrators to extend device range.

2. Key Product Features

• Robust 30W Power Output


  Rated output power reaches30 Watts. Compared to common10W Moduleor20W Module, its energy density has been significantly improved, greatly extending the effective range of jamming equipment.

  Use radius mode to easily engage distant or high-interference drones.

• Precise GPS/BeiDou frequency coverage (1560-1620 MHz)


  Perfect frequency coverage1560-1620 MHzThis is the core workspace for Global Navigation Satellite Systems (GNSS). Whether for civilian GPS or other uses.

  This module provides full-band, 360-degree signal coverage across all frequency bands.

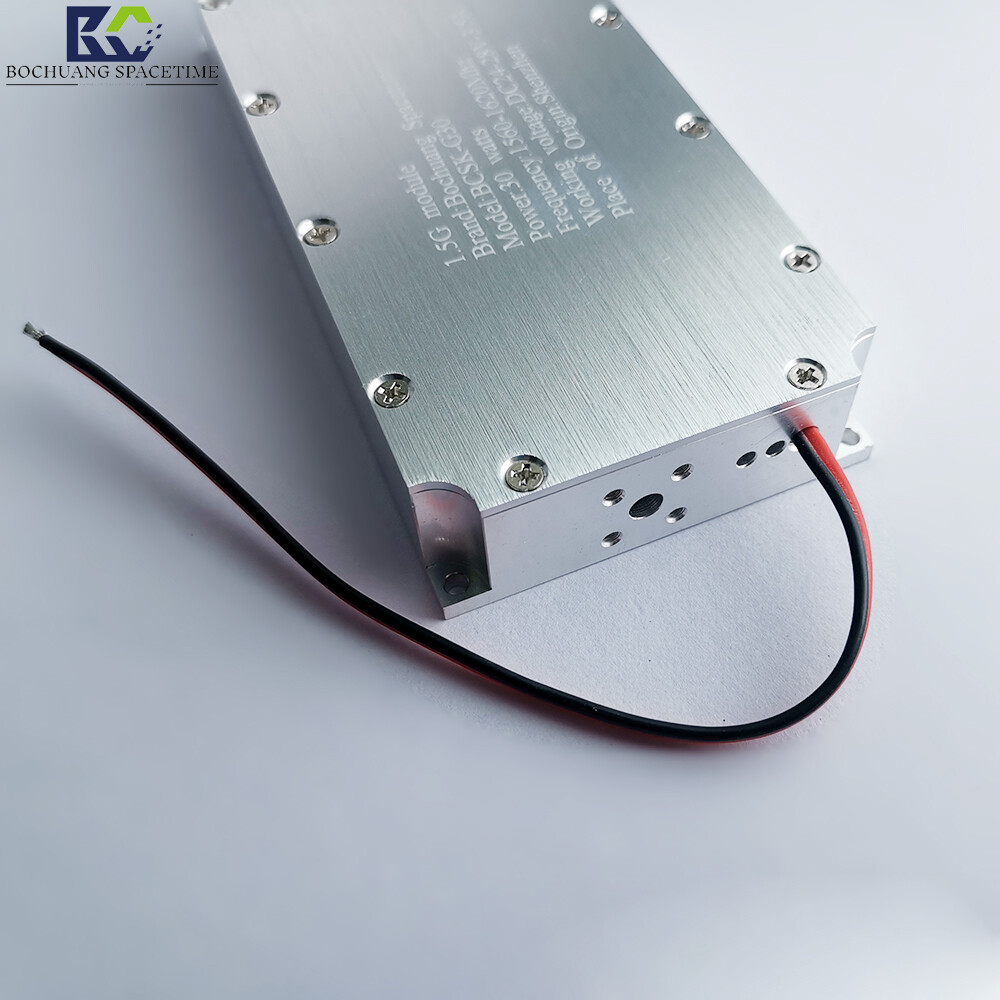

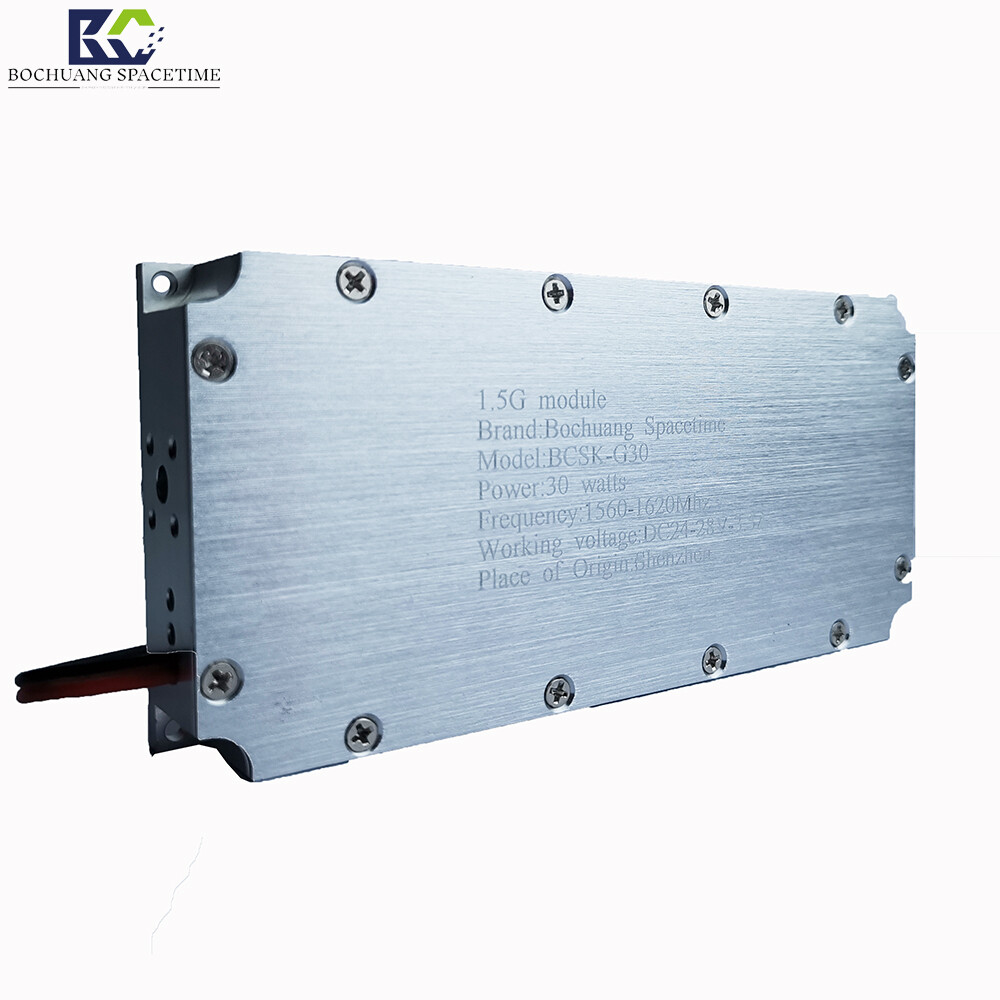

• Industrial Metal Housing & Heat Dissipation


  The chassis is crafted from high-grade aluminum alloy with an anodized finish. This design not only acts as a natural heatsink to efficiently dissipate heat from the 3W power output but also

  Effectively shields internal circuits from external electromagnetic interference, ensuring stable operation during extended continuous use.

• Wide Voltage DC Input


  SupportedDC 24V-28VWide voltage input, maximum operating current3.5AThis design significantly improves compatibility and can be directly adapted to the Bocom Space-Time standard.24V

  Industrial Power Supply, simplifies system integration for vehicle battery packs or portable lithium-ion battery packs.

3. Technical Specifications

4. Frequently Asked Questions (SEO-Optimized)

Q1: What is the primary use case for the BCSK-G30 module?

A:The BCSK-G30 is a30W 1.5GHz RF Power Amplifier Module, mainly used forDrone Countermeasure SystemDrone CountermeasureandGlobal GPS Tracking

Interference(GPS Jammer)It is specifically designed to amplify the 1560-1620 MHz band, effectively blocking drone satellite positioning signals and forcing them to hover or

Return home.

Q2: What is the voltage requirement for this module? Can it be connected directly to a 12V power source?

A:No. According to the silkscreen marking, the operating voltage for this module isDC 24V-28V, maximum current 3.5A. Please use Bochuang Shikong's24V Switching Power Supplyor email

Power the pool group to avoid module damage or insufficient power.

Q3: What is the interference range for a 30W power output?

A:Jamming distance depends on antenna gain, the local electromagnetic environment, and the target drone's resistance to jamming. Generally, when paired withHigh-Gain Directional Antenna，30W

1.5GHz ModuleDelivers effective suppression over hundreds of meters or more in open terrain, far outperforming standard 5W or 10W handheld units.

Q4: Does the module generate significant heat during operation? Is an additional fan required?

A:Since the output power reaches 30W, the module generates heat during operation. Its aluminum alloy housing itself serves as a largeRadiator. It is recommended to install the mold

The block is mounted flush against the metal chassis wall to aid heat dissipation. For continuous operation exceeding 10 minutes, we recommend adding a small cooling fan to ensure optimal performance.

Q5: Does this module include a driver circuit, or do I need to add a preamp?

A:Includes, this is a built-in signal source.Power Amplifier Module(PA). To achieve optimal 30W output, the built-in VCO signal source does not require a pre-drive source (such as

For excitation sources in the 10,000–20,000 range. If you need a complete solution, please contact our sales engineers for recommended pre-driver configurations.
