BCSK-W40 Model 40W 2.4GHz Broadband RF Power Amplifier Module | Dedicated for Drone Countermeasures and WiFi Signal Jamming
Bochuang Shikong's BCSK-W40 RF Power Amplifier Module is a high-performance solid-state amplifier designed for the 2400-2500MHz frequency band. It delivers a stable saturated output power of 40W, supports a wide input voltage range of DC 24V to 28V (typical current: 3.4A), and serves as a core component for professional drone defense systems, FPV transmission jamming equipment, and long-range WiFi signal boosters. Built with an industrial-grade aluminum alloy heat-dissipating enclosure, this module ensures reliable operation under high-load conditions. Its compact design enables easy integration into handheld or shoulder-mounted interference guns. Whether deployed for low-altitude security defense or signal source amplification in radio testing environments, the BCSK-W40 delivers exceptional linearity and gain performance to meet demanding engineering requirements.
In Stock（50）
BCSK-W40 40W Broadband RFPower Amplifier ModuleHigh-Power Amplifier for Drone Countermeasures and WiFi Signal Jamming
Product Description
Bochuang SpacetimeLaunchedBCSK-W40RF Power Amplifier Moduleis a solution designed specifically for2400-2500 MHzHigh-performance band design
Solid-state amplifier. This module features40W (40W)of its powerful saturated output power, supportsDC 24V-28VWide voltage input (typical current 3.4A) is designed for...
IndustryUAV Defense System(Anti-Drone System)、FPV Signal Jamming Deviceand long-distanceWiFi Signal Boostercore component.

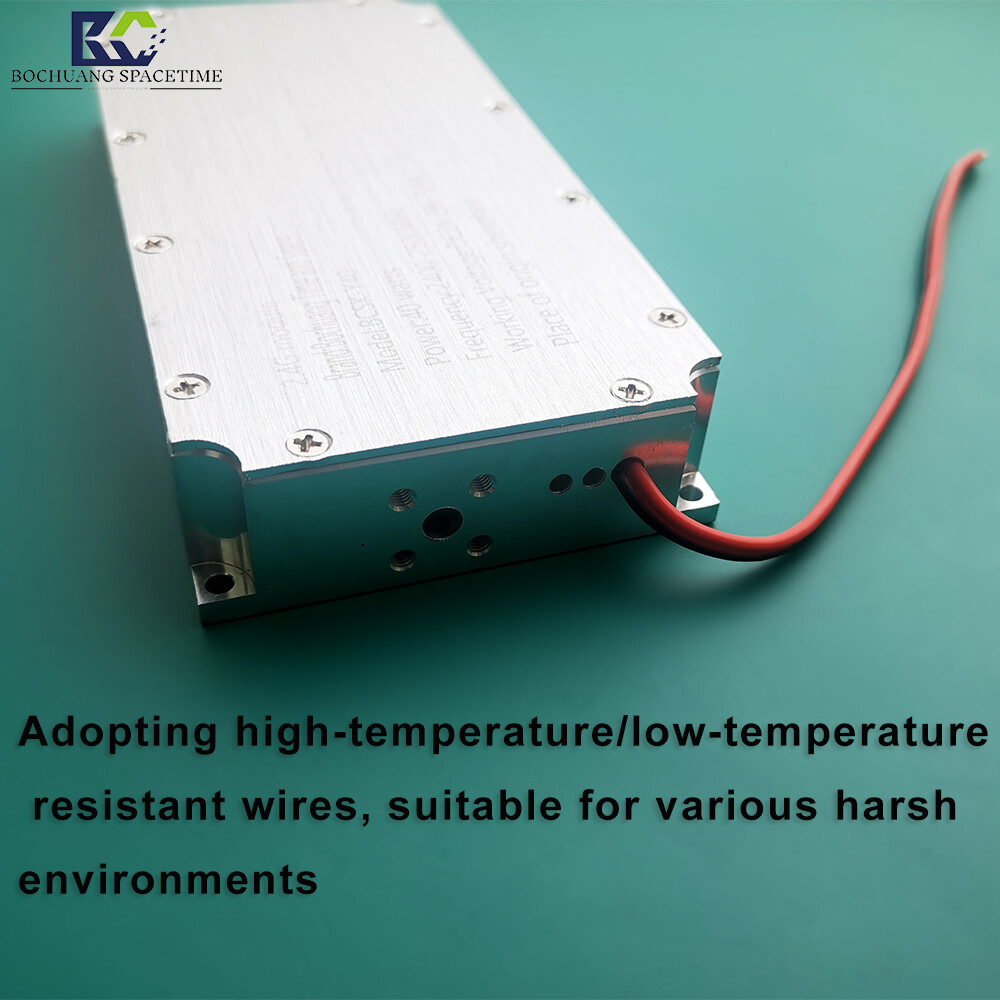

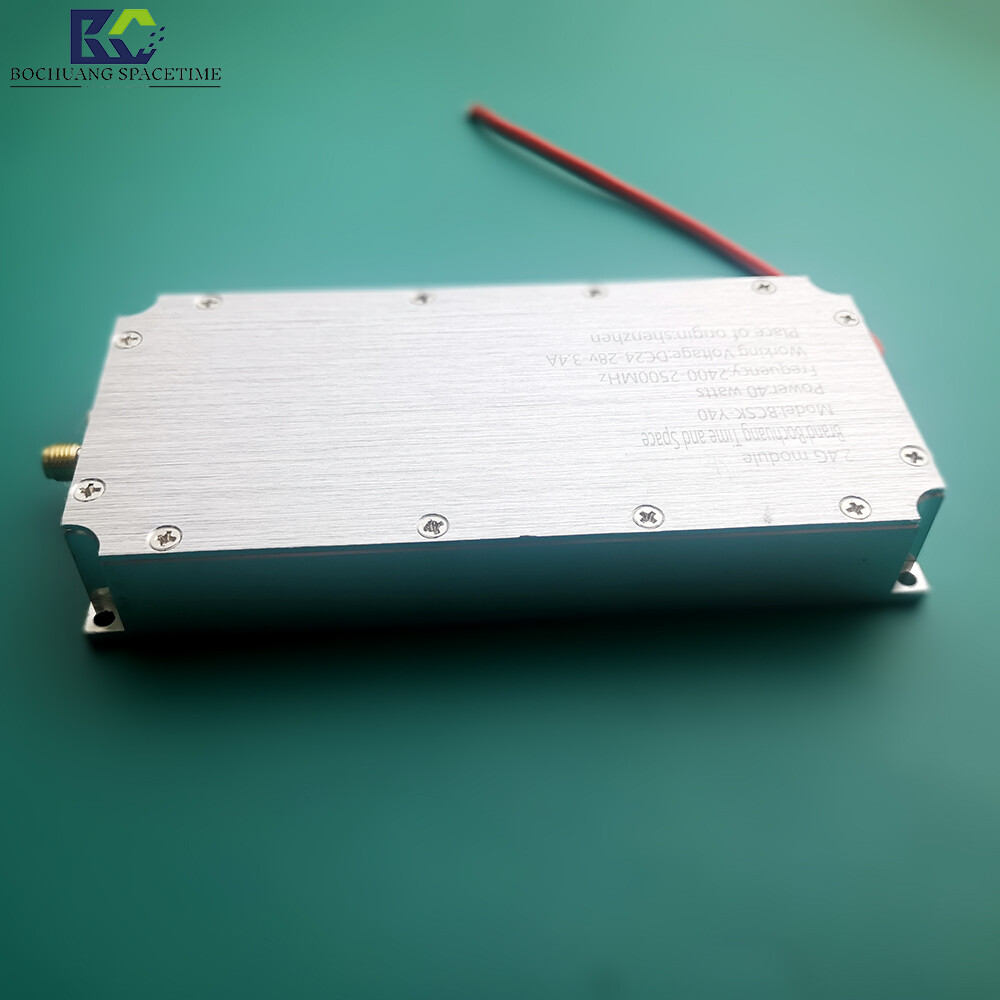

The BCSK-W40 features an industrial-grade aluminum alloy enclosure with heat dissipation design, ensuring stable long-term operation under high-load conditions. Its compact structure enables easy integration into handheld or back-mounted systems.
The BCSK-W40 negative interference gun is now active. Whether for low-altitude defense in security applications or signal source amplification in radio testing environments, it delivers superior linearity.
and gain performance, meeting stringent engineering requirements.
Key Features
High-Power Output:Provide Gundam40WStable saturated output power. Compared to standard 10W/20W modules, it offers wider coverage and more effective suppression.
Precise Band Coverage:Perfect coverage2400-2500 MHzFull-band support for Wi-Fi (802.11b/g/n), Bluetooth, and mainstream consumer drone remote control and video transmission.
Link.
Wide voltage compatibility:SupportedDC 24V-28VWide voltage input supports various vehicle power supplies, lithium battery packs, and standard industrial power sources for flexible system integration.
Efficient heat dissipation design:Custom thickened aluminum alloy enclosure doubles as a heatsink. Combined with internal circuit optimization, it ensures stable low-temperature operation even at full power output, extending...
Long lifespan.
High IntegrationCompact design with standardized interfaces (SMA/N-type options), enabling seamless integration into countermeasure systems or signal relay networks.

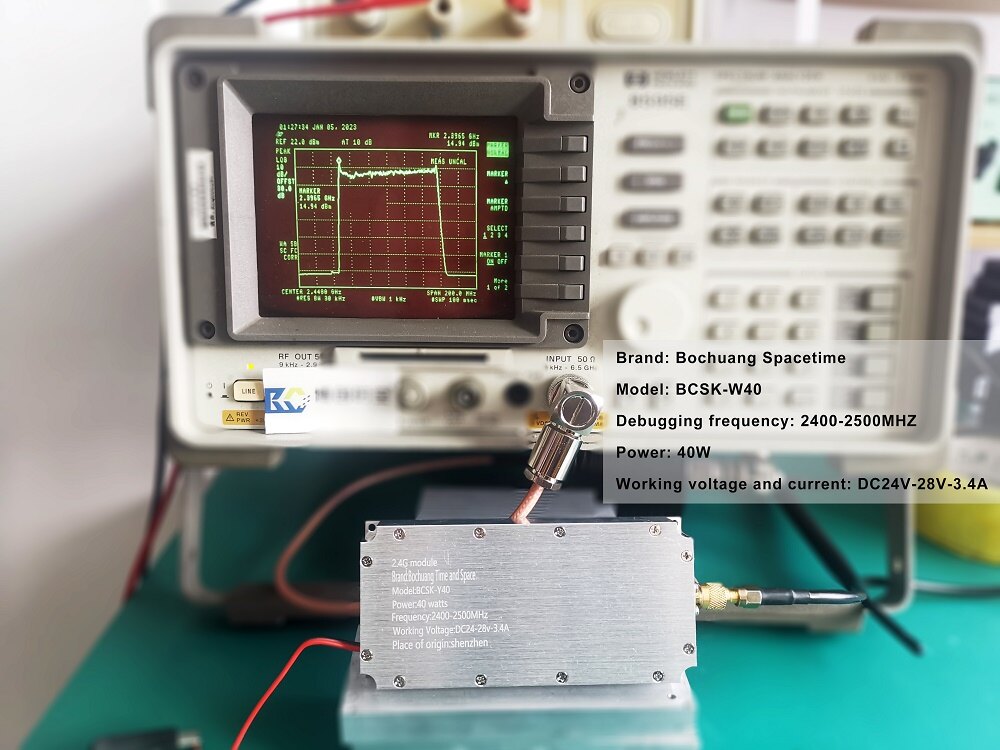

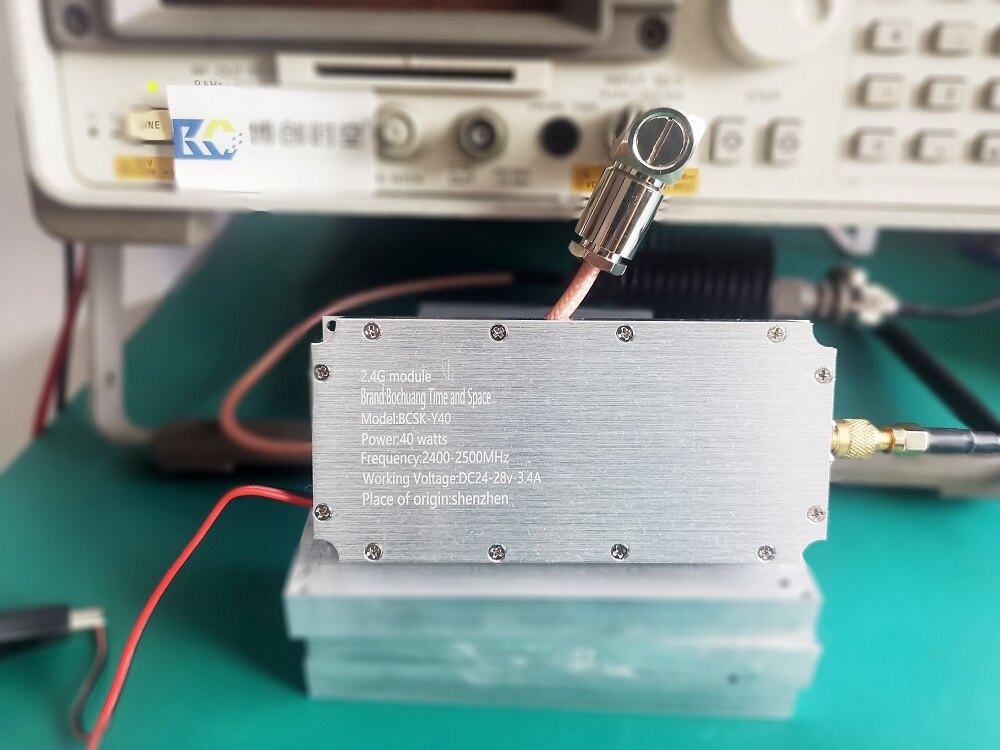

Industrial-grade quality:Manufactured in Shenzhen, rigorously validated through aging tests and spectrum analysis for excellent consistency. Ideal for bulk procurement and engineering applications.
Technical Specifications
Parameter Items | Specification Values | Notes |
|---|---|---|

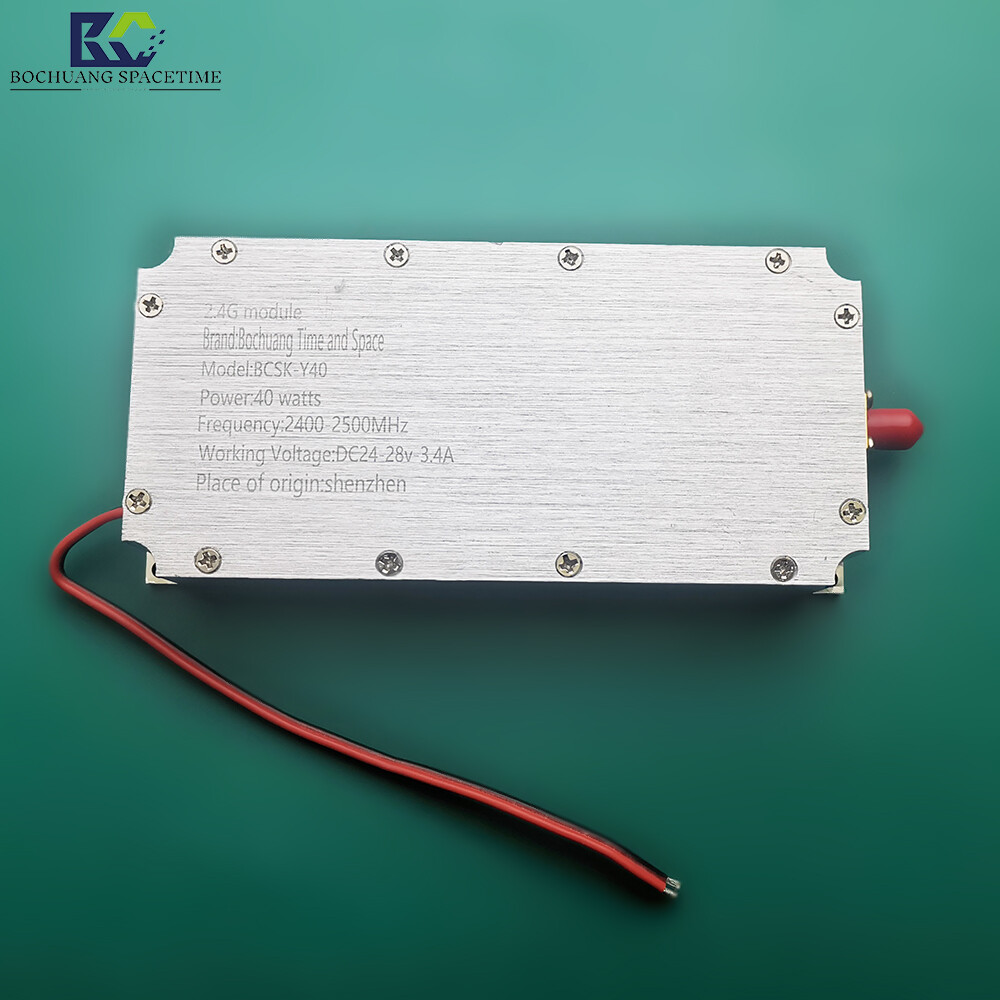

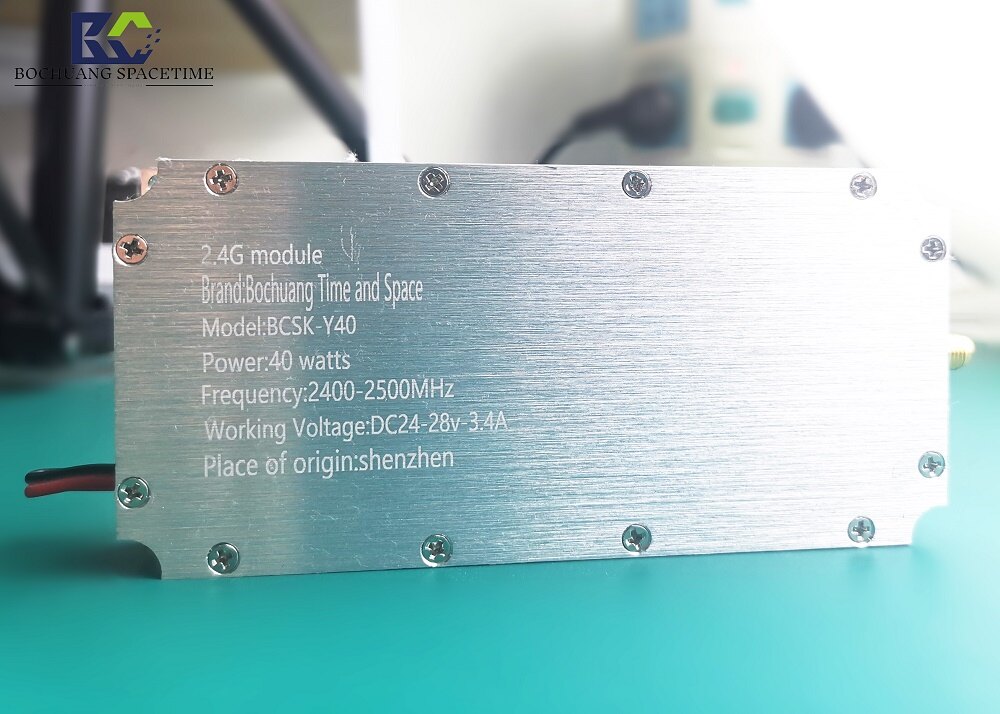

Product Model | BCSK-W40 | Authentic product by Bochuang Space-Time |
Operating Frequency | 2400 - 2500 MHz | Overwrite 2 4G ISM full band |
Saturation Output Power | 40 Watts (Max) | High Power Density Design |
Operating Voltage | DC 24V - 28V | Wide voltage input design |
Operating Current | 3.4A (Typical) | Must match Bochuang Space-Time in fullIndustrial Power Supply |
Gain | > 30 dB | Typical value (varies by batch) |

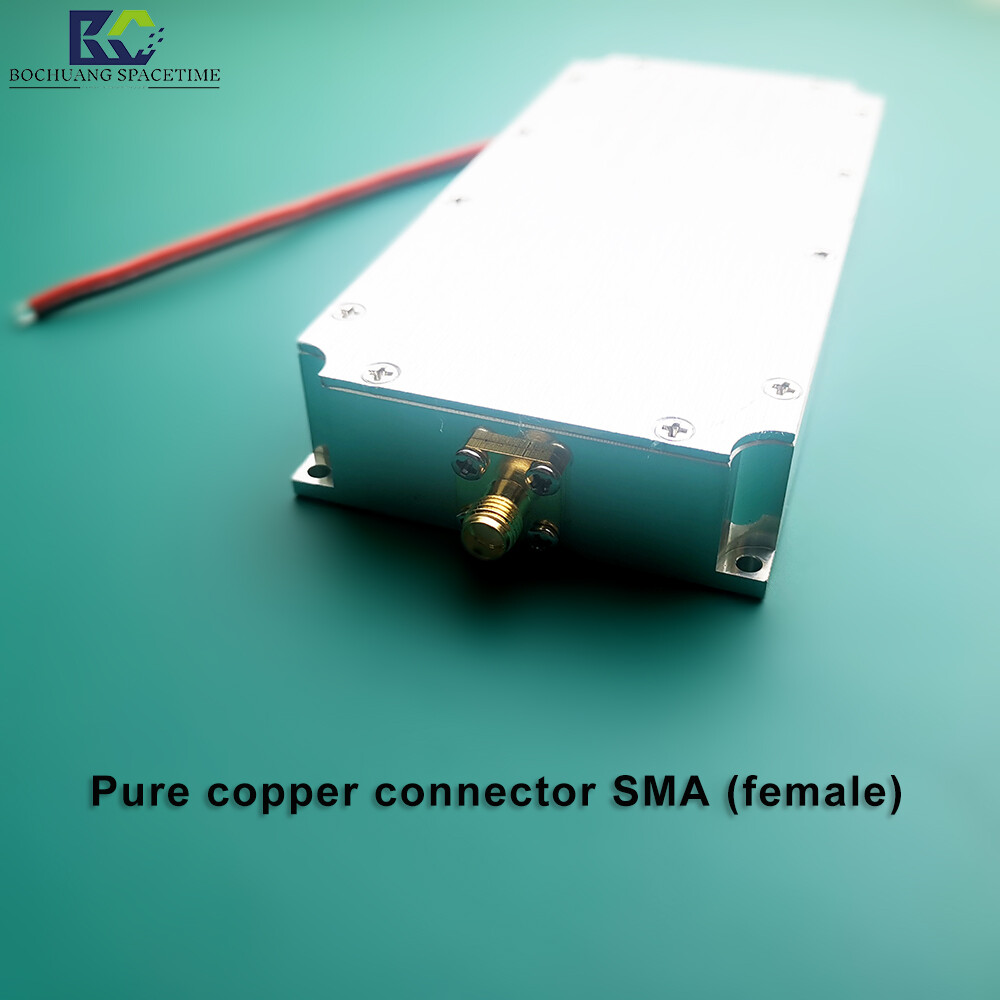

Interface Type | SMA Female / N-Type | Customizable to your needs |
Cooling Method | Aluminum alloy housing with natural cooling | For optimal performance, consider adding a fan. |
Size/Weight | Compact metal enclosure | Suitable for embedded installation |
Origin | Shenzhen, China | Shenzhen, China |
Frequently Asked Questions (FAQ)
Q1: What are the primary use cases for the BCSK-W40 module?
A:BCSK-W40 is a 40W 2.4GHz RF power amplifier, primarily used forDrone Countermeasure System(Drone Jammer)、Radio signal interference、
FPV Video Transmission JammingandExtended long-range WiFi signal boostIt delivers powerful RF energy to these devices.
Q2: Can this module be connected directly to a battery?
A:Yes. This module is designed for a working voltage ofDC 24V-28VYou can use a series-connected lithium battery pack (such as 6S or 7S) or a standard 24V power supply.
Power supply. Please note that the power current must exceed 3.5A to ensure stable output.
Q3: Does the 40W output power refer to continuous wave (CW) or pulsed power?
A:As indicated on the nameplate40WUsually refers to saturated output power. In practical engineering applications, it is recommended to leave a margin for use based on heat dissipation conditions. If used for continuous wave interference,
Ensure adequate cooling (e.g., add heatsinks or fans) to prevent thermal shutdown.
Q4: What is the gain of this amplifier module? How large an input signal is required?
A:Typical gain for this module is around 3 dB (refer to measured data for specifics). To achieve a full power output of 4 W, the following is typically required:0 dBm - 5 dBm
(1 mW - 3 mW)Drive signal inputs for left and right channels. Do not apply excessive signals to avoid damaging the preamplifier circuit.
Q5: How do I integrate this into my drone jammer after purchase?
A:Modules typically feature standard RF connectors (e.g., SMA female). Simply connect your module's output to the "SMA female connector" and power on.
24VDC Power SupplyWorks right out of the box. We provide detailed technical drawings for support.
Compare specs within the same series
Compare frequency bands, power, gain, and interfaces by model in a horizontal layout. Parameters are parsed from the model title; unlisted items display as dashes.
FAQ
Which frequency bands does the BCSK-W40 cover?
Operating frequency: 2.4 GHz. Please verify the carrier bands at your deployment location or the target link before placing an order. Contact us for custom band configuration if needed.
What is the output power of BCSK-W40?
Rated output power is 40W. Actual coverage depends on antenna gain, feeder loss, and site conditions; test data for specific configurations are available upon request.
Does BCSK-W40 support customization and bulk orders?
Supported. Customization available for frequency bands, interfaces, housing markings, and packaging. Samples can be used for evaluation and validation; test records are provided with bulk shipments.
What is the procurement process for BCSK-W40?
Step 1: Submit your target frequency band, power level, and quantity. We'll provide a quote and recommended configuration within 1 business days. Step 2: Confirm sample specifications and testing requirements. Upon successful sample approval, place the order and pay the deposit. Step 3: Manufacture according to the confirmed frequency band combination and conduct factory testing. Include test records and packing list with shipment. Step 4: Ship per agreed trade terms. Pay the balance and receive all documents before shipment.
Does the BCSK-W40 support prototyping and small-batch procurement?
Available. Prototypes can be configured at 2.4 GHz, 4 GHz, and 40W for system integration and field testing. Minimum order quantities depend on the model, frequency band combination, and appearance customization requirements. Prototype fees will be handled per agreement upon formal order placement.
How is the lead time and test data for BCSK-W40 agreed upon?
Production is scheduled by quantity and frequency band upon order confirmation. Lead time, test items, and acceptance criteria are included in the quote. Power, gain, and VSWR data for this model are available. Please specify if third-party testing is required before placing the order.
How are the export packaging and certification documents for BCSK-W40 handled?
Modules are shipped in anti-static packaging with reinforced outer boxes. The complete unit includes additional cushioning and moisture protection based on its form factor. Copies of existing certification documents are available; certified model coverage is subject to the certificate terms. Target market compliance requirements must be confirmed prior to order placement.
