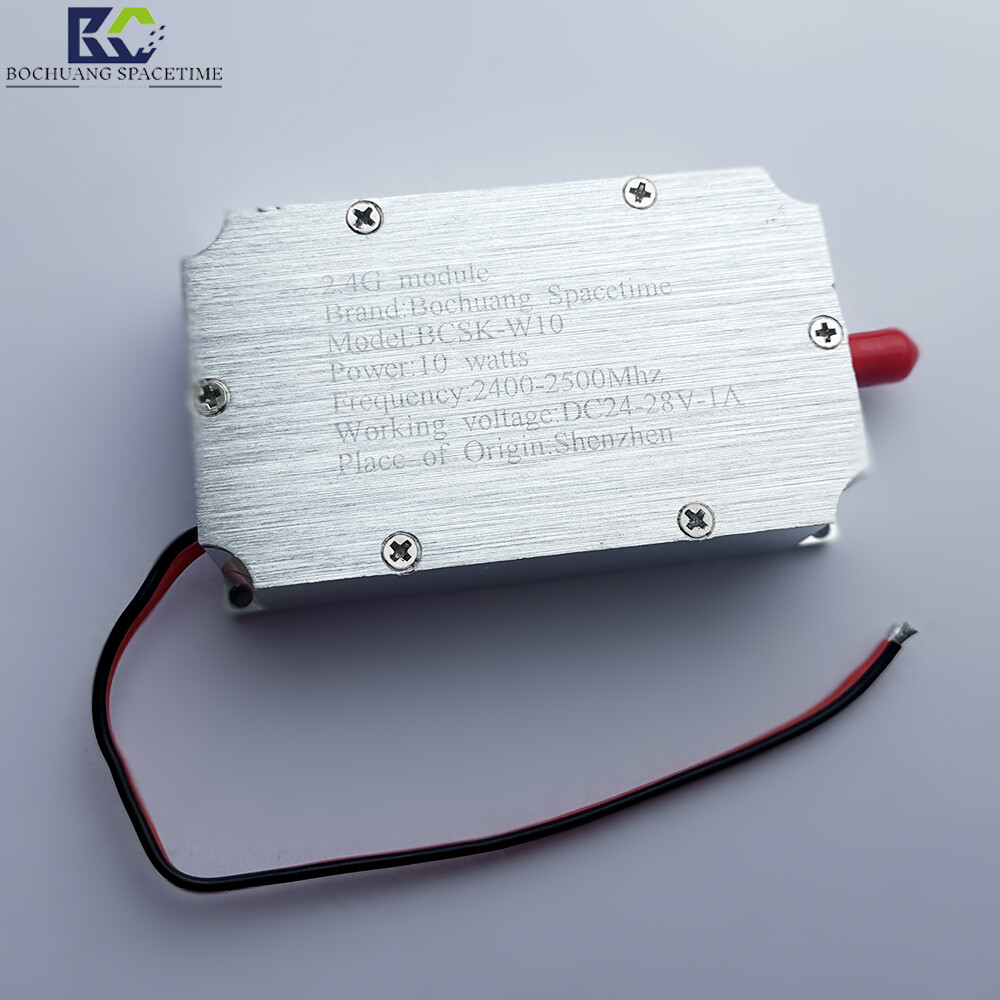

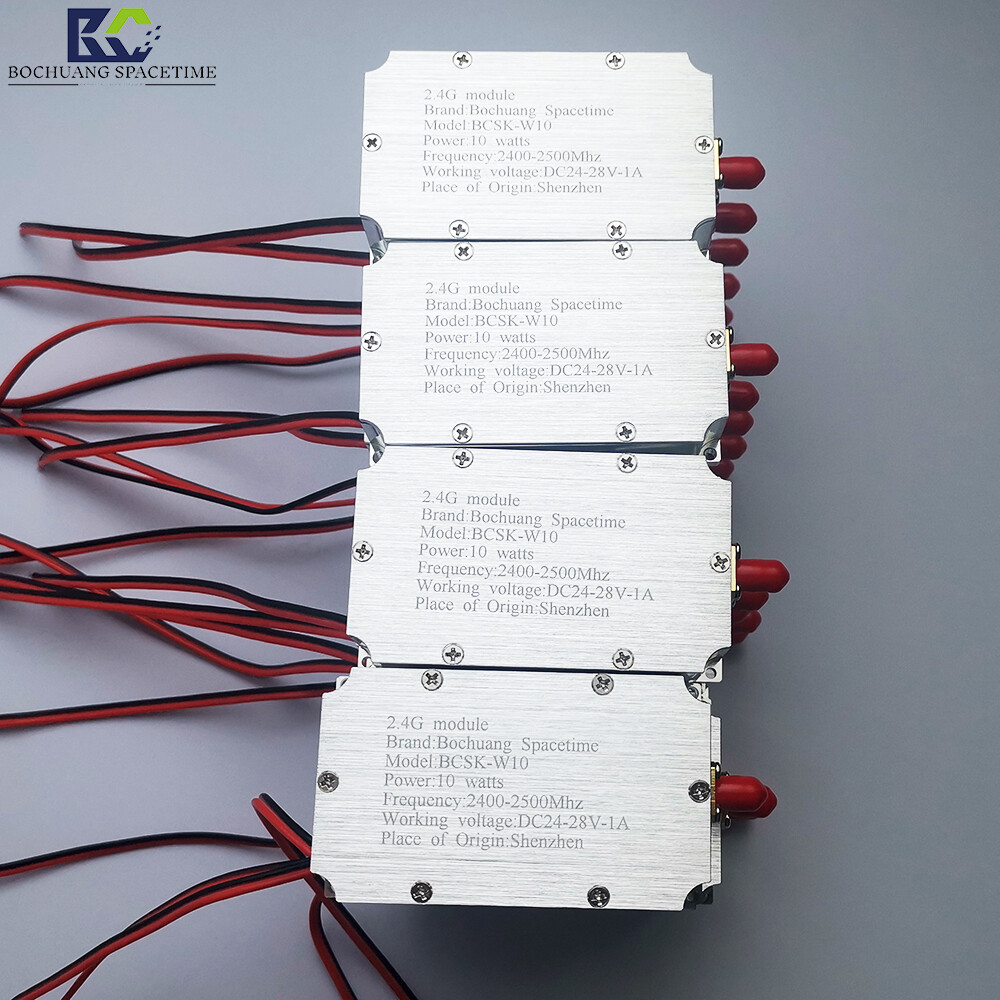

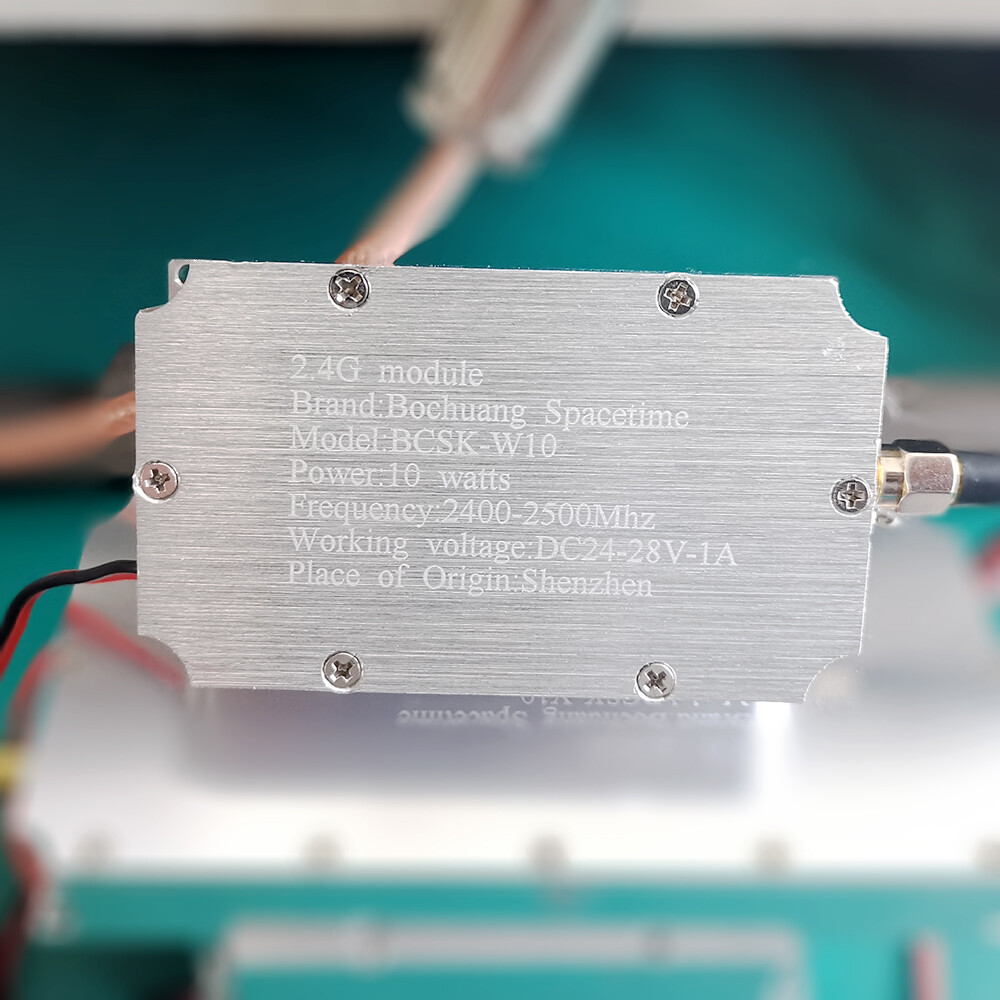

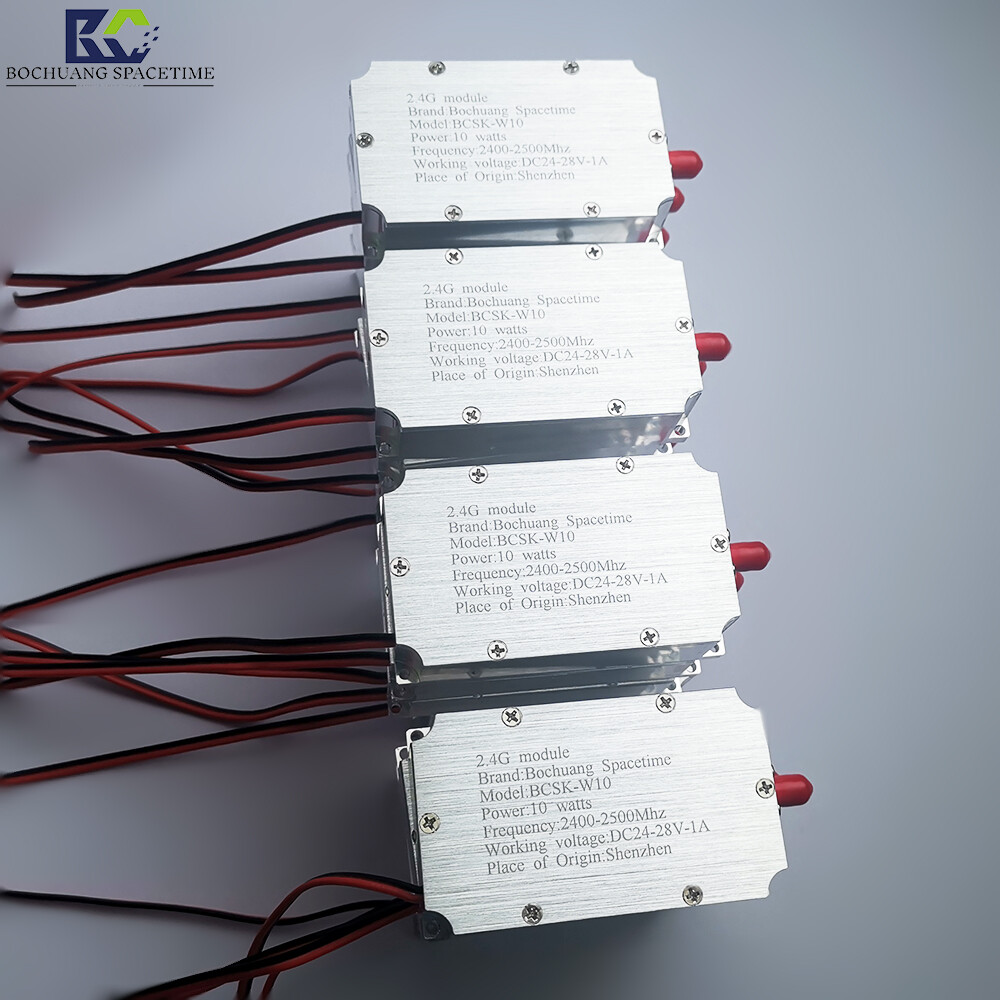

Bocreate Timespace BSKS-W10 Type 2.4G 10W RF Power Amplifier Module, designed for drone countermeasures and UAV WiFi video signal jamming.
The BOCCHUANG SHIKONG BSKS-W10 is a 10W RF power amplifier module designed for the 2.4GHz frequency band. Operating across 2400-2500MHz, it supports a wide DC voltage input range of 24V–28V. Ideal for drone countermeasure systems, WiFi video signal jamming, wireless image transmission interference, and FPV disruption, this module features high-stability design with consistent output power and excellent compatibility. It is the ideal choice for security, defense, and industrial communication applications.
In Stock（500）
BCSK-W10 10W High-Power RF Amplifier Module by BCSK, designed forDrone CountermeasuresSignal Interference
Product Description
Bochuang SpaceTimeLaunchedBCSK-W10 2.4GRF Power Amplifier Moduleis a solution designed specifically for2400-2500MHz bandHigh design
Performance solid-state amplifier. Designed for stability and high efficiency, delivering powerful10W output power, is professionalDrone Countermeasure System、WiFi signal interference
DisruptorAn ideal core component for long-range wireless transmission devices.
BCSK-W10 supportedDC 24V-28VWide voltage input ensures stable performance even in harsh environments. Its compact aluminum alloy housing provides excellent heat dissipation.
Thermal capability ensures reliability during continuous operation. Whether you are building custom...UAV Defense Systemwhether upgrading existing RF infrastructure or deploying new modules, this solution delivers.
Provides the precision and power required for effective signal control.
Key Features
High Power Output:Provide stable10W OutputProvides robust signal coverage to meet interference mitigation or signal enhancement needs.
Precise Band Coverage:Overwrite all2.4GHz ISM Band (2400-2500 MHz)Perfectly compatible with Wi-Fi (802.11 b/g/n), Bluetooth, and mainstream drones
Video transmission and control frequency.
Wide Voltage Compatibility:SupportedDC 24V to 28VProvides exceptional flexibility for integration into vehicle-mounted, backpack, or fixed power systems.

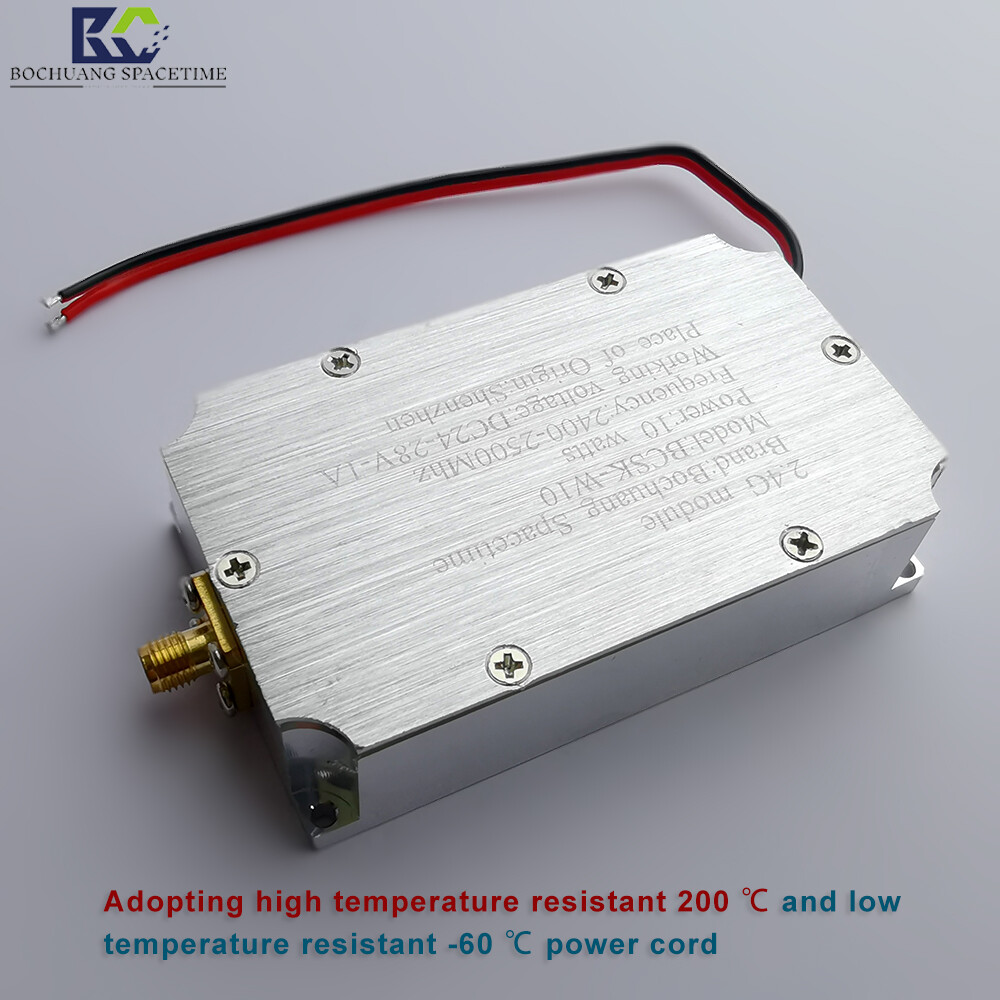

Superior Heat Dissipation Design:Built to lastAluminum alloy housingAs a heatsink, keep the module cool under heavy load to extend its lifespan.
Compact and lightweight:Designed for easy integration into handheld devices, backpack systems, or fixed arrays to save space.
High Reliability:Built with industrial-grade components to withstand harsh environments, ideal for security and defense applications.
Technical Specifications
Parameter Items | Specification Values | Notes |
|---|---|---|
Product Model | BCSK-W10 | Authentic product by Bochuang Space-Time |

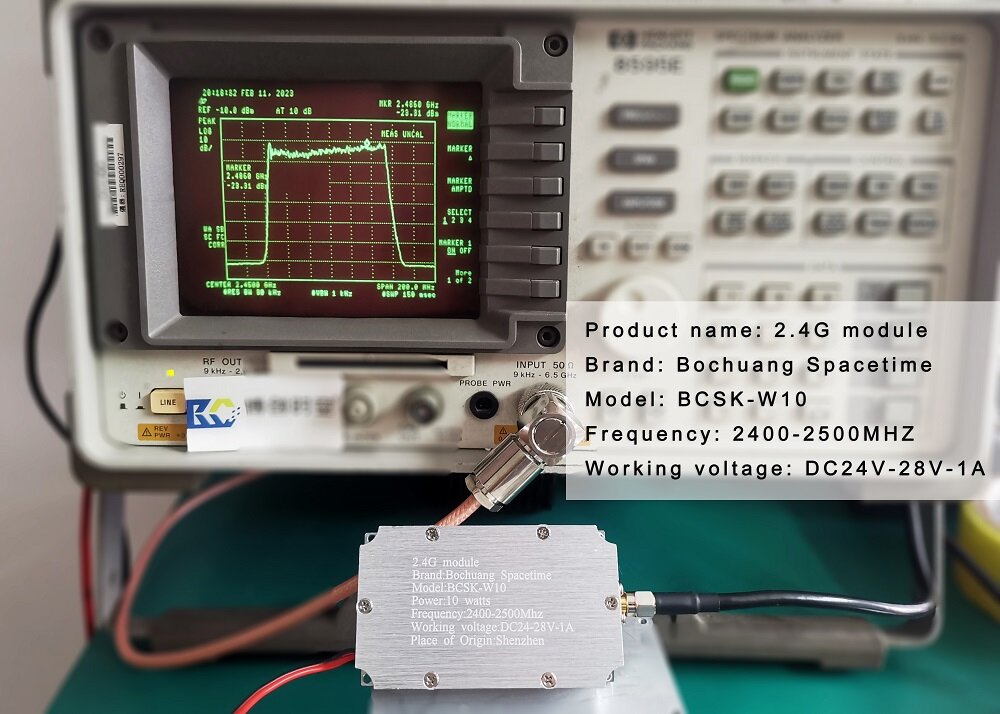

Operating Frequency | 2400 - 2500 MHz | Overwrite the entire 2.4G frequency band |
Output Power | 10 Watts (approximately 40dBm) | Typical value, subject to the specific test environment. |
Operating Voltage | DC 24V - 28V | Wide voltage design, 24V recommended.Industrial Power Supply |
Operating Current | ≤ 1A | Comprehensive consideration of static and dynamic current |
Gain | > 30 dB | Typical Gain Value (Requires Pre-driver) |

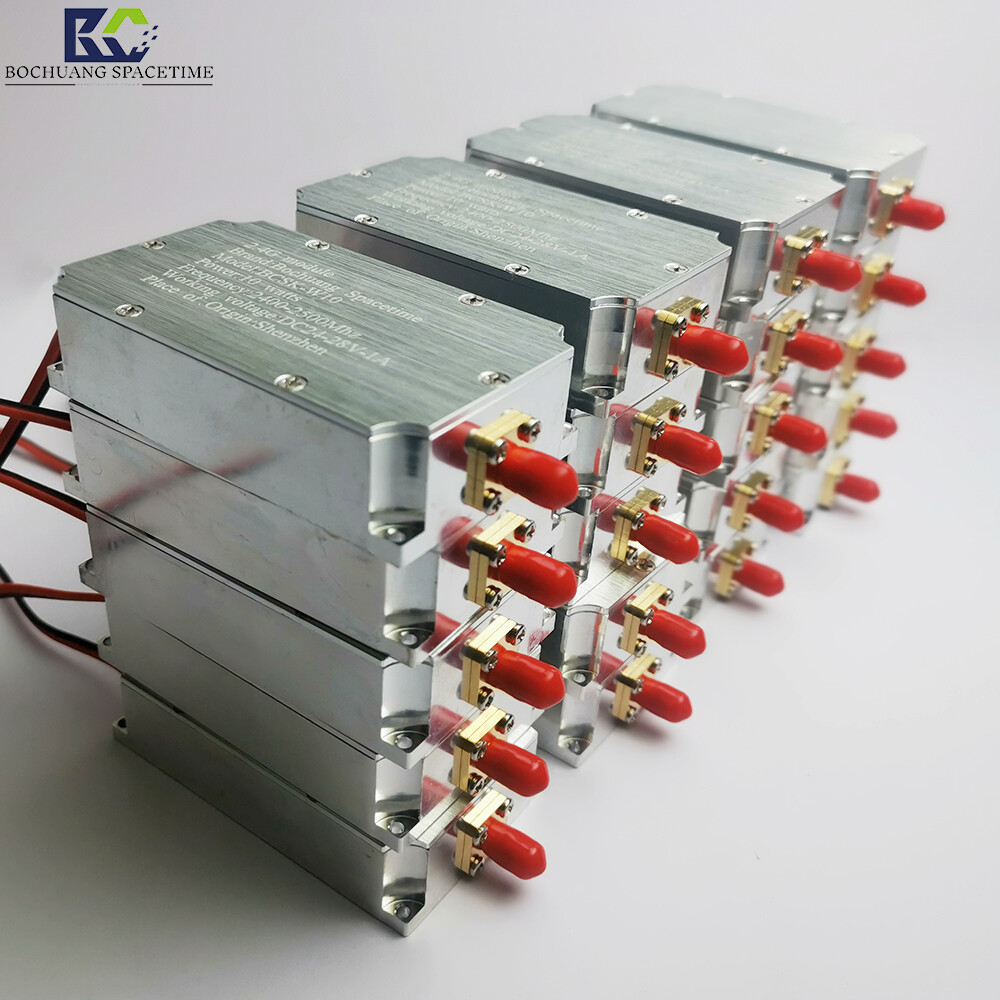

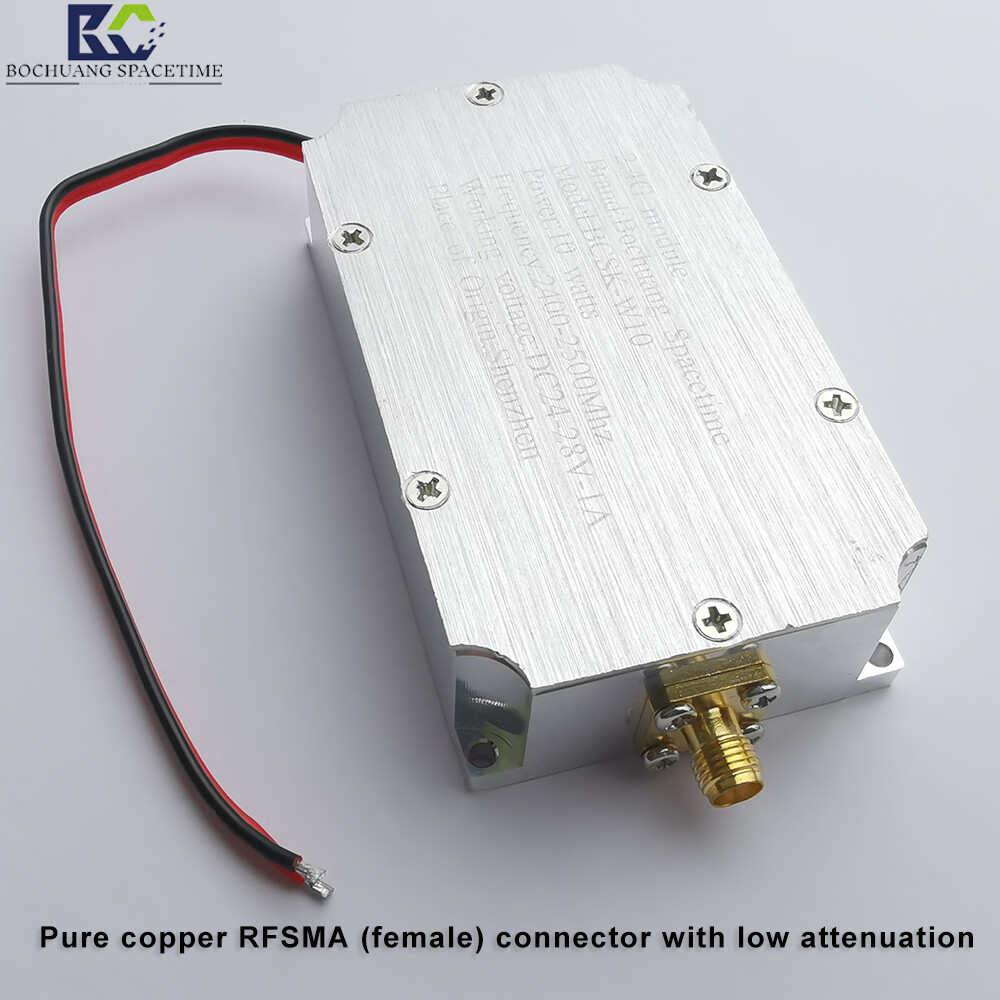

Interface Type | SMA-K / N-K | StandardRF ConnectorInterface for convenient antenna connection |
Dimensions | Compact metal enclosure | Easy to integrate and install |
Use Cases | Drone Countermeasures、Signal JammingVideo Transmission Enhancement | For various 2 4G RF systems |
Frequently Asked Questions (FAQ)
Q1: Can this 2.4G module be connected directly to an antenna for use?
A:Connects directly to the antenna. This is aPower Amplifier Module(PA) includes a built-in preamplifier drive signal source (such as a VCO signal generator or modulation board) for direct
Continue using.
Q2: Which specific drone models does this module interfere with?
A:Since it covers the standard 2400-2500MHz band, it is compatible with most consumer drones that use the 2.4GHz band for remote control and video transmission, including DJI.
Certain older DJI models, DIY-built aircraft, and hobby drones using the generic 2.4G protocol.
Q3: Are there any special requirements for the power supply?
A:Use Bochuang's low-ripple, stable DC power supply.Switching Power SupplyVoltage must be strictly maintained between DC 24V and 28V. Current reserve is recommended to be above 2A.
To prevent voltage drop caused by inrush current during instant startup.
Q4: Does the module get hot during operation? Do I need to add a fan?
A:The module enclosure itselfRadiatorSignificant heat is generated at full power (1W), which is normal. For extended continuous operation, we recommend adding a small
Add radiatorCooling FanBlow air across the aluminum casing to ensure optimal performance and longevity.
Q5: Can this module boost my home Wi-Fi signal?
A:No.Strongly Not RecommendedThis module has built-in noise.Signal Interference Source, it can severely interfere with Wi-Fi wireless networks. It is primarily used forDrone DefenseTarget-specific use of the strike system
Path.
Compare specs within the same series
Compare frequency bands, power, gain, and interfaces by model in a horizontal layout. Parameters are parsed from the model title; unlisted items display as dashes.
FAQ
Which frequency bands does the BCSK-W10 cover?
Operating frequency: 2.4 GHz. Please verify the carrier bands at your deployment location or the target link before placing an order. Contact us for custom band configuration if needed.
What is the output power of BCSK-W10?
Rated output power is 10W. Actual coverage depends on antenna gain, feeder loss, and site conditions; test data for specific configurations are available upon request.
Does the BCSK-W10 support customization and bulk purchasing?
Supported. Customization available for frequency bands, interfaces, housing markings, and packaging. Samples can be used for evaluation and validation; test records are provided with bulk shipments.
What is the procurement process for BCSK-W10?
Step 1: Submit your target frequency band, power level, and quantity. We'll provide a quote and recommended configuration within 1 business days. Step 2: Confirm sample specifications and testing requirements. Upon successful sample approval, place the order and pay the deposit. Step 3: Manufacture according to the confirmed frequency band combination and conduct factory testing. Include test records and packing list with shipment. Step 4: Ship per agreed trade terms. Pay the balance and receive all documents before shipment.
Does BCSK-W10 support prototyping and small-batch procurement?
Available. Prototypes can be configured at 2.4 GHz, 4 GHz, and 10W for system integration and field testing. Minimum order quantities depend on the model, frequency band combination, and appearance customization requirements. Prototype fees will be handled per agreement upon formal order placement.
How do we agree on the lead time and test data for BCSK-W10?
Production is scheduled by quantity and frequency band upon order confirmation. Lead time, test items, and acceptance criteria are included in the quote. Power, gain, and VSWR data for this model are available. Please specify if third-party testing is required before placing the order.
How are export packaging and certification documents handled for BCSK-W10?
Modules are shipped in anti-static packaging with reinforced outer boxes. The complete unit includes additional cushioning and moisture protection based on its form factor. Copies of existing certification documents are available; certified model coverage is subject to the certificate terms. Target market compliance requirements must be confirmed prior to order placement.
